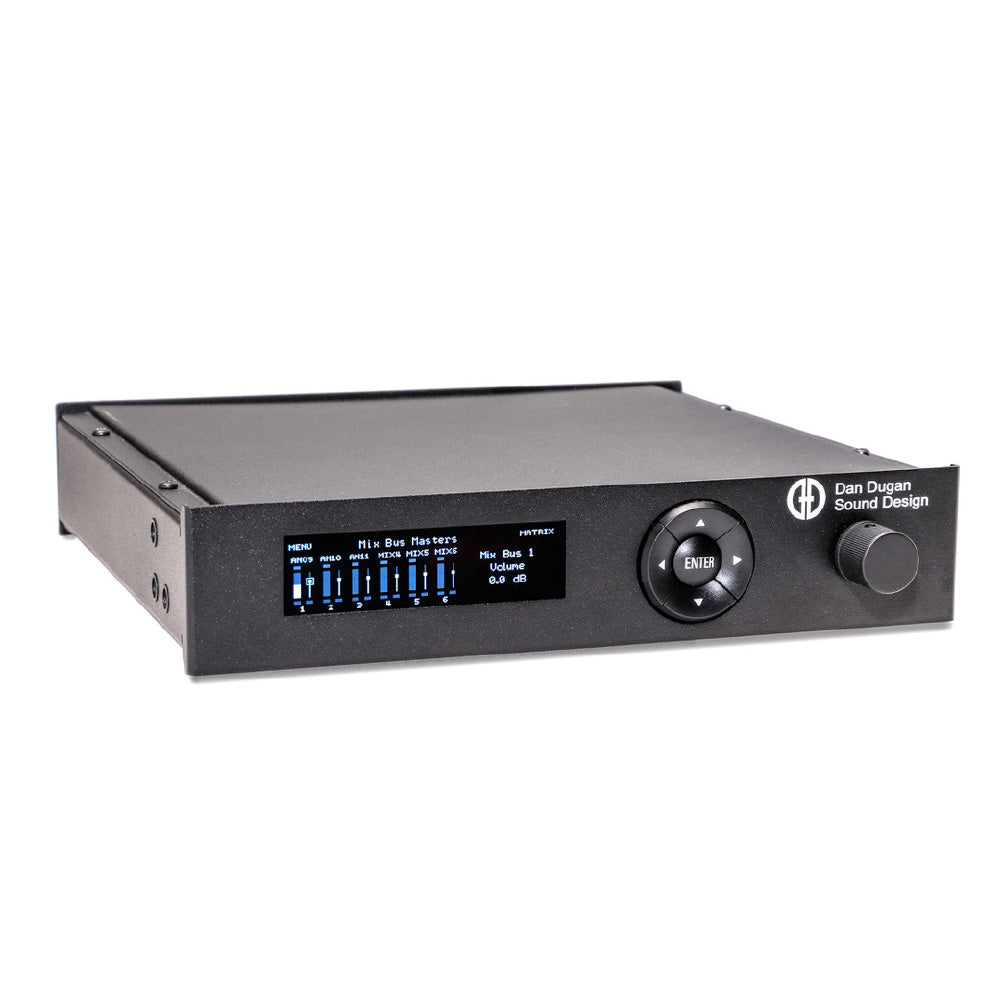

Dan Dugan Model E-2A Automatic Mixing Controller
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Dan Dugan Model E-2A Automatic Mixing Controller
Sale price$5,197.00
Description
The E-2A is an automatic mixing controller with balanced analog and digital audio connectivity.
Features:
- Eliminates late upcuts
- Reduces PA feedback and studio noise
- Reduces comb filtering from adjacent mics
- 28 channels of processing, 12 Analog plus 16 ADAT
- All Dugan algorithms: Speech System, Music System and Gain Limiting
- Six-bus pre/post matrix mixer
- Channels may be grouped into three independent automixers
- Four switched Ethernet ports available for control network
- Remote control from Dugan Control Panel for Java (included) and Dugan Control Panel for iPad (sold separately)
- Physical remote control from Dugan Model K Control Surface (sold separately)
- Miniature control panel for setup or adjustments from front panel
- Standard Dugan linking for larger systems
Potential Applications:
- TV news and sports panels, political debates
- Conference reinforcement, video trucks
- Reality shows, game shows
- Wireless mics for theater
- Boardrooms, civic meeting rooms
- Teleconferencing and distance learning
- Houses of worship
| Audio | |
| Analog I/O | 12 inputs active balanced, 12 outputs balanced and cross-coupled |
| Digital I/O | 8 inputs, 8 outputs, ADAT optical Linking disabled: LINK connectors reassigned as ADAT I/O 9-16 |
| Gain | Unity |
| Sample rate | Analog: 48 kHz Digital: 48 or 44.1 kHz (synchronizes to input) |
| Bit Depth | 24 bit |
| Audio Latency | 1.8 ms |
| Frequency response | 20 Hz to 12 kHz +/- 0.05 dB, 20 Hz to 20 kHz +/- 0.2 dB |
| Output noise | -87.5 dBu |
| Maximum output | +22 dBu |
| Distortion | 0.003% (THD + N) |
| Linking | Up to 8 units can be linked into one system in an optical ring network |
| Connectors | |
| Audio | Analog: 3x DB25 wired to TASCAM digital audio pinout Digital: ADAT optical I/O |
| Control | 4 x RJ45: Four-port internal switch for network |
| Linking | ADAT optical with proprietary format, reassigned for audio I/O when linking disabled |
| Power | |
| Connector | Coaxial with locking collar, 5.5 mm o.d., 2 mm i.d., center positive |
| Electrical | Nominal 12 VDC, 1.5 A maximum; accepts 12Ð24 VDC |
| External supply | Input: 100-240 VAC, 50-60 Hz, 30W Output: 18 VDC, 1.33 A |
| Approved | UL, CE |
| Dimensions | Height = 1.75 in (4.5 cm) Depth = 8.3 in (21 cm) Width = 8.75 in (22.2 cm) |
| Rack mounting | 1 RU, parts included to mount single unit or two units side-by-side |
| Weight | 5.9 lb (1.6 kg) 7 lb (2.6 kg) in shipping box with power supply |
