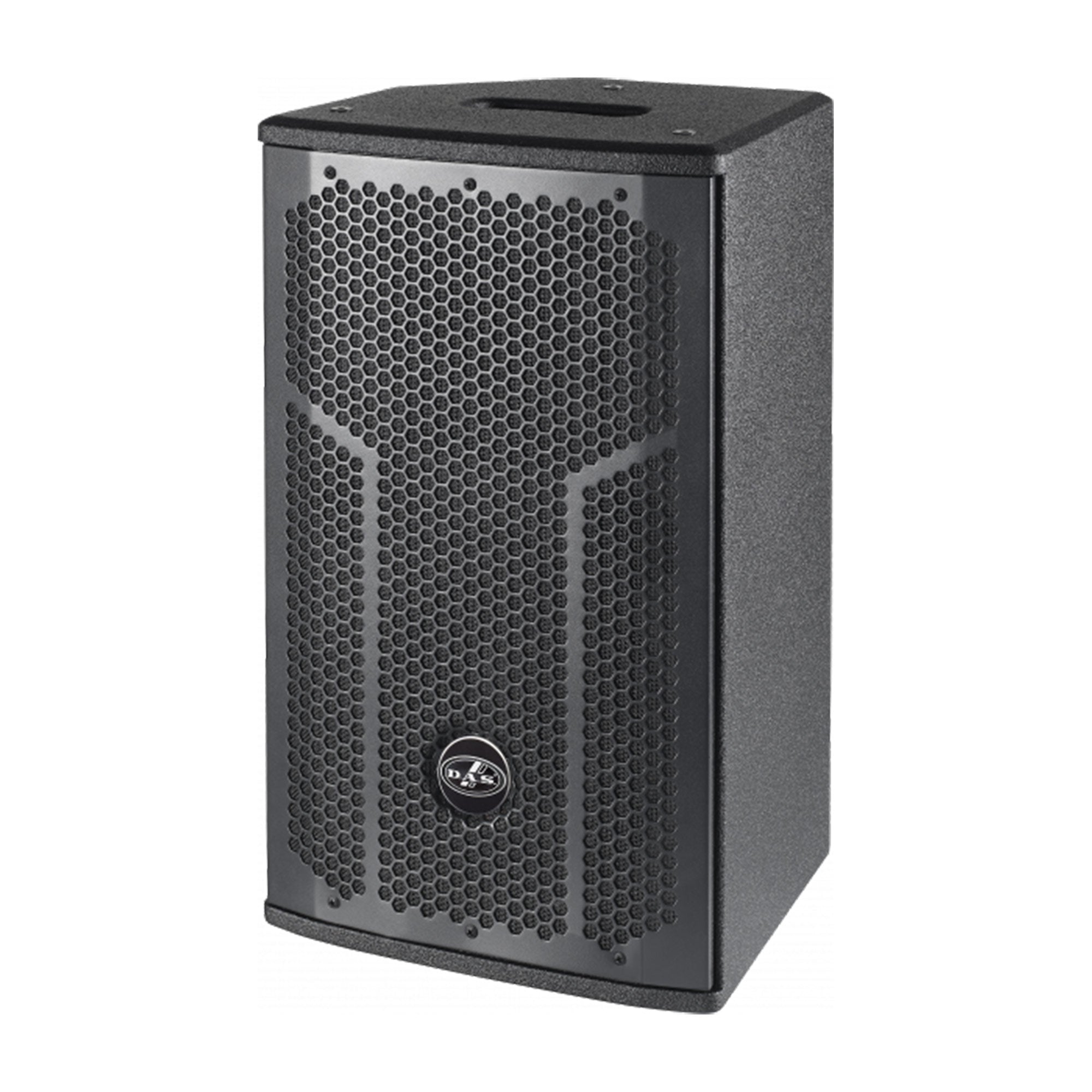

DAS ACTION-508 - Passive 2-Way 8-Inch Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
An unparalleled choice when compact size and weight matter, ACTION-508 is a passive system designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application. And its rotatable horn with 90º x 60º dispersion means the enclosure can be used horizontally in a fixed installation, as a stage monitor or even as front fill.
The new 8GV speaker has 150W of power and enhanced excursion capacity for much lower distortion coupled with a higher SPL. As part of a company culture, all DAS systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.
For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.
Features:
- Passive, 150 W, 8-inch, 2 way full-range, 90×60 rotatable horn, black
- SPL Max: 124 dB
- Dispersion: 90º x 60º
- Weight: 10,5 kg ( 23,1 lb )
| Performance | |
| Frequency Range (-10 dB) | 60 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 60¼ |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 150 W |
| Peak Power Handling | 600 W |
| On-axis Sensitivity 1W/1 m | 94 dB SPL |
| Maximum Peak SPL at 1 m | 124 dB |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M8 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 260 mm (10,2 in) |
| Dimensions ( H x W x D ) | 485 x 285 x 260 mm 19,1 x 11,2 x 10,2 in |
| Net Weight | 10,5 kg ( 23,1 lb ) |
| Components | |
| LF Driver | 8GV |
| HF Driver | M-34 |
| Horn/Waveguide | BCT-96 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 547 x 335 x 307 mm 21,5 x 13,2 x 12,1 in |
| Shipping Weight | 11,5 kg ( 25,3 lb ) |
