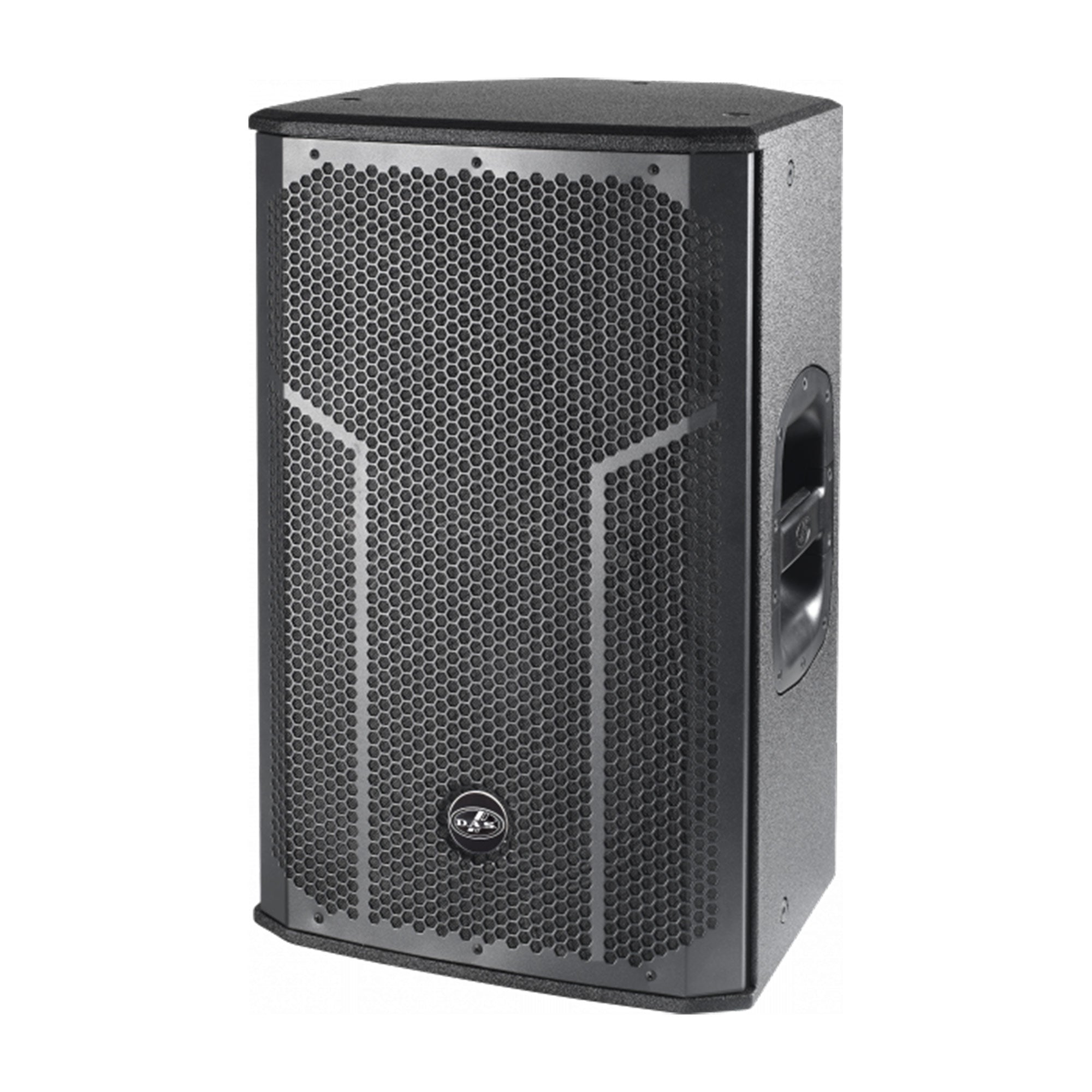

DAS ACTION-512A - Active 2-Way 12-Inch Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
ACTION-512A is an active system designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application. Its rotatable horn with 90º x 60º dispersion means the enclosure can be used horizontally in a fixed installation, as a stage monitor or even as front fill.
As part of a company culture, all DAS systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series they use the same birch plywood as their touring systems for a tight, natural warm sound found nowhere else on the market. The series’ full range of active tops is complete with two balanced XLR inputs for mic and line, an additional 3.5 mm mini jack input, and a powerCON connection.
The system has a 12MI4 speaker for low frequencies and an M-34 compression driver for high frequencies which, together with the 1000 Wpeak Class D amplifier, deliver outstanding performance. The DAScontrol™ interface uses a high-range 24-bit DSP and rear LCD screen to enable the selection of presets, EQ modes, delay, gain control and signal source mix.
Features:
- Powered, 500 W, 12-inch, 2 way full-range, 90×60 rotatable horn, black
- SPL Max: 131 dB
- Dispersion: 90º x 60º
- Weight: 20,0 kg ( 44,1 lb )
| Performance | |
| Frequency Range (-10 dB) | 50 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 60¼ |
| Maximum Peak SPL at 1 m | 131 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 500 W |
| Nominal Amplifier Power (peak) | 1000 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| AUX Input | 1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Control | DAScontrolª |
| Current Draw 230 V / 115 V | 1.1 A/2.2 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 620 x 385 x 380 mm 24,4 x 15,2 x 15,0 in |
| Net Weight | 20,0 kg ( 44,1 lb ) |
| Components | |
| LF Driver | 12MI4 |
| HF Driver | M-34 |
| Horn/Waveguide | BC-916 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 690 x 435 x 435 mm 27,2 x 17,1 x 17,1 in |
| Shipping Weight | 22,5 kg ( 49,6 lb ) |
