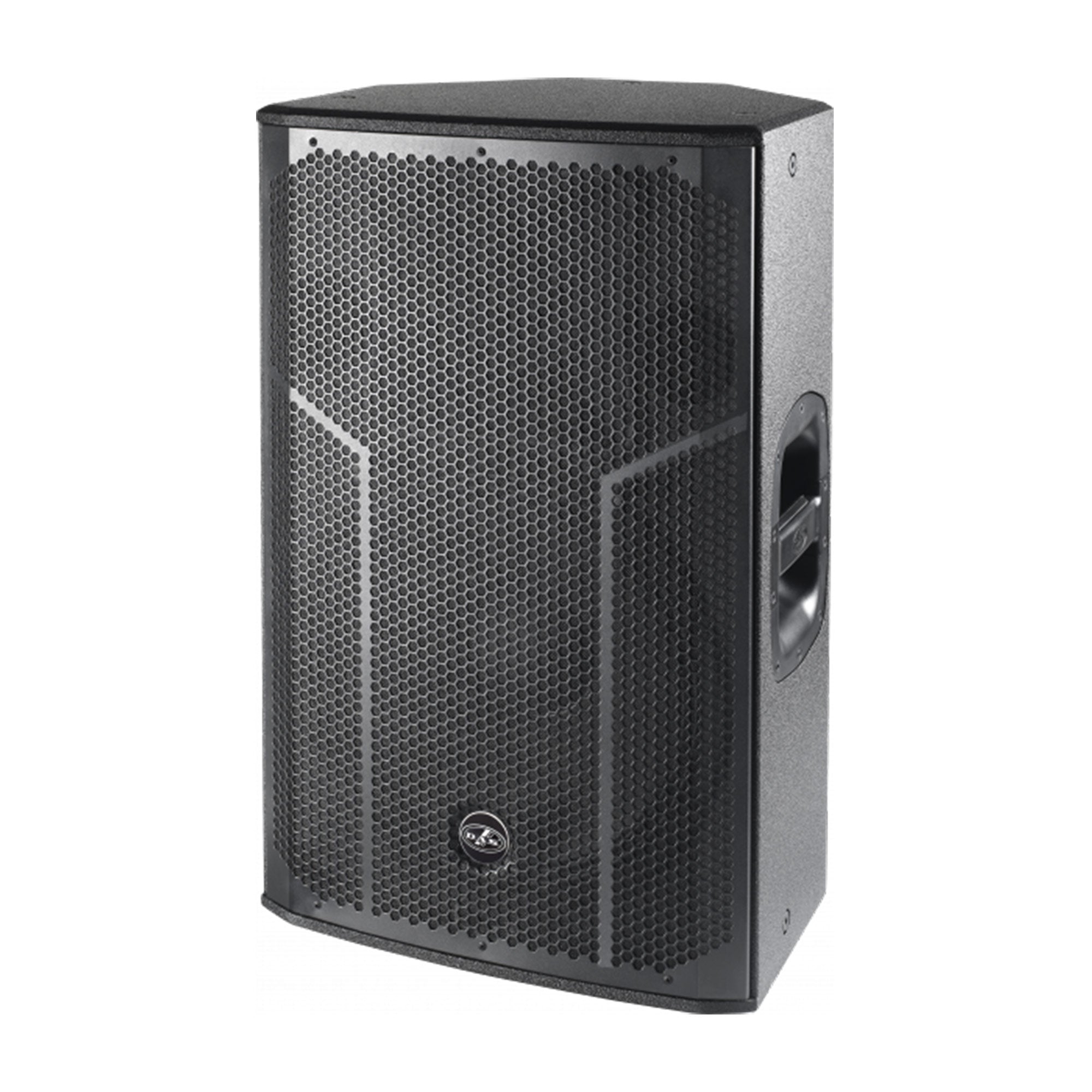

DAS ACTION-515 - Passive 2-Way 15-Inch Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
ACTION-515 is a passive system designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application. Its rotatable horn with 90º x 60º dispersion means the enclosure can be used horizontally in a fixed installation, as a stage monitor or even as front fill.
As part of a company culture, all DAS systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series they use the same birch plywood as their touring systems for a tight, natural warm sound found nowhere else on the market.
For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.
Features:
- Passive, 350 W, 15-inch, 2 way full-range, 90×60 rotatable horn, black
- SPL Max: 131 dB
- Dispersion: 90º x 60º
- Weight: 22,0 kg ( 50,2 lb )
| Performance | |
| Frequency Range (-10 dB) | 47 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 60¼ |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 350 W |
| Peak Power Handling | 1400 W |
| On-axis Sensitivity 1W/1 m | 96 dB SPL |
| Maximum Peak SPL at 1 m | 131 dB |
| Connectors | |

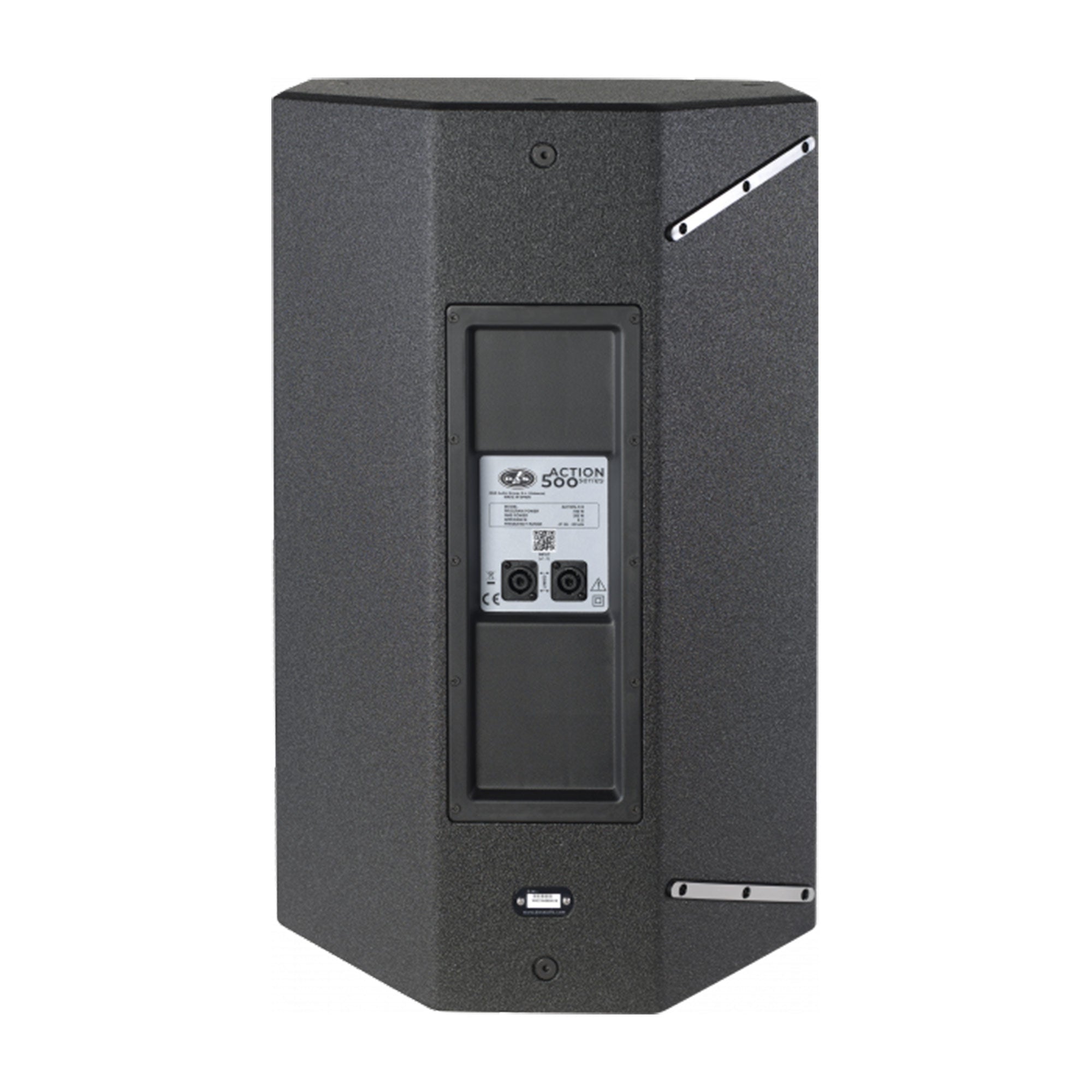

| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 385 mm (15,2 in) |
| Dimensions ( H x W x D ) | 720 x 445 x 385 mm 28,3 x 17,5 x 15,2 in |
| Net Weight | 22,0 kg ( 50,2 lb ) |
| Components | |
| LF Driver | 15MI |
| HF Driver | M-34 |
| Horn/Waveguide | BC-916 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 785 x 430 x 505 mm 30,9 x 16,9 x 19,9 in |
| Shipping Weight | 24,5 kg ( 54,0 lb ) |
