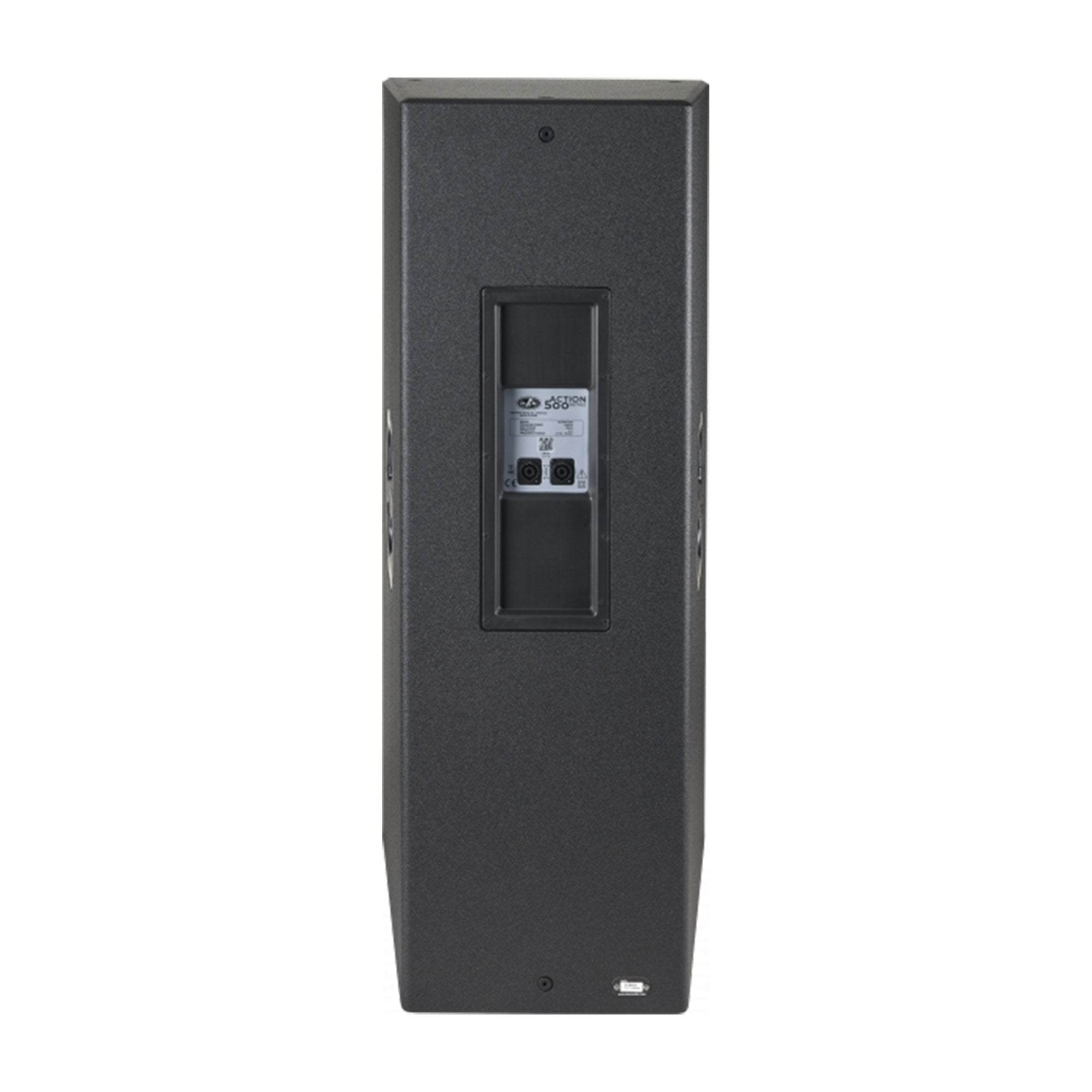

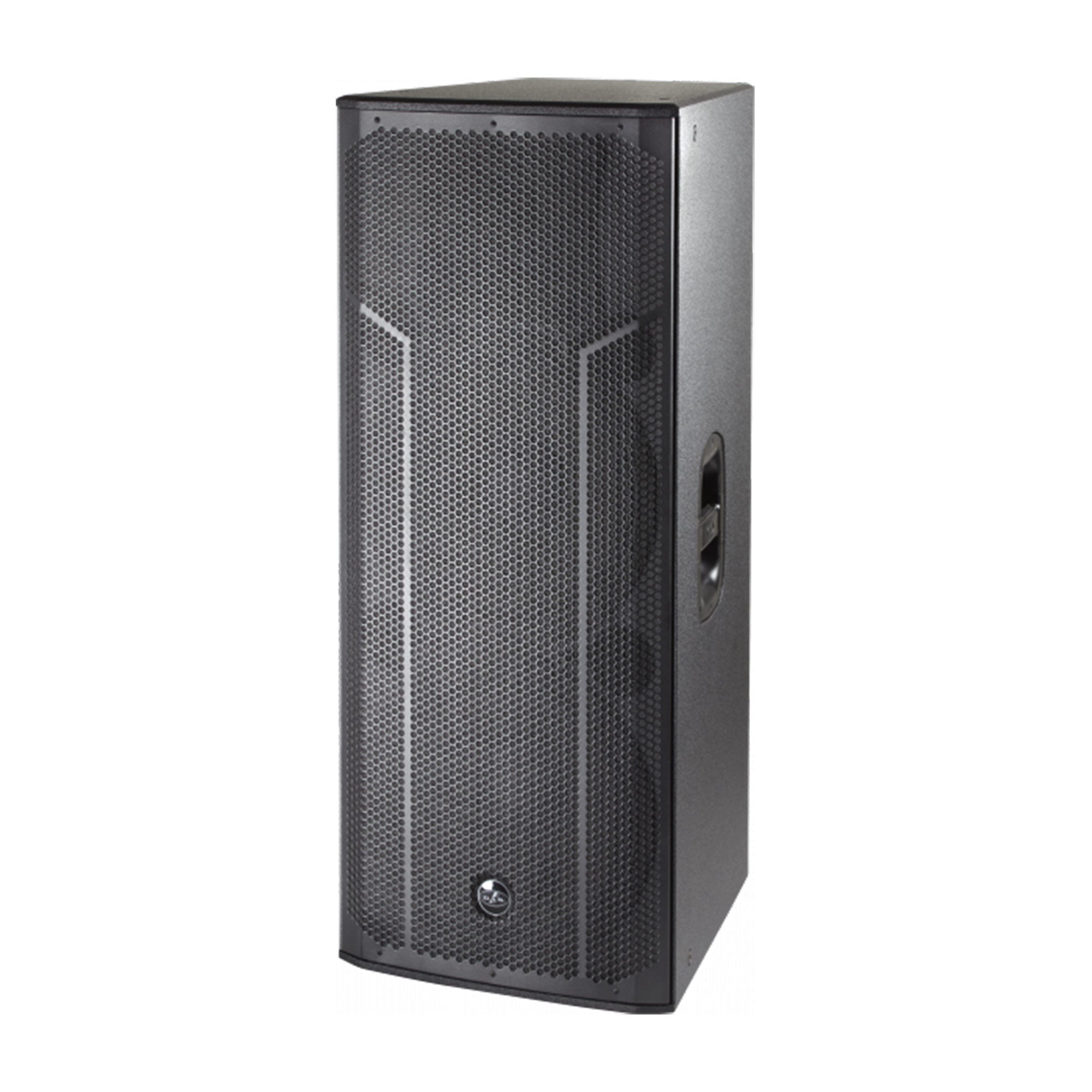

DAS ACTION-525 - Passive 2-Way Dual 15-Inch Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
ACTION-525 is a passive system that incorporates two 15” speakers that deliver a greater SPL than the simple 15” plus enhanced bass for events that require both powerful sound and simple adjustment.
As part of a company culture, all DAS systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series they use the same birch plywood as their touring systems for a tight, natural warm sound found nowhere else on the market.
For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.
Features:
- Passive, 700 W, 2x 15-inch, 2 way full-range, 90×60 rotatable horn, black
- SPL Max: 134 dB
- Dispersion: 90º x 60º
- Weight: 38,5 kg ( 84,9 lb )
| Performance | |
| Frequency Range (-10 dB) | 47 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 60¼ |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 700 W |
| Peak Power Handling | 2800 W |
| On-axis Sensitivity 1W/1 m | 99 dB SPL |
| Maximum Peak SPL at 1 m | 134 dB |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 515 mm (20,3 in) |
| Dimensions ( H x W x D ) | 1.090 x 445 x 515 mm 42,9 x 17,5 x 20,3 in |
| Net Weight | 38,5 kg ( 84,9 lb ) |
| Components | |
| LF Driver | 15MI |
| HF Driver | M-44 |
| Horn/Waveguide | BC-916 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 1.165 x 515 x 560 mm 45,9 x 20,3 x 22,1 in |
| Shipping Weight | 41,5 kg ( 91,5 lb ) |
ACTION-525 is a passive system that incorporates two 15” speakers that deliver a greater SPL than the simple 15” plus enhanced bass for events that require both powerful sound and simple adjustment.
As part of a company culture, all DAS systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series they use the same birch plywood as their touring systems for a tight, natural warm sound found nowhere else on the market.
For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.
Features:
- Passive, 700 W, 2x 15-inch, 2 way full-range, 90×60 rotatable horn, black
- SPL Max: 134 dB
- Dispersion: 90º x 60º
- Weight: 38,5 kg ( 84,9 lb )
| Performance | |
| Frequency Range (-10 dB) | 47 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 60¼ |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 700 W |
| Peak Power Handling | 2800 W |
| On-axis Sensitivity 1W/1 m | 99 dB SPL |
| Maximum Peak SPL at 1 m | 134 dB |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 515 mm (20,3 in) |
| Dimensions ( H x W x D ) | 1.090 x 445 x 515 mm 42,9 x 17,5 x 20,3 in |
| Net Weight | 38,5 kg ( 84,9 lb ) |
| Components | |
| LF Driver | 15MI |
| HF Driver | M-44 |
| Horn/Waveguide | BC-916 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 1.165 x 515 x 560 mm 45,9 x 20,3 x 22,1 in |
| Shipping Weight | 41,5 kg ( 91,5 lb ) |
