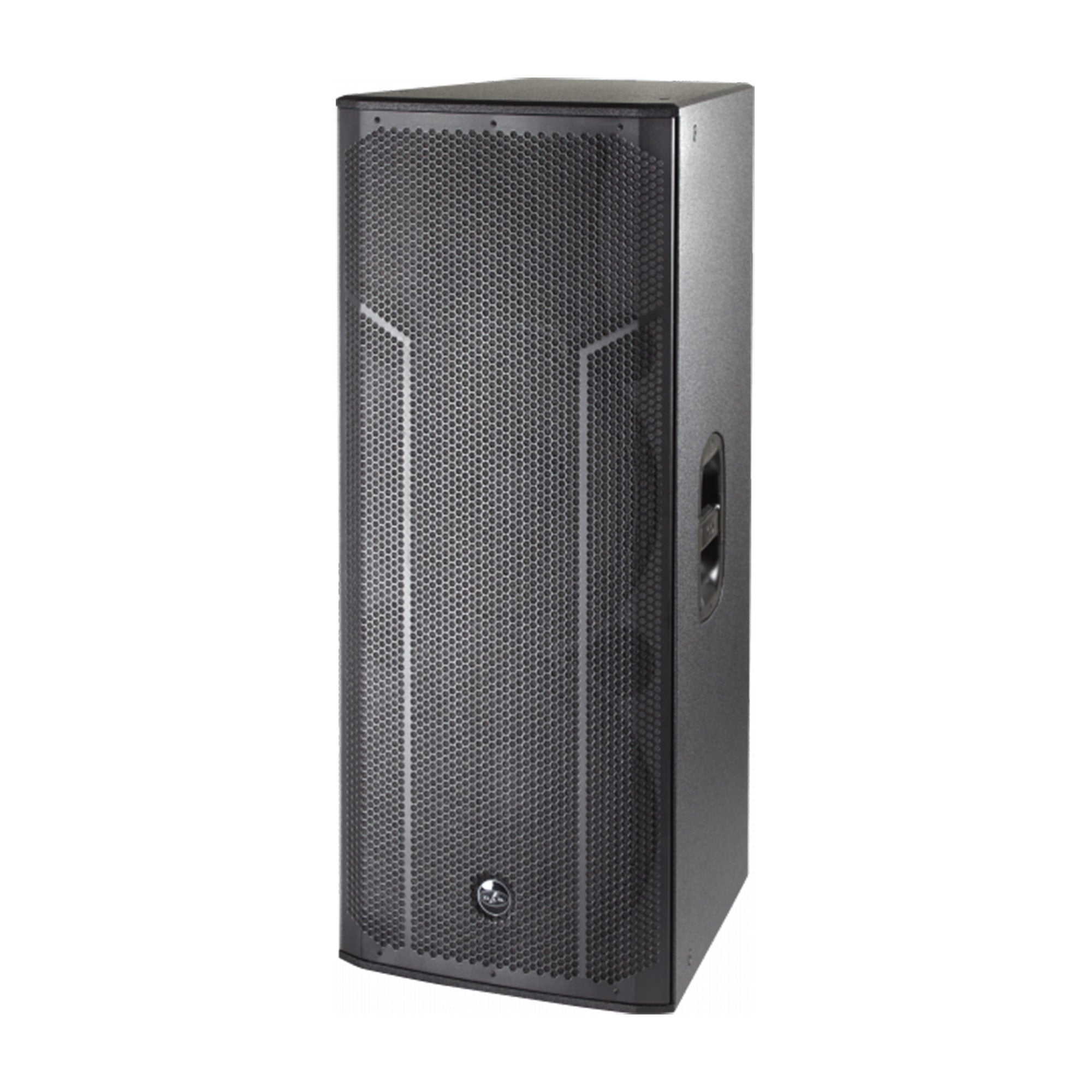

DAS ACTION-525A - Active 2-Way Dual 15-Inch Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
ACTION-525A is an active system composed of two 15MI speakers that deliver a greater SPL than the simple 15” plus enhanced bass for events that require both powerful sound and simple adjustment.

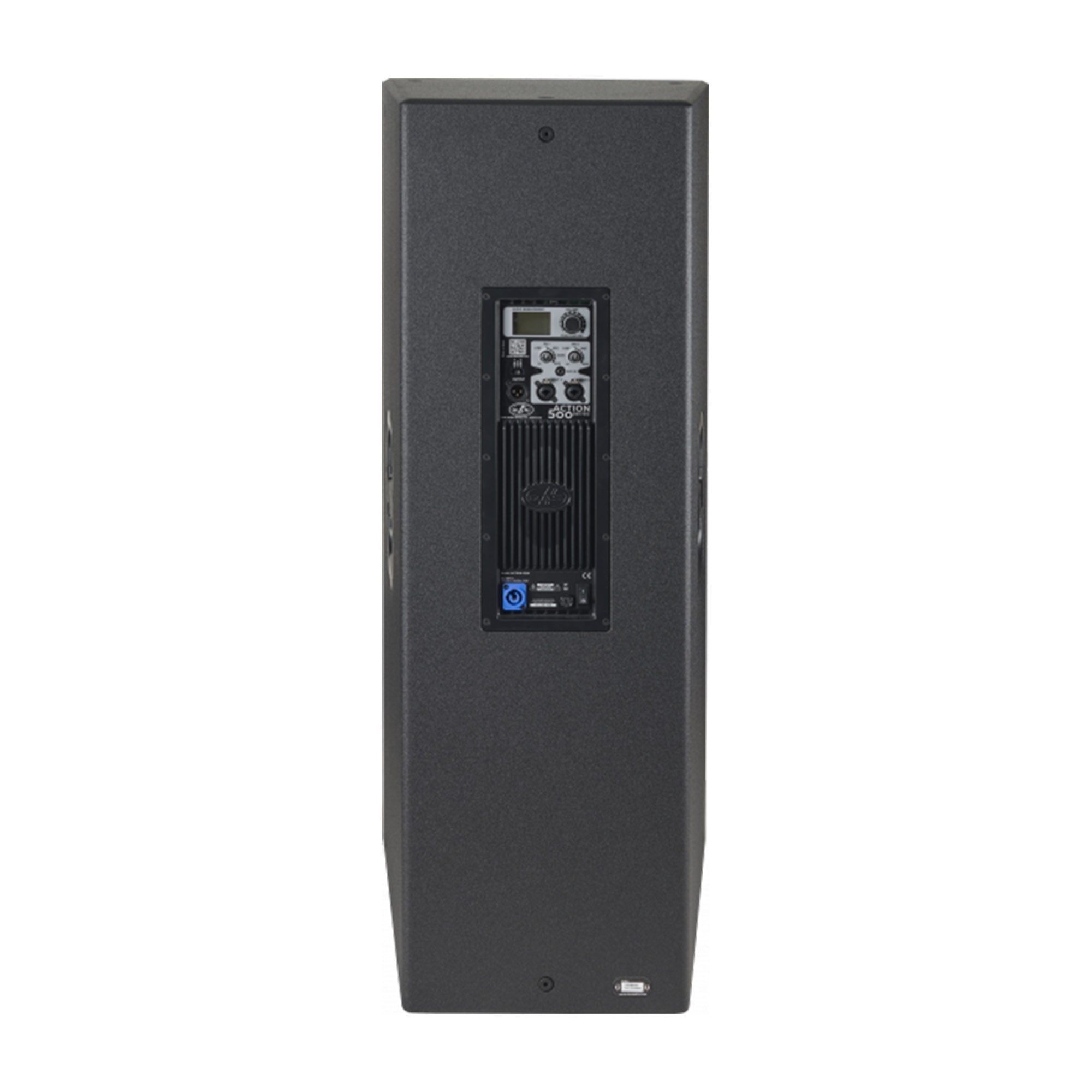

As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market. The series’ full range of active tops is complete with two balanced XLR inputs for mic and line, an additional 3.5 mm mini jack input, and a powerCON connection.
The DAScontrol™ interface uses a high-range 24-bit DSP and rear LCD screen to enable the selection of presets, EQ modes, delay, gain control and signal source mix.
Features:
- Powered, 1000 W, 2x 15-inch, 2 way full-range, 90×60 rotatable horn, black
- SPL Max: 134 dB
- Dispersion: 90º x 60º
- Weight: 39,5 kg ( 87,1 lb )
| Performance | |
| Frequency Range (-10 dB) | 45 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 60¼ |
| Maximum Peak SPL at 1 m | 134 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 500 W |
| Nominal Amplifier Power (peak) | 1000 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| AUX Input | 1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Control | DAScontrolª |
| Current Draw 230 V / 115 V | 1.1 A/2.2 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 1.090 x 445 x 515 mm 42,9 x 17,5 x 20,3 in |
| Net Weight | 39,5 kg ( 87,1 lb ) |
| Components | |
| LF Driver | 15MI |
| HF Driver | M-44 |
| Horn/Waveguide | BC-916 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 1.165 x 515 x 560 mm 45,9 x 20,3 x 22,1 in |
| Shipping Weight | 43,5 kg ( 95,9 lb ) |
