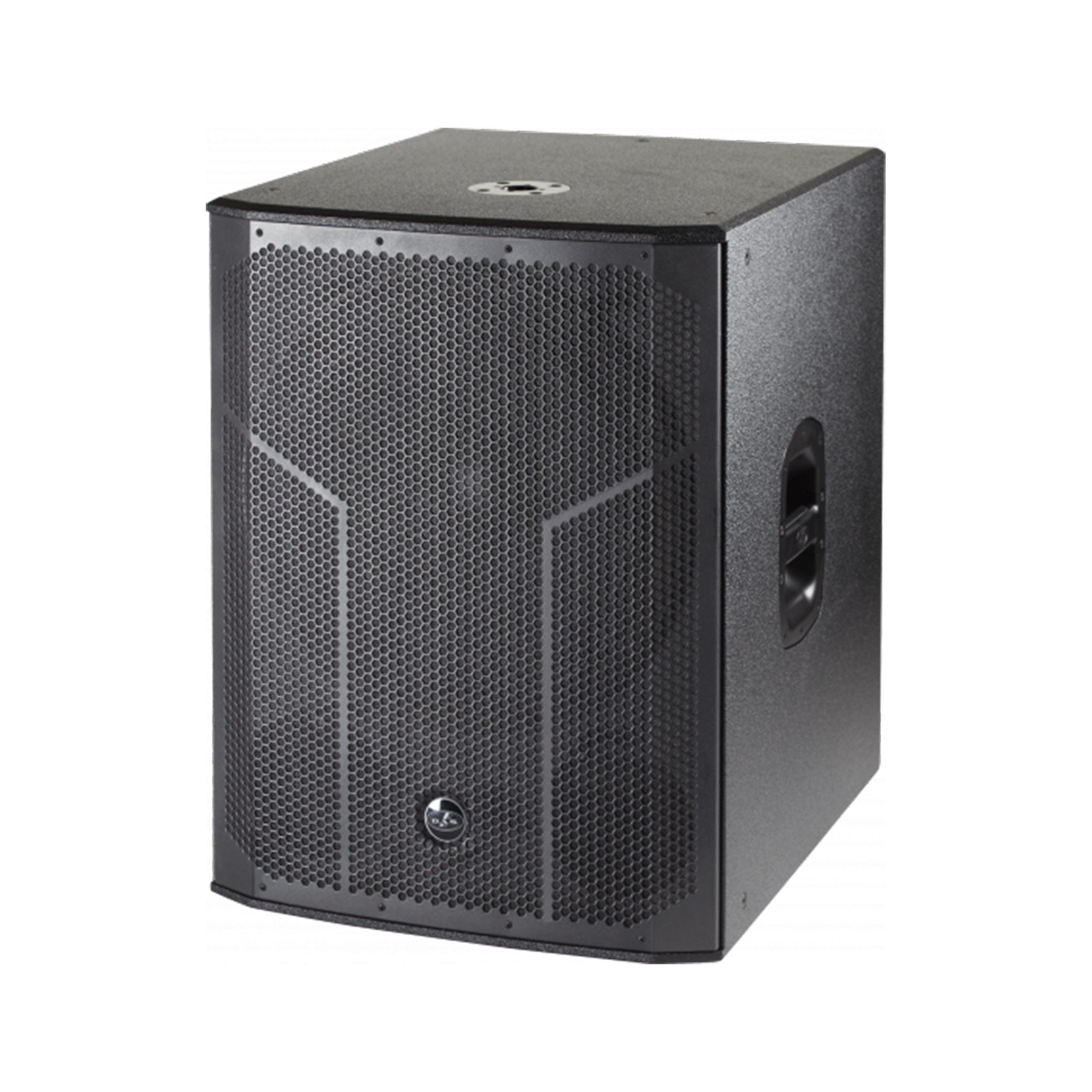

DAS ACTION-S18 - Passive 18-Inch Subwoofer (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
ACTION-S18 is a passive direct radiation subwoofer system composed of a single 18FW speaker with a 3” coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that works to reduce the effects of coil heating, improving the system’s overall performance as a result.
As part of a company culture, all DAS systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series they use the same birch plywood as their touring systems for a tight, natural warm sound found nowhere else on the market.
For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.
Features:
- Passive, 600 W, 18-inch, bass-reflex subwoofer, black
- SPL Max: 133 dB
- Dispersion: Omnidirectional
- Weight: 40,5 kg ( 89,1 lb )
| Performance | |
| Frequency Range (-10 dB) | 33 Hz Ð 160 Hz |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 600 W |
| Peak Power Handling | 2400 W |
| On-axis Sensitivity 1W/1 m | 96 dB SPL |
| Maximum Peak SPL at 1 m | 133 dB |
| Connectors | |

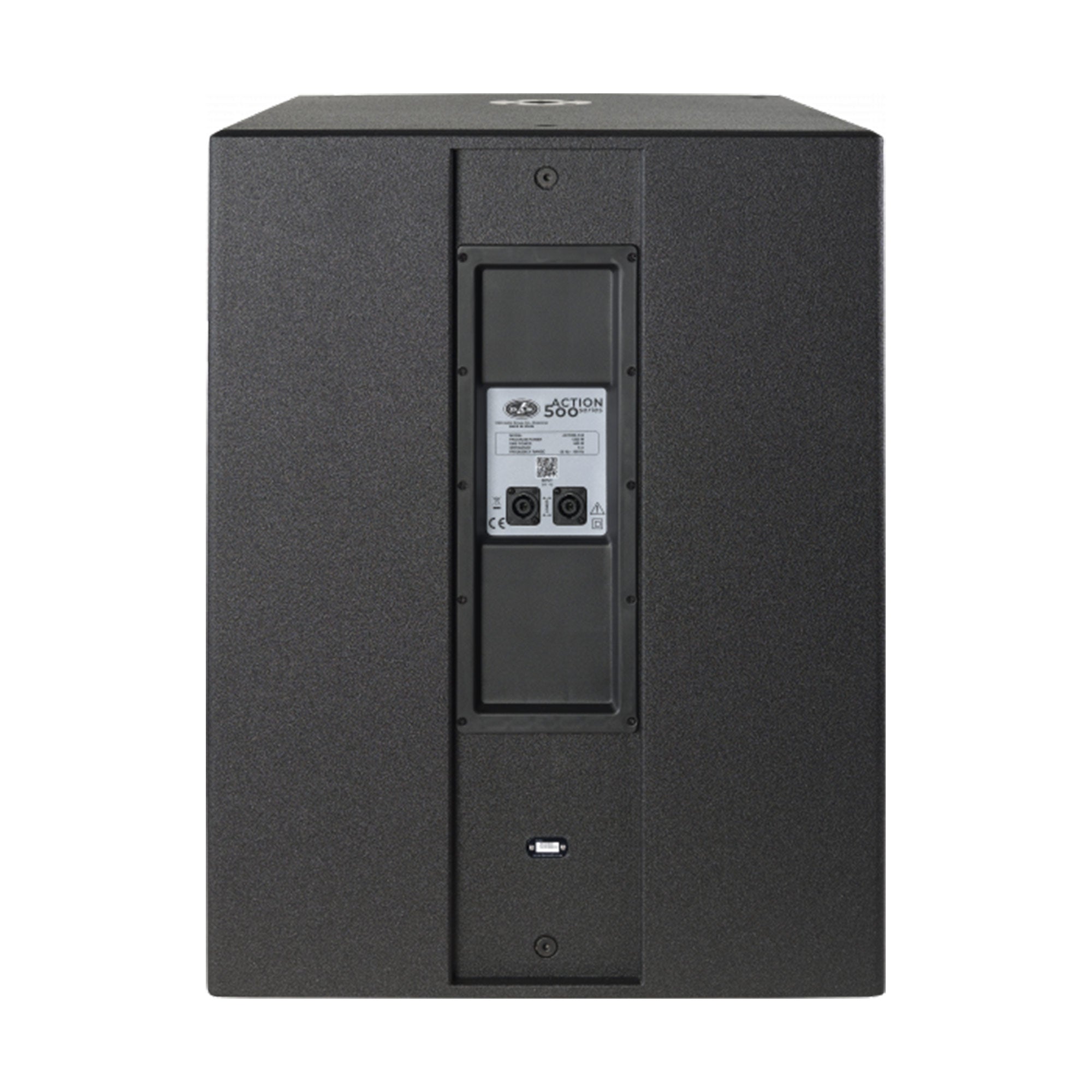

| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 660 mm (26,0 in) |
| Dimensions ( H x W x D ) | 720 x 545 x 660 mm 28,3 x 21,5 x 26,0 in |
| Net Weight | 40,5 kg ( 89,1 lb ) |
| Components | |
| LF Driver | 18FW |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 795 x 595 x 690 mm 31,3 x 23,4 x 27,2 in |
| Shipping Weight | 42,7 kg ( 93,9 lb ) |
ACTION-S18 is a passive direct radiation subwoofer system composed of a single 18FW speaker with a 3” coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that works to reduce the effects of coil heating, improving the system’s overall performance as a result.
As part of a company culture, all DAS systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series they use the same birch plywood as their touring systems for a tight, natural warm sound found nowhere else on the market.
For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.
Features:
- Passive, 600 W, 18-inch, bass-reflex subwoofer, black
- SPL Max: 133 dB
- Dispersion: Omnidirectional
- Weight: 40,5 kg ( 89,1 lb )
| Performance | |
| Frequency Range (-10 dB) | 33 Hz Ð 160 Hz |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 600 W |
| Peak Power Handling | 2400 W |
| On-axis Sensitivity 1W/1 m | 96 dB SPL |
| Maximum Peak SPL at 1 m | 133 dB |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 660 mm (26,0 in) |
| Dimensions ( H x W x D ) | 720 x 545 x 660 mm 28,3 x 21,5 x 26,0 in |
| Net Weight | 40,5 kg ( 89,1 lb ) |
| Components | |
| LF Driver | 18FW |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 795 x 595 x 690 mm 31,3 x 23,4 x 27,2 in |
| Shipping Weight | 42,7 kg ( 93,9 lb ) |
