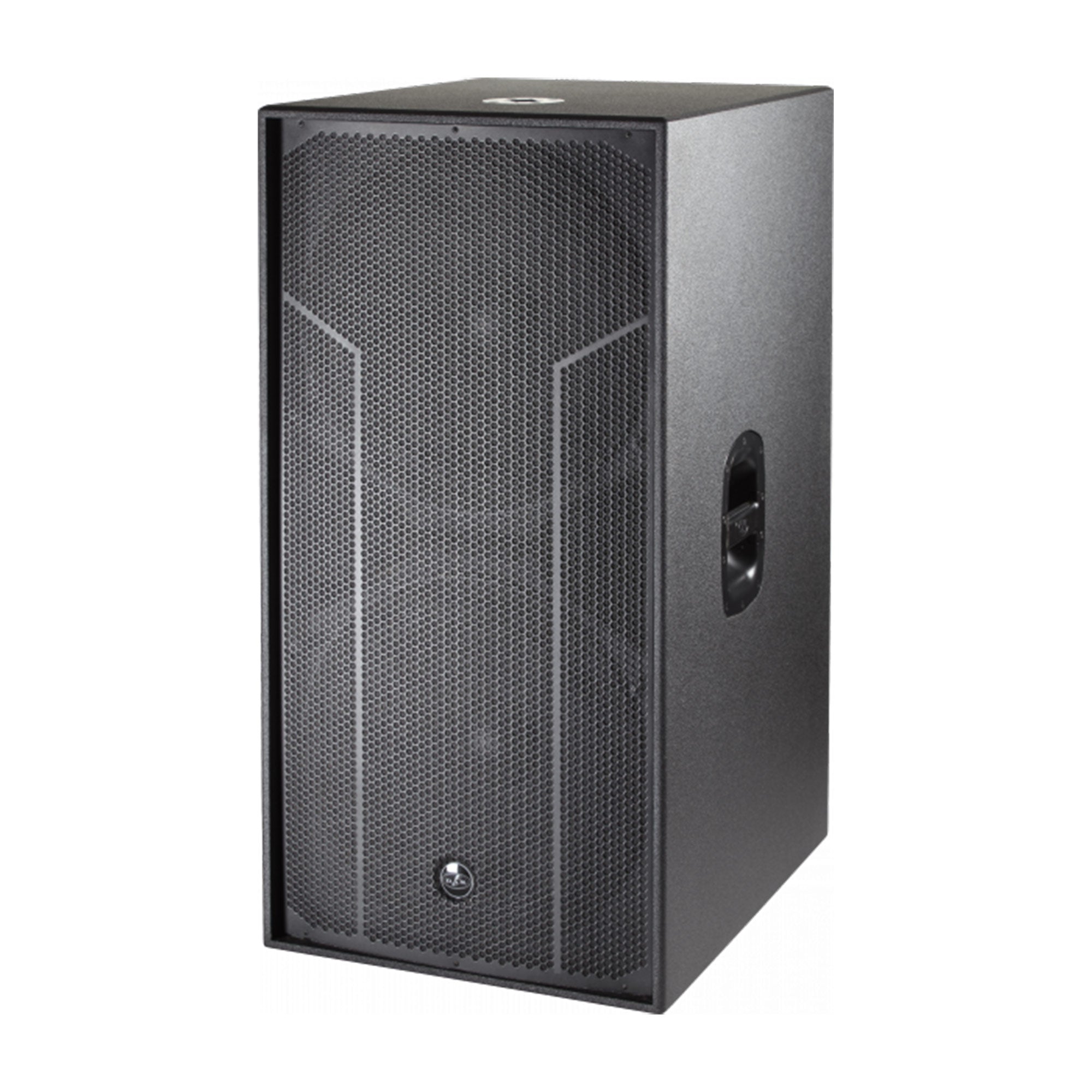

DAS ACTION-S218A - Active Dual 18-Inch Subwoofer (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
ACTION-S218A is a high-power active subwoofer system that incorporates a 3200 Wpeak amplifier and two 18FW4 speakers with a 3” coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that works to reduce the effects of coil heating.
As part of their company culture, all DAS systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series they use the same birch plywood as their touring systems for a tight, natural warm sound found nowhere else on the market.
Features:
- Powered, 1250 W, 2x 18-inch, bass-reflex subwoofer, 230 V, black
- SPL Max: 140 dB
- Dispersion: Omnidirectional
- Weight: 60,5 kg ( 133,4 lb )
| Performance | |
| Frequency Range (-10 dB) | 35 Hz -125 Hz (variable LPF) |
| Maximum Peak SPL at 1 m | 140 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 1600 W |
| Nominal Amplifier Power (peak) | 3200 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| AC Output Connector | powerCON NAC3MPB |
| Current Draw 230 V / 115 V | 3.0 A/- |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 1.070 x 545 x 675 mm 42,1 x 21,5 x 26,6 in |
| Net Weight | 60,5 kg ( 133,4 lb ) |
| Components | |
| LF Driver | 18FW4 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 1.145 x 595 x 722 mm 45,1 x 23,4 x 28,4 in |
| Shipping Weight | 65,0 kg ( 143,3 lb ) |
ACTION-S218A is a high-power active subwoofer system that incorporates a 3200 Wpeak amplifier and two 18FW4 speakers with a 3” coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that works to reduce the effects of coil heating.
As part of their company culture, all DAS systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series they use the same birch plywood as their touring systems for a tight, natural warm sound found nowhere else on the market.
Features:
- Powered, 1250 W, 2x 18-inch, bass-reflex subwoofer, 230 V, black
- SPL Max: 140 dB
- Dispersion: Omnidirectional
- Weight: 60,5 kg ( 133,4 lb )
| Performance | |
| Frequency Range (-10 dB) | 35 Hz -125 Hz (variable LPF) |
| Maximum Peak SPL at 1 m | 140 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 1600 W |
| Nominal Amplifier Power (peak) | 3200 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| AC Output Connector | powerCON NAC3MPB |
| Current Draw 230 V / 115 V | 3.0 A/- |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 1.070 x 545 x 675 mm 42,1 x 21,5 x 26,6 in |
| Net Weight | 60,5 kg ( 133,4 lb ) |
| Components | |
| LF Driver | 18FW4 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 1.145 x 595 x 722 mm 45,1 x 23,4 x 28,4 in |
| Shipping Weight | 65,0 kg ( 143,3 lb ) |
