DALE SKU # DAS-ALTEA408WR

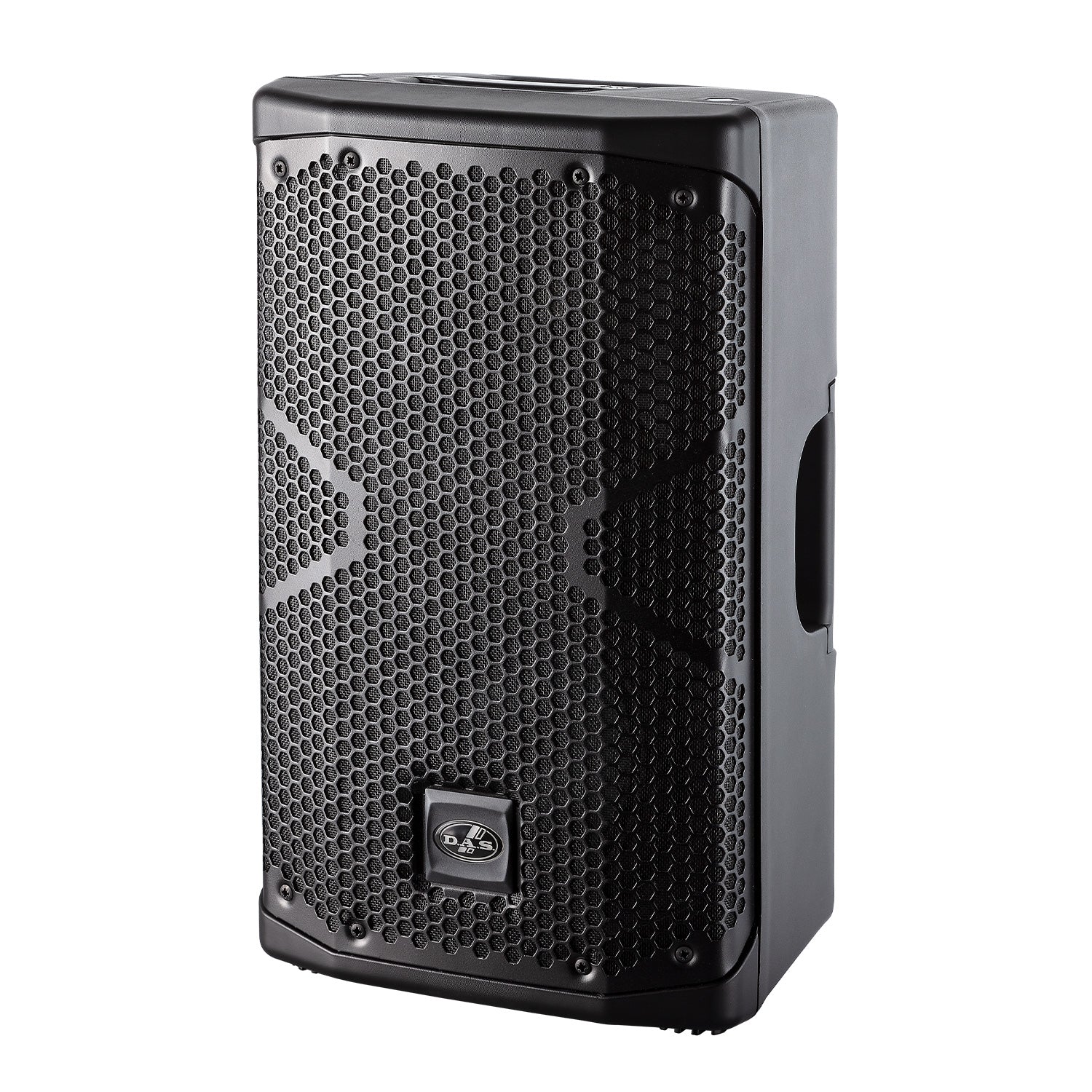

DAS ALTEA-408-WR - Passive 2-Way 8-Inch Loudspeaker (Weather Resistant)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    ALTEA-408 is a passive system designed to offer exceptional sound quality in a wide variety of applications, from PA in small events, to stage monitor and fixed installations. Altea-408 is capable of reproducing frequencies from 70 Hz to 20 kHz and delivers a maximum SPL of 122 dB, making it an extremely versatile system.

    The system features a powerful 8" transducer with 2" voice coil for the reproduction of mid and low frequencies. For the high frequencies, the system features a compression driver with a 1" voice coil, offering exceptional performance. This configuration ensures exceptional clarity and outstanding performance. The diffuser designed to provide a 90º x 90º dispersion guarantees together with the rest of the components a wide and uniform sound dispersion.

    ALTEA-408 is made of high-quality polypropylene, making it an extremely rugged and lightweight system, weighing only 9.4 kg (20.7 lb). Equipped with integrated ergonomic handles and M8 rigging points, this system is easy to transport and install, offering a practical and efficient solution for any sound setup.

    The ALTEA-408-WR variant is designed for outdoor and challenging environments, featuring upgraded, weather-resistant components. The INOX grill and screws ensure resilience against the elements, while the triple layer grill protection system, comprised of cloth, foam, and hydrophobic mesh, guards against moisture, dust, and small water particles. A protective covering for the speakON cable further enhances durability. These carefully integrated upgrades result in a high-performance speaker system, well-suited for diverse conditions.

    Features:

    • SPL Max: 122 dB
    • Dispersion: 90º x 90º
    • Weight: 9,4 kg ( 20,7 lb )
    Performance
    Frequency Range (-10 dB) 70 Hz Ð 20 kHz
    Horizontal Coverage (-6 dB) 90¼
    Vertical Coverage 90¼
    RMS Power Handling 150 W
    Peak Power Handling 600 W
    On-axis Sensitivity 1W/1 m 94 dB SPL
    Maximum Peak SPL at 1 m 122 dB
    Recommended Amplifier INTEGRAL-A402
    INTEGRAL-A1002
    INTEGRAL-A1004
    Connectors
    Audio Input Connector 1 x speakON NL4
    Audio Output Connector 1 x speakON NL4
    Enclosure
    Enclosure Construction Polypropylene
    Enclosure Geometry Trapezoidal
    Rigging M8 Rigging Points
    Color Black
    Depth 260 mm (10,2 in)
    Dimensions ( H x W x D ) 480 x 280 x 260 mm
    18,9 x 11,0 x 10,2 in
    Net Weight 9,4 kg ( 20,7 lb )
    Components
    LF Driver 8GV
    HF Driver M-32
    Shipping
    Carton Dimensions ( H x W x D ) 550 x 350 x 340 mm
    21,6 x 13,8 x 13,4 in
    Shipping Weight 11,3 kg ( 24,9 lb )

    ALTEA-408 is a passive system designed to offer exceptional sound quality in a wide variety of applications, from PA in small events, to stage monitor and fixed installations. Altea-408 is capable of reproducing frequencies from 70 Hz to 20 kHz and delivers a maximum SPL of 122 dB, making it an extremely versatile system.

    The system features a powerful 8" transducer with 2" voice coil for the reproduction of mid and low frequencies. For the high frequencies, the system features a compression driver with a 1" voice coil, offering exceptional performance. This configuration ensures exceptional clarity and outstanding performance. The diffuser designed to provide a 90º x 90º dispersion guarantees together with the rest of the components a wide and uniform sound dispersion.

    ALTEA-408 is made of high-quality polypropylene, making it an extremely rugged and lightweight system, weighing only 9.4 kg (20.7 lb). Equipped with integrated ergonomic handles and M8 rigging points, this system is easy to transport and install, offering a practical and efficient solution for any sound setup.

    The ALTEA-408-WR variant is designed for outdoor and challenging environments, featuring upgraded, weather-resistant components. The INOX grill and screws ensure resilience against the elements, while the triple layer grill protection system, comprised of cloth, foam, and hydrophobic mesh, guards against moisture, dust, and small water particles. A protective covering for the speakON cable further enhances durability. These carefully integrated upgrades result in a high-performance speaker system, well-suited for diverse conditions.

    Features:

    • SPL Max: 122 dB
    • Dispersion: 90º x 90º
    • Weight: 9,4 kg ( 20,7 lb )
    Performance
    Frequency Range (-10 dB) 70 Hz Ð 20 kHz
    Horizontal Coverage (-6 dB) 90¼
    Vertical Coverage 90¼
    RMS Power Handling 150 W
    Peak Power Handling 600 W
    On-axis Sensitivity 1W/1 m 94 dB SPL
    Maximum Peak SPL at 1 m 122 dB
    Recommended Amplifier INTEGRAL-A402
    INTEGRAL-A1002
    INTEGRAL-A1004
    Connectors
    Audio Input Connector 1 x speakON NL4
    Audio Output Connector 1 x speakON NL4
    Enclosure
    Enclosure Construction Polypropylene
    Enclosure Geometry Trapezoidal
    Rigging M8 Rigging Points
    Color Black
    Depth 260 mm (10,2 in)
    Dimensions ( H x W x D ) 480 x 280 x 260 mm
    18,9 x 11,0 x 10,2 in
    Net Weight 9,4 kg ( 20,7 lb )
    Components
    LF Driver 8GV
    HF Driver M-32
    Shipping
    Carton Dimensions ( H x W x D ) 550 x 350 x 340 mm
    21,6 x 13,8 x 13,4 in
    Shipping Weight 11,3 kg ( 24,9 lb )
