DAS ALTEA-408A - Active 2-Way 8-Inch Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

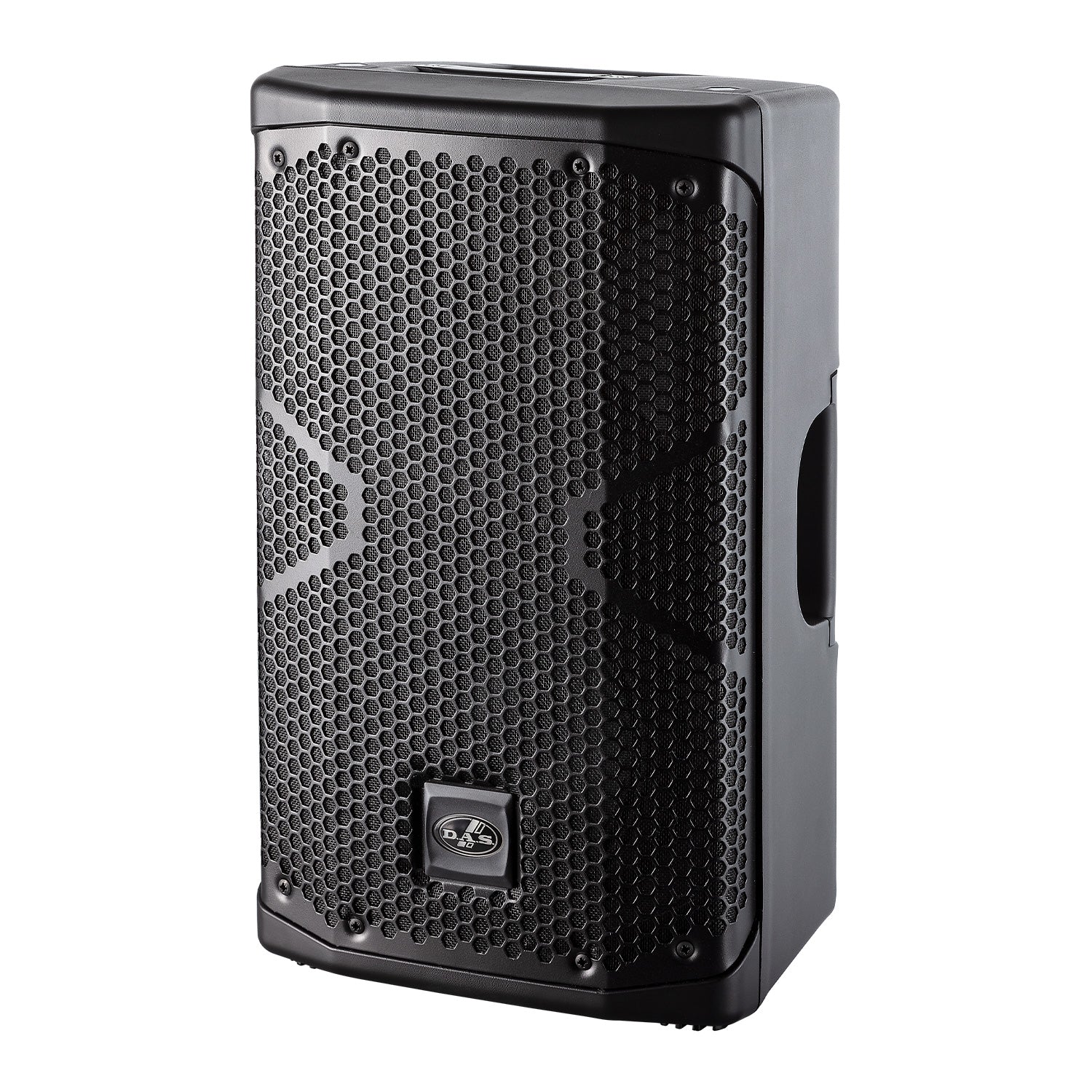

The ALTEA-408A is a powered portable P.A. system with a multi-angle polypropylene enclosure that allows for use as a stage monitor.

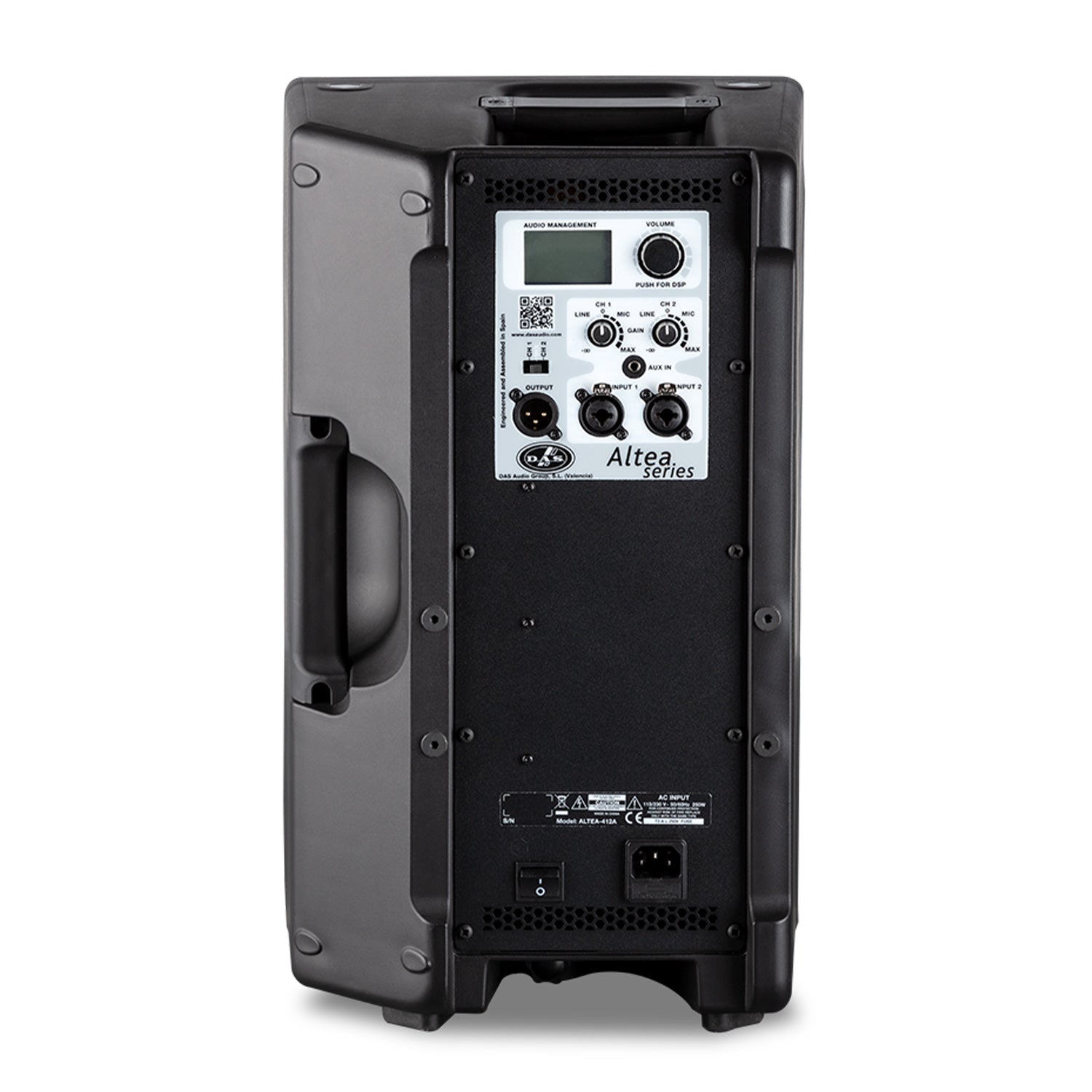

On board is Class D two channel amplifier of exceptional quality providing a total of 800 Wpeak power which provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet.
The 8GV loudspeaker provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the M-32 FEM optimized compression driver with 1" exit offering excellent performance.
Features:
- Powered, 400 W, 8-inch, 2 way full-range, polypropylene enclosure
- 90×90 horn
- LCD control interface
- SPL Max: 123 dB
- Dispersion: 90º x 90º
- Weight: 9,5 kg ( 20,9 lb )
| Performance | |
| Frequency Range (-10 dB) | 70 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 90¼ |
| Maximum Peak SPL at 1 m | 123 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 400 W |
| Nominal Amplifier Power (peak) | 800 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| AUX Input | 1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Control | DAScontrolª |
| Current Draw 230 V / 115 V | 0.8 A/1.6 A |
| Enclosure | |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Trapezoidal |
| Rigging | M8 Rigging Points |
| Finish | Textured |
| Color | Black |
| Dimensions ( H x W x D ) | 480 x 280 x 260 mm 18,9 x 11,0 x 10,2 in |
| Net Weight | 9,5 kg ( 20,9 lb ) |
| Components | |
| LF Driver | 8GV |
| HF Driver | M-32 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 550 x 350 x 340 mm 21,6 x 13,8 x 13,4 in |
| Shipping Weight | 13,0 kg ( 28,6 lb ) |
The ALTEA-408A is a powered portable P.A. system with a multi-angle polypropylene enclosure that allows for use as a stage monitor.
On board is Class D two channel amplifier of exceptional quality providing a total of 800 Wpeak power which provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet.
The 8GV loudspeaker provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the M-32 FEM optimized compression driver with 1" exit offering excellent performance.
Features:
- Powered, 400 W, 8-inch, 2 way full-range, polypropylene enclosure
- 90×90 horn
- LCD control interface
- SPL Max: 123 dB
- Dispersion: 90º x 90º
- Weight: 9,5 kg ( 20,9 lb )
| Performance | |
| Frequency Range (-10 dB) | 70 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 90¼ |
| Maximum Peak SPL at 1 m | 123 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 400 W |
| Nominal Amplifier Power (peak) | 800 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| AUX Input | 1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Control | DAScontrolª |
| Current Draw 230 V / 115 V | 0.8 A/1.6 A |
| Enclosure | |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Trapezoidal |
| Rigging | M8 Rigging Points |
| Finish | Textured |
| Color | Black |
| Dimensions ( H x W x D ) | 480 x 280 x 260 mm 18,9 x 11,0 x 10,2 in |
| Net Weight | 9,5 kg ( 20,9 lb ) |
| Components | |
| LF Driver | 8GV |
| HF Driver | M-32 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 550 x 350 x 340 mm 21,6 x 13,8 x 13,4 in |
| Shipping Weight | 13,0 kg ( 28,6 lb ) |
