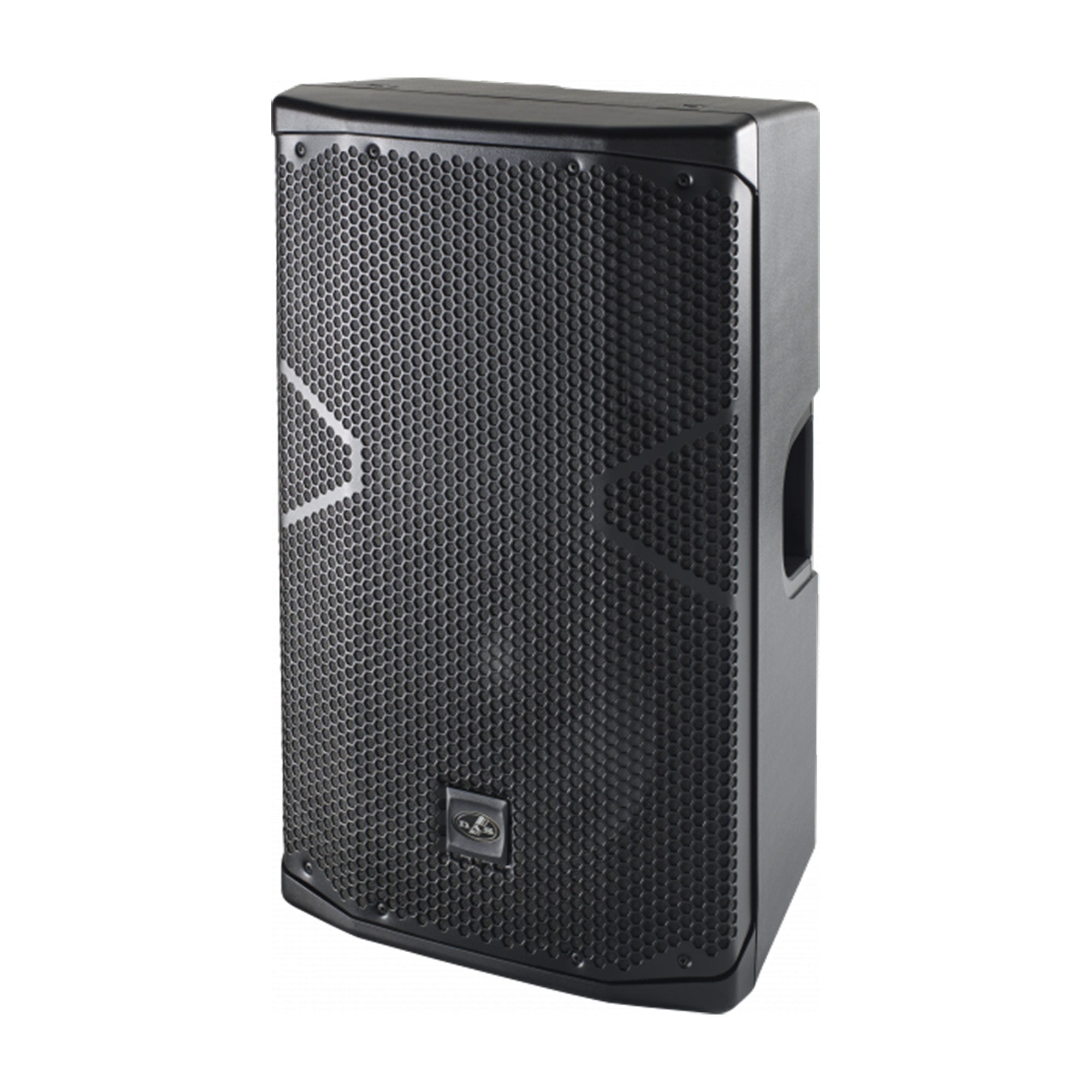

DAS ALTEA-412 - Passive 2-Way 12-Inch Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
ALTEA-412 is a passive system designed to deliver exceptional sound quality across a wide variety of applications, from PA systems at medium-sized events to stage monitors and fixed installations. The ALTEA-412 can reproduce frequencies from 68 Hz to 20 kHz and delivers a maximum SPL of 127 dB, making it an exceptionally versatile system.
The system features a powerful 12" transducer with a 2.5" voice coil for reproducing mid and low frequencies. High frequencies are handled by an M-32 compression driver with a 1" voice coil, providing exceptional performance. The diffuser, designed to provide 90º x 60º dispersion, works with the other components to ensure wide and uniform sound dispersion.
ALTEA-412 is constructed from high-quality polypropylene, making it extremely rugged and relatively lightweight, weighing only 14.5 kg (32.0 lbs). Equipped with integrated ergonomic handles and M8 rigging points, this system is easy to transport and install, offering a practical and efficient solution for any sound setup.
Features:
- Passive, 300 W, 12-inch, 2 way full-range, polypropylene enclosure, 90×60 horn , black
- SPL Max: 127 dB
- Dispersion: 90º x 60º
- Weight: 14,5 kg ( 32,0 lb )
| Performance | |
| Frequency Range (-10 dB) | 68 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 60¼ |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 300 W |
| Peak Power Handling | 1200 W |
| On-axis Sensitivity 1W/1 m | 96 dB SPL |
| Maximum Peak SPL at 1 m | 127 dB |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Trapezoidal |
| Rigging | M8 Rigging Points |
| Color | Black |
| Depth | 350 mm (13,8 in) |
| Dimensions ( H x W x D ) | 655 x 380 x 350 mm 25,8 x 15,0 x 13,8 in |
| Net Weight | 14,5 kg ( 32,0 lb ) |
| Components | |
| LF Driver | 12MI |
| HF Driver | M-32 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 750 x 450 x 415 mm 29,5 x 17,7 x 16,3 in |
| Shipping Weight | 17,5 kg ( 38,6 lb ) |
ALTEA-412 is a passive system designed to deliver exceptional sound quality across a wide variety of applications, from PA systems at medium-sized events to stage monitors and fixed installations. The ALTEA-412 can reproduce frequencies from 68 Hz to 20 kHz and delivers a maximum SPL of 127 dB, making it an exceptionally versatile system.
The system features a powerful 12" transducer with a 2.5" voice coil for reproducing mid and low frequencies. High frequencies are handled by an M-32 compression driver with a 1" voice coil, providing exceptional performance. The diffuser, designed to provide 90º x 60º dispersion, works with the other components to ensure wide and uniform sound dispersion.
ALTEA-412 is constructed from high-quality polypropylene, making it extremely rugged and relatively lightweight, weighing only 14.5 kg (32.0 lbs). Equipped with integrated ergonomic handles and M8 rigging points, this system is easy to transport and install, offering a practical and efficient solution for any sound setup.
Features:
- Passive, 300 W, 12-inch, 2 way full-range, polypropylene enclosure, 90×60 horn , black
- SPL Max: 127 dB
- Dispersion: 90º x 60º
- Weight: 14,5 kg ( 32,0 lb )
| Performance | |
| Frequency Range (-10 dB) | 68 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 60¼ |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 300 W |
| Peak Power Handling | 1200 W |
| On-axis Sensitivity 1W/1 m | 96 dB SPL |
| Maximum Peak SPL at 1 m | 127 dB |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Trapezoidal |
| Rigging | M8 Rigging Points |
| Color | Black |
| Depth | 350 mm (13,8 in) |
| Dimensions ( H x W x D ) | 655 x 380 x 350 mm 25,8 x 15,0 x 13,8 in |
| Net Weight | 14,5 kg ( 32,0 lb ) |
| Components | |
| LF Driver | 12MI |
| HF Driver | M-32 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 750 x 450 x 415 mm 29,5 x 17,7 x 16,3 in |
| Shipping Weight | 17,5 kg ( 38,6 lb ) |
