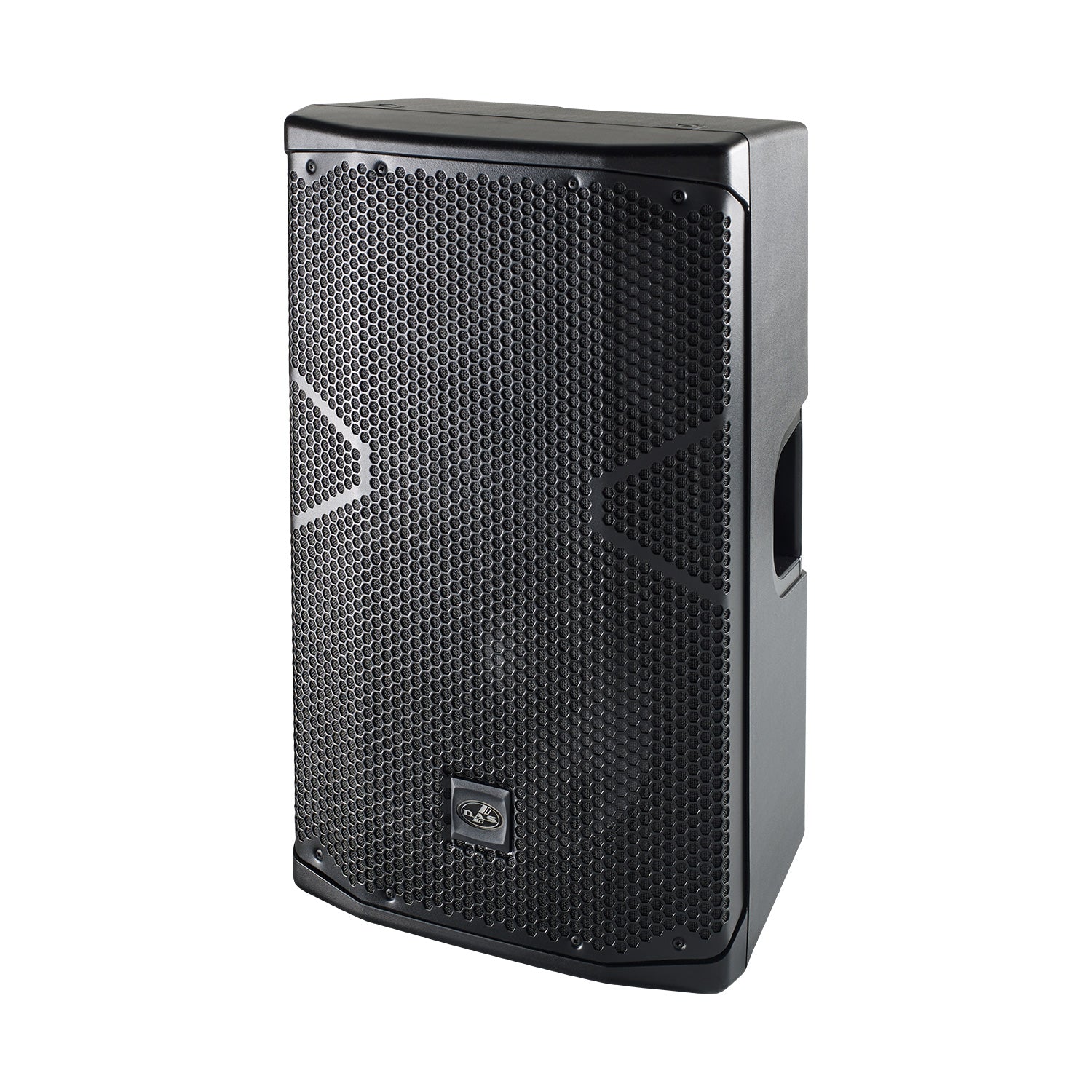

DAS ALTEA-412-WR - Passive 2-Way 12-Inch Loudspeaker (Weather Resistant)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.

Description
The system features a powerful 12" transducer with a 2.5" voice coil for reproducing mid and low frequencies. High frequencies are handled by an M-32 compression driver with a 1" voice coil, providing exceptional performance. The diffuser, designed to provide 90º x 60º dispersion, works with the other components to ensure wide and uniform sound dispersion.
ALTEA-412 is constructed from high-quality polypropylene, making it extremely rugged and relatively lightweight, weighing only 14.5 kg (32.0 lbs). Equipped with integrated ergonomic handles and M8 rigging points, this system is easy to transport and install, offering a practical and efficient solution for any sound setup.
The ALTEA-412-WR variant is designed for outdoor use, incorporating improved weather-resistant components. The INOX grille and screws guarantee resistance against rust, and the grille has a triple layer of protection; fabric, foam and water-repellent mesh, which protects against humidity, dust and small water particles, increasing the durability of the components. On the rear side it incorporates a protective cover for the speakON cable that protects the electrical connection from contact with water.
Features:
- Passive, 300 W, 12-inch, 2 way full-range, polypropylene enclosure
- 90×60 horn
- SPL Max: 127 dB
- Dispersion: 90º x 60º
- Weight: 14,5 kg ( 32,0 lb )
Performance | |
Frequency Range (-10 dB) | 68 Hz Ð 20 kHz |
Horizontal Coverage (-6 dB) | 90¼ |
Vertical Coverage | 60¼ |
Nominal Impedance | 8 ohms |
RMS Power Handling | 300 W |
Peak Power Handling | 1200 W |
On-axis Sensitivity 1W/1 m | 96 dB SPL |
Maximum Peak SPL at 1 m | 127 dB |
Connectors | |
Audio Input Connector | 1 x speakON NL4 |
Audio Output Connector | 1 x speakON NL4 |
Enclosure | |
Enclosure Construction | Polypropylene |
Enclosure Geometry | Trapezoidal |
Rigging | M8 Rigging Points |
Color | Black |
Depth | 350 mm (13,8 in) |
Dimensions ( H x W x D ) | 655 x 380 x 350 mm 25,8 x 15,0 x 13,8 in |
Net Weight | 14,5 kg ( 32,0 lb ) |
Components | |
LF Driver | 12MI |
HF Driver | M-32 |
Shipping | |
Carton Dimensions ( H x W x D ) | 750 x 450 x 415 mm 29,5 x 17,7 x 16,3 in |
Shipping Weight | 17,5 kg ( 38,6 lb ) |
The system features a powerful 12" transducer with a 2.5" voice coil for reproducing mid and low frequencies. High frequencies are handled by an M-32 compression driver with a 1" voice coil, providing exceptional performance. The diffuser, designed to provide 90º x 60º dispersion, works with the other components to ensure wide and uniform sound dispersion.
ALTEA-412 is constructed from high-quality polypropylene, making it extremely rugged and relatively lightweight, weighing only 14.5 kg (32.0 lbs). Equipped with integrated ergonomic handles and M8 rigging points, this system is easy to transport and install, offering a practical and efficient solution for any sound setup.
The ALTEA-412-WR variant is designed for outdoor use, incorporating improved weather-resistant components. The INOX grille and screws guarantee resistance against rust, and the grille has a triple layer of protection; fabric, foam and water-repellent mesh, which protects against humidity, dust and small water particles, increasing the durability of the components. On the rear side it incorporates a protective cover for the speakON cable that protects the electrical connection from contact with water.
Features:
- Passive, 300 W, 12-inch, 2 way full-range, polypropylene enclosure
- 90×60 horn
- SPL Max: 127 dB
- Dispersion: 90º x 60º
- Weight: 14,5 kg ( 32,0 lb )
Performance | |
Frequency Range (-10 dB) | 68 Hz Ð 20 kHz |
Horizontal Coverage (-6 dB) | 90¼ |
Vertical Coverage | 60¼ |
Nominal Impedance | 8 ohms |
RMS Power Handling | 300 W |
Peak Power Handling | 1200 W |
On-axis Sensitivity 1W/1 m | 96 dB SPL |
Maximum Peak SPL at 1 m | 127 dB |
Connectors | |
Audio Input Connector | 1 x speakON NL4 |
Audio Output Connector | 1 x speakON NL4 |
Enclosure | |
Enclosure Construction | Polypropylene |
Enclosure Geometry | Trapezoidal |
Rigging | M8 Rigging Points |
Color | Black |
Depth | 350 mm (13,8 in) |
Dimensions ( H x W x D ) | 655 x 380 x 350 mm 25,8 x 15,0 x 13,8 in |
Net Weight | 14,5 kg ( 32,0 lb ) |
Components | |
LF Driver | 12MI |
HF Driver | M-32 |
Shipping | |
Carton Dimensions ( H x W x D ) | 750 x 450 x 415 mm 29,5 x 17,7 x 16,3 in |
Shipping Weight | 17,5 kg ( 38,6 lb ) |
