DAS ALTEA-415A - Active 2-Way 15-Inch Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

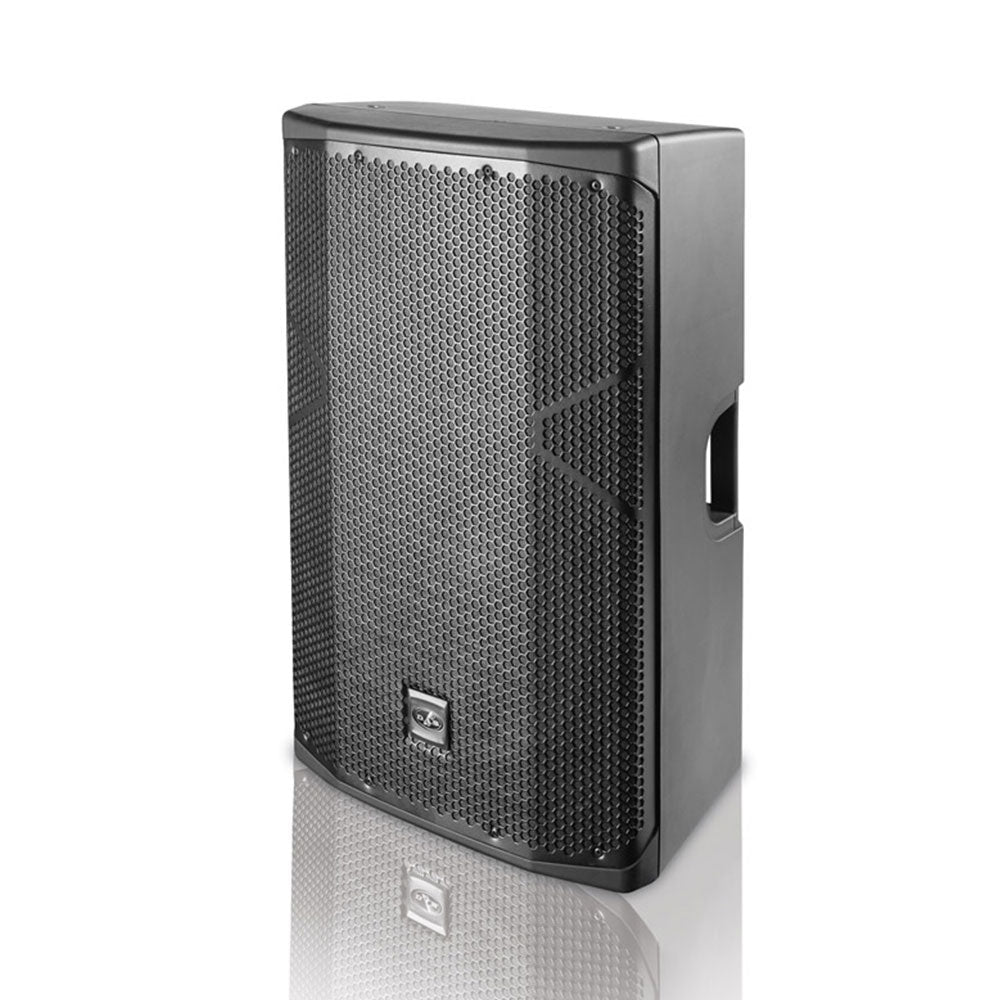

The ALTEA-415A is a powered portable P.A. system with a multi-angle polypropylene enclosure that allows for use as a stage monitor.

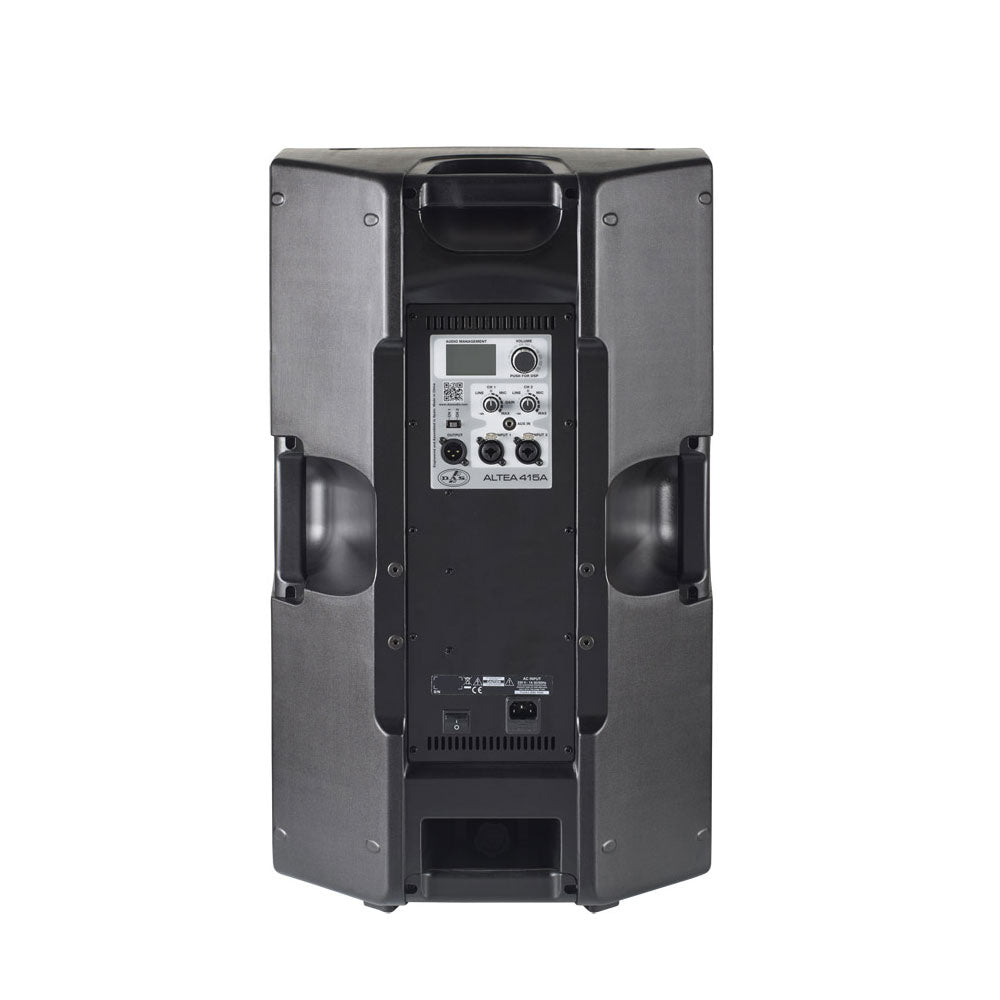

On board is Class D two channel amplifier of exceptional quality providing a total of 800 Wpeak power. of the provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet.
The 15MI4 loudspeaker provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the M-32 FEM optimized compression driver with 1" exit offering excellent performance.
Features:
- Powered, 400 W, 15-inch, 2 way full-range, polypropylene enclosure
- 90×60 horn
- LCD control interface
- SPL Max: 128 dB
- Dispersion: 90º x 60º
- Weight: 17,5 kg ( 38,6 lb )
| Performance | |
| Frequency Range (-10 dB) | 50 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 60¼ |
| Maximum Peak SPL at 1 m | 128 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 400 W |
| Nominal Amplifier Power (peak) | 800 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| AUX Input | 1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Control | DAScontrolª |
| Current Draw 230 V / 115 V | 1.0 A/2.0 A |
| Enclosure | |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Trapezoidal |
| Rigging | M8 Rigging Points |
| Color | Black |
| Dimensions ( H x W x D ) | 710 x 440 x 380 mm 28,0 x 17,3 x 15,0 in |
| Net Weight | 17,5 kg ( 38,6 lb ) |
| Components | |
| LF Driver | 15MI4 |
| HF Driver | M-32 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 805 x 530 x 445 mm 31,7 x 20,9 x 17,5 in |
| Shipping Weight | 21,0 kg ( 46,3 lb ) |
The ALTEA-415A is a powered portable P.A. system with a multi-angle polypropylene enclosure that allows for use as a stage monitor.
On board is Class D two channel amplifier of exceptional quality providing a total of 800 Wpeak power. of the provides extended bandwidth, wide dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. User configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet.
The 15MI4 loudspeaker provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the M-32 FEM optimized compression driver with 1" exit offering excellent performance.
Features:
- Powered, 400 W, 15-inch, 2 way full-range, polypropylene enclosure
- 90×60 horn
- LCD control interface
- SPL Max: 128 dB
- Dispersion: 90º x 60º
- Weight: 17,5 kg ( 38,6 lb )
| Performance | |
| Frequency Range (-10 dB) | 50 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 60¼ |
| Maximum Peak SPL at 1 m | 128 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 400 W |
| Nominal Amplifier Power (peak) | 800 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| AUX Input | 1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Control | DAScontrolª |
| Current Draw 230 V / 115 V | 1.0 A/2.0 A |
| Enclosure | |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Trapezoidal |
| Rigging | M8 Rigging Points |
| Color | Black |
| Dimensions ( H x W x D ) | 710 x 440 x 380 mm 28,0 x 17,3 x 15,0 in |
| Net Weight | 17,5 kg ( 38,6 lb ) |
| Components | |
| LF Driver | 15MI4 |
| HF Driver | M-32 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 805 x 530 x 445 mm 31,7 x 20,9 x 17,5 in |
| Shipping Weight | 21,0 kg ( 46,3 lb ) |
