DAS ALTEA-712 - Passive 2-Way 12-Inch Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

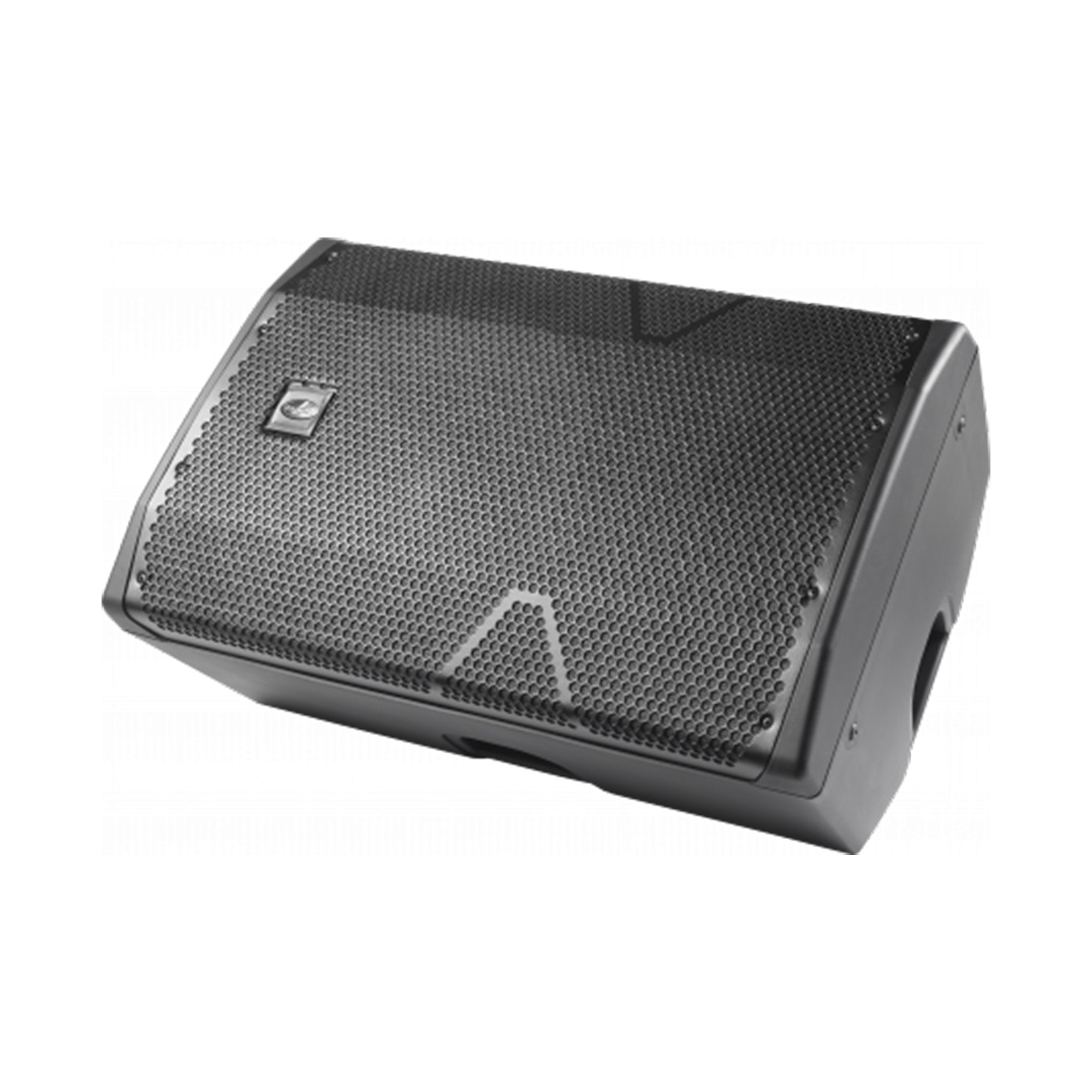

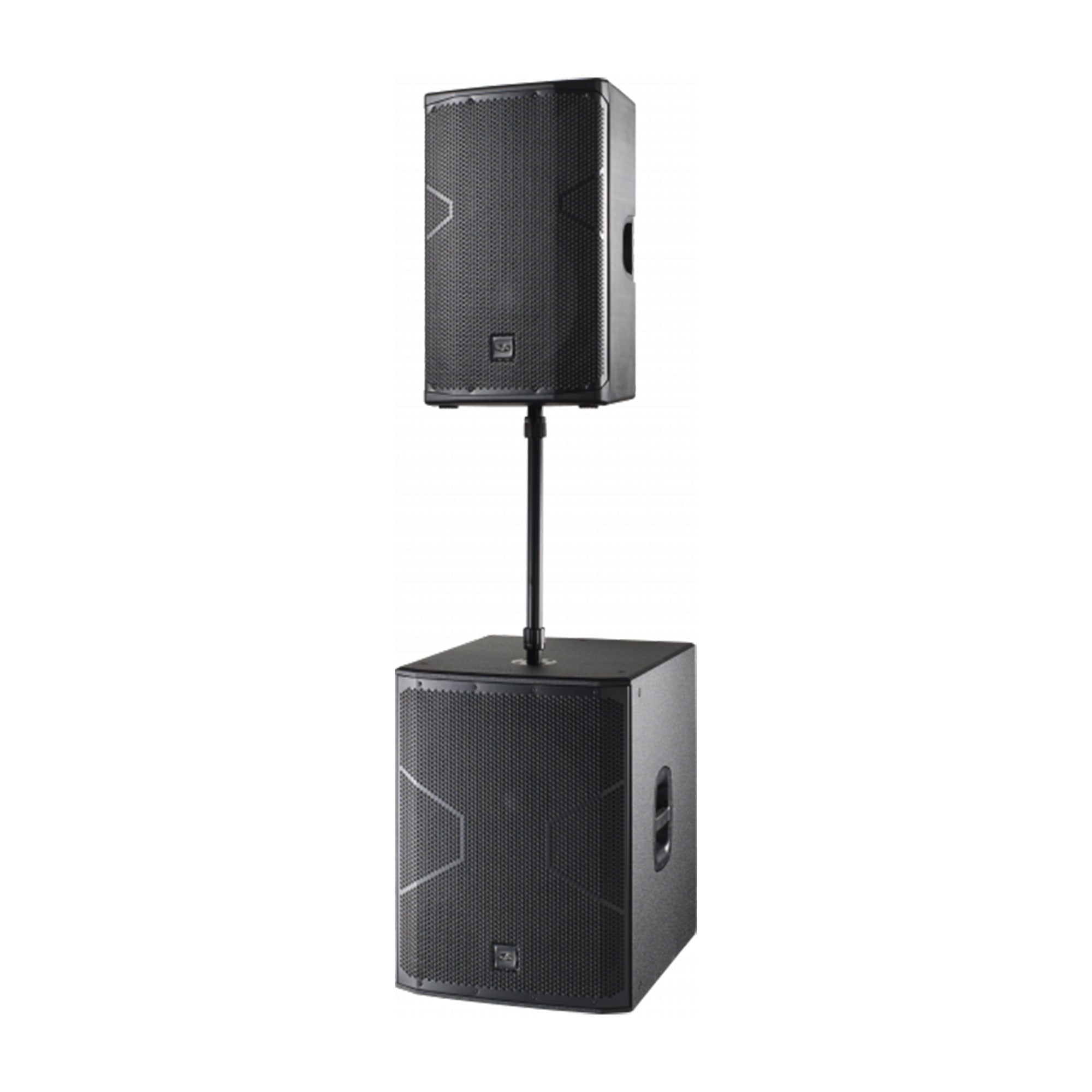

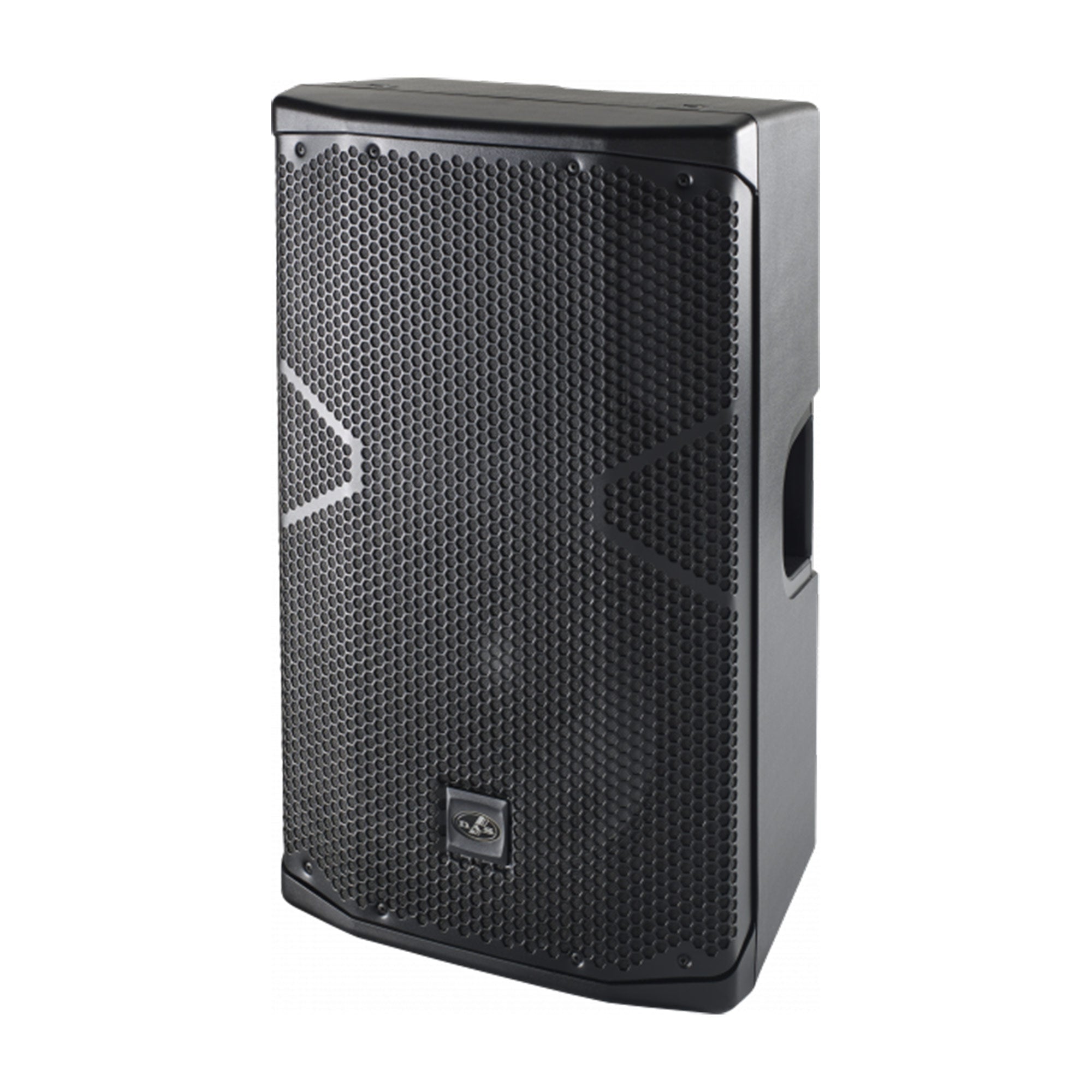

ALTEA-712 is a passive system designed to deliver exceptional sound quality across a wide variety of applications, from PA systems at medium-sized events to stage monitors and fixed installations. ALTEA-712 can reproduce frequencies from 65 Hz to 20 kHz and delivers a maximum SPL of 131 dB, making it a system capable of adapting to any need.
The system features a powerful 12" transducer designed and manufactured by DAS Audio, which provides deep and powerful bass. For high frequencies, ALTEA-712 incorporates an M-28 compression driver with a 1" output, optimized by FEM analysis to offer brilliant performance and clear, balanced sound reproduction. The diffuser, designed to provide 90º x 60º dispersion, ensures wide and uniform sound distribution together with the other components.
Made of high-quality polypropylene, ALTEA-712 is an extremely rugged and relatively lightweight system, weighing only 16.5 kg (36.4 lb). Equipped with integrated ergonomic handles and M8 rigging points, this system is easy to transport and install, offering a practical and efficient solution for any sound setup.
Features:
- Passive, 500 W, 12-inch, 2 way full-range, polypropylene enclosure
- 90×60 horn
- SPL Max: 131 dB
- Dispersion: 90º x 60º
- Weight: 16,5 kg ( 36,4 lb )
| Performance | |
| Frequency Range (-10 dB) | 65 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 60¼ |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 500 W |
| Peak Power Handling | 2000 W |
| On-axis Sensitivity 1W/1 m | 98 dB SPL |
| Maximum Peak SPL at 1 m | 131 dB |
| Connectors | |

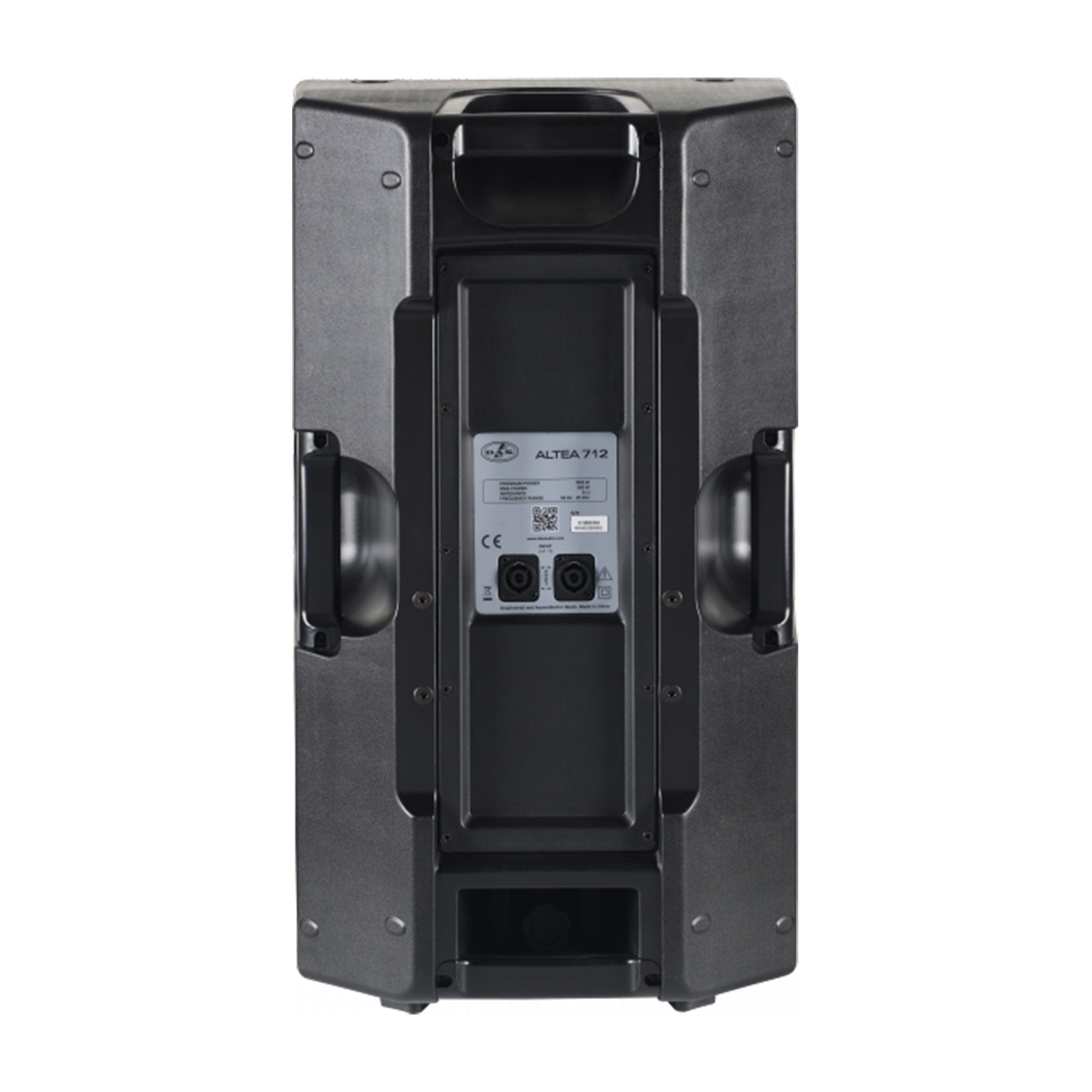

| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Trapezoidal |
| Rigging | M8 Rigging Points |
| Color | Black |
| Depth | 350 mm (13,8 in) |
| Dimensions ( H x W x D ) | 655 x 380 x 350 mm 25,8 x 15,0 x 13,8 in |
| Net Weight | 16,5 kg ( 36,4 lb ) |
| Components | |
| LF Driver | 12F |
| HF Driver | M-28 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 750 x 450 x 415 mm 29,5 x 17,7 x 16,3 in |
| Shipping Weight | 19,5 kg ( 43,0 lb ) |
ALTEA-712 is a passive system designed to deliver exceptional sound quality across a wide variety of applications, from PA systems at medium-sized events to stage monitors and fixed installations. ALTEA-712 can reproduce frequencies from 65 Hz to 20 kHz and delivers a maximum SPL of 131 dB, making it a system capable of adapting to any need.
The system features a powerful 12" transducer designed and manufactured by DAS Audio, which provides deep and powerful bass. For high frequencies, ALTEA-712 incorporates an M-28 compression driver with a 1" output, optimized by FEM analysis to offer brilliant performance and clear, balanced sound reproduction. The diffuser, designed to provide 90º x 60º dispersion, ensures wide and uniform sound distribution together with the other components.
Made of high-quality polypropylene, ALTEA-712 is an extremely rugged and relatively lightweight system, weighing only 16.5 kg (36.4 lb). Equipped with integrated ergonomic handles and M8 rigging points, this system is easy to transport and install, offering a practical and efficient solution for any sound setup.
Features:
- Passive, 500 W, 12-inch, 2 way full-range, polypropylene enclosure
- 90×60 horn
- SPL Max: 131 dB
- Dispersion: 90º x 60º
- Weight: 16,5 kg ( 36,4 lb )
| Performance | |
| Frequency Range (-10 dB) | 65 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 60¼ |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 500 W |
| Peak Power Handling | 2000 W |
| On-axis Sensitivity 1W/1 m | 98 dB SPL |
| Maximum Peak SPL at 1 m | 131 dB |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Trapezoidal |
| Rigging | M8 Rigging Points |
| Color | Black |
| Depth | 350 mm (13,8 in) |
| Dimensions ( H x W x D ) | 655 x 380 x 350 mm 25,8 x 15,0 x 13,8 in |
| Net Weight | 16,5 kg ( 36,4 lb ) |
| Components | |
| LF Driver | 12F |
| HF Driver | M-28 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 750 x 450 x 415 mm 29,5 x 17,7 x 16,3 in |
| Shipping Weight | 19,5 kg ( 43,0 lb ) |
