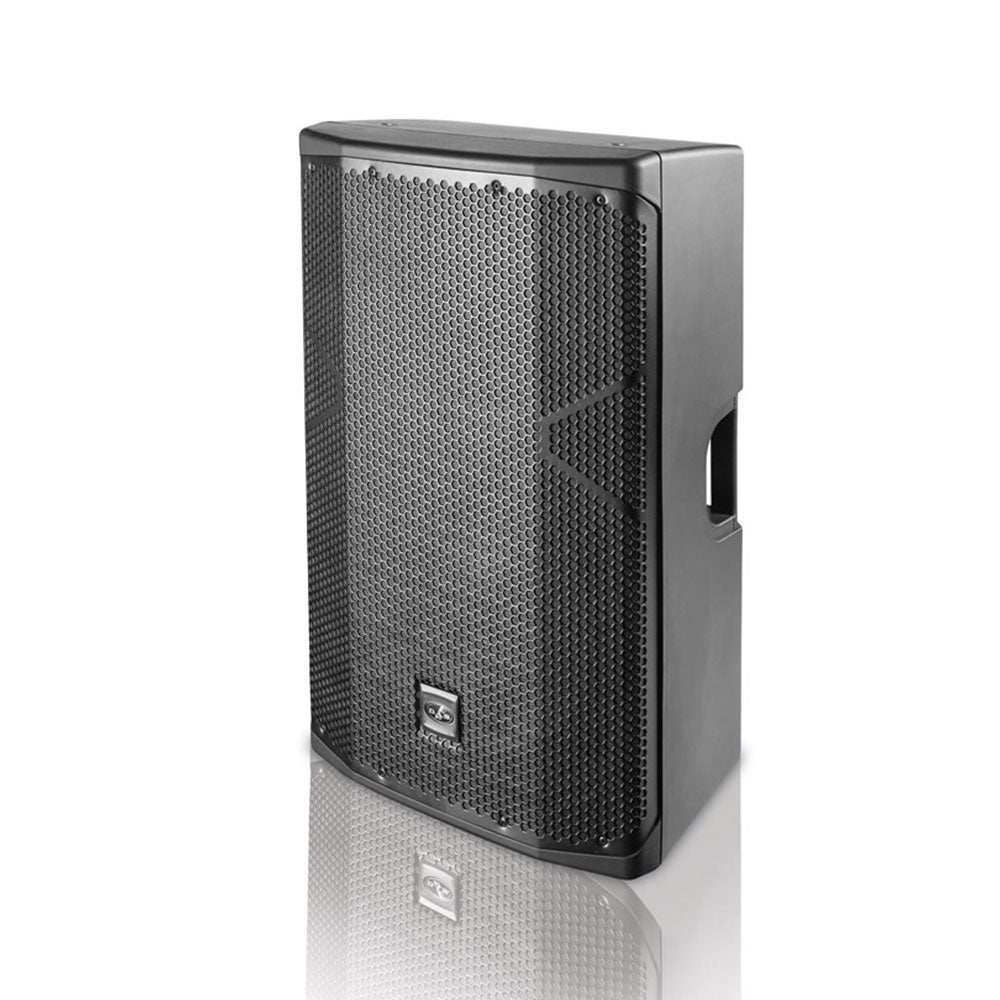

DAS ALTEA-715A - Active 2-Way 15-Inch Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ALTEA-715A is a high-powered model from DAS Audio’s ALTEA Series. It´s equipped with a 1500 Wpeak Class D two-channel amplifier that provides extended bandwidth, wide dynamic range and exceptionally low distortion. Digital Finite Impulse Response (FIR) filters are used in the signal processing of the ALTEA-715A systems.

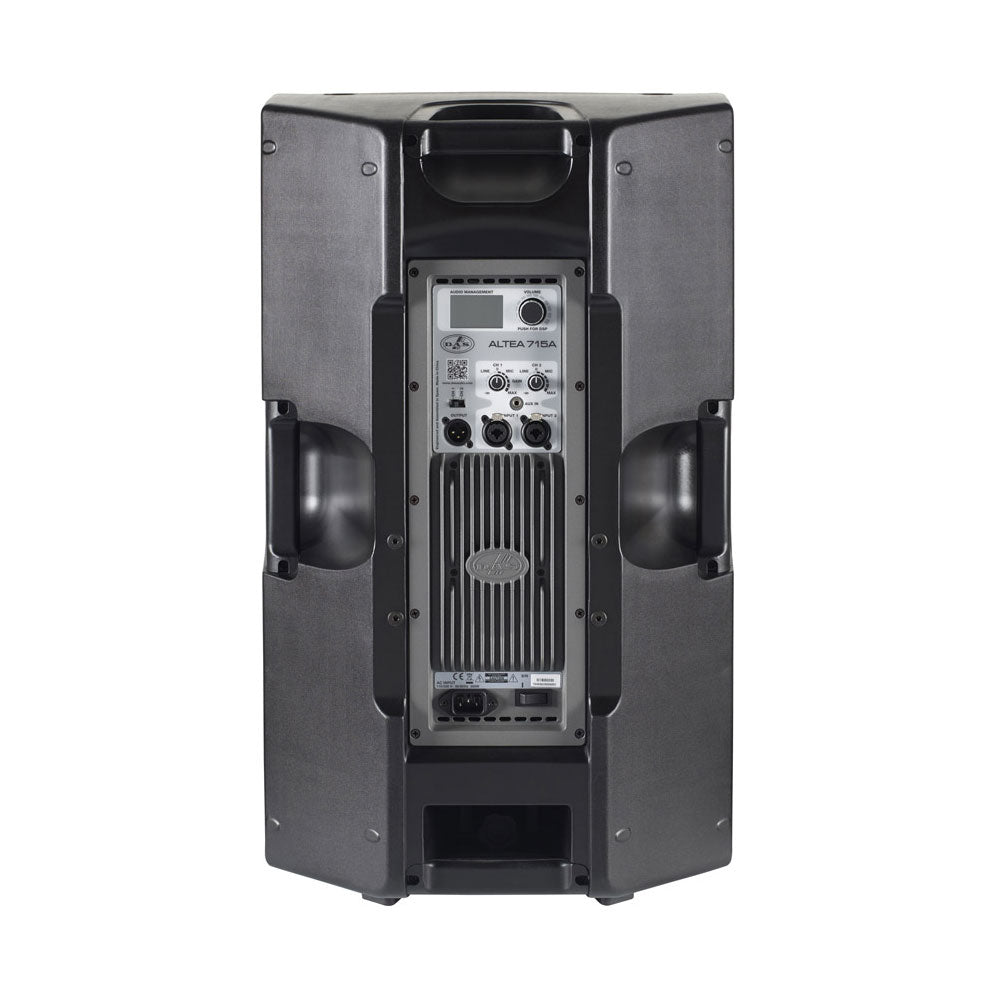

The DAScontrol™ interface allows users to configure voicing presets, input/output levels, EQ modes, delay and source mixing by way of a high-end 24-bit quality DSP and LCD screen on the rear of the cabinet. The remote control and monitoring APP DASlink™ of the ALTEA-700 series powered systems allows users to wirelessly stream music from mobile devices in high-definition stereo.
The high-performance transducers include the DAS 15FV4 loudspeaker, which provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the brilliant M-28 FEM optimized compression driver with 1" exit providing exceptional performance and smooth reproduction.
Features:
- Powered, 700 W, 15", 2 way full-range, polypropylene enclosure
- 90×60 horn
- LCD control+wireless
- SPL Max: 132 dB
- Dispersion: 90º x 60º
- Weight: 19,5 kg ( 43,0 lb )
| Performance | |
| Frequency Range (-10 dB) | 45 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 60¼ |
| Maximum Peak SPL at 1 m | 132 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 750 W |
| Nominal Amplifier Power (peak) | 1500 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| AUX Input | 1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Control | DASlinkª DAScontrolª |
| Current Draw 230 V / 115 V | 1.5 A/3.0 A |
| Enclosure | |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Trapezoidal |
| Rigging | M8 Rigging Points |
| Color | Black |
| Dimensions ( H x W x D ) | 710 x 440 x 380 mm 28,0 x 17,3 x 15,0 in |
| Net Weight | 19,5 kg ( 43,0 lb ) |
| Components | |
| LF Driver | 15FV4 |
| HF Driver | M-28 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 805 x 530 x 445 mm 31,7 x 20,9 x 17,5 in |
| Shipping Weight | 23,0 kg ( 50,7 lb ) |
The ALTEA-715A is a high-powered model from DAS Audio’s ALTEA Series. It´s equipped with a 1500 Wpeak Class D two-channel amplifier that provides extended bandwidth, wide dynamic range and exceptionally low distortion. Digital Finite Impulse Response (FIR) filters are used in the signal processing of the ALTEA-715A systems.
The DAScontrol™ interface allows users to configure voicing presets, input/output levels, EQ modes, delay and source mixing by way of a high-end 24-bit quality DSP and LCD screen on the rear of the cabinet. The remote control and monitoring APP DASlink™ of the ALTEA-700 series powered systems allows users to wirelessly stream music from mobile devices in high-definition stereo.
The high-performance transducers include the DAS 15FV4 loudspeaker, which provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the brilliant M-28 FEM optimized compression driver with 1" exit providing exceptional performance and smooth reproduction.
Features:
- Powered, 700 W, 15", 2 way full-range, polypropylene enclosure
- 90×60 horn
- LCD control+wireless
- SPL Max: 132 dB
- Dispersion: 90º x 60º
- Weight: 19,5 kg ( 43,0 lb )
| Performance | |
| Frequency Range (-10 dB) | 45 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 60¼ |
| Maximum Peak SPL at 1 m | 132 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 750 W |
| Nominal Amplifier Power (peak) | 1500 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| AUX Input | 1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Control | DASlinkª DAScontrolª |
| Current Draw 230 V / 115 V | 1.5 A/3.0 A |
| Enclosure | |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Trapezoidal |
| Rigging | M8 Rigging Points |
| Color | Black |
| Dimensions ( H x W x D ) | 710 x 440 x 380 mm 28,0 x 17,3 x 15,0 in |
| Net Weight | 19,5 kg ( 43,0 lb ) |
| Components | |
| LF Driver | 15FV4 |
| HF Driver | M-28 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 805 x 530 x 445 mm 31,7 x 20,9 x 17,5 in |
| Shipping Weight | 23,0 kg ( 50,7 lb ) |
