DALE SKU # DAS-ALTEA718

DAS ALTEA-718 - Passive 18-Inch Subwoofer (Black)

Sale price$951.00 Regular price$1,331.28
Save $380.28
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

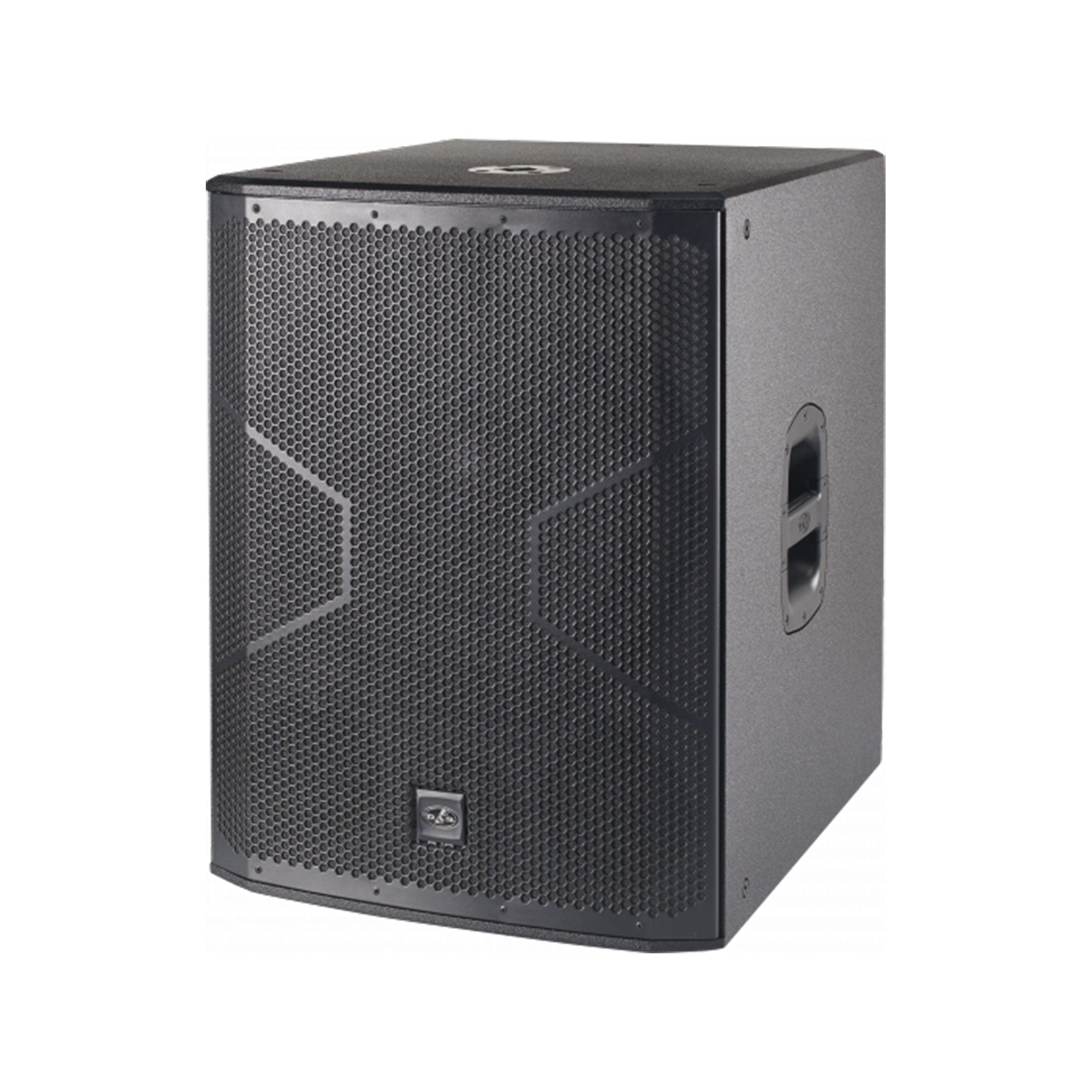

    The ALTEA-718 is powerful subwoofer system designed to provide extended bass response for the ALTEA full-range cabinets. At the heart of the system is a DAS 18FW bass loudspeaker. This loudspeaker incorporates a FEM optimized high-efficiency speaker design and an extended 3" voice coil for long excursion. Cooling is assured thanks to the 18FW´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.

    The compact Birch plywood cabinet is protected with a tough ISO-flex outer coating for long years of use in portable systems.

    Features:

    • Passive, 600 W, 18", long excursion bass-reflex subwoofer, black
    • SPL Max: 134 dB
    • Dispersion: Omnidirectional
    • Weight: 40,5 kg ( 89,3 lb )
    Performance
    Frequency Range (-10 dB) 45 Hz Ð 138 Hz
    Nominal Impedance 8 ohms
    RMS Power Handling 600 W
    Peak Power Handling 2400 W
    On-axis Sensitivity 1W/1 m 98 dB SPL
    Maximum Peak SPL at 1 m 134 dB

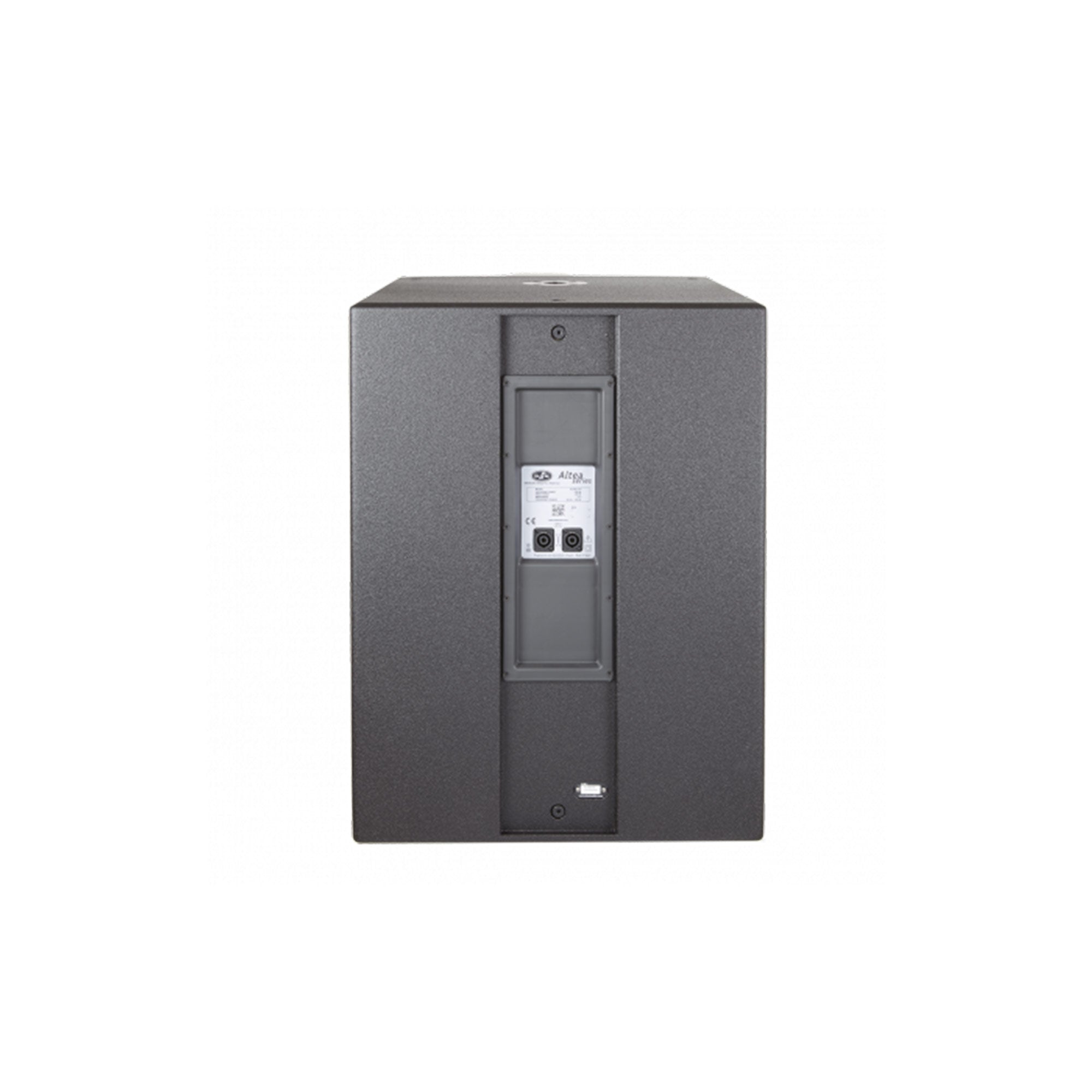

    Connectors
    Audio Input Connector 1 x speakON NL4
    Audio Output Connector 1 x speakON NL4
    Enclosure
    Enclosure Construction Birch Plywood
    Enclosure Geometry Rectangular
    Rigging M10 Rigging Points
    Finish ISO-flex Paint
    Color Black
    Depth 650 mm (25,6 in)
    Dimensions ( H x W x D ) 720 x 545 x 650 mm
    28,4 x 21,5 x 25,6 in
    Net Weight 40,5 kg ( 89,3 lb )
    Components
    LF Driver 18FW
    Shipping
    Carton Dimensions ( H x W x D ) 820 x 600 x 700 mm
    32,3 x 23,6 x 27,6 in
    Shipping Weight 44,5 kg ( 98,1 lb )

    The ALTEA-718 is powerful subwoofer system designed to provide extended bass response for the ALTEA full-range cabinets. At the heart of the system is a DAS 18FW bass loudspeaker. This loudspeaker incorporates a FEM optimized high-efficiency speaker design and an extended 3" voice coil for long excursion. Cooling is assured thanks to the 18FW´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.

    The compact Birch plywood cabinet is protected with a tough ISO-flex outer coating for long years of use in portable systems.

    Features:

    • Passive, 600 W, 18", long excursion bass-reflex subwoofer, black
    • SPL Max: 134 dB
    • Dispersion: Omnidirectional
    • Weight: 40,5 kg ( 89,3 lb )
    Performance
    Frequency Range (-10 dB) 45 Hz Ð 138 Hz
    Nominal Impedance 8 ohms
    RMS Power Handling 600 W
    Peak Power Handling 2400 W
    On-axis Sensitivity 1W/1 m 98 dB SPL
    Maximum Peak SPL at 1 m 134 dB
    Connectors
    Audio Input Connector 1 x speakON NL4
    Audio Output Connector 1 x speakON NL4
    Enclosure
    Enclosure Construction Birch Plywood
    Enclosure Geometry Rectangular
    Rigging M10 Rigging Points
    Finish ISO-flex Paint
    Color Black
    Depth 650 mm (25,6 in)
    Dimensions ( H x W x D ) 720 x 545 x 650 mm
    28,4 x 21,5 x 25,6 in
    Net Weight 40,5 kg ( 89,3 lb )
    Components
    LF Driver 18FW
    Shipping
    Carton Dimensions ( H x W x D ) 820 x 600 x 700 mm
    32,3 x 23,6 x 27,6 in
    Shipping Weight 44,5 kg ( 98,1 lb )
