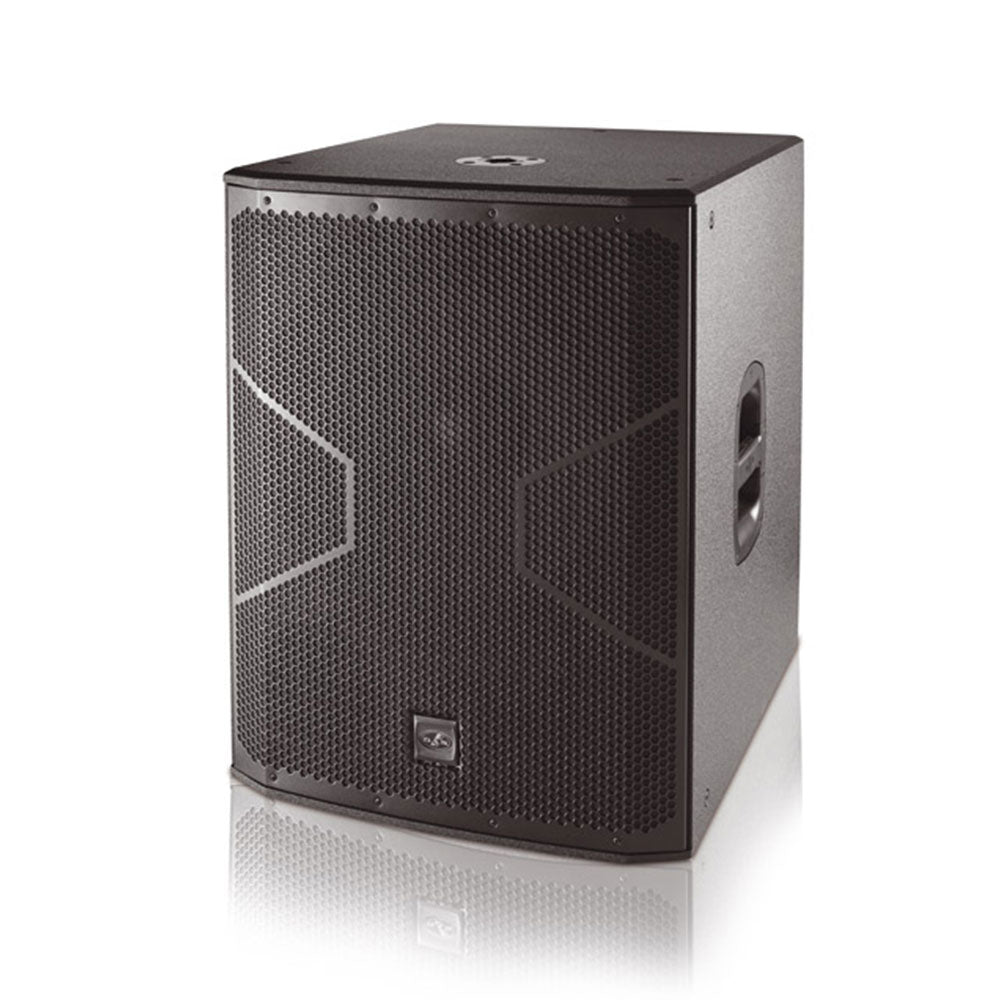

DAS ALTEA-718A - Active 18-Inch Subwoofer (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ALTEA-718A is a powered subwoofer system designed to provide extended bass response for the ALTEA full-range cabinets. At the heart of the system is a DAS 18FW4 bass loudspeaker. This loudspeaker incorporates a FEM optimized high-efficiency speaker design and an extended 3" voice coil for long excursion. Cooling is assured thanks to the 18FW4´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.
Driving the DAS 18FW4 loudspeaker is a cutting-edge 1200 Wpeak Class D amplifier. On the rear panel a balanced input connector and stereo “loop thru” output connections are available to provide signal for ALTEA satellite systems. Thanks to the digital presets accessible by way of a DAScontrol™ interface on the rear of the cabinet, setting up a combo system with ALTEA full-range systems is easy.
Features:
- Powered, 600 W, 18", long excursion bass-reflex subwoofer, black
- SPL Max: 134 dB
- Dispersion: Omnidirectional
- Weight: 42,0 kg ( 92,6 lb )
| Performance | |
| Frequency Range (-10 dB) | 45 Hz Ð 138 Hz |
| Maximum Peak SPL at 1 m | 134 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 600 W |
| Nominal Amplifier Power (peak) | 1200 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| Control | DAScontrolª |
| Current Draw 230 V / 115 V | 1.4 A/2.8 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 720 x 545 x 650 mm 28,4 x 21,5 x 25,6 in |
| Net Weight | 42,0 kg ( 92,6 lb ) |
| Components | |
| LF Driver | 18FW4 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 820 x 600 x 700 mm 32,3 x 23,6 x 27,6 in |
| Shipping Weight | 46,5 kg ( 102,5 lb ) |
