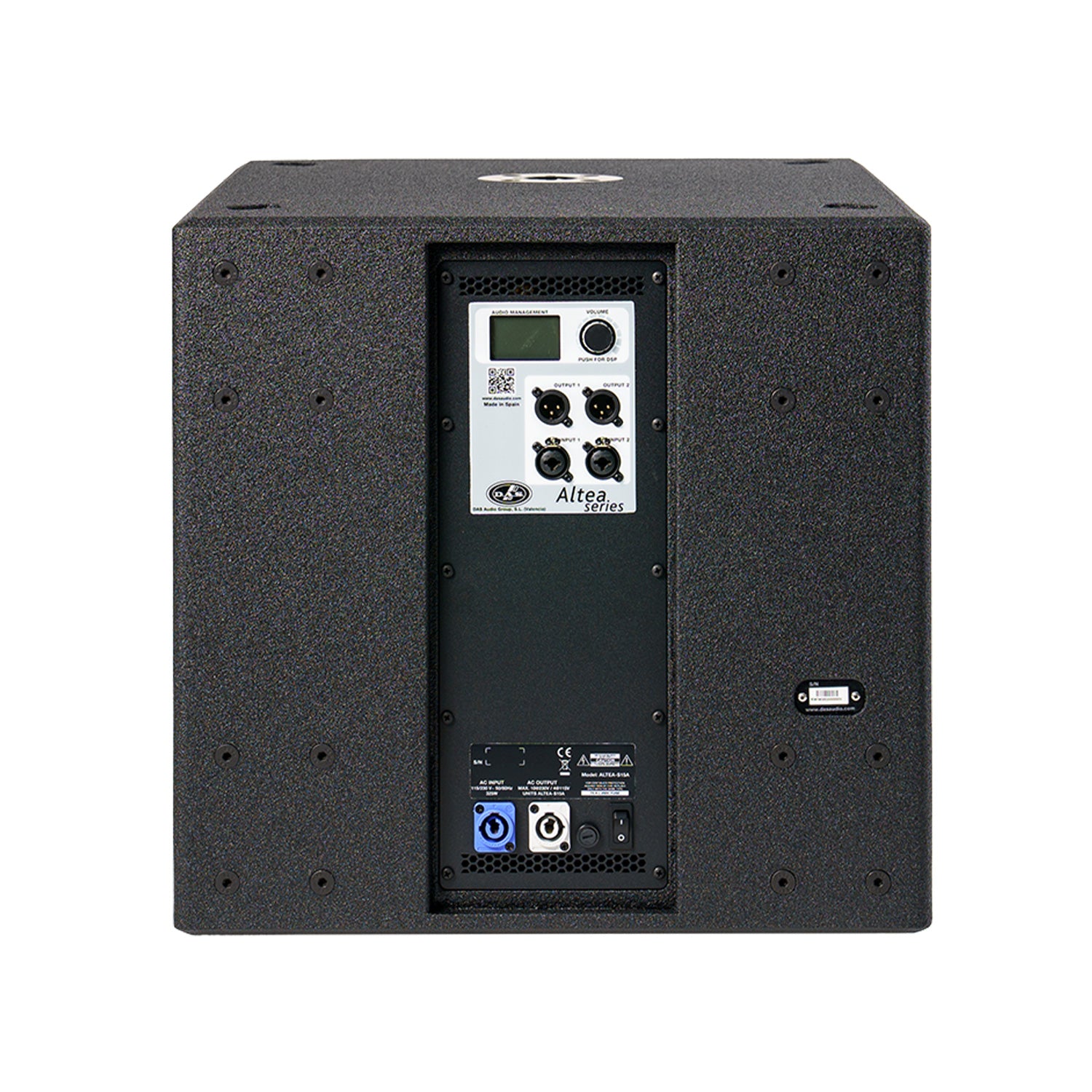

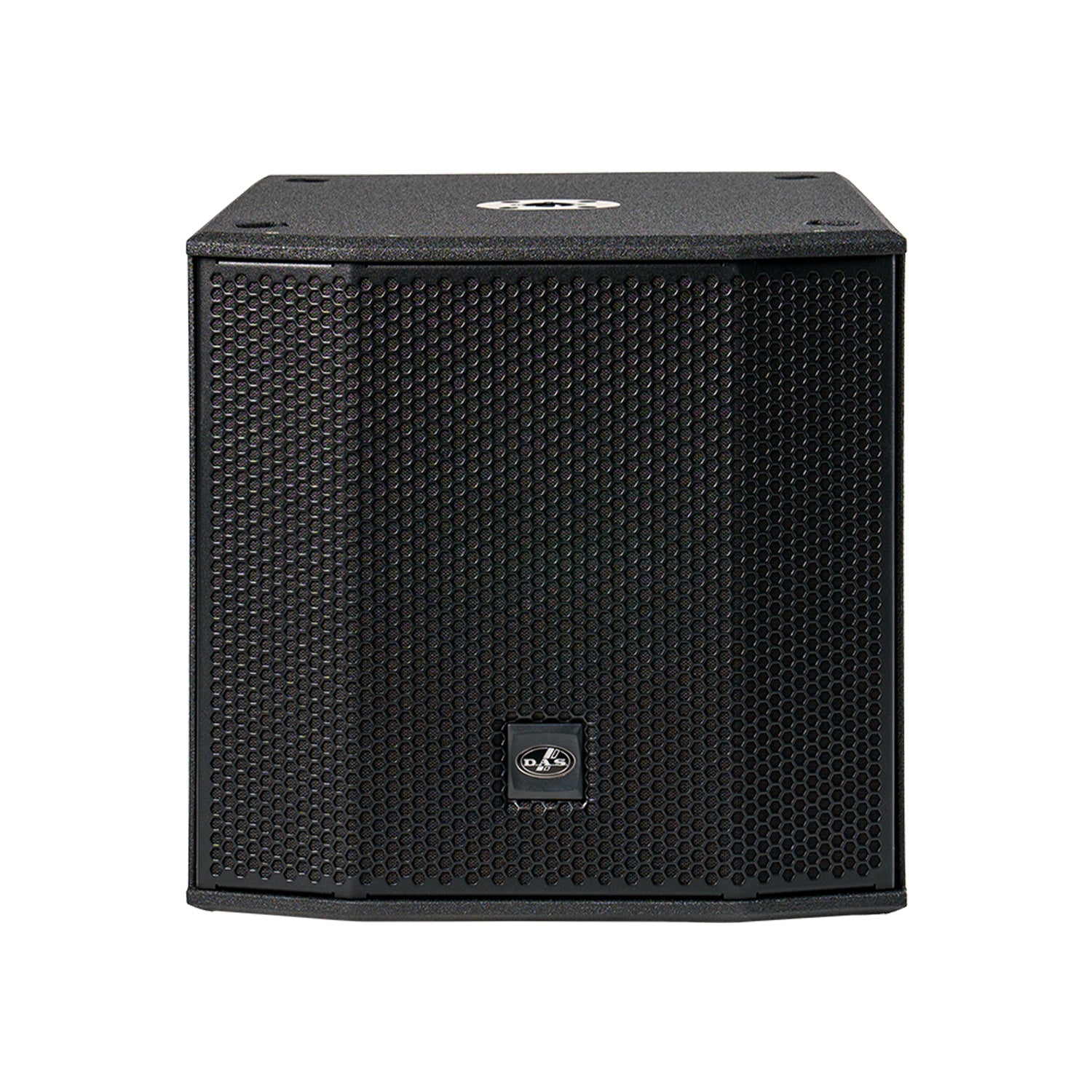

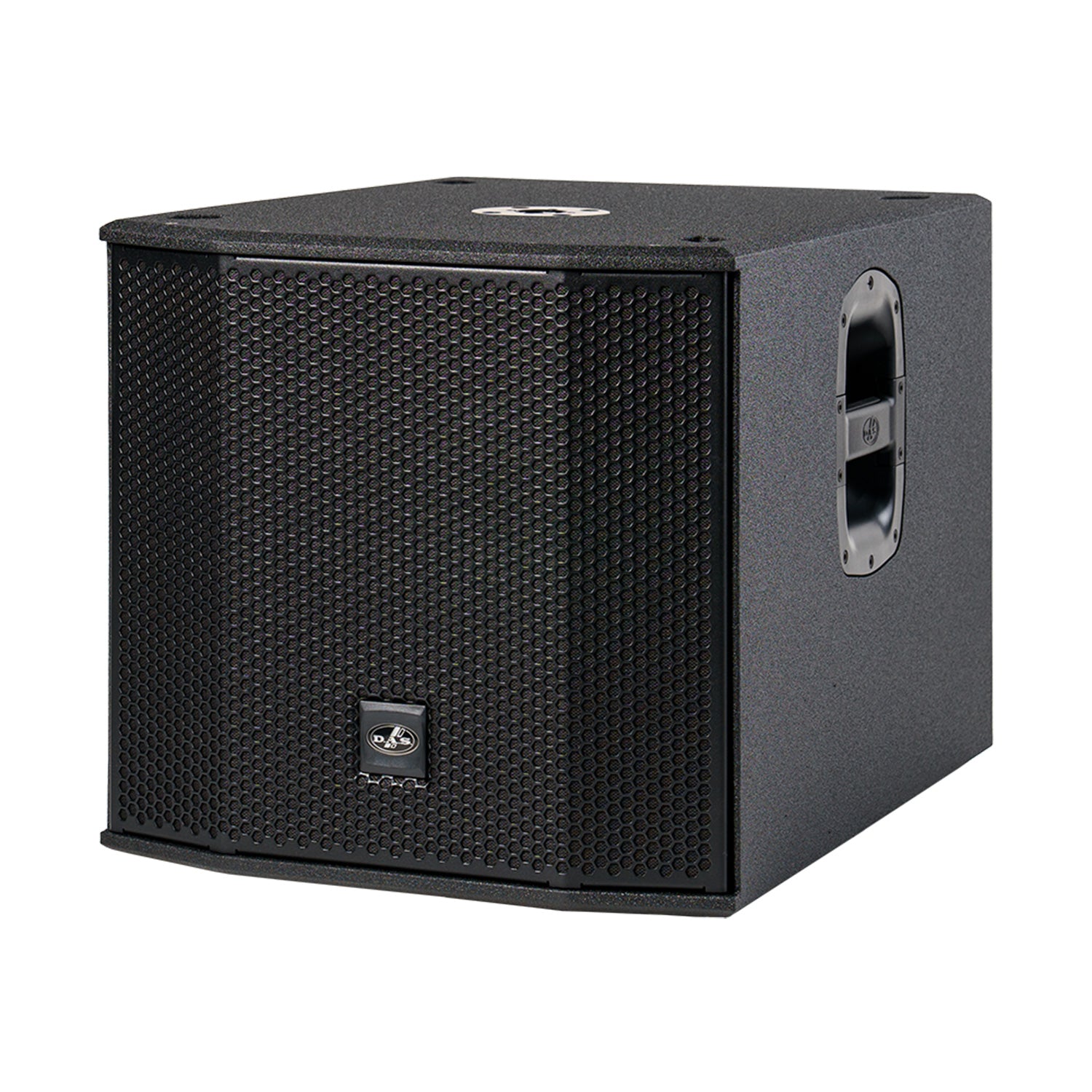

DAS ALTEA-S15A - Active 15-Inch Subwoofer (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ALTEA-S15A is a compact yet powerful active subwoofer with a bass-reflex design that delivers deep frequency response and impressive sound pressure levels.
The 15" DAS 15FW4 woofer boasts a high-quality construction with a 3" voice coil and die-cast aluminium basket, allowing for high excursion and a power handling of 600 watts/AES. An optimized ventilation system enables a high sustained load with extremely reduced power compression.
The woofer is driven by an integrated Class-D power amplifier with a wide-range switching power supply, providing 600 watts/RMS and 1200 watts/peak, enabling up to 131dB/max SPL with a frequency response of 40Hz to 125kHz.
The ALTEA-S15A also features an extensive range of settings to ensure the best possible performance. PowerCon In/Out power connections are included, while the integrated DSP with DAScontrol™ (LCD display+encoder) allows for adjustable crossover frequencies, two sound presets (deep/loud), and cardioid presets. With the cardioid presets you can quickly and easily create setups with multiple ALTEA-S15A units to reduce the sound energy emitted to the rear.
The ALTEA-S15A cabinet is constructed of high-quality birch plywood and finished with our rugged ISOflex™ PU coating. The high-quality front grille is powder-coated. For transport, in addition to two side handles, the ALTEA-S15A is prepared for the mounting of rear wheels.
Features:
- Powered, 600 W, 15", bass-reflex subwoofer, black
- SPL Max: 131 dB
- Dispersion: Omnidirectional
- Weight: 30,0 kg ( 66,0 lb )
| Performance | |
| Frequency Range (-10 dB) | 40 Hz Ð 125 Hz |
| Maximum Peak SPL at 1 m | 131 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 600 W |
| Nominal Amplifier Power (peak) | 1200 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| Control | DAScontrolª |
| AC Output Connector | powerCON NAC3MPB |
| Current Draw 230 V / 115 V | 1.4 A/2.8 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 470 x 485 x 685 mm 18,5 x 19,1 x 27,0 in |
| Net Weight | 30,0 kg ( 66,0 lb ) |
| Components | |
| LF Driver | 15FW4 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 515 x 525 x 716 mm 20,3 x 20,7 x 28,2 in |
| Shipping Weight | 35,0 kg ( 77,0 lb ) |
The ALTEA-S15A is a compact yet powerful active subwoofer with a bass-reflex design that delivers deep frequency response and impressive sound pressure levels.
The 15" DAS 15FW4 woofer boasts a high-quality construction with a 3" voice coil and die-cast aluminium basket, allowing for high excursion and a power handling of 600 watts/AES. An optimized ventilation system enables a high sustained load with extremely reduced power compression.
The woofer is driven by an integrated Class-D power amplifier with a wide-range switching power supply, providing 600 watts/RMS and 1200 watts/peak, enabling up to 131dB/max SPL with a frequency response of 40Hz to 125kHz.
The ALTEA-S15A also features an extensive range of settings to ensure the best possible performance. PowerCon In/Out power connections are included, while the integrated DSP with DAScontrol™ (LCD display+encoder) allows for adjustable crossover frequencies, two sound presets (deep/loud), and cardioid presets. With the cardioid presets you can quickly and easily create setups with multiple ALTEA-S15A units to reduce the sound energy emitted to the rear.
The ALTEA-S15A cabinet is constructed of high-quality birch plywood and finished with our rugged ISOflex™ PU coating. The high-quality front grille is powder-coated. For transport, in addition to two side handles, the ALTEA-S15A is prepared for the mounting of rear wheels.
Features:
- Powered, 600 W, 15", bass-reflex subwoofer, black
- SPL Max: 131 dB
- Dispersion: Omnidirectional
- Weight: 30,0 kg ( 66,0 lb )
| Performance | |
| Frequency Range (-10 dB) | 40 Hz Ð 125 Hz |
| Maximum Peak SPL at 1 m | 131 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 600 W |
| Nominal Amplifier Power (peak) | 1200 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| Control | DAScontrolª |
| AC Output Connector | powerCON NAC3MPB |
| Current Draw 230 V / 115 V | 1.4 A/2.8 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 470 x 485 x 685 mm 18,5 x 19,1 x 27,0 in |
| Net Weight | 30,0 kg ( 66,0 lb ) |
| Components | |
| LF Driver | 15FW4 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 515 x 525 x 716 mm 20,3 x 20,7 x 28,2 in |
| Shipping Weight | 35,0 kg ( 77,0 lb ) |
