DALE SKU # DAS-ARTEC320W

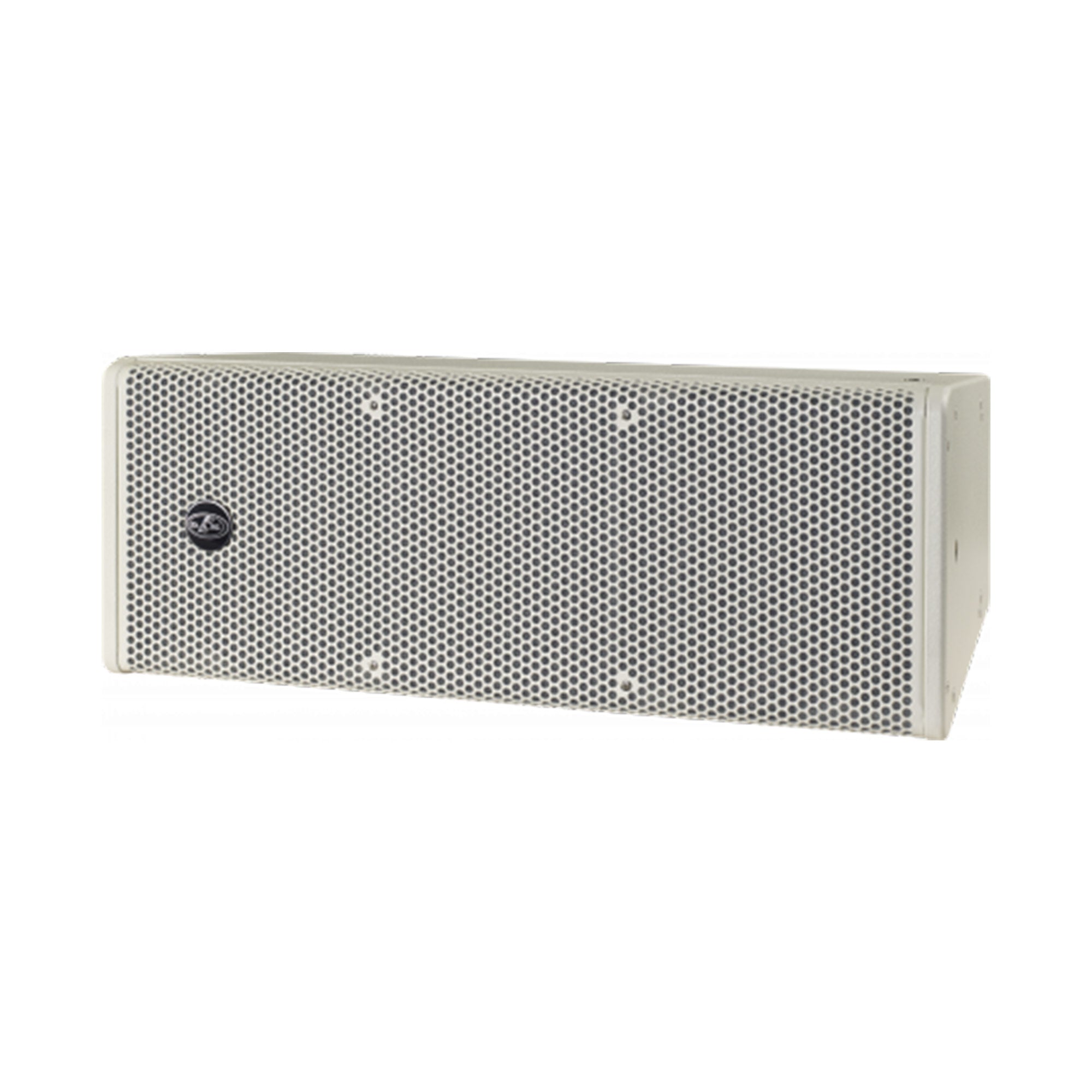

DAS ARTEC-320-W - Passive 2-Way Dual 10-Inch Full-Range Line Array Loudspeaker (White)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The ARTEC-320 is a passive installation line array in a double 10" configuration. The DAS loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide.

    The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.

    The cabinet is manufactured using top quality Birch plywood and finished with a durable black paint finish. The JP-320 joining plates allow for an effective installation solution and are compatible with the ARTEC-322S subwoofer systems. The ARTTEC-320 is delivered with the joining plates.

    Features:

    • Passive, 500 W, 2×10", 2 way full-range, installation Line Array
    • Available in black or white
    • SPL Max: 132 dB
    • Dispersion: 90º
    • Weight: 26,5 kg ( 58,3 lb )
    Performance
    Frequency Range (-10 dB) 60 Hz Ð 20 kHz
    Horizontal Coverage (-6 dB) 90¼
    Vertical Coverage Splay Dependent
    Nominal Impedance 16 ohms
    RMS Power Handling 500 W
    Peak Power Handling 2000 W
    On-axis Sensitivity 1W/1 m 99 dB SPL
    Maximum Peak SPL at 1 m 132 dB
    Recommended Processor INTEGRAL-M88
    INTEGRAL-MA1604
    INTEGRAL-MA1004
    Connectors

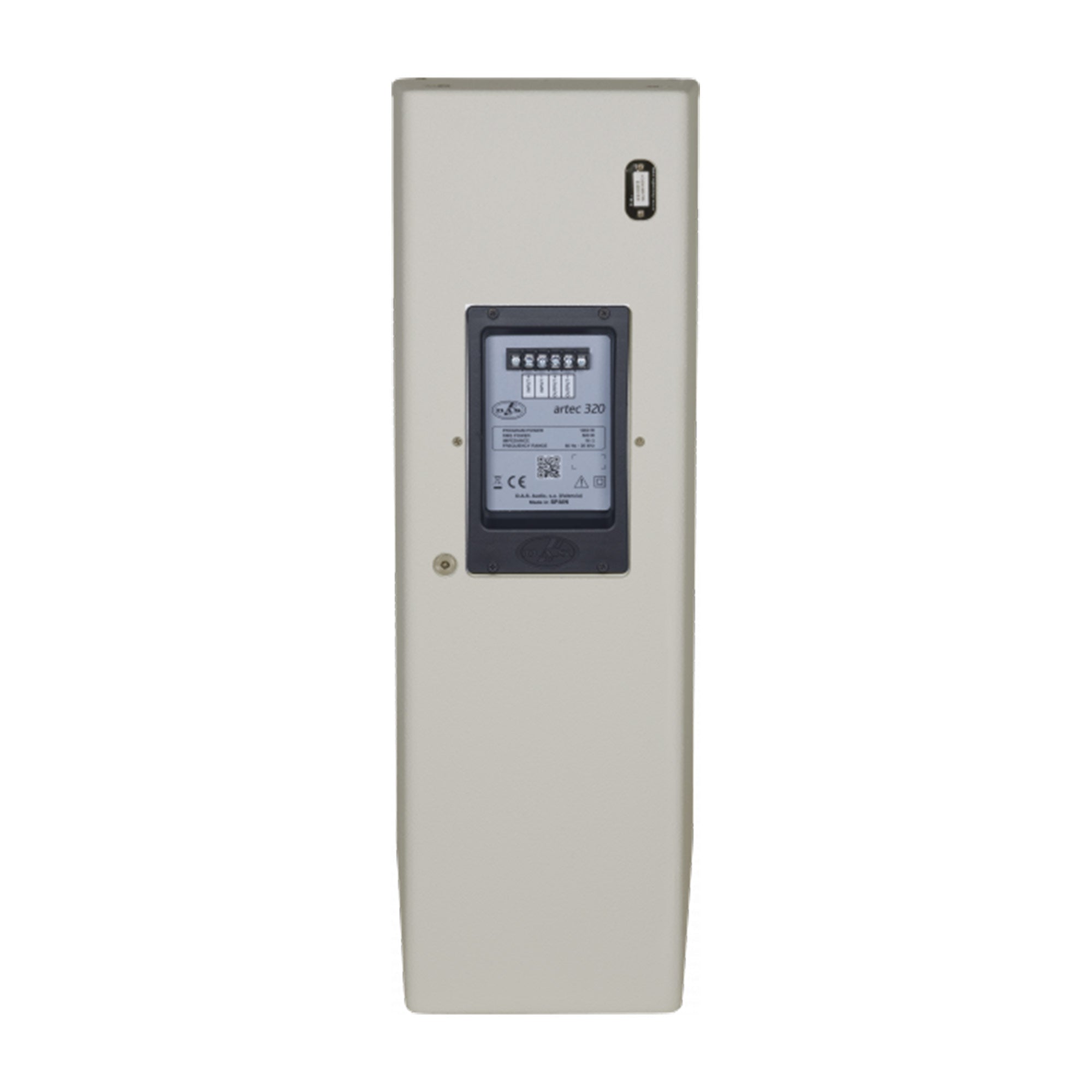

    Audio Input Connector Covered Barrier Strip Terminals
    Audio Output Connector Covered Barrier Strip Terminals
    Enclosure
    Enclosure Construction Birch Plywood
    Enclosure Geometry Trapezoidal
    Rigging M10 Rigging Points
    Finish ISO-flex Paint
    Color Black
    Depth 360 mm (14,2 in)
    Dimensions ( H x W x D ) 345 x 710 x 360 mm
    13,6 x 28,0 x 14,2 in
    Net Weight 26,5 kg ( 58,3 lb )
    Components
    LF Driver 10MI
    HF Driver M-75
    Shipping
    Carton Dimensions ( H x W x D ) 820 x 330 x 420 mm
    32,3 x 13,0 x 16,5 in
    Shipping Weight 29,0 kg ( 63,9 lb )

    The ARTEC-320 is a passive installation line array in a double 10" configuration. The DAS loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide.

    The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.

    The cabinet is manufactured using top quality Birch plywood and finished with a durable black paint finish. The JP-320 joining plates allow for an effective installation solution and are compatible with the ARTEC-322S subwoofer systems. The ARTTEC-320 is delivered with the joining plates.

    Features:

    • Passive, 500 W, 2×10", 2 way full-range, installation Line Array
    • Available in black or white
    • SPL Max: 132 dB
    • Dispersion: 90º
    • Weight: 26,5 kg ( 58,3 lb )
    Performance
    Frequency Range (-10 dB) 60 Hz Ð 20 kHz
    Horizontal Coverage (-6 dB) 90¼
    Vertical Coverage Splay Dependent
    Nominal Impedance 16 ohms
    RMS Power Handling 500 W
    Peak Power Handling 2000 W
    On-axis Sensitivity 1W/1 m 99 dB SPL
    Maximum Peak SPL at 1 m 132 dB
    Recommended Processor INTEGRAL-M88
    INTEGRAL-MA1604
    INTEGRAL-MA1004
    Connectors
    Audio Input Connector Covered Barrier Strip Terminals
    Audio Output Connector Covered Barrier Strip Terminals
    Enclosure
    Enclosure Construction Birch Plywood
    Enclosure Geometry Trapezoidal
    Rigging M10 Rigging Points
    Finish ISO-flex Paint
    Color Black
    Depth 360 mm (14,2 in)
    Dimensions ( H x W x D ) 345 x 710 x 360 mm
    13,6 x 28,0 x 14,2 in
    Net Weight 26,5 kg ( 58,3 lb )
    Components
    LF Driver 10MI
    HF Driver M-75
    Shipping
    Carton Dimensions ( H x W x D ) 820 x 330 x 420 mm
    32,3 x 13,0 x 16,5 in
    Shipping Weight 29,0 kg ( 63,9 lb )
