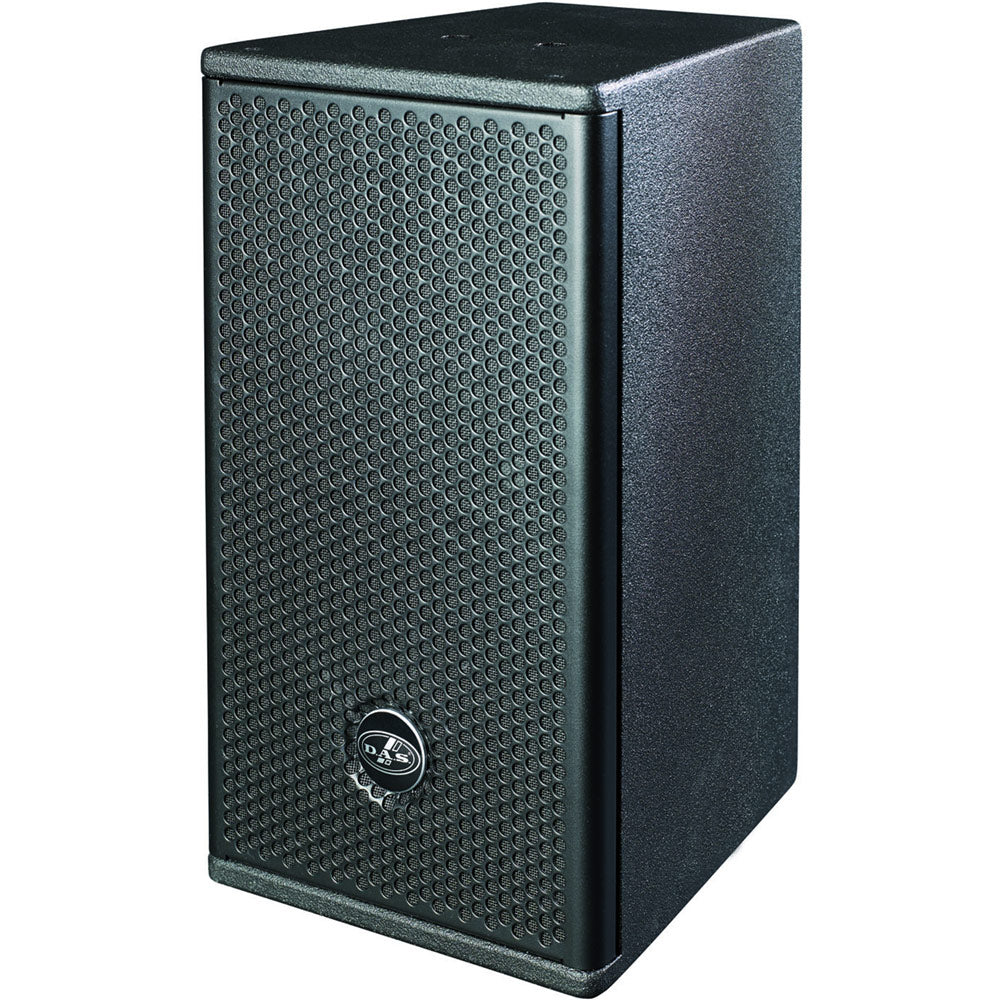

DAS ARTEC-508A - Active Two-Way 8-Inch Point Source Loudspeaker (Black)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ARTEC-508A incorporates a single 8" loudspeaker for low frequency reproduction. The 720 W peak power of the Class D amplifier provides extended bandwith, improved dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. The DAS 8C loudspeaker provides accurate low frequency reproduction. High frequencies are handled by the M-34 compression driver with 1? exit offering excellent HF performance. The birch plywood cabinet construction offers an ultra-compact design which is available in black or white.
Features:
- Powered, 500 W, 8", 2 way full-range
- 80×80 horn
- Available in black or white
- SPL Max: 122 dB
- Dispersion: 80º x 80º
- Weight: 9,9 kg ( 21,8 lb )
| Performance | |
| Frequency Range (-10 dB) | 55 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 80¼ |
| Vertical Coverage | 80¼ |
| Maximum Peak SPL at 1 m | 122 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power LF (continuous) | 360 W |
| Nominal Amplifier Power LF (peak) | 720 W |
| Nominal Amplifier Power HF (continuous) | 180 W |
| Nominal Amplifier Power HF (peak) | 360 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 1 x Female XLR |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Recommended Signal Processing | INTEGRAL-M88 |
| Current Draw 230 V / 115 V | 1.2 A/- |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 450 x 245 x 290 mm 17,7 x 9,6 x 11,4 in |
| Net Weight | 9,9 kg ( 21,8 lb ) |
| Components | |
| LF Driver | 8C |
| HF Driver | M-34 |
| Horn/Waveguide | BC-88 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 541 x 310 x 355 mm 21,3 x 12,2 x 14,0 in |
| Shipping Weight | 13,6 kg ( 30,0 lb ) |
The ARTEC-508A incorporates a single 8" loudspeaker for low frequency reproduction. The 720 W peak power of the Class D amplifier provides extended bandwith, improved dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. The DAS 8C loudspeaker provides accurate low frequency reproduction. High frequencies are handled by the M-34 compression driver with 1? exit offering excellent HF performance. The birch plywood cabinet construction offers an ultra-compact design which is available in black or white.
Features:
- Powered, 500 W, 8", 2 way full-range
- 80×80 horn
- Available in black or white
- SPL Max: 122 dB
- Dispersion: 80º x 80º
- Weight: 9,9 kg ( 21,8 lb )
| Performance | |
| Frequency Range (-10 dB) | 55 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 80¼ |
| Vertical Coverage | 80¼ |
| Maximum Peak SPL at 1 m | 122 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power LF (continuous) | 360 W |
| Nominal Amplifier Power LF (peak) | 720 W |
| Nominal Amplifier Power HF (continuous) | 180 W |
| Nominal Amplifier Power HF (peak) | 360 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 1 x Female XLR |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Recommended Signal Processing | INTEGRAL-M88 |
| Current Draw 230 V / 115 V | 1.2 A/- |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 450 x 245 x 290 mm 17,7 x 9,6 x 11,4 in |
| Net Weight | 9,9 kg ( 21,8 lb ) |
| Components | |
| LF Driver | 8C |
| HF Driver | M-34 |
| Horn/Waveguide | BC-88 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 541 x 310 x 355 mm 21,3 x 12,2 x 14,0 in |
| Shipping Weight | 13,6 kg ( 30,0 lb ) |
