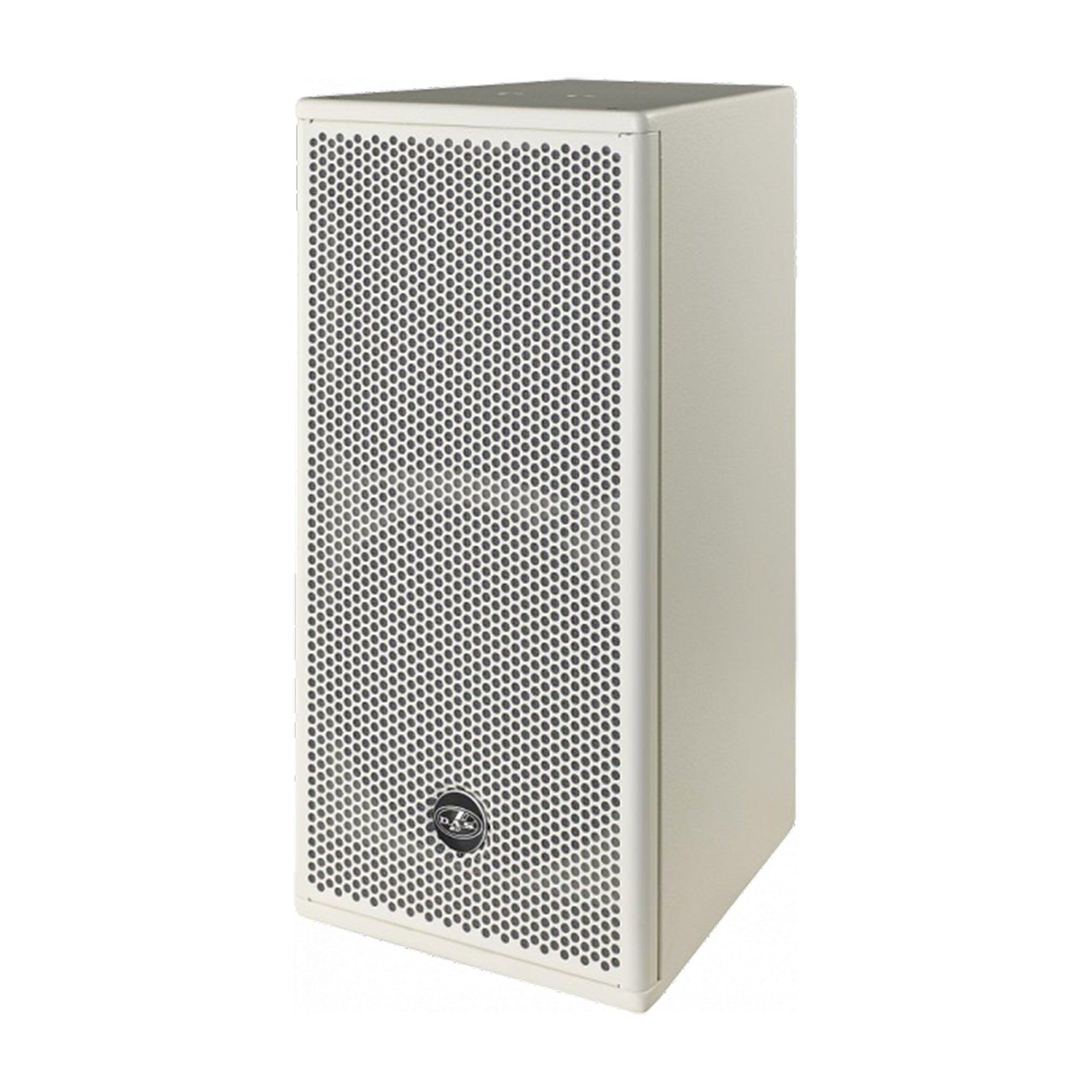

DAS ARTEC-510-W - Passive Two-Way 10-Inch Point Source Loudspeaker (White)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Artec-510 employs a single 10P woofer for low frequency reproduction. The M 60N compression driver with neodymium magnet assembly provides brilliant highs. The birch plywood cabinet construction offers an ultra compact design which is available in black or white. Precise coverage and control with its 110º x 50º horn geometry. The cabinets can be permanently installed by way of the optional "U" brackets and accessories which allow for multiple configurations. Four threaded fixing points for the AXW-1 adjustable wall mount and a pole mount socket augment adaptability. A robust steel grille internally lined with acoustically transparent filter cloth protects components.
Features:
- Passive, 400 W, 10", 2 way full-range
- 110×50 rotatable horn
- Available in black or white
- SPL Max: 128 dB
- Dispersion: 110º x 50º
- Weight: 19,0 kg ( 41,9 lb )
| Performance | |
| Frequency Range (-10 dB) | 55 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 110¼ |
| Vertical Coverage | 50¼ |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 400 W |
| Peak Power Handling | 1600 W |
| On-axis Sensitivity 1W/1 m | 96 dB SPL |
| Maximum Peak SPL at 1 m | 128 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |

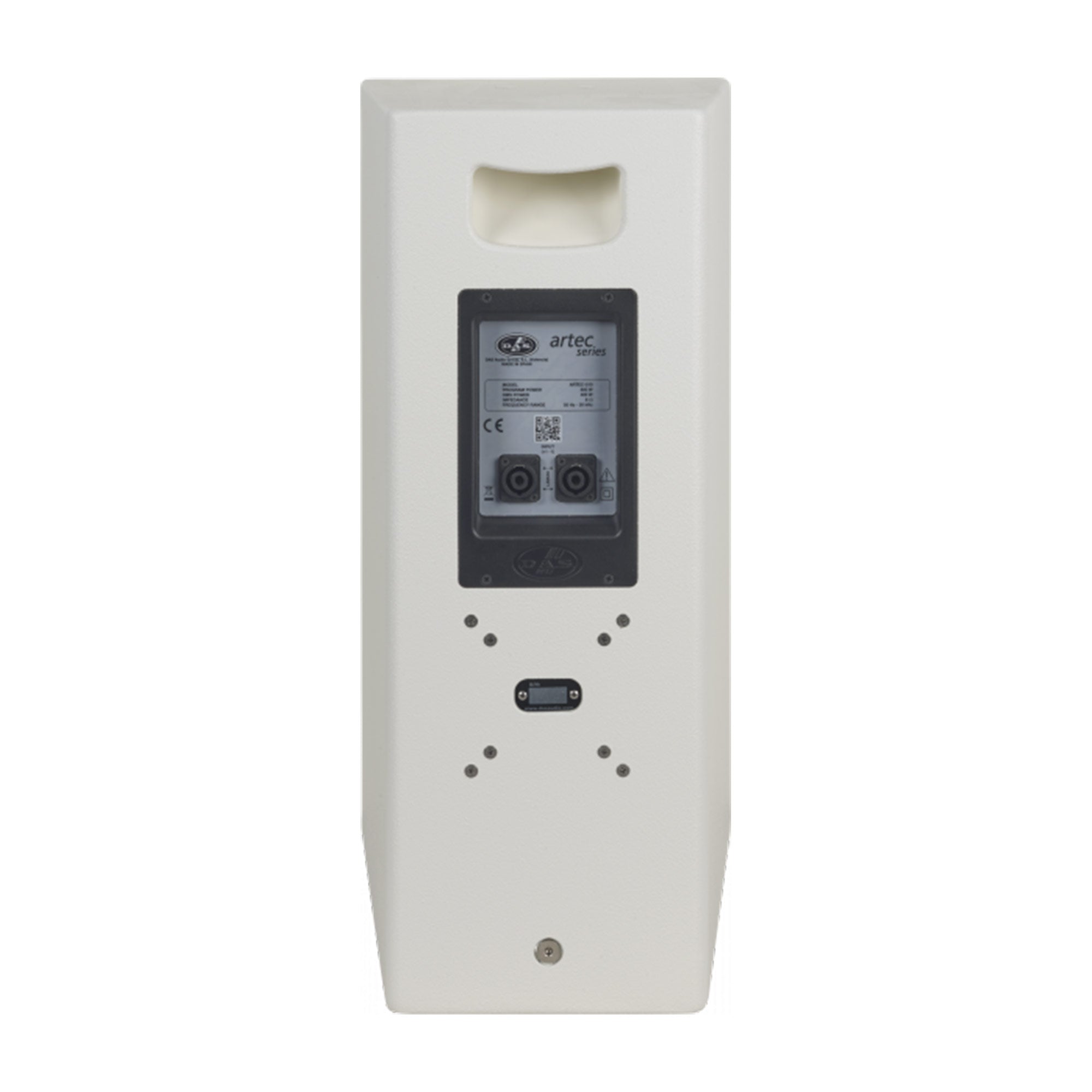

| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Depth | 345 mm (13,6 in) |
| Dimensions ( H x W x D ) | 610 x 295 x 345 mm 24,0 x 11,6 x 13,6 in |
| Net Weight | 19,0 kg ( 41,9 lb ) |
| Components | |
| LF Driver | 10P |
| HF Driver | M-60N |
| Horn/Waveguide | BC-115 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 705 x 391 x 416 mm 27,8 x 15,4 x 16,4 in |
| Shipping Weight | 20,5 kg ( 45,2 lb ) |
The Artec-510 employs a single 10P woofer for low frequency reproduction. The M 60N compression driver with neodymium magnet assembly provides brilliant highs. The birch plywood cabinet construction offers an ultra compact design which is available in black or white. Precise coverage and control with its 110º x 50º horn geometry. The cabinets can be permanently installed by way of the optional "U" brackets and accessories which allow for multiple configurations. Four threaded fixing points for the AXW-1 adjustable wall mount and a pole mount socket augment adaptability. A robust steel grille internally lined with acoustically transparent filter cloth protects components.
Features:
- Passive, 400 W, 10", 2 way full-range
- 110×50 rotatable horn
- Available in black or white
- SPL Max: 128 dB
- Dispersion: 110º x 50º
- Weight: 19,0 kg ( 41,9 lb )
| Performance | |
| Frequency Range (-10 dB) | 55 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 110¼ |
| Vertical Coverage | 50¼ |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 400 W |
| Peak Power Handling | 1600 W |
| On-axis Sensitivity 1W/1 m | 96 dB SPL |
| Maximum Peak SPL at 1 m | 128 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Depth | 345 mm (13,6 in) |
| Dimensions ( H x W x D ) | 610 x 295 x 345 mm 24,0 x 11,6 x 13,6 in |
| Net Weight | 19,0 kg ( 41,9 lb ) |
| Components | |
| LF Driver | 10P |
| HF Driver | M-60N |
| Horn/Waveguide | BC-115 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 705 x 391 x 416 mm 27,8 x 15,4 x 16,4 in |
| Shipping Weight | 20,5 kg ( 45,2 lb ) |
