DAS ARTEC-526-W - Passive Two-Way Dual 6-Inch Point Source Loudspeaker (White)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

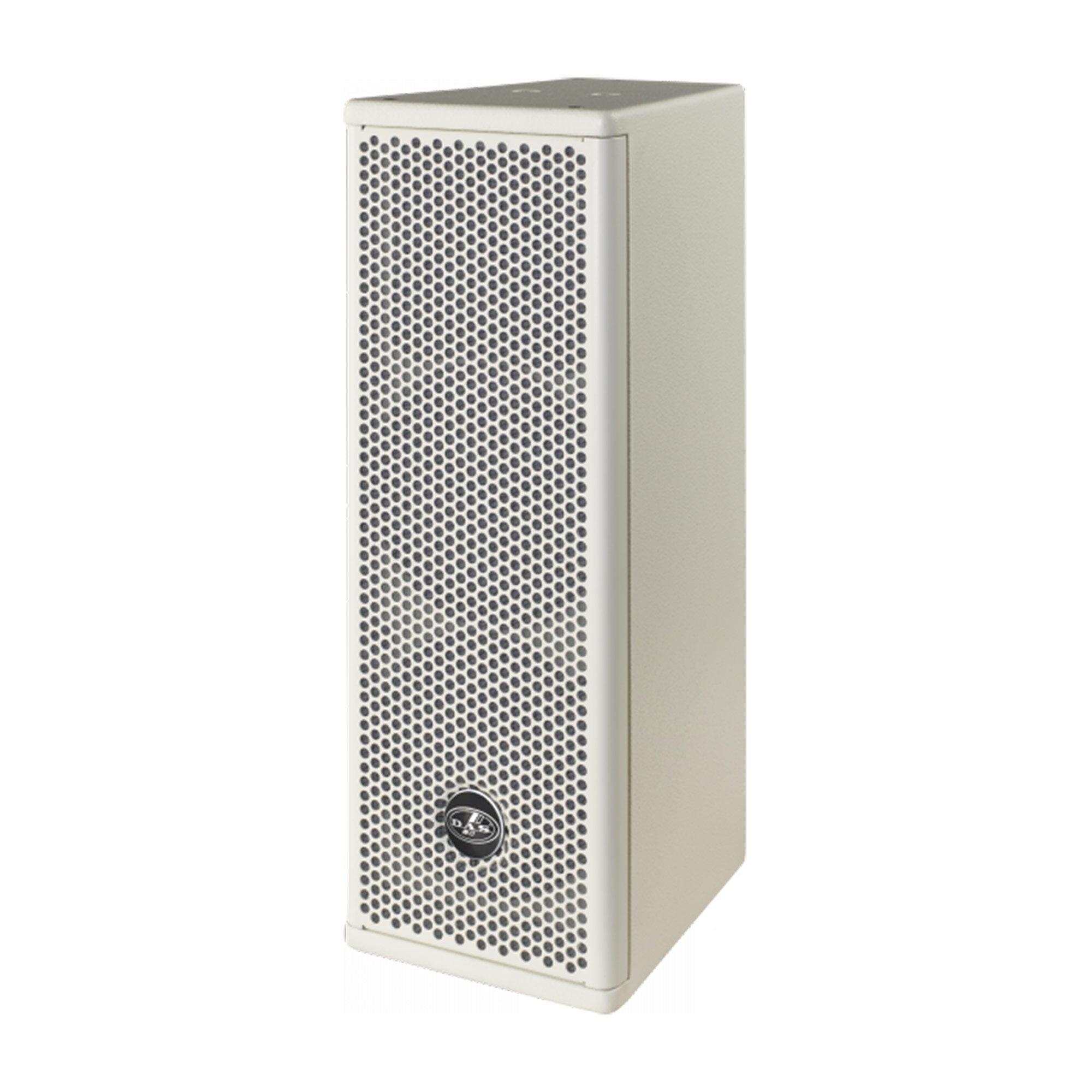

The Artec-526 employs twin 6P woofers for low frequency reproduction. The M-34 compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra compact design which is available in black or white. Precise coverage and control in either the horizontal and vertical position is possible thanks to the symmetrical 80° horn geometry. The cabinets can be permanently installed by way of the optional "U" brackets and accessories which allow for multiple configurations. Four threaded fixing points for the AXW-1 adjustable wall mount and stand mounting accessories augment adaptability. A robust steel grille internally lined with acoustically transparent filter cloth protects components.
Features:
- Passive, 400 W, 2×6", 2 way full-range
- 80×80 horn
- Available in black or white
- SPL Max: 125 dB
- Dispersion: 80º x 80º
- Weight: 14,5 kg ( 32,0 lb )
| Performance | |
| Frequency Range (-10 dB) | 60 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 80¼ |
| Vertical Coverage | 80¼ |
| Nominal Impedance | 16 ohms |
| RMS Power Handling | 400 W |
| Peak Power Handling | 1600 W |
| On-axis Sensitivity 1W/1 m | 93 dB SPL |
| Maximum Peak SPL at 1 m | 125 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |

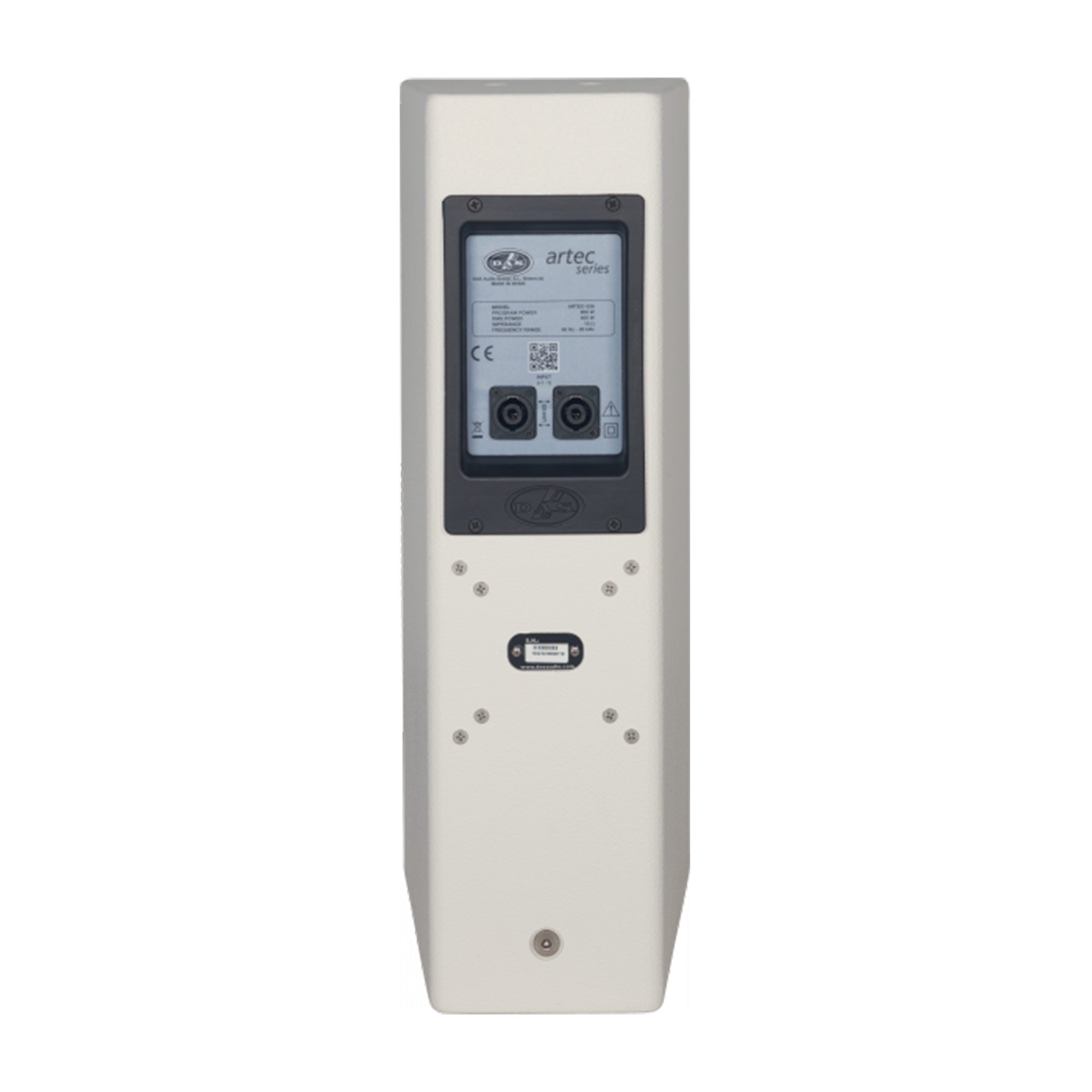

| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Depth | 260 mm (10,2 in) |
| Dimensions ( H x W x D ) | 550 x 195 x 260 mm 21,7 x 7,7 x 10,2 in |
| Net Weight | 14,5 kg ( 32,0 lb ) |
| Components | |
| LF Driver | 6P |
| HF Driver | M-34 |
| Horn/Waveguide | BC-88 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 638 x 266 x 330 mm 25,1 x 10,5 x 13,0 in |
| Shipping Weight | 15,5 kg ( 34,2 lb ) |
The Artec-526 employs twin 6P woofers for low frequency reproduction. The M-34 compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra compact design which is available in black or white. Precise coverage and control in either the horizontal and vertical position is possible thanks to the symmetrical 80° horn geometry. The cabinets can be permanently installed by way of the optional "U" brackets and accessories which allow for multiple configurations. Four threaded fixing points for the AXW-1 adjustable wall mount and stand mounting accessories augment adaptability. A robust steel grille internally lined with acoustically transparent filter cloth protects components.
Features:
- Passive, 400 W, 2×6", 2 way full-range
- 80×80 horn
- Available in black or white
- SPL Max: 125 dB
- Dispersion: 80º x 80º
- Weight: 14,5 kg ( 32,0 lb )
| Performance | |
| Frequency Range (-10 dB) | 60 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 80¼ |
| Vertical Coverage | 80¼ |
| Nominal Impedance | 16 ohms |
| RMS Power Handling | 400 W |
| Peak Power Handling | 1600 W |
| On-axis Sensitivity 1W/1 m | 93 dB SPL |
| Maximum Peak SPL at 1 m | 125 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Depth | 260 mm (10,2 in) |
| Dimensions ( H x W x D ) | 550 x 195 x 260 mm 21,7 x 7,7 x 10,2 in |
| Net Weight | 14,5 kg ( 32,0 lb ) |
| Components | |
| LF Driver | 6P |
| HF Driver | M-34 |
| Horn/Waveguide | BC-88 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 638 x 266 x 330 mm 25,1 x 10,5 x 13,0 in |
| Shipping Weight | 15,5 kg ( 34,2 lb ) |
