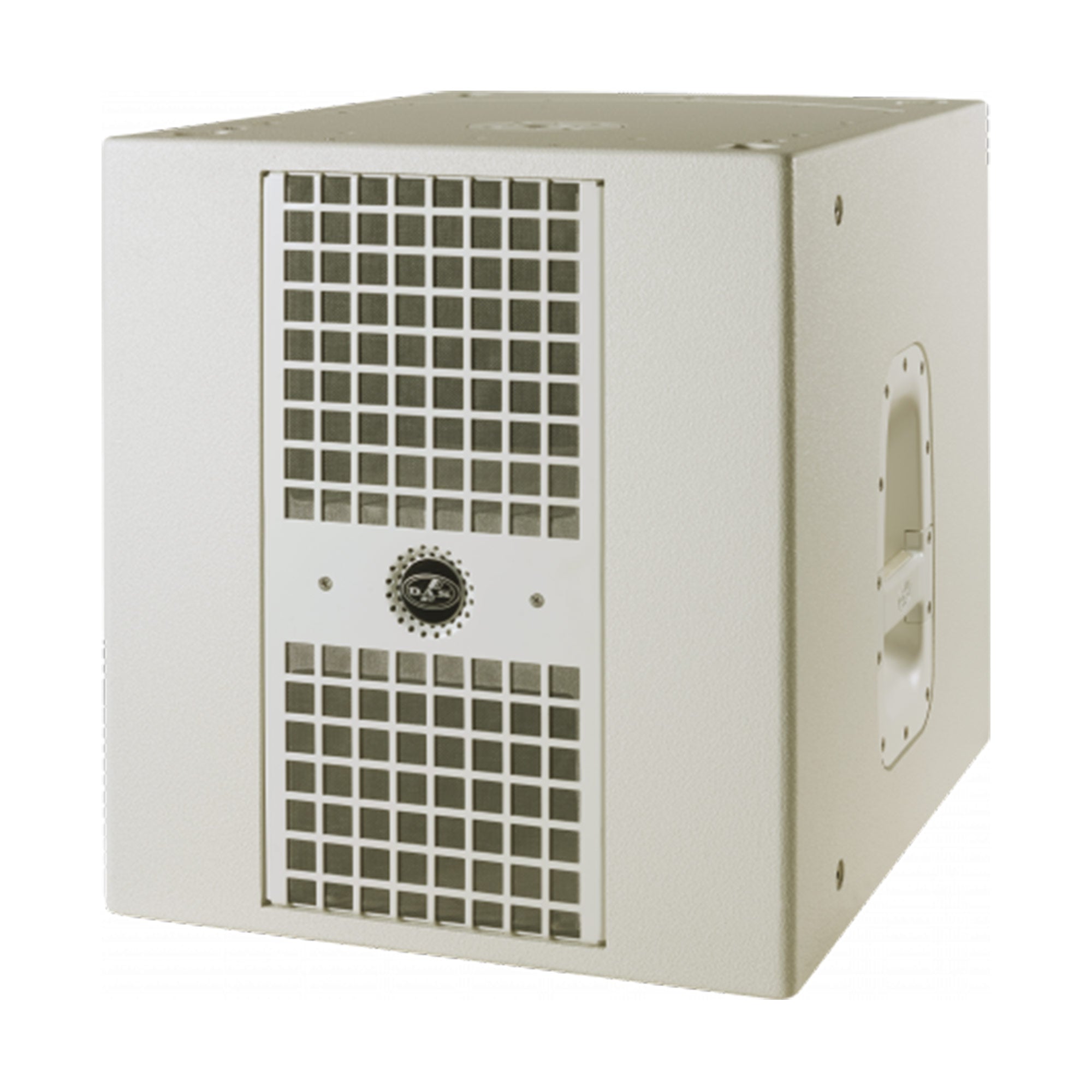

DAS ARTEC-S15-W - Active 15-Inch Subwoofer (White)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Artec S15 band-pass bass system incorporates a 15SX low frequency transducer with a 4 " voice coil. The loudspeaker is protected by a perforated steel grille, sealed against corrosion using a powder coat finish. The Artec S15 is designed for use in biamped systems. A top located pole-mount socket permits mounting full-range systems above the Artec S15 and two bar handles makes moving easy.
Features:
- Passive, 800 W, 15", band-pass subwoofer, black
- SPL Max: 137 dB
- Dispersion: Omnidirectional
- Weight: 32,0 kg ( 70,6 lb )
| Performance | |
| Frequency Range (-10 dB) | 45 Hz Ð 138 Hz |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 800 W |
| Peak Power Handling | 3200 W |
| On-axis Sensitivity 1W/1 m | 99 dB SPL |
| Maximum Peak SPL at 1 m | 137 dB |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 585 mm (23,0 in) |
| Dimensions ( H x W x D ) | 515 x 465 x 585 mm 20,3 x 18,3 x 23,0 in |
| Net Weight | 32,0 kg ( 70,6 lb ) |
| Components | |
| LF Driver | 15LXN |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 580 x 510 x 632 mm 22,8 x 20,1 x 24,9 in |
| Shipping Weight | 34,5 kg ( 76,1 lb ) |
The Artec S15 band-pass bass system incorporates a 15SX low frequency transducer with a 4 " voice coil. The loudspeaker is protected by a perforated steel grille, sealed against corrosion using a powder coat finish. The Artec S15 is designed for use in biamped systems. A top located pole-mount socket permits mounting full-range systems above the Artec S15 and two bar handles makes moving easy.
Features:
- Passive, 800 W, 15", band-pass subwoofer, black
- SPL Max: 137 dB
- Dispersion: Omnidirectional
- Weight: 32,0 kg ( 70,6 lb )
| Performance | |
| Frequency Range (-10 dB) | 45 Hz Ð 138 Hz |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 800 W |
| Peak Power Handling | 3200 W |
| On-axis Sensitivity 1W/1 m | 99 dB SPL |
| Maximum Peak SPL at 1 m | 137 dB |
| Connectors | |
| Audio Input Connector | 1 x speakON NL4 |
| Audio Output Connector | 1 x speakON NL4 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Depth | 585 mm (23,0 in) |
| Dimensions ( H x W x D ) | 515 x 465 x 585 mm 20,3 x 18,3 x 23,0 in |
| Net Weight | 32,0 kg ( 70,6 lb ) |
| Components | |
| LF Driver | 15LXN |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 580 x 510 x 632 mm 22,8 x 20,1 x 24,9 in |
| Shipping Weight | 34,5 kg ( 76,1 lb ) |
