DALE SKU # DAS-ARTECS15AW115

DAS ARTEC-S15A-W - Passive 15-Inch Subwoofer (White)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The Artec-S15A is a powered subwoofer system designed to provide extended bass response for the Artec-full range cabinets. A 2000 Wpeak Class D amplifier drives a D.A.S. 15SX bass loudspeaker. The 15SX loudspeaker incoporates a 4" voice coil for high power handling and output. The subwoofer system includes two balanced inputs with stereo filtered output connections for Artec-satellite systems. The variable LPF ranges from 100 Hz 138 Hz.

    Features:

    • Powered, 1000 W, 15", band-pass subwoofer, 230 V, black
    • SPL Max: 134 dB
    • Dispersion: Omnidirectional
    • Weight: 31,0 kg ( 68,3 lb )
    Performance
    Frequency Range (-10 dB) 45 Hz -138 Hz
    Maximum Peak SPL at 1 m 134 dB

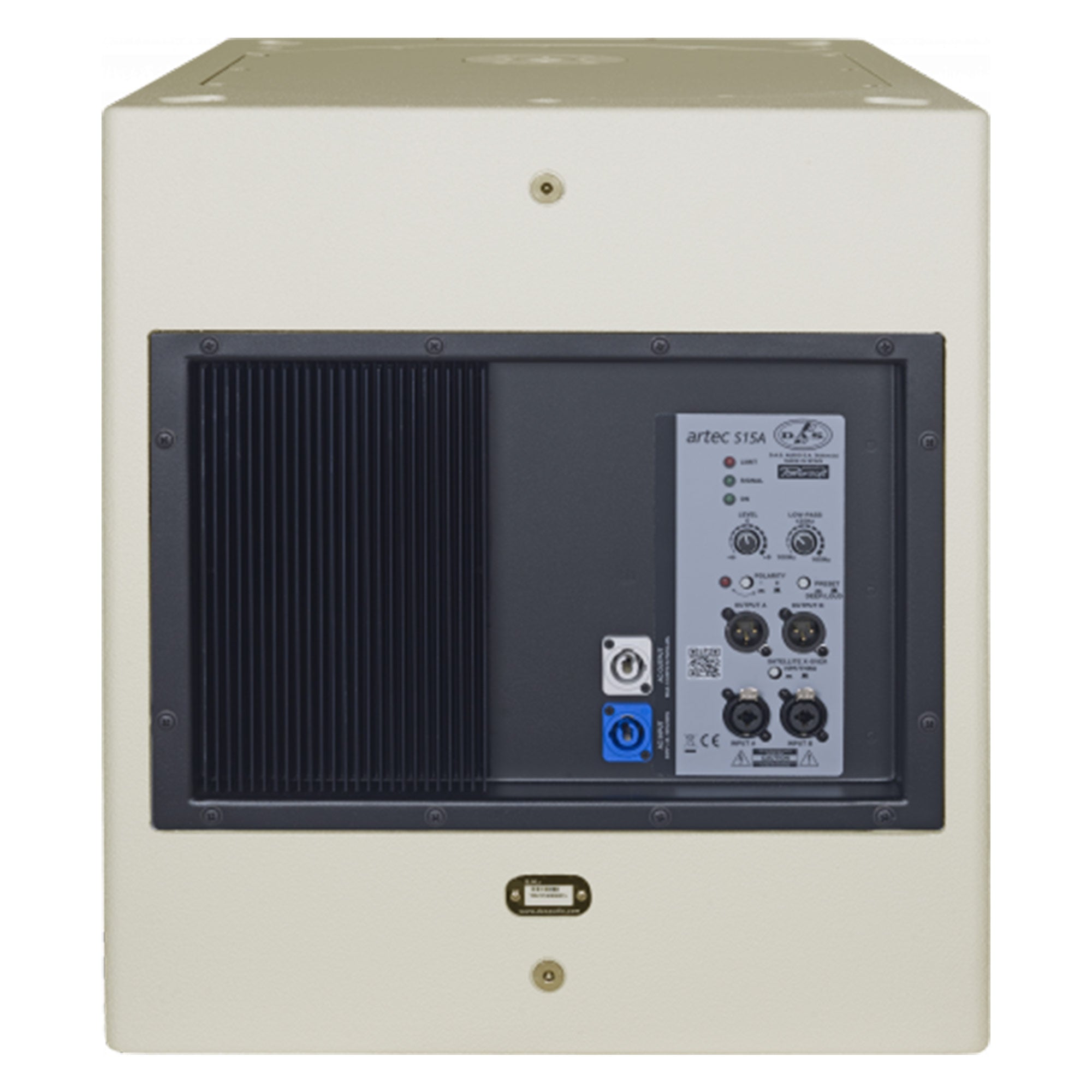

    Electronics and Connectors
    Nominal Amplifier Power (continuous) 1000 W
    Nominal Amplifier Power (peak) 2000 W
    Input Type Balanced
    Input Impeadance 20 kohms
    Input Sensitivity 1.95 V (+8 dBu)
    Audio Signal Input Connector 2 x Female XLR
    Audio Signal Loop Thru Connector 2 x Male XLR
    AC Output Connector powerCON NAC3FCB
    Current Draw 230 V / 115 V 2.0 A/-
    Enclosure
    Enclosure Construction Birch Plywood
    Enclosure Geometry Rectangular
    Rigging M10 Rigging Points
    Finish ISO-flex Paint
    Color Black
    Dimensions ( H x W x D ) 515 x 465 x 585 mm
    20,3 x 18,3 x 23,0 in
    Net Weight 31,0 kg ( 68,3 lb )
    Components
    LF Driver 15LXN
    Shipping
    Carton Dimensions ( H x W x D ) 580 x 510 x 632 mm
    22,8 x 20,1 x 24,9 in
    Shipping Weight 37,0 kg ( 81,6 lb )

    The Artec-S15A is a powered subwoofer system designed to provide extended bass response for the Artec-full range cabinets. A 2000 Wpeak Class D amplifier drives a D.A.S. 15SX bass loudspeaker. The 15SX loudspeaker incoporates a 4" voice coil for high power handling and output. The subwoofer system includes two balanced inputs with stereo filtered output connections for Artec-satellite systems. The variable LPF ranges from 100 Hz 138 Hz.

    Features:

    • Powered, 1000 W, 15", band-pass subwoofer, 230 V, black
    • SPL Max: 134 dB
    • Dispersion: Omnidirectional
    • Weight: 31,0 kg ( 68,3 lb )
    Performance
    Frequency Range (-10 dB) 45 Hz -138 Hz
    Maximum Peak SPL at 1 m 134 dB
    Electronics and Connectors
    Nominal Amplifier Power (continuous) 1000 W
    Nominal Amplifier Power (peak) 2000 W
    Input Type Balanced
    Input Impeadance 20 kohms
    Input Sensitivity 1.95 V (+8 dBu)
    Audio Signal Input Connector 2 x Female XLR
    Audio Signal Loop Thru Connector 2 x Male XLR
    AC Output Connector powerCON NAC3FCB
    Current Draw 230 V / 115 V 2.0 A/-
    Enclosure
    Enclosure Construction Birch Plywood
    Enclosure Geometry Rectangular
    Rigging M10 Rigging Points
    Finish ISO-flex Paint
    Color Black
    Dimensions ( H x W x D ) 515 x 465 x 585 mm
    20,3 x 18,3 x 23,0 in
    Net Weight 31,0 kg ( 68,3 lb )
    Components
    LF Driver 15LXN
    Shipping
    Carton Dimensions ( H x W x D ) 580 x 510 x 632 mm
    22,8 x 20,1 x 24,9 in
    Shipping Weight 37,0 kg ( 81,6 lb )
