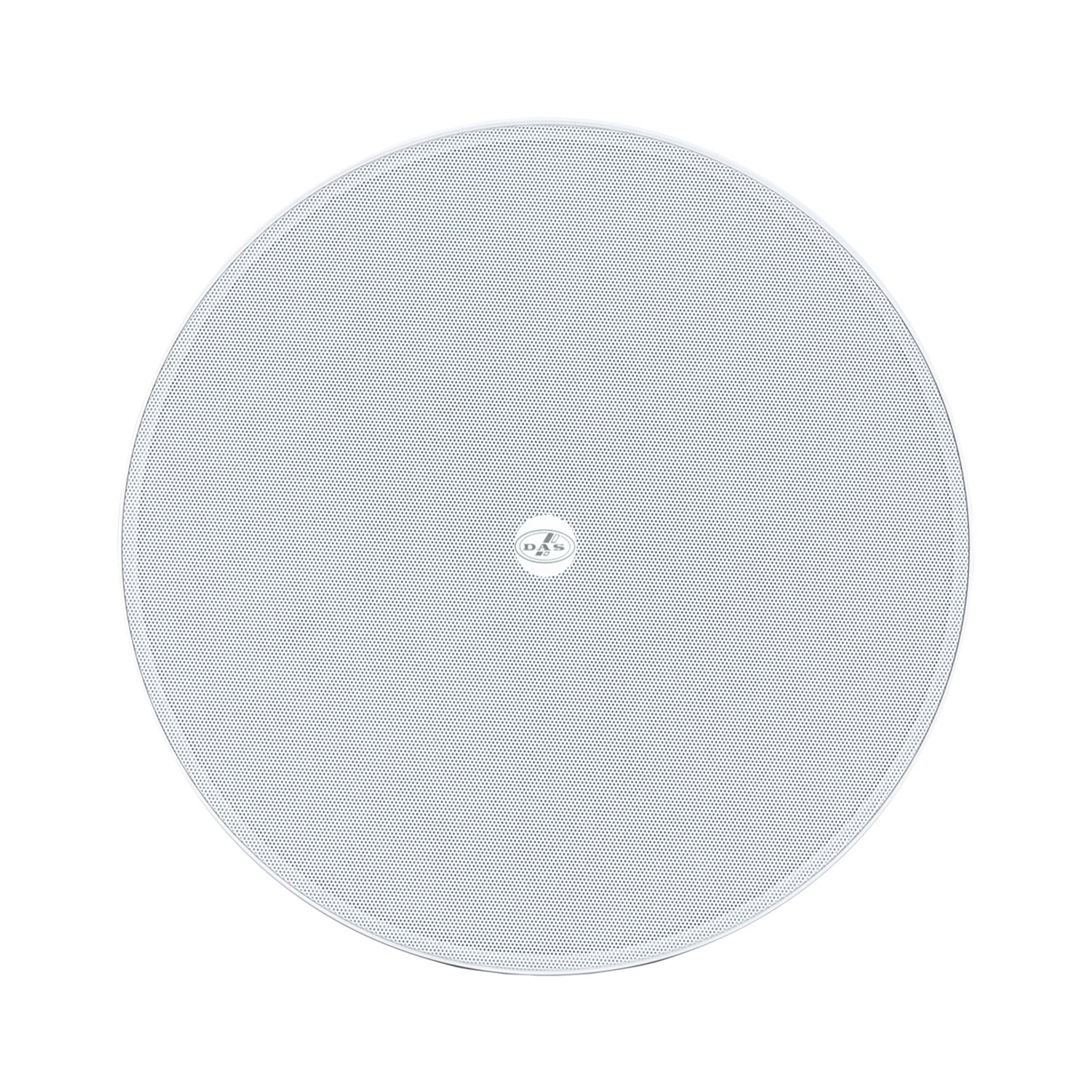

DAS DECO-6-T - Two-Way 6.5-Inch 8-Ohm Ceiling Loudspeaker (White)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

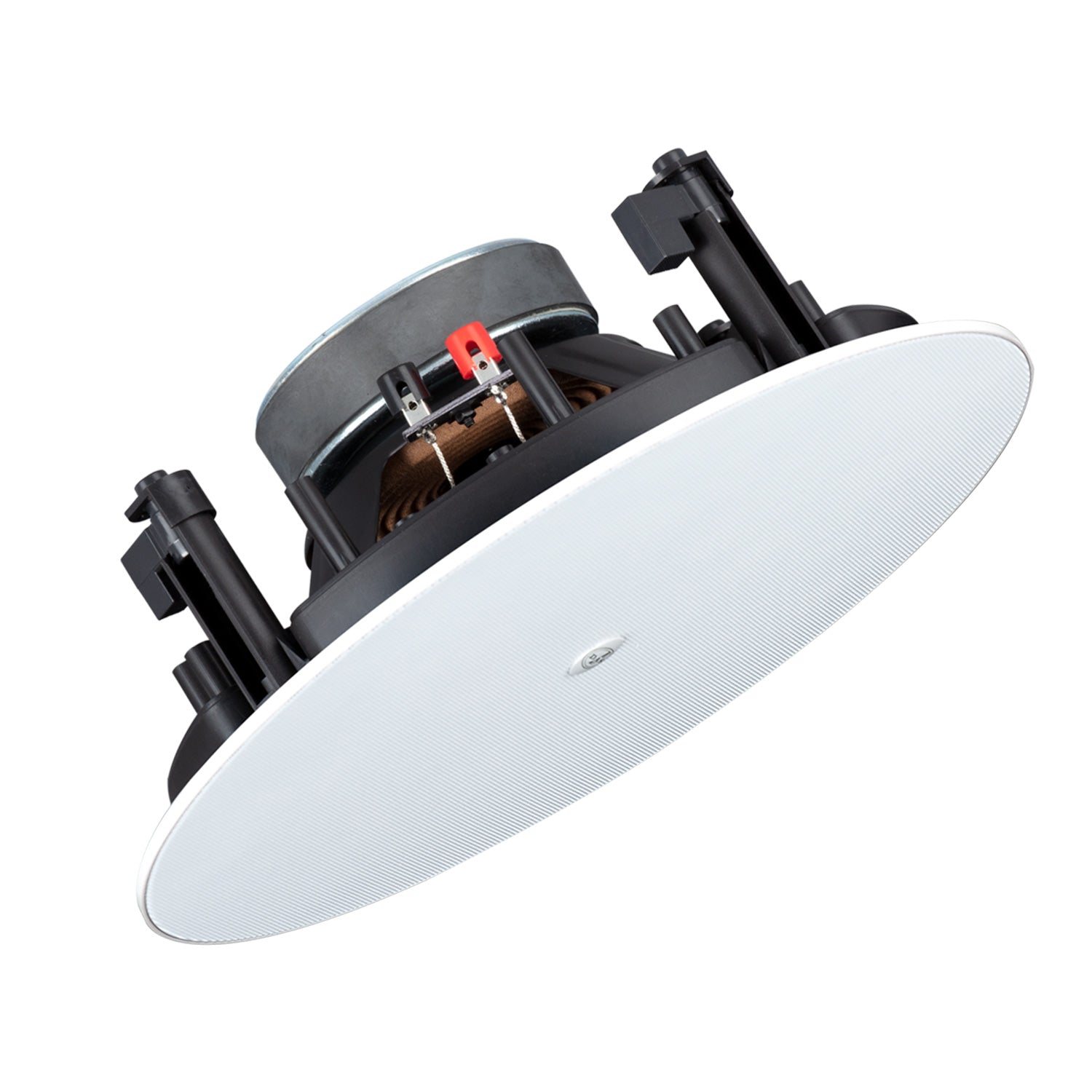

The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings.

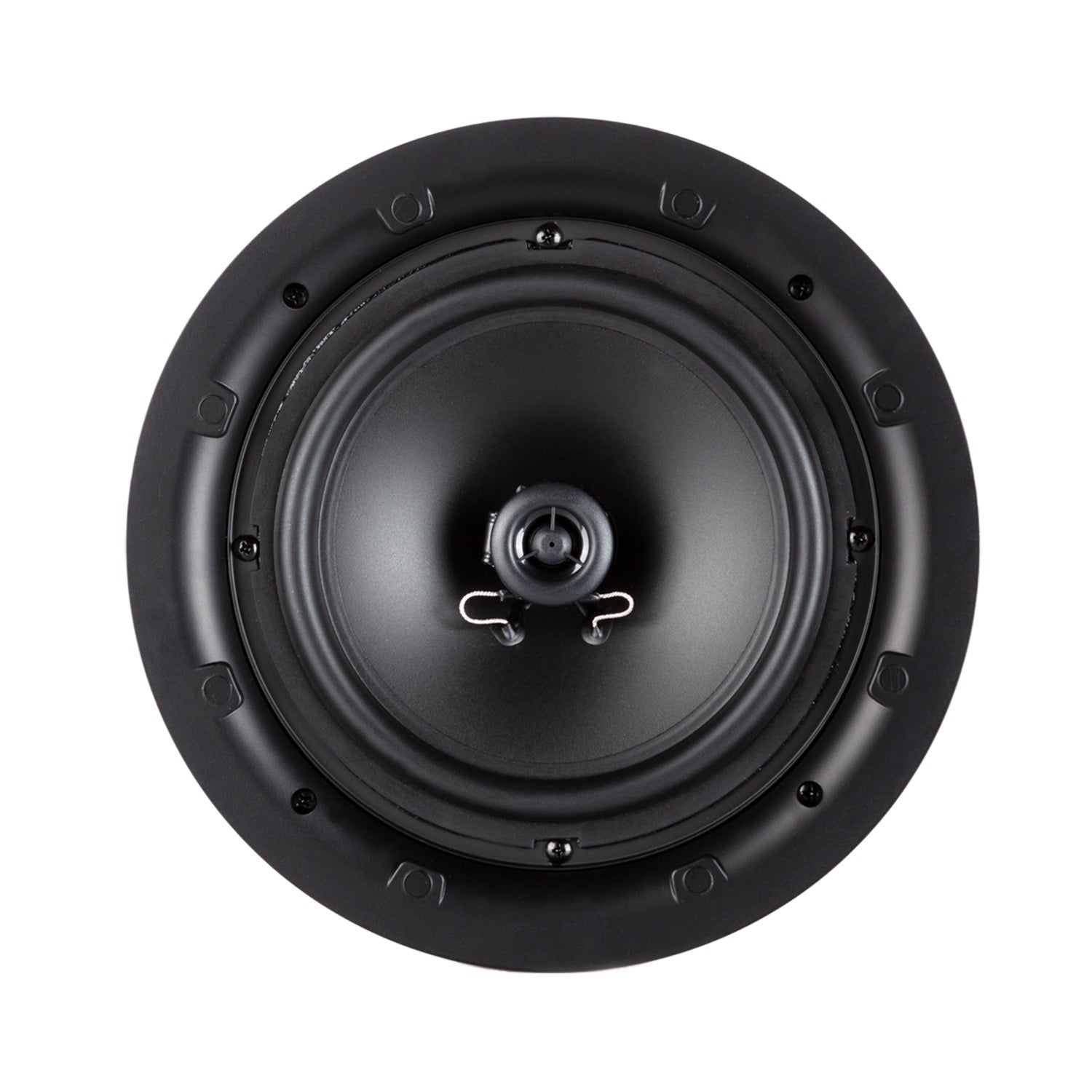

The DECO-6T is a wide-range passive two-way ceiling-mounted acoustic system featuring a 6.25" low-frequency cone loudspeaker and a 1" ferrofluid-cooled soft dome tweeter with an integrated diffraction ring. Thanks to the frameless grille design, the system extends just 3 mm from the ceiling, making it practically invisible. It is equipped with a 15W 100V line transformer specifically designed for high impedance.
Features:
- 15 W, 6.5" two-way passive full-range ceiling speaker
- 70 V/100 V line transformer
- White grille
- SPL Max: 112 dB
- Dispersion: 95º
- Weight: 1,4 kg ( 3,1 lb )
| Performance | |
| Frequency Range (-10 dB) | 60 Hz Ð 20 kHz |
| Nominal Impedance | 8 ohms |
| Conical Coverage | 95¼ |
| Transformer Taps 70 V | Tap1, 2.5 W. Tap2, 5 W. Tap3 7.5 W. |
| Transformer Taps 100 V | Tap1, 5 W. Tap2, 10 W. Tap3 15 W. |
| On-axis Sensitivity 1W/1 m | 90 dB SPL |
| Maximum Peak SPL at 1 m | 112 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | Spring Terminals |
| Audio Output Connector | Spring Terminals |
| Enclosure | |
| Enclosure Geometry | Round |
| Color | White |
| Cut Out Diameter | 210 mm (8,3 in) |
| Depth | 80 mm (3,2 in) |
| Dimensions ( H x W x D ) | 230 x 230 x 80 mm 9,0 x 9,0 x 3,2 in |
| Net Weight | 1,4 kg ( 3,1 lb ) |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 270 x 250 x 390 mm 10,6 x 9,8 x 15,4 in |
| Shipping Weight | 1,5 kg ( 3,3 lb ) |
The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings.
The DECO-6T is a wide-range passive two-way ceiling-mounted acoustic system featuring a 6.25" low-frequency cone loudspeaker and a 1" ferrofluid-cooled soft dome tweeter with an integrated diffraction ring. Thanks to the frameless grille design, the system extends just 3 mm from the ceiling, making it practically invisible. It is equipped with a 15W 100V line transformer specifically designed for high impedance.
Features:
- 15 W, 6.5" two-way passive full-range ceiling speaker
- 70 V/100 V line transformer
- White grille
- SPL Max: 112 dB
- Dispersion: 95º
- Weight: 1,4 kg ( 3,1 lb )
| Performance | |
| Frequency Range (-10 dB) | 60 Hz Ð 20 kHz |
| Nominal Impedance | 8 ohms |
| Conical Coverage | 95¼ |
| Transformer Taps 70 V | Tap1, 2.5 W. Tap2, 5 W. Tap3 7.5 W. |
| Transformer Taps 100 V | Tap1, 5 W. Tap2, 10 W. Tap3 15 W. |
| On-axis Sensitivity 1W/1 m | 90 dB SPL |
| Maximum Peak SPL at 1 m | 112 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | Spring Terminals |
| Audio Output Connector | Spring Terminals |
| Enclosure | |
| Enclosure Geometry | Round |
| Color | White |
| Cut Out Diameter | 210 mm (8,3 in) |
| Depth | 80 mm (3,2 in) |
| Dimensions ( H x W x D ) | 230 x 230 x 80 mm 9,0 x 9,0 x 3,2 in |
| Net Weight | 1,4 kg ( 3,1 lb ) |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 270 x 250 x 390 mm 10,6 x 9,8 x 15,4 in |
| Shipping Weight | 1,5 kg ( 3,3 lb ) |
