DALE SKU # DAS-DECO6TB

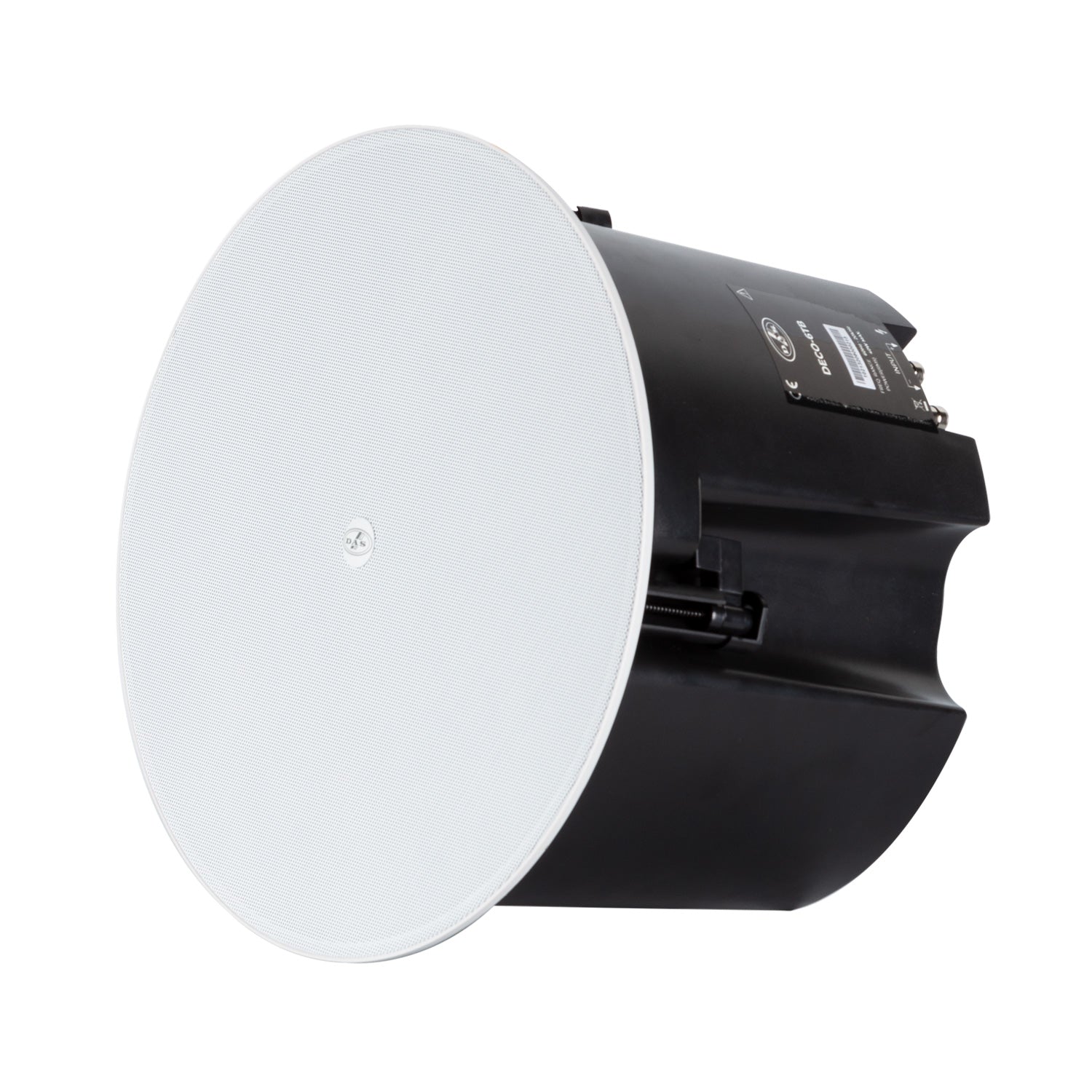

DAS DECO-6-TB - Two-Way 6.5-Inch 70/100V Ceiling Loudspeaker with Backcan (White)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

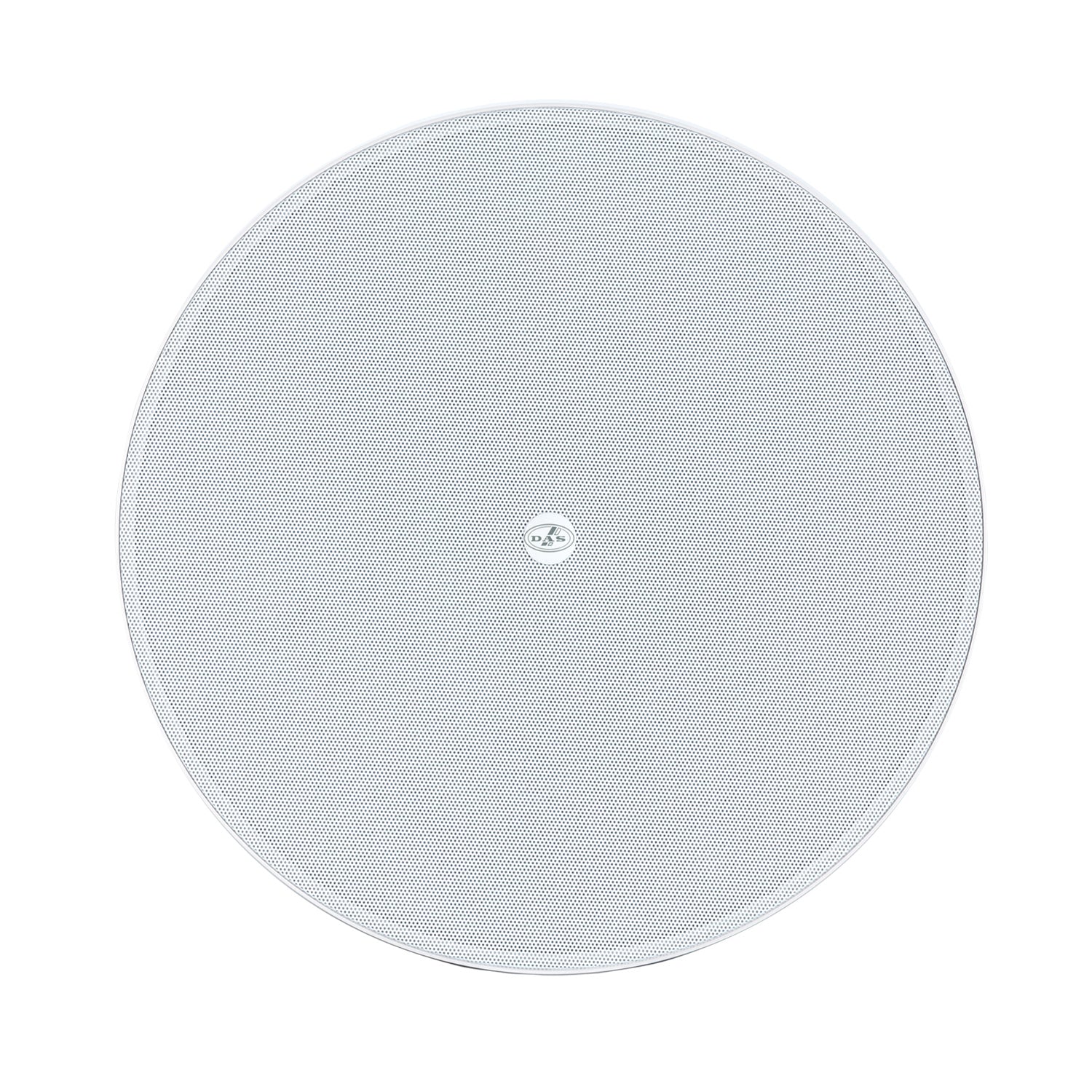

    The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings.

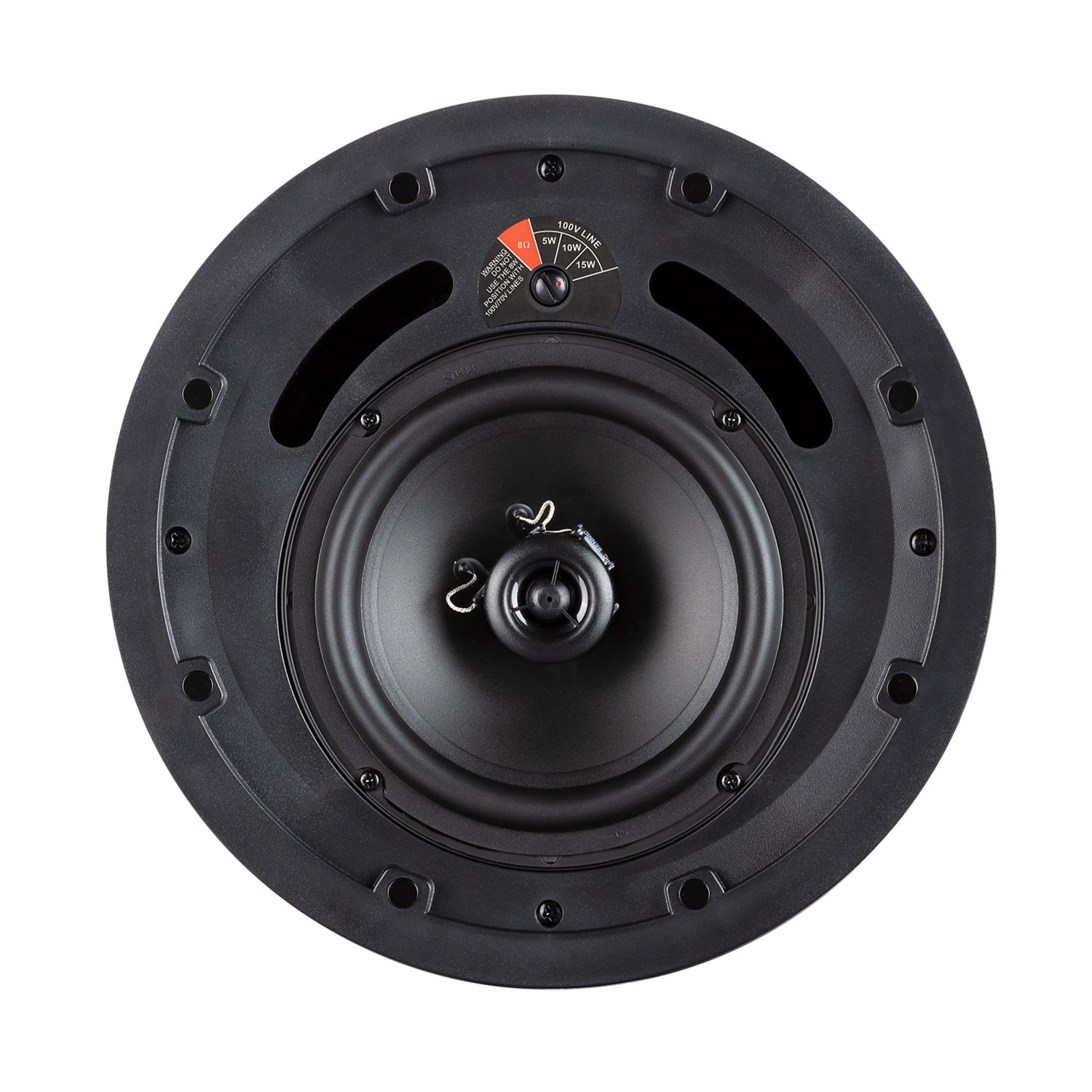

    The DECO-6TB is a wide-range passive two-way ceiling-mounted acoustic system featuring a 6.25" low-frequency cone loudspeaker and a 1" ferrofluid-cooled soft dome tweeter with an integrated diffraction ring. A frameless grille design means the system extends just 3 mm from the ceiling, making it practically invisible. It is equipped with a 15W 100V in-line transformer with multi-pass selector accessible from the front and it is designed for both high and low impedance. It includes a high pressure injected thermoplastic back cover.

    Features:

    • 15 W, 6.5" two-way passive full-range ceiling speaker
    • 70 V/100 V line transformer
    • Backcan
    • White grille
    • SPL Max: 112 dB
    • Dispersion: 95º
    • Weight: 1,9 kg ( 4,2 lb )
    Performance
    Frequency Range (-10 dB) 60 Hz Ð 20 kHz
    Nominal Impedance 8 ohms
    Conical Coverage 95¼
    Transformer Taps 70 V Tap0, Low Z. Tap1, 2.5 W. Tap2, 5 W. Tap3 7.5 W.
    Transformer Taps 100 V Tap0, Low Z. Tap1, 5 W. Tap2, 10 W. Tap3 15 W.
    RMS Power Handling 40 W
    Peak Power Handling 160 W
    On-axis Sensitivity 1W/1 m 90 dB SPL
    Maximum Peak SPL at 1 m 112 dB
    Recommended Amplifier INTEGRAL-A402
    INTEGRAL-A404
    INTEGRAL-A1002
    INTEGRAL-A1004
    INTEGRAL-A1602
    INTEGRAL-A1604
    INTEGRAL-MA1004
    INTEGRAL-MA1604
    Recommended Processor INTEGRAL-M88
    INTEGRAL-MA1604
    INTEGRAL-MA1004
    Connectors
    Audio Input Connector Spring Terminals
    Audio Output Connector Spring Terminals
    Enclosure
    Enclosure Geometry Round
    Color White
    Cut Out Diameter 250 mm (9,9 in)
    Depth 185 mm (7,3 in)
    Dimensions ( H x W x D ) 275 x 275 x 185 mm
    11,0 x 11,0 x 7,3 in
    Net Weight 1,9 kg ( 4,2 lb )
    Shipping
    Carton Dimensions ( H x W x D ) 310 x 300 x 450 mm
    12,2 x 11,8 x 17,7 in
    Shipping Weight 2,2 kg ( 4,9 lb )

    The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings.

    The DECO-6TB is a wide-range passive two-way ceiling-mounted acoustic system featuring a 6.25" low-frequency cone loudspeaker and a 1" ferrofluid-cooled soft dome tweeter with an integrated diffraction ring. A frameless grille design means the system extends just 3 mm from the ceiling, making it practically invisible. It is equipped with a 15W 100V in-line transformer with multi-pass selector accessible from the front and it is designed for both high and low impedance. It includes a high pressure injected thermoplastic back cover.

    Features:

    • 15 W, 6.5" two-way passive full-range ceiling speaker
    • 70 V/100 V line transformer
    • Backcan
    • White grille
    • SPL Max: 112 dB
    • Dispersion: 95º
    • Weight: 1,9 kg ( 4,2 lb )
    Performance
    Frequency Range (-10 dB) 60 Hz Ð 20 kHz
    Nominal Impedance 8 ohms
    Conical Coverage 95¼
    Transformer Taps 70 V Tap0, Low Z. Tap1, 2.5 W. Tap2, 5 W. Tap3 7.5 W.
    Transformer Taps 100 V Tap0, Low Z. Tap1, 5 W. Tap2, 10 W. Tap3 15 W.
    RMS Power Handling 40 W
    Peak Power Handling 160 W
    On-axis Sensitivity 1W/1 m 90 dB SPL
    Maximum Peak SPL at 1 m 112 dB
    Recommended Amplifier INTEGRAL-A402
    INTEGRAL-A404
    INTEGRAL-A1002
    INTEGRAL-A1004
    INTEGRAL-A1602
    INTEGRAL-A1604
    INTEGRAL-MA1004
    INTEGRAL-MA1604
    Recommended Processor INTEGRAL-M88
    INTEGRAL-MA1604
    INTEGRAL-MA1004
    Connectors
    Audio Input Connector Spring Terminals
    Audio Output Connector Spring Terminals
    Enclosure
    Enclosure Geometry Round
    Color White
    Cut Out Diameter 250 mm (9,9 in)
    Depth 185 mm (7,3 in)
    Dimensions ( H x W x D ) 275 x 275 x 185 mm
    11,0 x 11,0 x 7,3 in
    Net Weight 1,9 kg ( 4,2 lb )
    Shipping
    Carton Dimensions ( H x W x D ) 310 x 300 x 450 mm
    12,2 x 11,8 x 17,7 in
    Shipping Weight 2,2 kg ( 4,9 lb )
