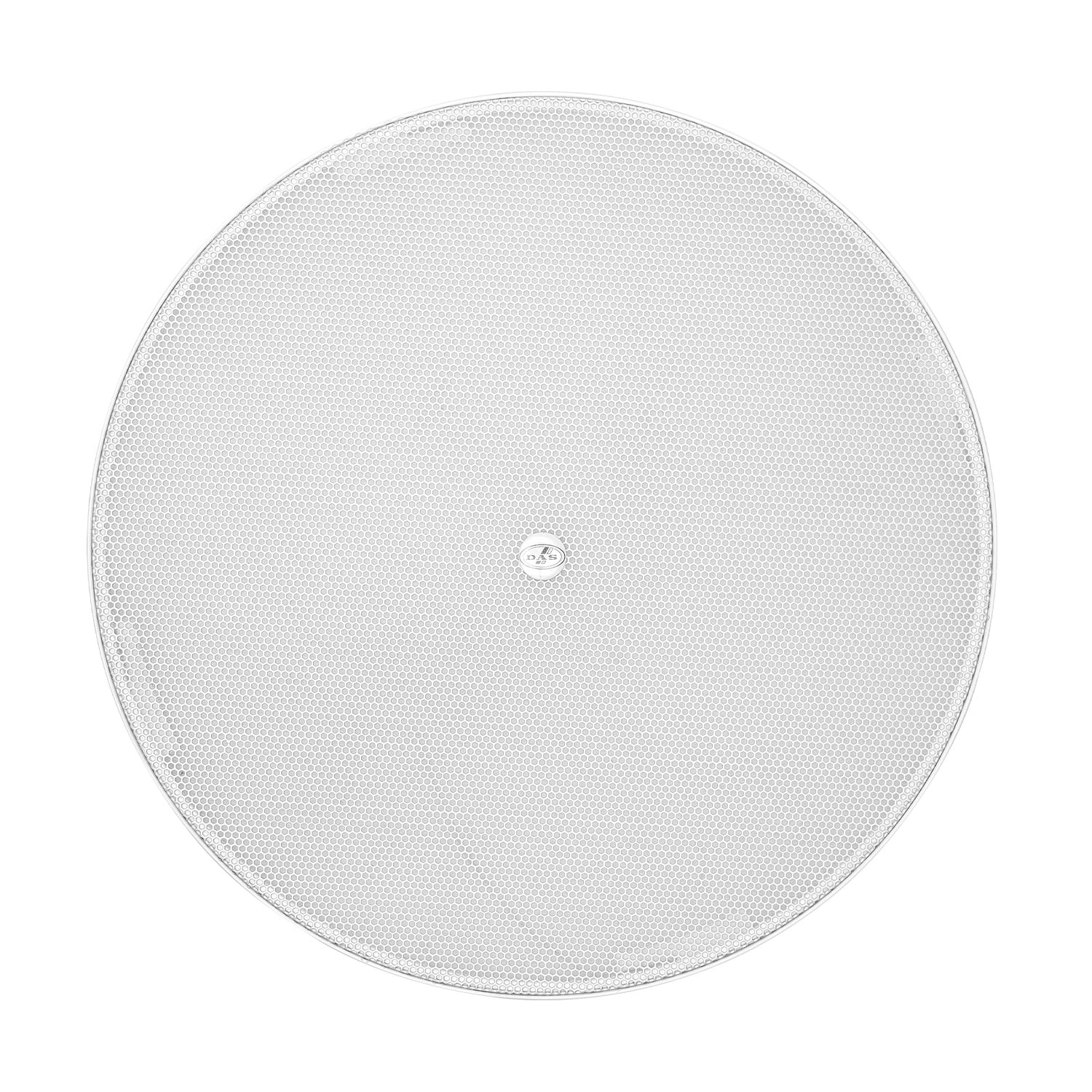

DAS DECO-80-TS - Two-Way 8-Inch Ceiling Subwoofer (White)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DECO-80-TS is a high-performance ceiling subwoofer designed for top-tier audio performance and seamless aesthetic integration. Featuring a sturdy steel enclosure, it provides omnidirectional coverage with a frequency range of 50 Hz to 190 Hz, ideal for enhancing low-frequency in different environments. Engineered for adaptability, it is equipped with a 4-way Phoenix connector for secure audio input. The DECO-80-TS operates at 8-ohm nominal impedance or in a 100V line system, with transformer tap settings of 25W, 50W, and 100W accessible at the front for easy post-installation adjustments. With an RMS power handling of 200W and a peak of 800W, and a maximum peak SPL of 115 dB, it delivers powerful and impactful bass.
Its compact design, with a cut-out diameter of 290 mm (11.4 in) and a depth of 215 mm (8.5 in), allows straightforward installation in various ceiling environments. Weighing 5.5 kg (12.1 lb), it is built for long-lasting performance and aesthetic discretion. The PK-80T accessory transforms it into a pendant speaker for greater placement flexibility and sound direction, particularly beneficial in open architecture spaces or areas where traditional ceiling mounting is not optimal. Available in black and white finishes, the DECO series seamlessly matches any interior design.
For optimal performance, pair the DECO-80-TS with the INTEGRAL-A1002 or INTEGRAL-A1604 amplifiers. Utilizing the Integral Matrix and processors, fully compatible with ALMA™, enhances the subwoofer's capabilities through custom presets and comprehensive monitoring and control, ensuring effortless system management and superior audio quality.
The modeling data for DECO-40-T / DECO-40-LP / DECO-65-T / DECO-80-T / DECO-80-TS are valid for EASE Focus, EASE Evac, and EASE Address.
Features:
- Ceiling Subwoofer, 8" High-Performance
- 50 Hz – 190 Hz
- 8 ohm or 100V
- Auto-locking tabs

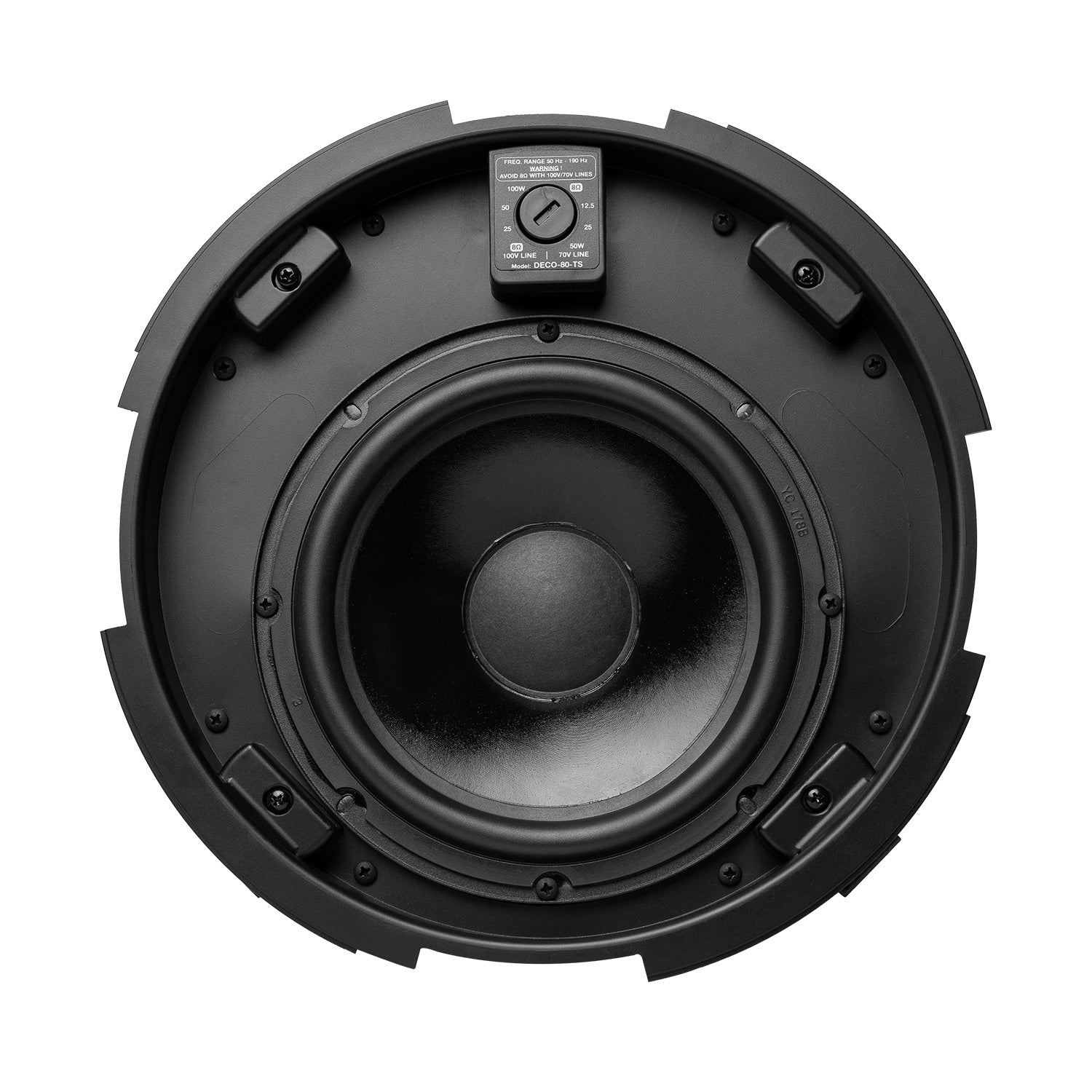

- Front selector
- Frameless grille
- SPL Max: 115 dB
- Dispersion: Omnidireccional
- Weight: 5,5 kg ( 12,1 lb )
| Performance | |
| Frequency Range (-10 dB) | 50 Hz Ð 190 Hz |
| Nominal Impedance | 8 ohms |
| Transformer Taps 70 V | 8 ? / 12.5 W / 25 W / 50 W |
| Transformer Taps 100 V | 8 ? / 25 W / 50 W / 100 W |
| RMS Power Handling | 200 W |
| Peak Power Handling | 800 W |
| On-axis Sensitivity 1W/1 m | 89 dB SPL |
| Maximum Peak SPL at 1 m | 115 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 INTEGRAL-M26X |
| Connectors | |

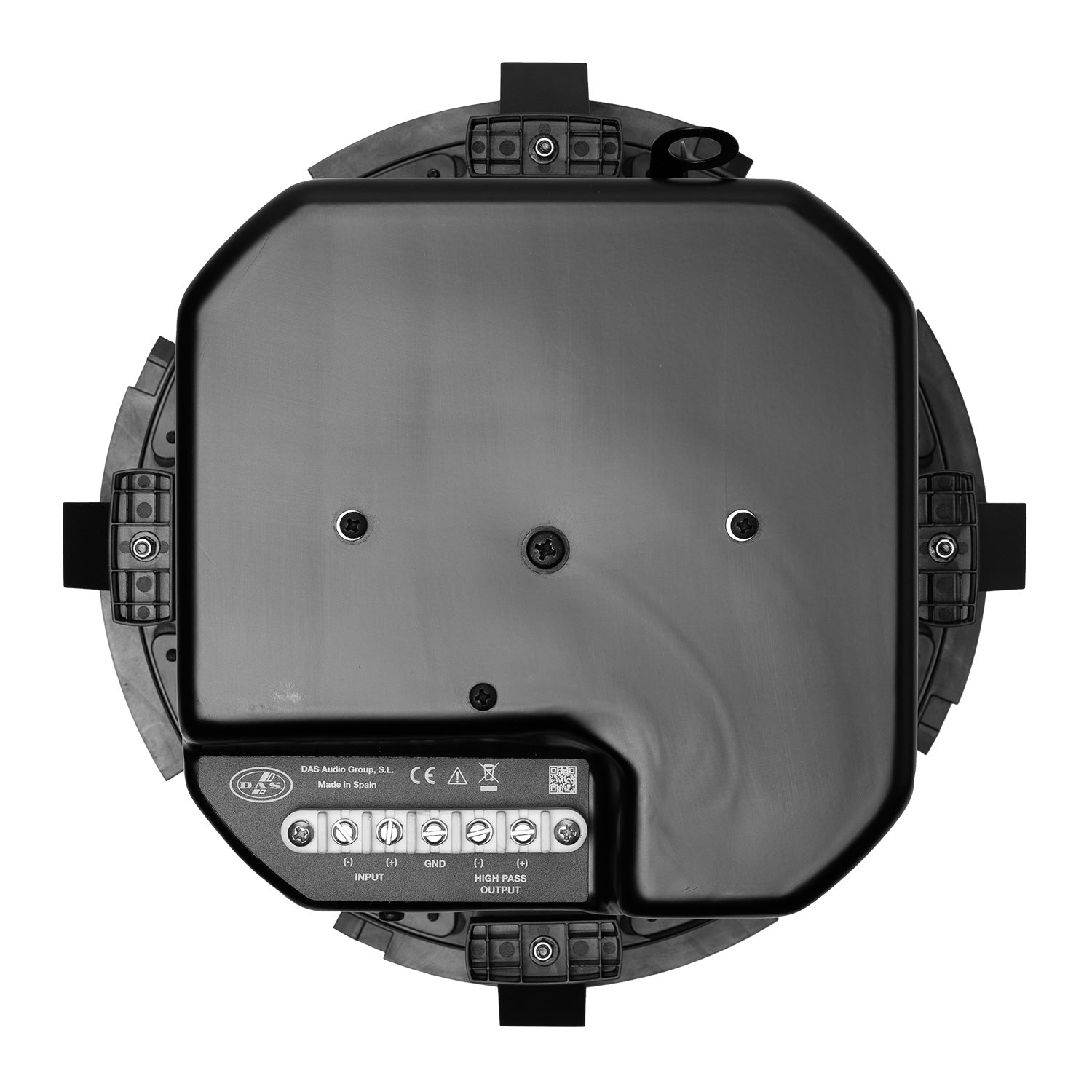

| Audio Input Connector | 4-way Phoenix 3.8 mm |
| Enclosure | |
| Enclosure Geometry | Round |
| Cut Out Diameter | 290 mm (11,4 in) |
| Depth | 215 mm (8,5 in) |
| Dimensions ( H x W x D ) | 321 x 321 x 215 mm 12,6 x 12,6 x 8,5 in |
| Net Weight | 5,5 kg ( 12,1 lb ) |
The DECO-80-TS is a high-performance ceiling subwoofer designed for top-tier audio performance and seamless aesthetic integration. Featuring a sturdy steel enclosure, it provides omnidirectional coverage with a frequency range of 50 Hz to 190 Hz, ideal for enhancing low-frequency in different environments. Engineered for adaptability, it is equipped with a 4-way Phoenix connector for secure audio input. The DECO-80-TS operates at 8-ohm nominal impedance or in a 100V line system, with transformer tap settings of 25W, 50W, and 100W accessible at the front for easy post-installation adjustments. With an RMS power handling of 200W and a peak of 800W, and a maximum peak SPL of 115 dB, it delivers powerful and impactful bass.
Its compact design, with a cut-out diameter of 290 mm (11.4 in) and a depth of 215 mm (8.5 in), allows straightforward installation in various ceiling environments. Weighing 5.5 kg (12.1 lb), it is built for long-lasting performance and aesthetic discretion. The PK-80T accessory transforms it into a pendant speaker for greater placement flexibility and sound direction, particularly beneficial in open architecture spaces or areas where traditional ceiling mounting is not optimal. Available in black and white finishes, the DECO series seamlessly matches any interior design.
For optimal performance, pair the DECO-80-TS with the INTEGRAL-A1002 or INTEGRAL-A1604 amplifiers. Utilizing the Integral Matrix and processors, fully compatible with ALMA™, enhances the subwoofer's capabilities through custom presets and comprehensive monitoring and control, ensuring effortless system management and superior audio quality.
The modeling data for DECO-40-T / DECO-40-LP / DECO-65-T / DECO-80-T / DECO-80-TS are valid for EASE Focus, EASE Evac, and EASE Address.
Features:
- Ceiling Subwoofer, 8" High-Performance
- 50 Hz – 190 Hz
- 8 ohm or 100V
- Auto-locking tabs
- Front selector
- Frameless grille
- SPL Max: 115 dB
- Dispersion: Omnidireccional
- Weight: 5,5 kg ( 12,1 lb )
| Performance | |
| Frequency Range (-10 dB) | 50 Hz Ð 190 Hz |
| Nominal Impedance | 8 ohms |
| Transformer Taps 70 V | 8 ? / 12.5 W / 25 W / 50 W |
| Transformer Taps 100 V | 8 ? / 25 W / 50 W / 100 W |
| RMS Power Handling | 200 W |
| Peak Power Handling | 800 W |
| On-axis Sensitivity 1W/1 m | 89 dB SPL |
| Maximum Peak SPL at 1 m | 115 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 INTEGRAL-M26X |
| Connectors | |
| Audio Input Connector | 4-way Phoenix 3.8 mm |
| Enclosure | |
| Enclosure Geometry | Round |
| Cut Out Diameter | 290 mm (11,4 in) |
| Depth | 215 mm (8,5 in) |
| Dimensions ( H x W x D ) | 321 x 321 x 215 mm 12,6 x 12,6 x 8,5 in |
| Net Weight | 5,5 kg ( 12,1 lb ) |
