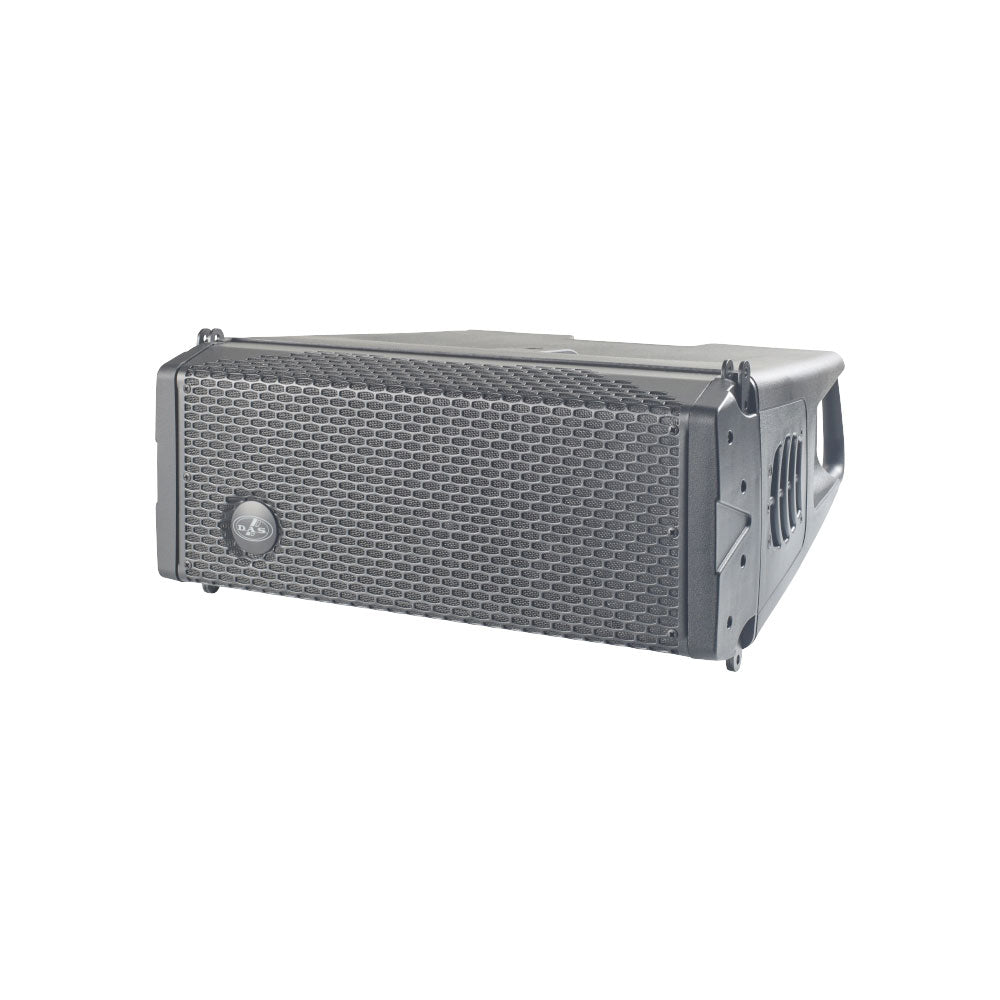

DAS EVENT-26A - Active 2-Way Dual 6-Inch Line Array Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The EVENT-26A is a symmetrical, ultra-compact, two-way powered line array system. Designed by DAS engineers to deliver stunning performance and exceptional ease-of-use, the stylish polypropylene cabinet design offers a highly portable and roadworthy system. A comprehensive range of accessories makes the EVENT-26A ideal for small to mid-size rental and installation applications.
Features:
- Ultra-compact, lightweight powered line array
- High-efficiency Class D amplifier with SMPS
- Dual voltage mains for use anywhere in the world
- Easy system configuration thanks to DAScontrol
- High-end 24-bit DSP with LCD screen
- FIR processing for constant phase response
- FSS Fast Set Splay rigging for quick deployment
The EVENT-26A combines two 6.5" transducers and a single M-60 compression driver in a rugged yet lightweight polymer cabinet. The symmetric "V" shaped configuration of the cone transducers provides consistent 100º of horizontal coverage down to 200 Hz. The M-60 compression driver is coupled to an advanced waveguide design that provides control of the vertical dispersion as well as precise coupling between units when used in vertical arrays.

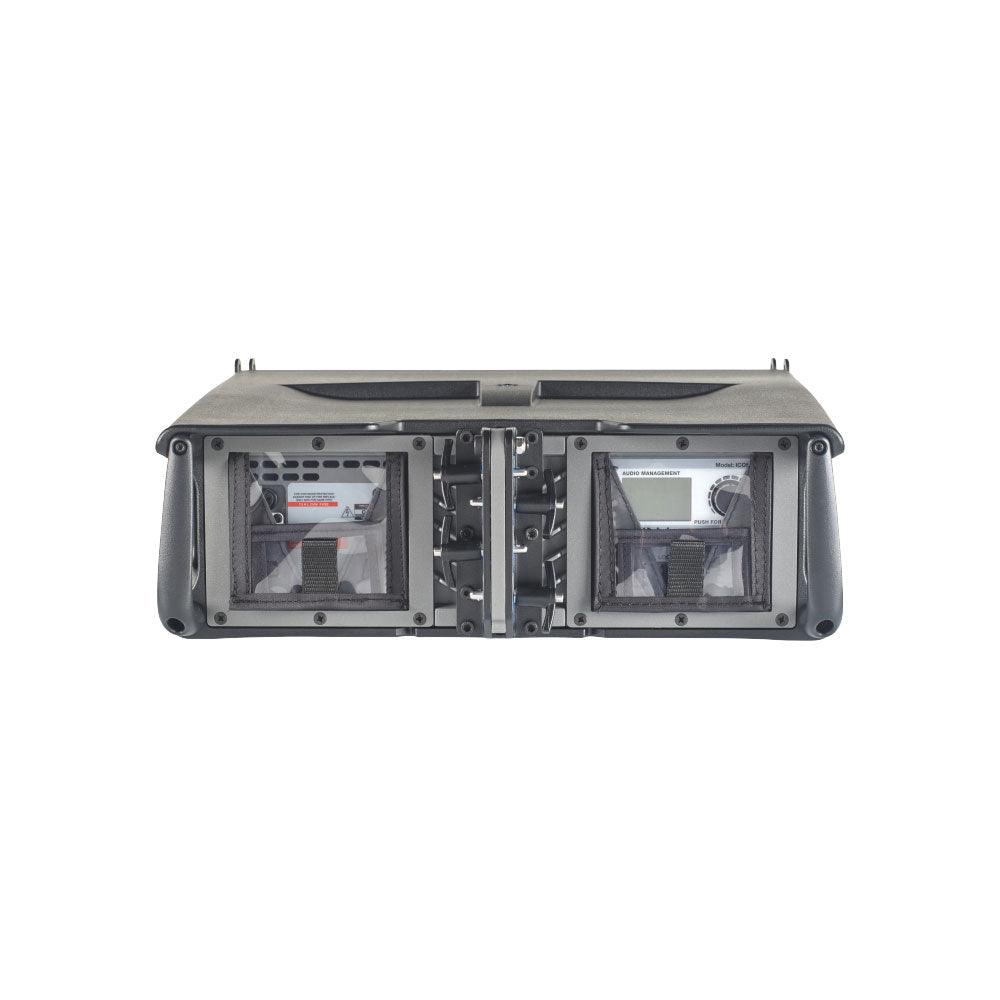

Powered by a two-channel Class D amplifier providing 800W peak power, the amp´s rear panel includes quality Neutrik® XLR and powerCON connectors. The DAScontrol interface makes the preset selection for the number of units in the array both fast and simple. An onboard DSP featuring a 24-bit high end processor handles X-over, EQ, delay, and limiter functions.
The powerful FIR filtering technology incorporated in the EVENT-26A offers constant phase response which translates to transparent sound and exceptional clarity, improving the listening experience.
Streamlined deployment of EVENT-26A arrays is possible thanks to the innovative FSSTM (Fast Set Splay) rigging system developed to permit angle selection while stacked on dollies. The stainlesssteel rigging hardware allows flown arrays of up to 16 units in 1º steps from 0º to 10º.
Low-frequency reinforcement for the EVENT-26A is provided by its flyable companion subwoofer the EVENT-115A.
Applications:
- House of worship
- Theatres, auditoria and performing arts centers
- Live music clubs
- Corporate A/V
- Live sound touring/Rental services
| Frequency Range (-10 dB) | 76 Hz - 19 kHz |
| Horizontal Coverage (-6 dB) | 100¼ |
| Vertical Coverage | Splay Dependent |
| Maximum Peak SPL at 1 m | 131 dB |
| Nominal Amplifier Power (continuous) | 400 W |
| Nominal Amplifier Power (peak) | 800 W |
| Input Type | Balanced |
| Input Impeadance | 20 k ohms |
| Input Sensitivity | 6.2 V (+18 dBu) |
| Audio Signal Input Connector | 1 x Female XLR |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| AC Input Connector | powerCON NAC3MPA |
| AC Output Connector | powerCON NAC3MPB |
| Operating Range | 90-127/180-250 VAC |
| Current Draw 115 V | 1.6 A |
| Current Draw 230 V | 0.8 A |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Trapezoidal |
