Description

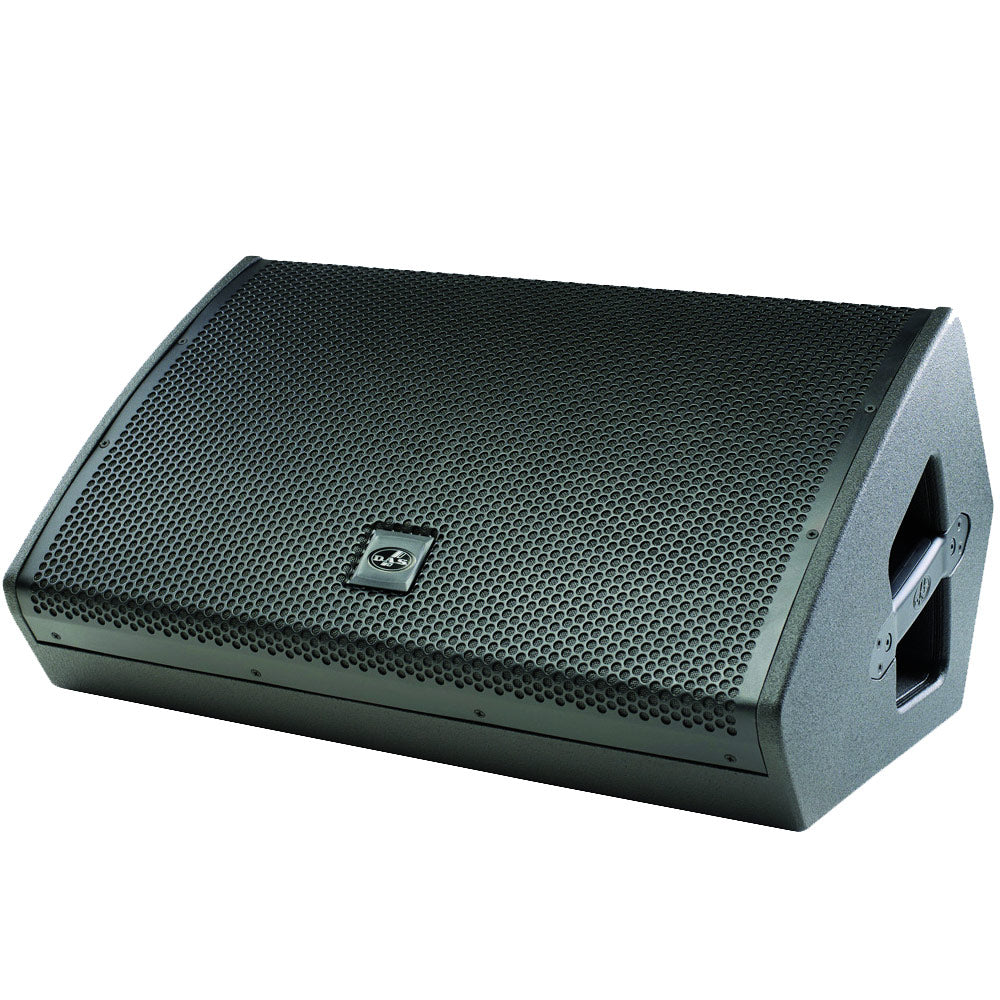

The Event M210A is a three-way stage monitor in a double 10" "dual-band" configuration providing a wide frequency range. The D.A.S. loudspeaker units have been teamed up with a single M-60 compression driver and purpose-designed injected aluminum high frequency waveguide. The Event M210A wedge is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup.
Features:
- Powered 3-way system
- Light-weight Class D amplifier topology
- High-end DSP chipsets
- Easy-DSP™ Interface
- Quality Neutrik® connectors
- Top grade Birch cabinet construction
- Durable ISO-flex finish
- Proprietary injected aluminum HF waveguide (not plastic)
- D.A.S. M-60 compression driver
Nominal HF Amplifier Power | 360 Wpeak |
Nominal MF Amplifier Power | 360 Wpeak |
Nominal LF Amplifier Power | 360 Wpeak |
Frequency Range (-10 dB) | 70 Hz -20 kHz |
Rated Peak SPL at 1 m | 134 dB |
Horizontal Coverage (-6 dB) | 60¼ |
Vertical Coverage | 20¼ Up-30¼ Down |
Enclosure Material | Birch Plywood |
Color/Finish | Black ISO-Flex Paint |
Connectors | INPUT: Female XLR LOOP THRU: Male XLR AC INPUT: powerCON AC OUTPUT: powerCON |
AC Requirements | 115 V, 3.0A, 50 Hz/60 Hz 230 V, 1.5A, 50 Hz/60 Hz |
Dimensions (H x W x D) | 32.8 x 64.5 x 45.8 cm 12.91 x 25.39 x 18.03 in |
Weight | 24.5 kg (53.9 lb) |
The Event M210A is a three-way stage monitor in a double 10" "dual-band" configuration providing a wide frequency range. The D.A.S. loudspeaker units have been teamed up with a single M-60 compression driver and purpose-designed injected aluminum high frequency waveguide. The Event M210A wedge is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup.
Features:
- Powered 3-way system
- Light-weight Class D amplifier topology
- High-end DSP chipsets
- Easy-DSP™ Interface
- Quality Neutrik® connectors
- Top grade Birch cabinet construction
- Durable ISO-flex finish
- Proprietary injected aluminum HF waveguide (not plastic)
- D.A.S. M-60 compression driver
Nominal HF Amplifier Power | 360 Wpeak |
Nominal MF Amplifier Power | 360 Wpeak |
Nominal LF Amplifier Power | 360 Wpeak |
Frequency Range (-10 dB) | 70 Hz -20 kHz |
Rated Peak SPL at 1 m | 134 dB |
Horizontal Coverage (-6 dB) | 60¼ |
Vertical Coverage | 20¼ Up-30¼ Down |
Enclosure Material | Birch Plywood |
Color/Finish | Black ISO-Flex Paint |
Connectors | INPUT: Female XLR LOOP THRU: Male XLR AC INPUT: powerCON AC OUTPUT: powerCON |
AC Requirements | 115 V, 3.0A, 50 Hz/60 Hz 230 V, 1.5A, 50 Hz/60 Hz |
Dimensions (H x W x D) | 32.8 x 64.5 x 45.8 cm 12.91 x 25.39 x 18.03 in |
Weight | 24.5 kg (53.9 lb) |
