DAS / GUIL TMD-545 - Compact Line Array Lifting Tower
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

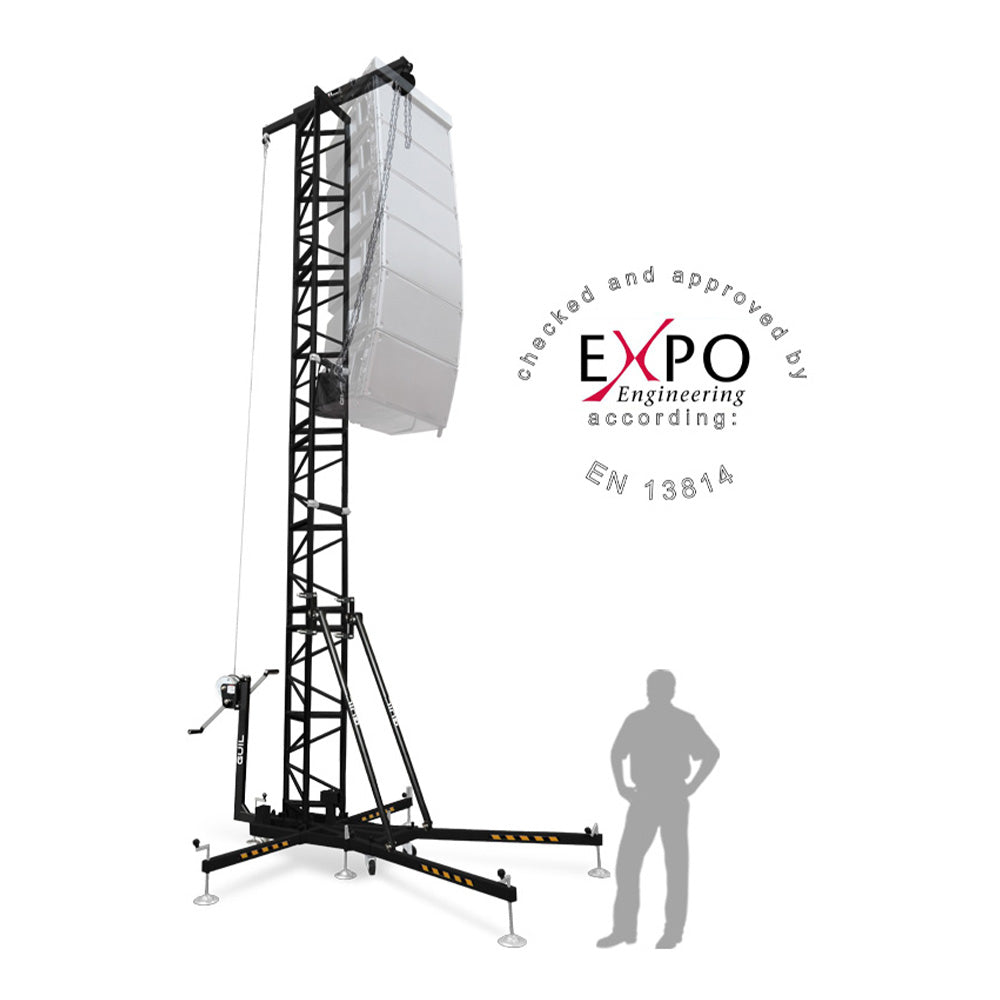

The TMD-545/N is a Rigging tower for Line Array Systems specially designed to reliably lift speakers of up to 500 kg (1103 lb) to a maximum height of 6.25 m (20 ft 6 in) using a manual 2000 kg chain hoist. GUIL's engineers have created a totally innovative tower, certified for outdoor use, that can be assembled and operated by a single person, with just two minutes help from a colleague during assembly.
The TMD-545/N is fitted with a double-handled winch, which makes the work of setting up the tower quicker and easier.
The TMD-545/N comes totally equipped with all components and elements necessary for use: complete operating structure, with chain hoist for lifting and double-handled winch for set-up, etc. You get a complete tower, ready to go straight out of the box. Its meticulous design offers easy assembly and handling, and the whole tower occupies only 1.49 m3 in one single block when stowed. The TMD-545/N is supremely manoeuvrable, easy to store, transport and position, and offers safety, strength and reliability for the user. One of the most convenient and functional towers on the market, it is the perfect solution for touring!
The rigging tower TMD-545/N is supplied with an interactive application "TMD-545/N APC", for its use outdoors, establishing the maximum wind speeds depending on your PA System.
| Maximum Overall Height: | 6.43 mÊIÊ21 ft 1 in |
| Maximum Working Height: | 6.25 mÊIÊ20 ft 6 in |
| Maximum Load: | 500 kgÊIÊ1103 lb |
| PA System lifted by: | 2000 kg Chain hoistÊ(Included) |
| Tower Structure lifted by: | Auto Brake Winch with two handlesÊ(Included) |
| Mast Sections Ð Stacking Truss: | 500 x 500 mmÊ(4 units. Lenght: 1500 mm) |
| Material: | AluminiumÊ(alloy 6082-T6) / Steel. BLACK Finish |

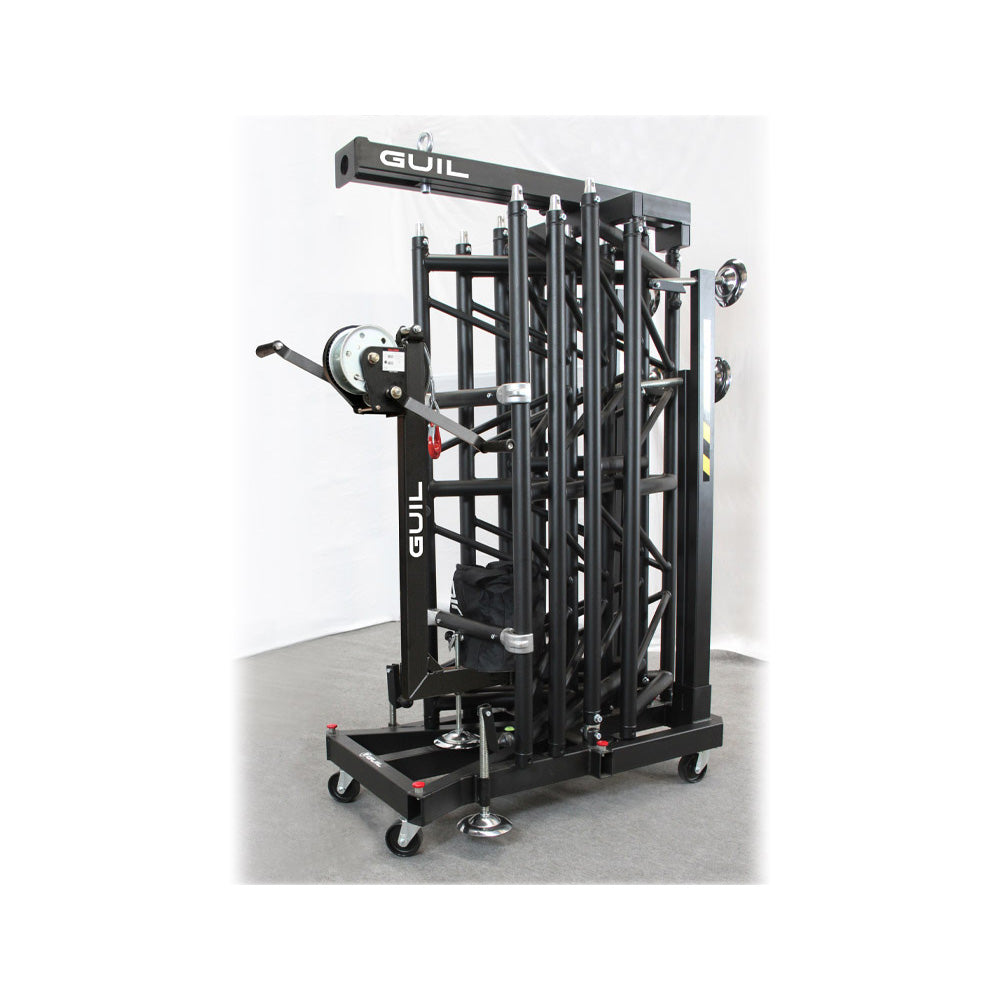

| Folded Height: | 1.95 mÊIÊ6 ft 5 in (Compact Design) |
| Volume: | 1.49 m3ÊIÊ52.6 ft3Ê(64 x 119 x 195 cm). Everthing in 1 piece |
| Use: | For OUTDOOR and Indoor use |
| Certified for outside use: | According to: EN 13814 |
| Checked for wind speed up to: 8 Beaufort | |
| Complies with Standards: | 2006/42/CE EN 17206Ê(ReplacesÊDIN 56950-1)Ê DGUV 17 / 18, DGUV Norma 115-002Ê(FormerlyÊBGV-C1) |
| Net Weight: | 190 kgÊIÊ419 lbÊ(All components included) |
| Interactive application: | "TMD-545/N APC"Ê(Included) |
