DALE SKU # DAS-GUILTMD570

DAS / GUIL TMD-570 - Rigging Tower for Line Array Systems

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

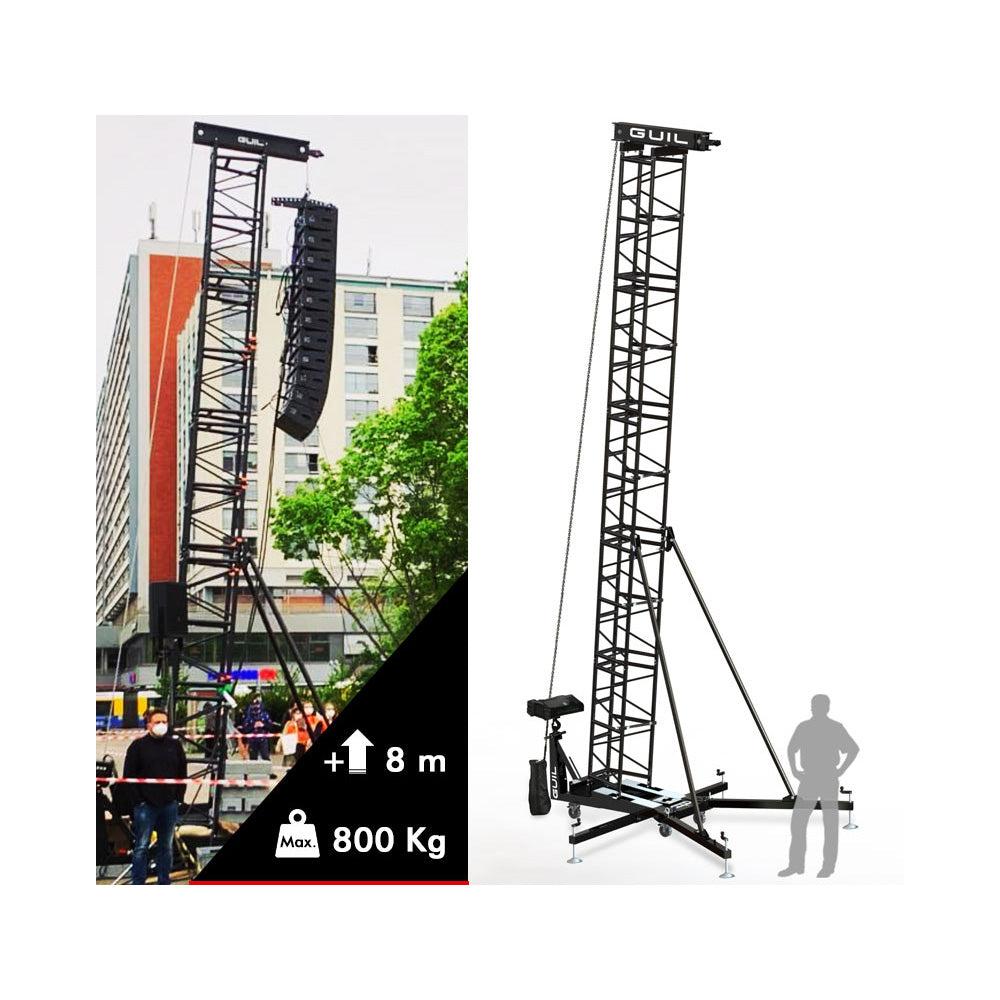

    The TMD-570 Line Array Lifting Tower is a compact, exclusive design by GUIL, specially created to reliably lift Line Array systems of up to 800 kg (1,760 lb) to a maximum height of 8 metres (26 ft 3 in) using an electric motor. GUIL's engineers have created a totally innovative tower, certified for outdoor use under European norm EN 13814.

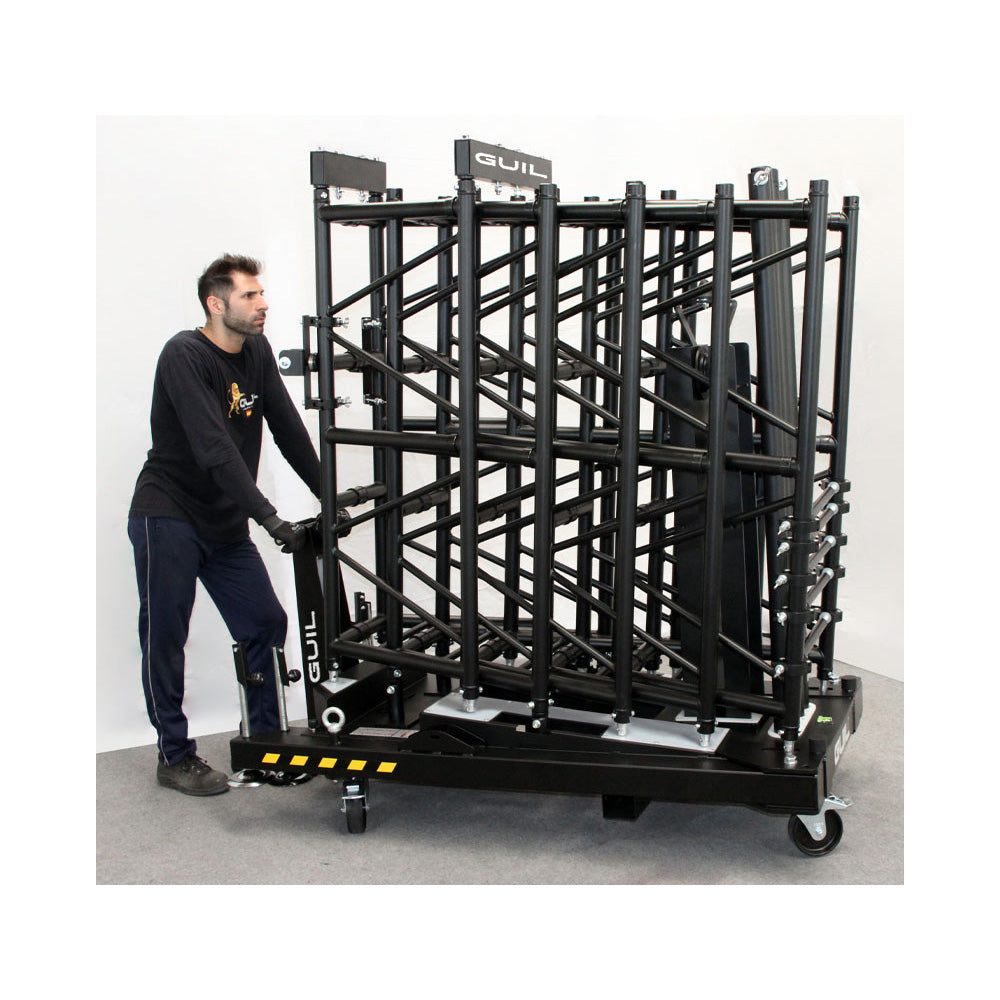

    Its meticulous design offers quick and easy assembly. The TMD-570 tower is extremely manoeuvrable, all the components of the tower fit without spare parts in a single base (with a volume of just 3.68 m3 – 130 ft3), making it easy to transport and store.

    The tower is supplied with the interactive application "TMD-570 APC" for its use outdoors, taking into account the maximum wind speeds permitted by applicable standards.

    Maximum Overall Height: 8.25 mÊIÊ27 ft
    Maximum Working Height: 8 mÊIÊ26 ft 3 in
    Maximum Load: 800 kgÊIÊ1764 lb
    Material: Aluminium / Steel.ÊBLACK Finish
    Stowed dimensions (Compact Design) Height:Ê2.10 mÊIÊ5 ft 11 in
    Base:Ê94 x 187 cmÊIÊ3 ft 1 in x 6 ft 2 in
    Volume: Everthing in 1 pieceÊI 3.68 m3ÊIÊ130 ft3
    Use: For OUTDOOR and Indoor use

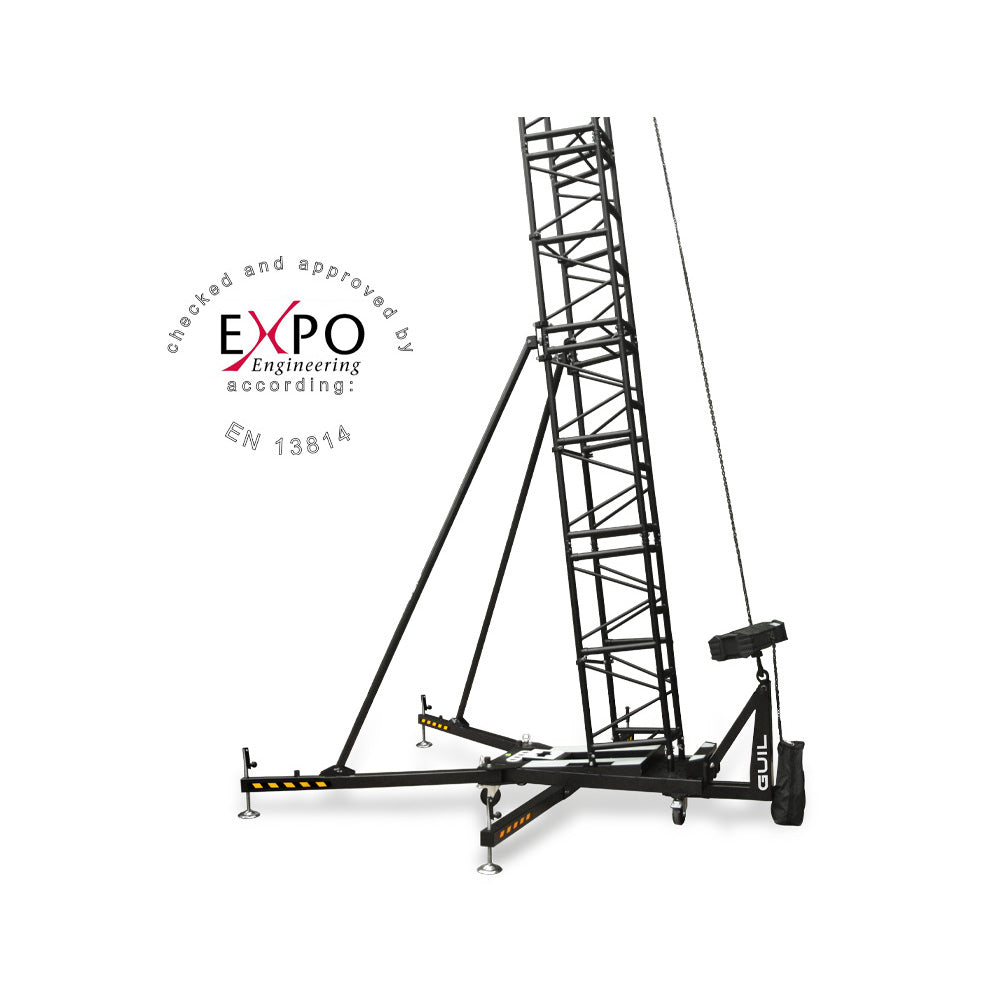

    Certified for outside use: According to: EN 13814
    Checked for wind speed up to: 8 Beaufort
    Complies with Standards: 2006/42/CE
    EN 17206Ê(ReplacesÊDIN 56950-1)Ê
    DGUV 17 / 18, DGUV Norma 115-002Ê(FormerlyÊBGV-C1)
    Net Weight: 360 kgÊIÊ794 lbÊ(All components included)
    Interactive application: "TMD-570 APC" (Included)

    The TMD-570 Line Array Lifting Tower is a compact, exclusive design by GUIL, specially created to reliably lift Line Array systems of up to 800 kg (1,760 lb) to a maximum height of 8 metres (26 ft 3 in) using an electric motor. GUIL's engineers have created a totally innovative tower, certified for outdoor use under European norm EN 13814.

    Its meticulous design offers quick and easy assembly. The TMD-570 tower is extremely manoeuvrable, all the components of the tower fit without spare parts in a single base (with a volume of just 3.68 m3 – 130 ft3), making it easy to transport and store.

    The tower is supplied with the interactive application "TMD-570 APC" for its use outdoors, taking into account the maximum wind speeds permitted by applicable standards.

    Maximum Overall Height: 8.25 mÊIÊ27 ft
    Maximum Working Height: 8 mÊIÊ26 ft 3 in
    Maximum Load: 800 kgÊIÊ1764 lb
    Material: Aluminium / Steel.ÊBLACK Finish
    Stowed dimensions (Compact Design) Height:Ê2.10 mÊIÊ5 ft 11 in
    Base:Ê94 x 187 cmÊIÊ3 ft 1 in x 6 ft 2 in
    Volume: Everthing in 1 pieceÊI 3.68 m3ÊIÊ130 ft3
    Use: For OUTDOOR and Indoor use
    Certified for outside use: According to: EN 13814
    Checked for wind speed up to: 8 Beaufort
    Complies with Standards: 2006/42/CE
    EN 17206Ê(ReplacesÊDIN 56950-1)Ê
    DGUV 17 / 18, DGUV Norma 115-002Ê(FormerlyÊBGV-C1)
    Net Weight: 360 kgÊIÊ794 lbÊ(All components included)
    Interactive application: "TMD-570 APC" (Included)
