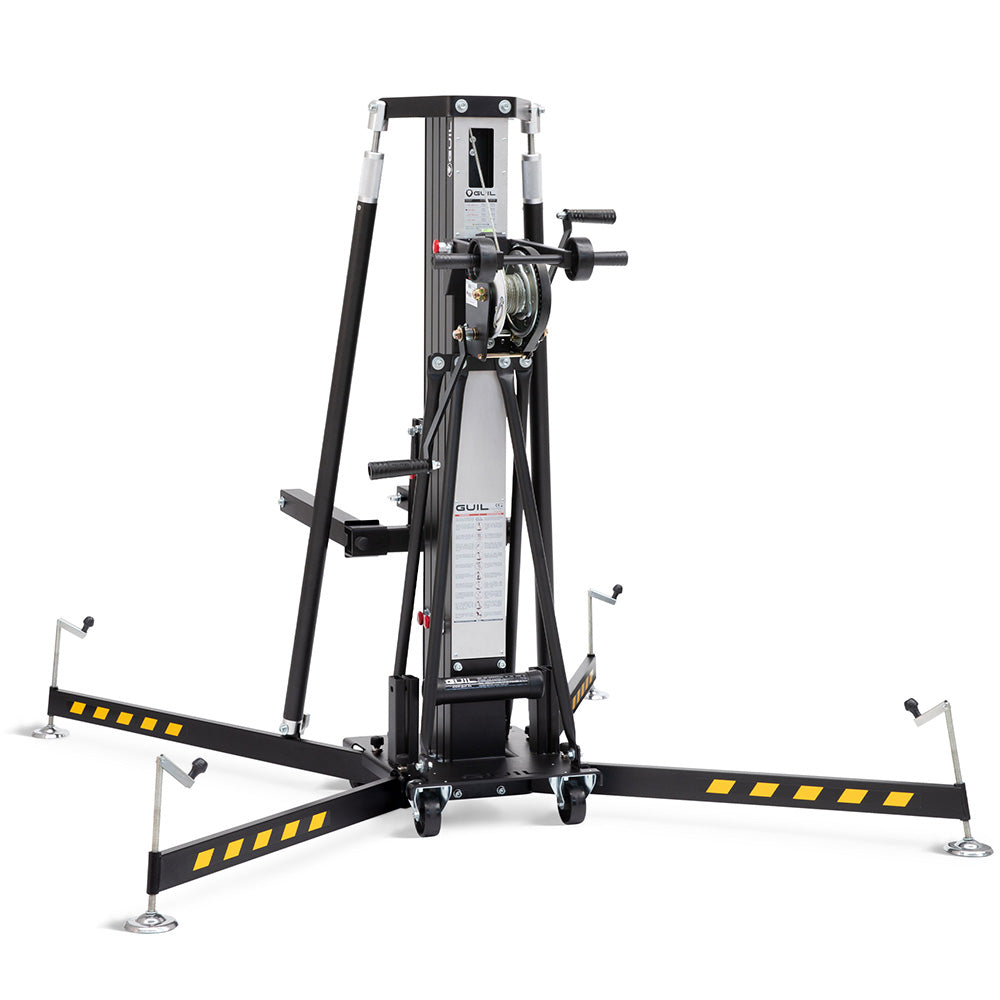

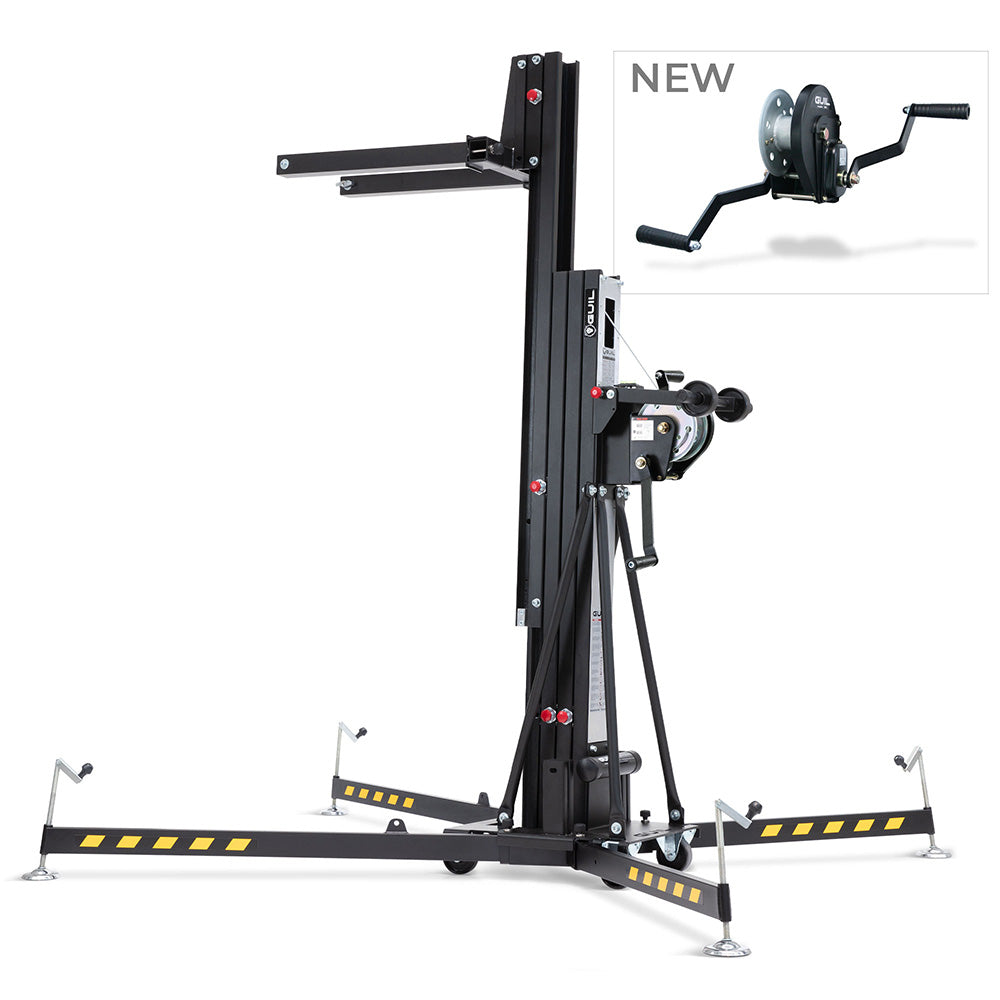

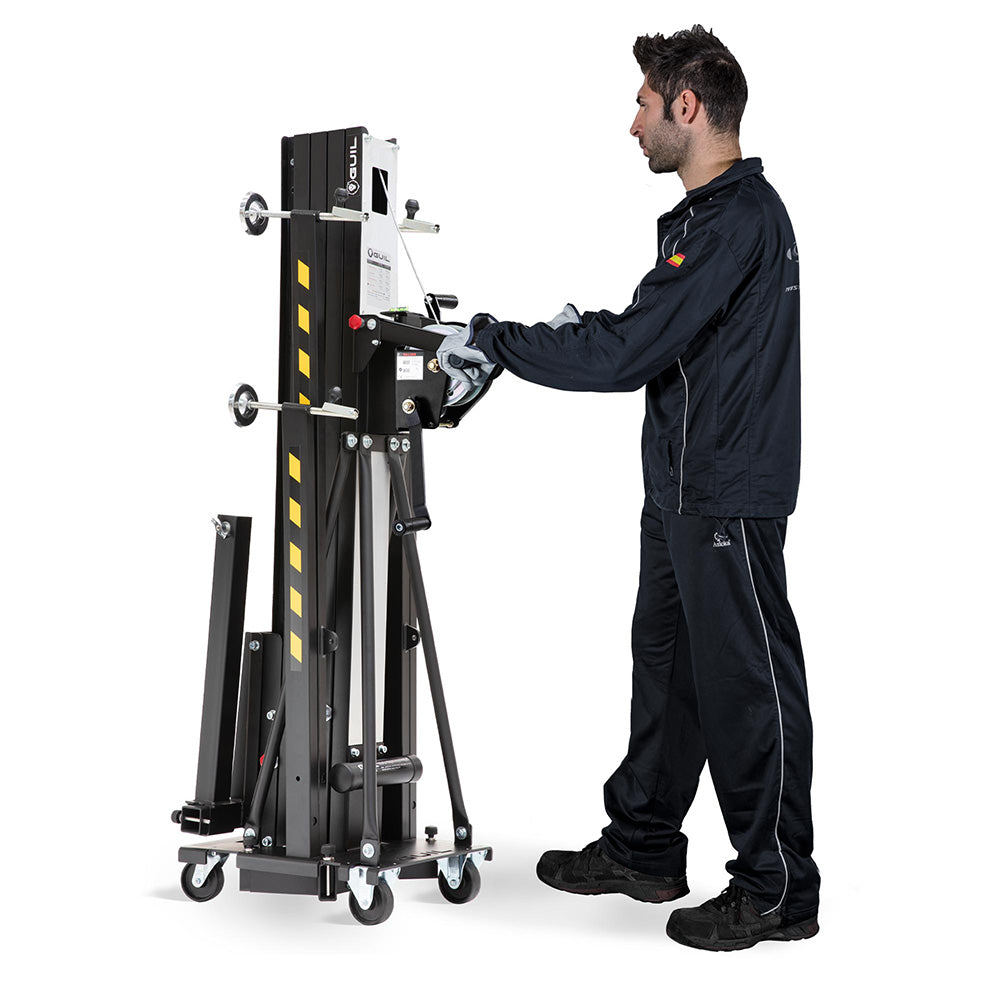

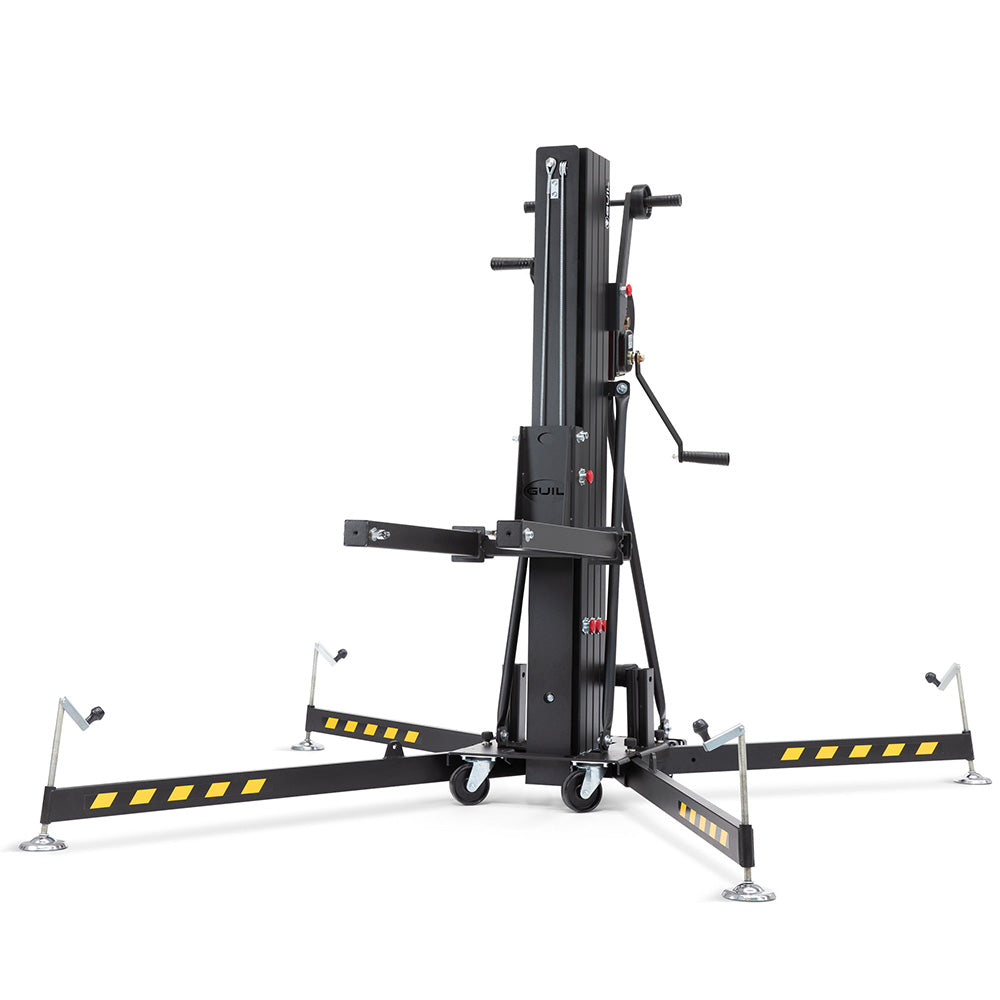

DAS / GUIL ULK-400 - Front-Loading Line Array and Truss Lifting Tower
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Lifting Tower designed to lift loads of up to 250 kg (551 lb) up to a maximum height of 5.15 m (16 ft 11 in).
The ULK 400 may be small in size but the attention to detail put into its design is vast.
Lifting tower developed for holding heavy weights at a great height. Its user friendly, compact design and great strength, make the ULK Lift an ideal complement for any kind of event.
| Maximum Height | 5.15 mÊIÊ16 ft 11 in |
| Maximum Load | 250 kgÊIÊ551 lb |
| Safety Systems | ASB SystemÊ(Automatic Safety Blocking System) |
| IPB SystemÊ(Internal Pendulum Brake)Ê+ MSU System | |
| Brake Winch | Double-handled |
| Height stowed | 1.68 mÊIÊ5 ft 6 in |
| Horizontal Transport | IncludedÊ(2 x ¯ 100 mm wheels) |
| Wheels | Secured to the base with 4 fixing points |
| Leveller screw jacks | Trapezoidal thread TR24x5. Greater durability and speed |
| Material | Aluminium (alloyÊEN AW 6082-T6) / Steel. BLACK Colour |
| Complies with Standards | DGUV 17 / 18, DGUV Rule 115-002 (FormerlyÊBGV-C1) |
| DIN EN 17206 (ReplacesÊDIN 56950-1), 2006/42/CE | |
| Net Weight | 110 kgÊIÊ243 lb |
| Sections | 4 SectionsÊÐ Profile dimension (width):Ê135 mmÊIÊ5.3 in |
Lifting Tower designed to lift loads of up to 250 kg (551 lb) up to a maximum height of 5.15 m (16 ft 11 in).
The ULK 400 may be small in size but the attention to detail put into its design is vast.
Lifting tower developed for holding heavy weights at a great height. Its user friendly, compact design and great strength, make the ULK Lift an ideal complement for any kind of event.
| Maximum Height | 5.15 mÊIÊ16 ft 11 in |
| Maximum Load | 250 kgÊIÊ551 lb |
| Safety Systems | ASB SystemÊ(Automatic Safety Blocking System) |
| IPB SystemÊ(Internal Pendulum Brake)Ê+ MSU System | |
| Brake Winch | Double-handled |

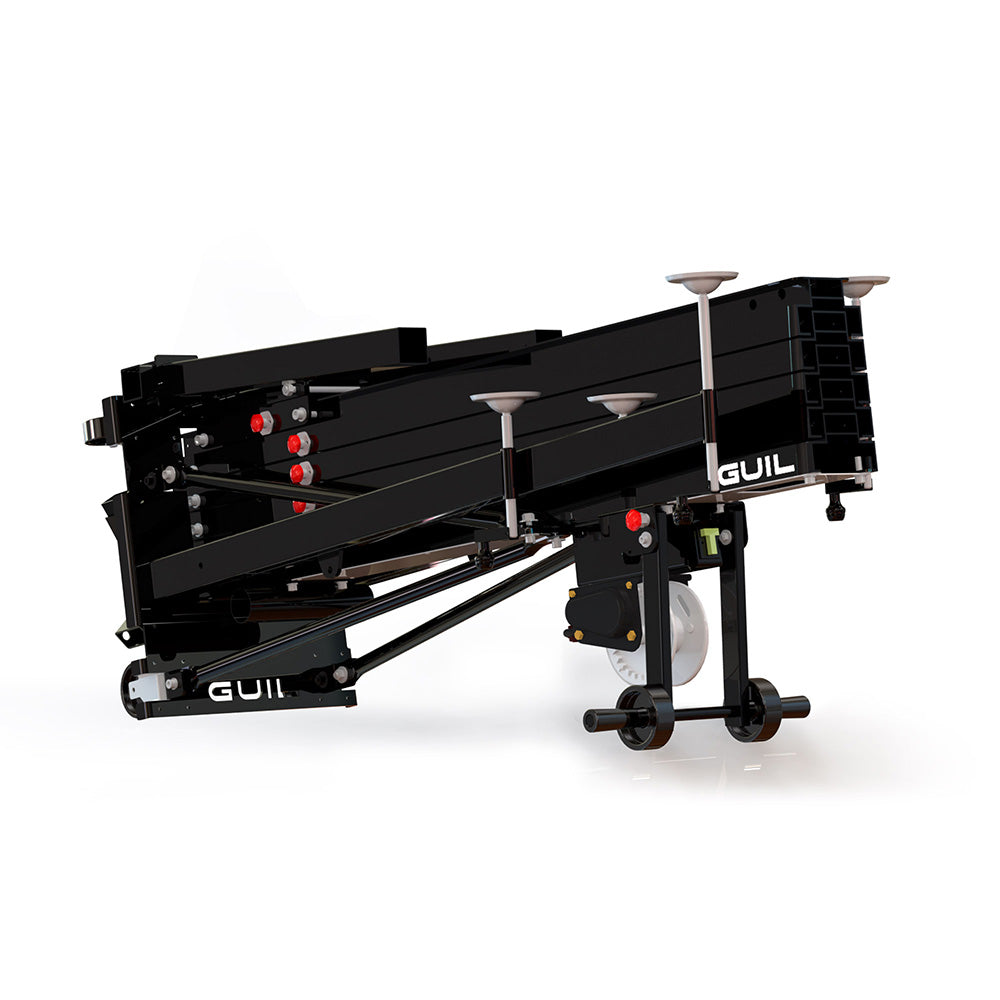

| Height stowed | 1.68 mÊIÊ5 ft 6 in |
| Horizontal Transport | IncludedÊ(2 x ¯ 100 mm wheels) |
| Wheels | Secured to the base with 4 fixing points |
| Leveller screw jacks | Trapezoidal thread TR24x5. Greater durability and speed |
| Material | Aluminium (alloyÊEN AW 6082-T6) / Steel. BLACK Colour |
| Complies with Standards | DGUV 17 / 18, DGUV Rule 115-002 (FormerlyÊBGV-C1) |
| DIN EN 17206 (ReplacesÊDIN 56950-1), 2006/42/CE | |
| Net Weight | 110 kgÊIÊ243 lb |
| Sections | 4 SectionsÊÐ Profile dimension (width):Ê135 mmÊIÊ5.3 in |
