DAS / GUIL ULK-650XL - Front-Loading Line Array and Truss Lifting Tower
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

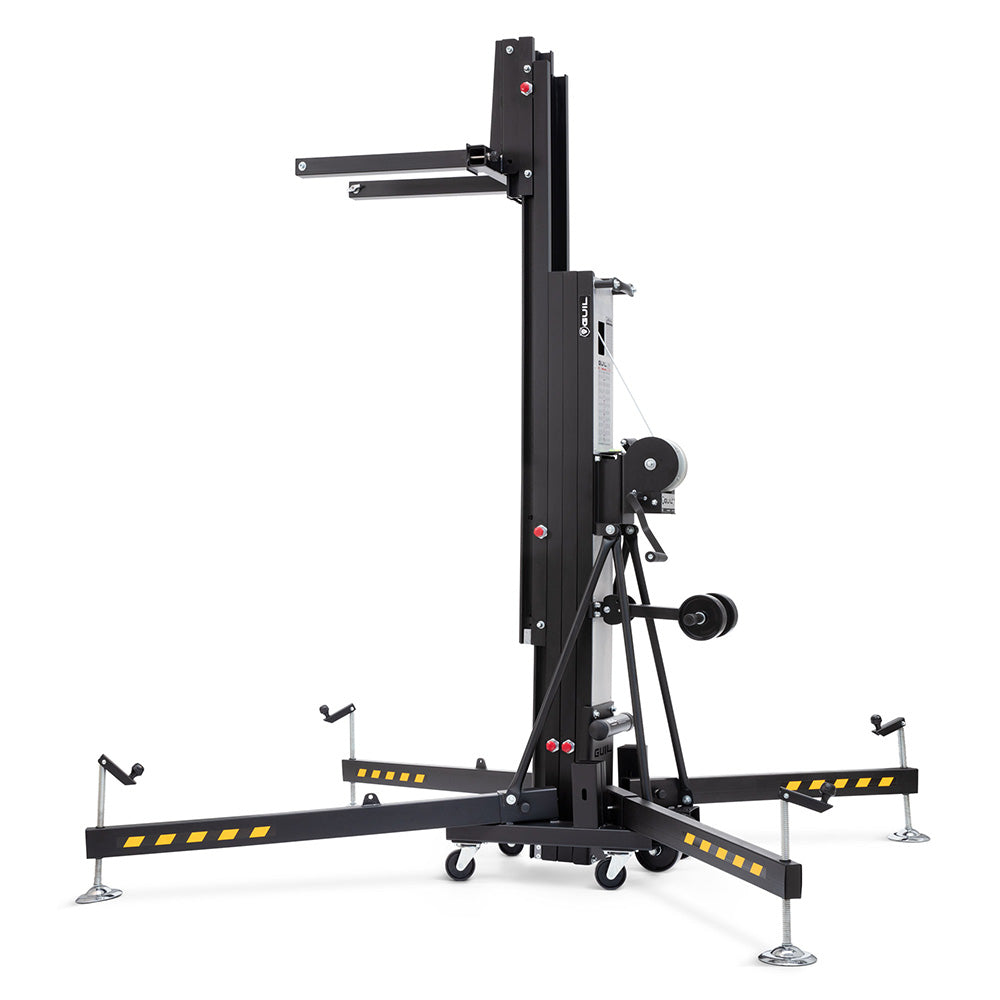

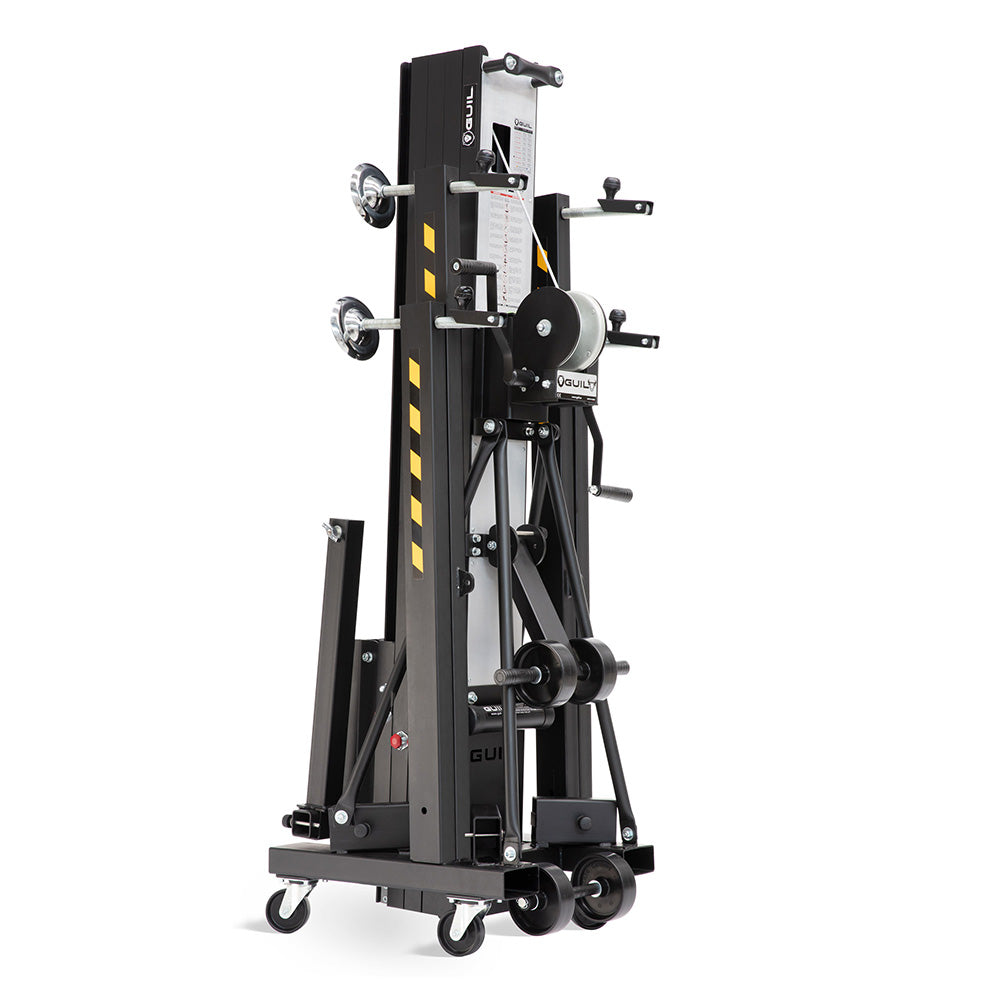

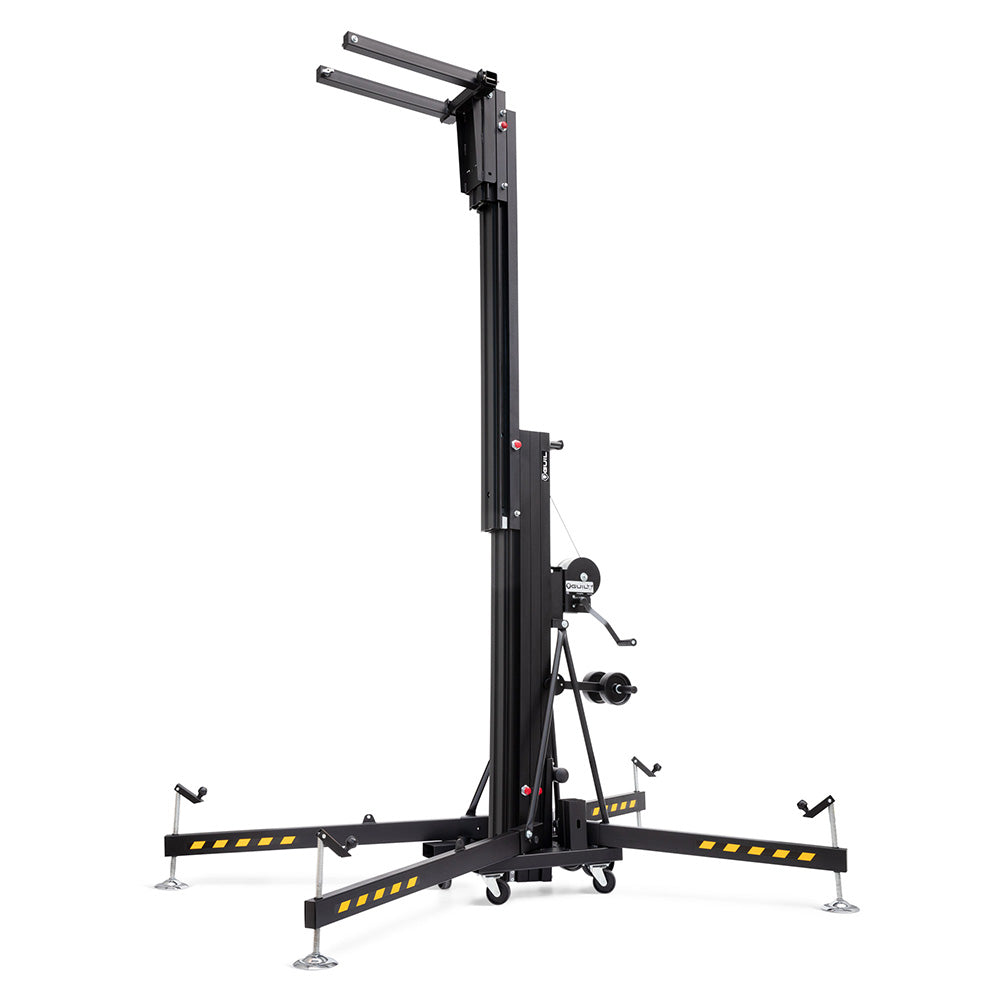

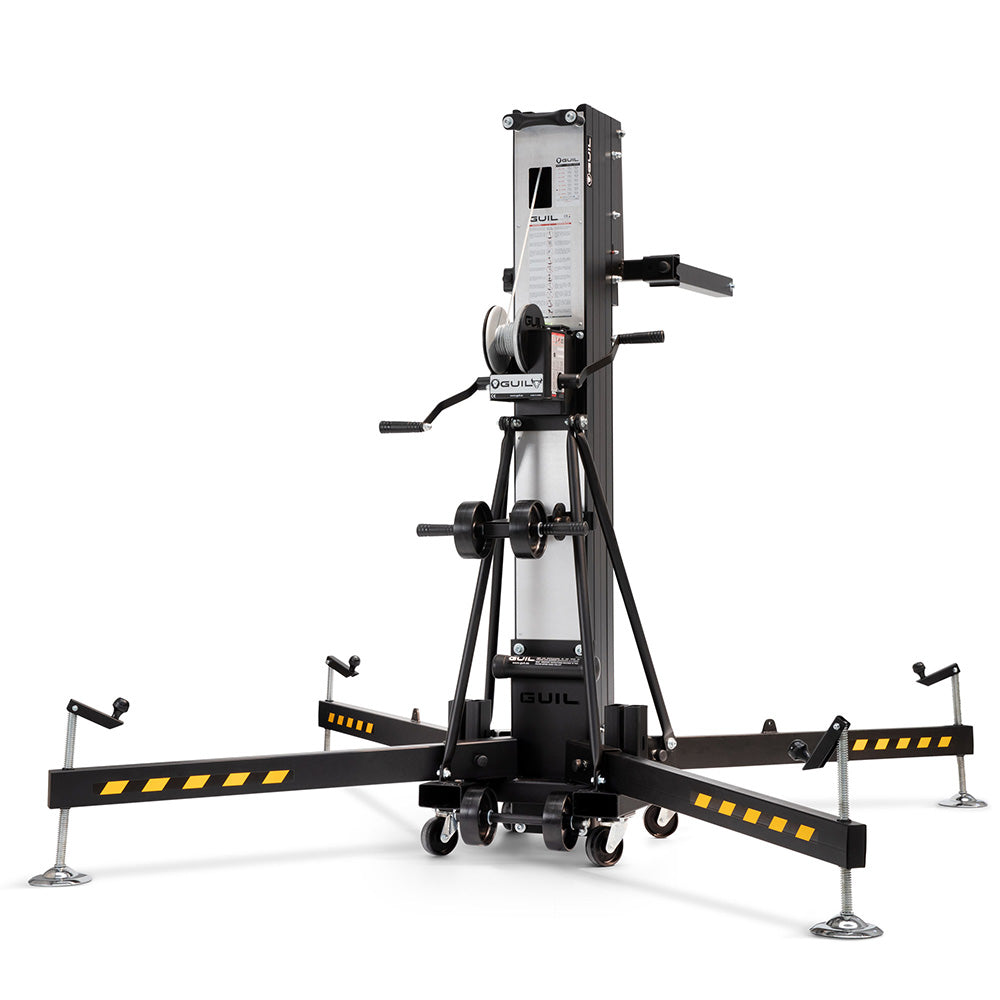

Lifting Tower designed to lift loads of up to 400 kg (882 lb) up to a maximum height of 6.5 m (21 ft 4 in).
Lifting towers developed for loading heavy weights at a great height. Its user friendly, compact design and great strength, make the ULK Lift an ideal complement for any kind of event.
| Maximum Height | 6.5 mÊIÊ21 ft 4 in |
| Maximum Load | 400 kgÊIÊ882 lb |
| Safety Systems | ASB SystemÊ(Automatic Safety Blocking System) |
| IPB SystemÊ(Internal Pendulum Brake)Ê+ MSU System | |
| Brake Winch | BULL500 ÐÊWith two handles |

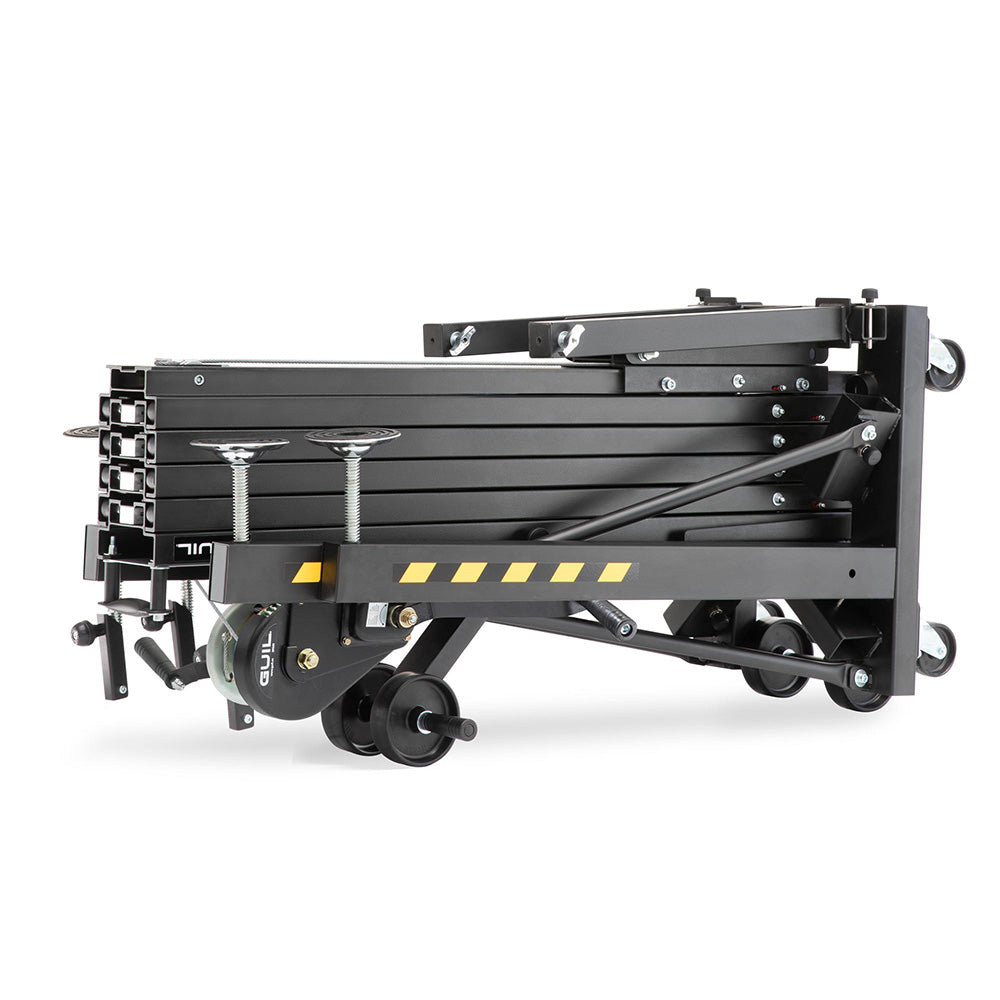

| Height stowed | 1.98 mÊIÊ6 ft 6 in |
| Horizontal Transport | Included (4 x ¯ 150 mm wheels, 2 of them with 3 positions) |
| Wheels | Secured to the base with 4 fixing points |
| Leveller screw jacks | Trapezoidal thread TR24x5. Greater durability and speed |
| Material | AluminiumÊ(alloyÊEN AW 6082-T6) / Steel. BLACK Colour |
| Complies with Standards | DGUV 17 / 18, DGUV Rule 115-002Ê(FormerlyÊBGV-C1) |
| DIN EN 17206 (ReplacesÊDIN 56950-1), 2006/42/CE | |
| Net Weight | 202 kgÊIÊ445 lb |
| Sections | 4ÊSectionsÐ Profile dimension (width):Ê208 mmÊIÊ8.2 in |
Lifting Tower designed to lift loads of up to 400 kg (882 lb) up to a maximum height of 6.5 m (21 ft 4 in).
Lifting towers developed for loading heavy weights at a great height. Its user friendly, compact design and great strength, make the ULK Lift an ideal complement for any kind of event.
| Maximum Height | 6.5 mÊIÊ21 ft 4 in |
| Maximum Load | 400 kgÊIÊ882 lb |
| Safety Systems | ASB SystemÊ(Automatic Safety Blocking System) |
| IPB SystemÊ(Internal Pendulum Brake)Ê+ MSU System | |
| Brake Winch | BULL500 ÐÊWith two handles |
| Height stowed | 1.98 mÊIÊ6 ft 6 in |
| Horizontal Transport | Included (4 x ¯ 150 mm wheels, 2 of them with 3 positions) |
| Wheels | Secured to the base with 4 fixing points |
| Leveller screw jacks | Trapezoidal thread TR24x5. Greater durability and speed |
| Material | AluminiumÊ(alloyÊEN AW 6082-T6) / Steel. BLACK Colour |
| Complies with Standards | DGUV 17 / 18, DGUV Rule 115-002Ê(FormerlyÊBGV-C1) |
| DIN EN 17206 (ReplacesÊDIN 56950-1), 2006/42/CE | |
| Net Weight | 202 kgÊIÊ445 lb |
| Sections | 4ÊSectionsÐ Profile dimension (width):Ê208 mmÊIÊ8.2 in |
