DALE SKU # DAS-HQ11243CX

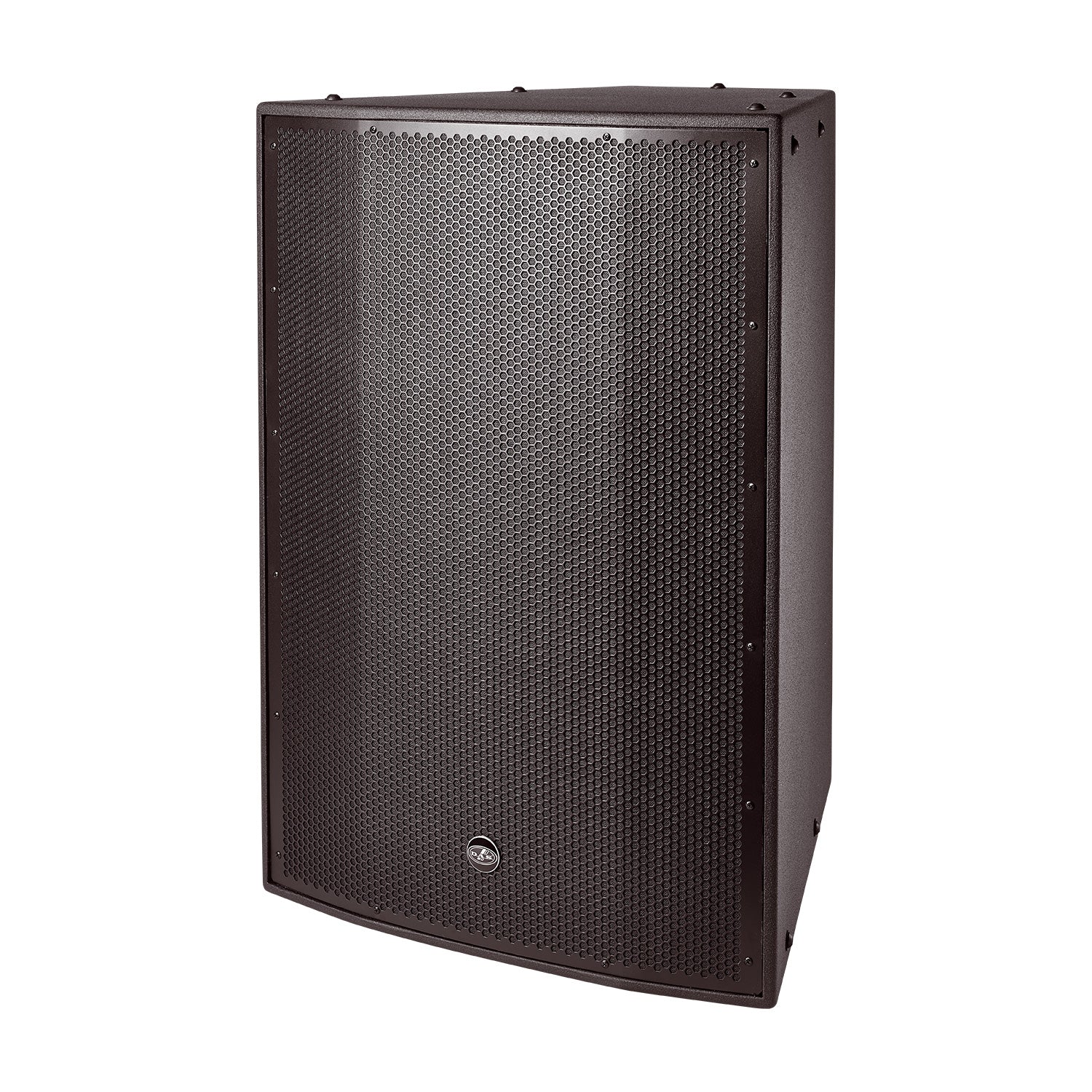

DAS HQ-112.43-CX - Passive 2-Way Biamped 12-Inch Loudspeaker (Black / 40x30 / Covered Exposure)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    HQ-112.43 is a configurable, wide-range passive or bi-amplified two-way system designed for long-throw applications, providing efficient coverage over large distances. It is equipped with a 12" mid-low frequency driver, coupled to a high-Q waveguide to optimize coverage and performance, and an M-78N compression driver with a 1.5" titanium diaphragm. The system is optimized to deliver a clear and precise acoustic response. Additionally, it incorporates two rotatable waveguides, one for mid frequencies and one for high frequencies, facilitating installation in various configurations.
    HQ-112.43 covers a frequency range of 80 Hz to 18 kHz, reaching a maximum sound pressure level of 143 dB SPL in passive mode. It has a power handling capacity of 400 W RMS and 1600 W peak in passive mode, with a nominal impedance of 8 ohms. In bi-amplified mode, the system handles up to 400 W RMS for mid frequencies and 150 W RMS for high frequencies.

    The system is available in two versions: CX (Covered Exposure), which is protected with an ISO-flex coating both externally and internally, and DX (Direct Exposure), which adds an external fiberglass layer and an internal gel seal for enhanced weather resistance. Both versions comply with the IP54 standard, ensuring durability in demanding environments.

    Equipped with M10 rigging points, HQ-112.43 is suitable for configurations in large venues, halls, or auditoriums and is designed to provide precise horizontal and vertical coverage control (40º x 30º).

    Features:

    • Passive, 400 W, 12", 2 way full-range
    • Bi-amped or passive, long throw mid-high
    • 40×30 rotatable horn
    • CX, for covered exposure, DX, for direct exposure
    • SPL Max: 143 dB
    • Dispersion: 40º / 30º
    • Weight: 62,5 kg ( 137,8 lb )
    Performance
    Frequency Range (-10 dB) 80 Hz Ð 18 kHz
    Horizontal Coverage (-6 dB) 40¼
    Vertical Coverage 30¼
    Nominal Impedance Passive: 8 ohms
    Nominal Impedance MF 8 ohms
    Nominal Impedance HF 8 ohms
    RMS Power Handling Passive: 400 W
    RMS Power Handling HF 150 W
    RMS Power Handling MF 400 W
    Peak Power Handling Passive: 1600 W
    Peak Power Handling MF 1600 W
    Peak Power Handling HF 400 W
    On-axis Sensitivity 1W/1 m Passive: 111 dB SPL
    On-axis Sensitivity 1W/1 m MF 111 dB SPL
    On-axis Sensitivity 1W/1 m HF 112 dB SPL
    Maximum Peak SPL at 1 m Passive: 143 dB
    Maximum Peak SPL at 1 m MF 143 dB
    Maximum Peak SPL at 1 m HF 140 dB
    Recommended Processor INTEGRAL-M88
    INTEGRAL-MA1604
    INTEGRAL-MA1004
    Connectors

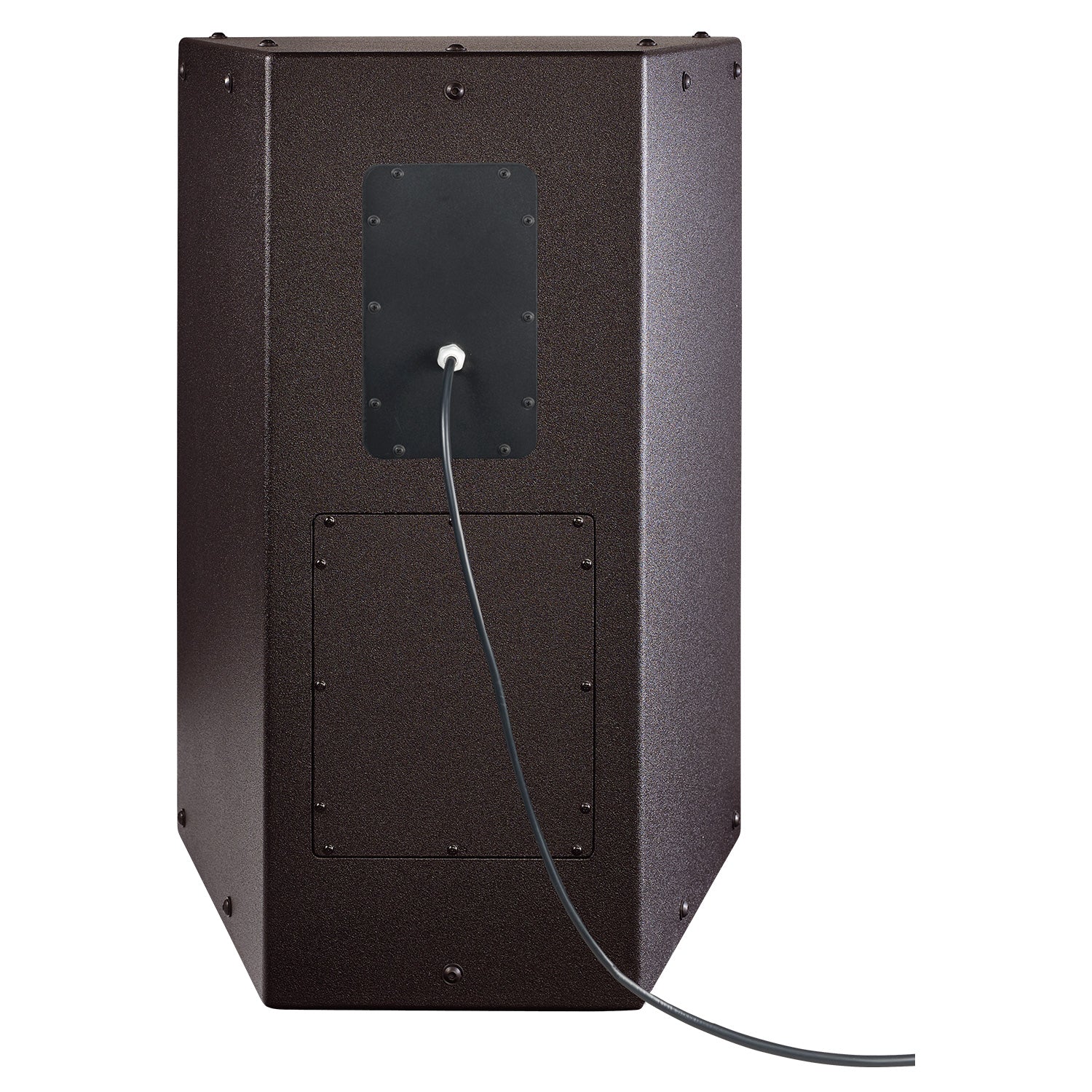

    Audio Input Connector 1 x speakON NL4
    Covered Barrier Strip Terminals
    Audio Output Connector 1 x speakON NL4
    Covered Barrier Strip Terminals
    Enclosure
    Enclosure Construction Birch Plywood
    Enclosure Geometry Trapezoidal
    Rigging M10 Rigging Points
    Finish Fiberglass
    Color Black
    Depth 720 mm (28,4 in)
    Dimensions ( H x W x D ) 990 x 685 x 720 mm
    39,0 x 27,0 x 28,4 in
    Net Weight 62,5 kg ( 137,8 lb )
    Components
    LF Driver 12HQN
    HF Driver M-78N
    Horn/Waveguide BCH-4030-7037
    BCM-4030-7037
    Shipping
    Carton Dimensions ( H x W x D ) 1.070 x 650 x 745 mm
    42,1 x 25,6 x 29,3 in
    Shipping Weight 67,5 kg ( 148,8 lb )
