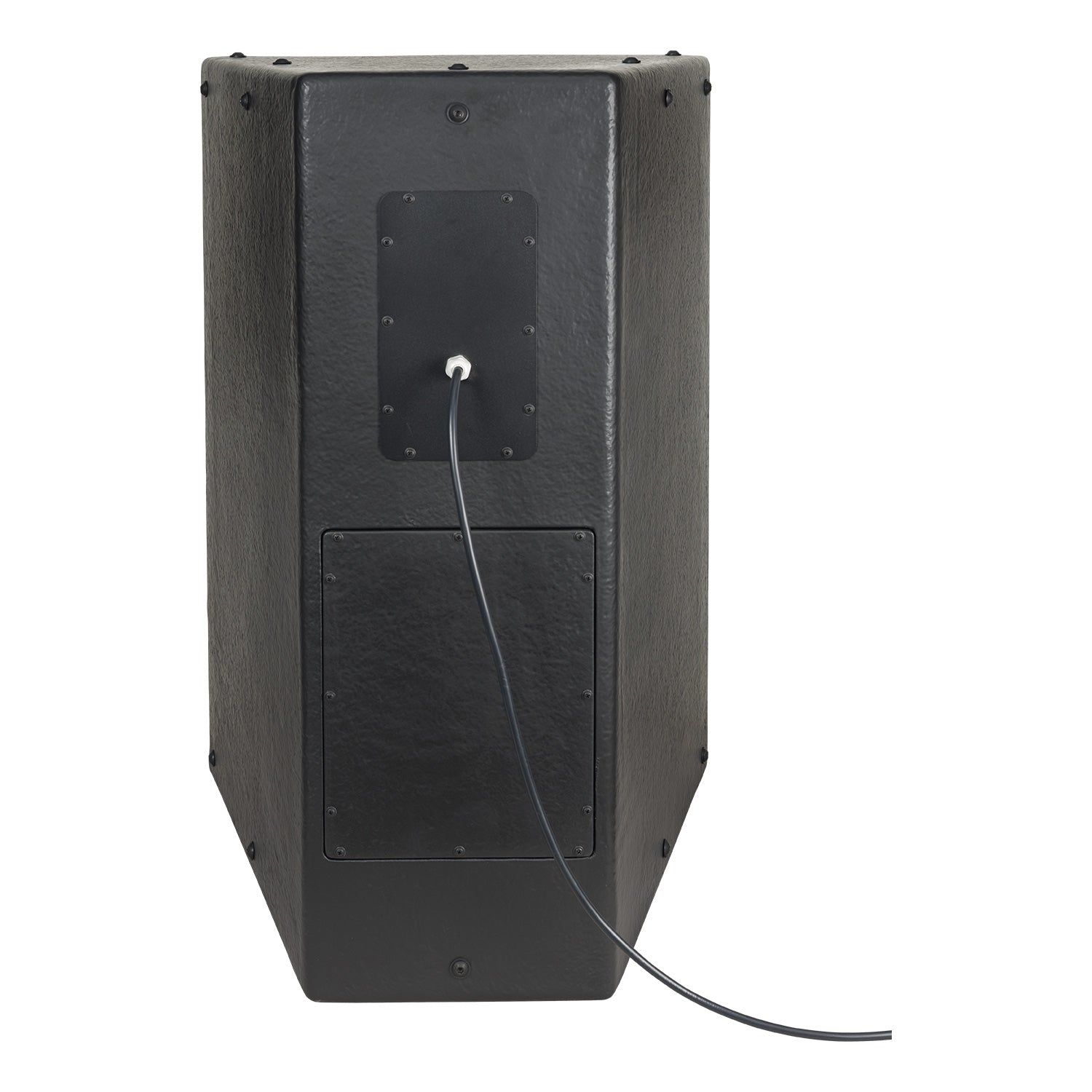

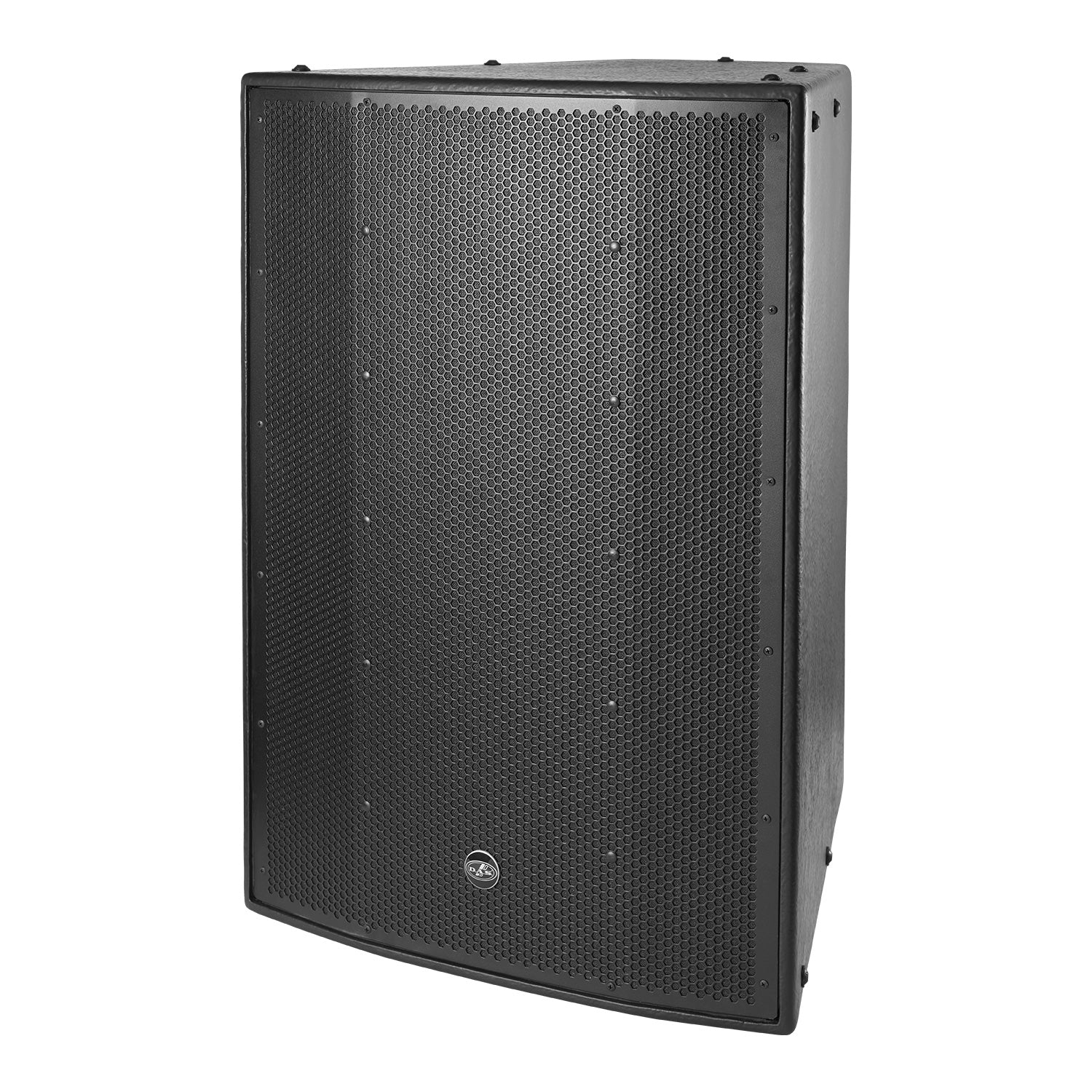

DAS HQ-112.43-DX - Passive 2-Way Biamped 12-Inch Loudspeaker (Black / 40x30 / Direct Exposure)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.

Description
HQ-112.43 is a configurable, wide-range passive or bi-amplified two-way system designed for long-throw applications, providing efficient coverage over large distances. It is equipped with a 12" mid-low frequency driver, coupled to a high-Q waveguide to optimize coverage and performance, and an M-78N compression driver with a 1.5" titanium diaphragm. The system is optimized to deliver a clear and precise acoustic response. Additionally, it incorporates two rotatable waveguides, one for mid frequencies and one for high frequencies, facilitating installation in various configurations.
HQ-112.43 covers a frequency range of 80 Hz to 18 kHz, reaching a maximum sound pressure level of 143 dB SPL in passive mode. It has a power handling capacity of 400 W RMS and 1600 W peak in passive mode, with a nominal impedance of 8 ohms. In bi-amplified mode, the system handles up to 400 W RMS for mid frequencies and 150 W RMS for high frequencies.
The system is available in two versions: CX (Covered Exposure), which is protected with an ISO-flex coating both externally and internally, and DX (Direct Exposure), which adds an external fiberglass layer and an internal gel seal for enhanced weather resistance. Both versions comply with the IP54 standard, ensuring durability in demanding environments.
Equipped with M10 rigging points, HQ-112.43 is suitable for configurations in large venues, halls, or auditoriums and is designed to provide precise horizontal and vertical coverage control (40º x 30º).
Features:
- Passive, 400 W, 12", 2 way full-range
- Bi-amped or passive, long throw mid-high
- 40×30 rotatable horn
- CX, for covered exposure, DX, for direct exposure
- SPL Max: 143 dB
- Dispersion: 40º / 30º
- Weight: 62,5 kg ( 137,8 lb )
Performance | |
Frequency Range (-10 dB) | 80 Hz Ð 18 kHz |
Horizontal Coverage (-6 dB) | 40¼ |
Vertical Coverage | 30¼ |
Nominal Impedance | Passive: 8 ohms |
Nominal Impedance MF | 8 ohms |
Nominal Impedance HF | 8 ohms |
RMS Power Handling | Passive: 400 W |
RMS Power Handling HF | 150 W |
RMS Power Handling MF | 400 W |
Peak Power Handling | Passive: 1600 W |
Peak Power Handling MF | 1600 W |
Peak Power Handling HF | 400 W |
On-axis Sensitivity 1W/1 m | Passive: 111 dB SPL |
On-axis Sensitivity 1W/1 m MF | 111 dB SPL |
On-axis Sensitivity 1W/1 m HF | 112 dB SPL |
Maximum Peak SPL at 1 m | Passive: 143 dB |
Maximum Peak SPL at 1 m MF | 143 dB |
Maximum Peak SPL at 1 m HF | 140 dB |
Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
Connectors | |
Audio Input Connector | 1 x speakON NL4 Covered Barrier Strip Terminals |
Audio Output Connector | 1 x speakON NL4 Covered Barrier Strip Terminals |
Enclosure | |
Enclosure Construction | Birch Plywood |
Enclosure Geometry | Trapezoidal |
Rigging | M10 Rigging Points |
Finish | Fiberglass |
Color | Black |
Depth | 720 mm (28,4 in) |
Dimensions ( H x W x D ) | 990 x 685 x 720 mm 39,0 x 27,0 x 28,4 in |
Net Weight | 62,5 kg ( 137,8 lb ) |
Components | |
LF Driver | 12HQN |
HF Driver | M-78N |
Horn/Waveguide | BCH-4030-7037 BCM-4030-7037 |
Shipping | |
Carton Dimensions ( H x W x D ) | 1.070 x 650 x 745 mm 42,1 x 25,6 x 29,3 in |
Shipping Weight | 67,5 kg ( 148,8 lb ) |
HQ-112.43 is a configurable, wide-range passive or bi-amplified two-way system designed for long-throw applications, providing efficient coverage over large distances. It is equipped with a 12" mid-low frequency driver, coupled to a high-Q waveguide to optimize coverage and performance, and an M-78N compression driver with a 1.5" titanium diaphragm. The system is optimized to deliver a clear and precise acoustic response. Additionally, it incorporates two rotatable waveguides, one for mid frequencies and one for high frequencies, facilitating installation in various configurations.
HQ-112.43 covers a frequency range of 80 Hz to 18 kHz, reaching a maximum sound pressure level of 143 dB SPL in passive mode. It has a power handling capacity of 400 W RMS and 1600 W peak in passive mode, with a nominal impedance of 8 ohms. In bi-amplified mode, the system handles up to 400 W RMS for mid frequencies and 150 W RMS for high frequencies.
The system is available in two versions: CX (Covered Exposure), which is protected with an ISO-flex coating both externally and internally, and DX (Direct Exposure), which adds an external fiberglass layer and an internal gel seal for enhanced weather resistance. Both versions comply with the IP54 standard, ensuring durability in demanding environments.
Equipped with M10 rigging points, HQ-112.43 is suitable for configurations in large venues, halls, or auditoriums and is designed to provide precise horizontal and vertical coverage control (40º x 30º).
Features:
- Passive, 400 W, 12", 2 way full-range
- Bi-amped or passive, long throw mid-high
- 40×30 rotatable horn
- CX, for covered exposure, DX, for direct exposure
- SPL Max: 143 dB
- Dispersion: 40º / 30º
- Weight: 62,5 kg ( 137,8 lb )
Performance | |
Frequency Range (-10 dB) | 80 Hz Ð 18 kHz |
Horizontal Coverage (-6 dB) | 40¼ |
Vertical Coverage | 30¼ |
Nominal Impedance | Passive: 8 ohms |
Nominal Impedance MF | 8 ohms |
Nominal Impedance HF | 8 ohms |
RMS Power Handling | Passive: 400 W |
RMS Power Handling HF | 150 W |
RMS Power Handling MF | 400 W |
Peak Power Handling | Passive: 1600 W |
Peak Power Handling MF | 1600 W |
Peak Power Handling HF | 400 W |
On-axis Sensitivity 1W/1 m | Passive: 111 dB SPL |
On-axis Sensitivity 1W/1 m MF | 111 dB SPL |
On-axis Sensitivity 1W/1 m HF | 112 dB SPL |
Maximum Peak SPL at 1 m | Passive: 143 dB |
Maximum Peak SPL at 1 m MF | 143 dB |
Maximum Peak SPL at 1 m HF | 140 dB |
Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
Connectors | |
Audio Input Connector | 1 x speakON NL4 Covered Barrier Strip Terminals |
Audio Output Connector | 1 x speakON NL4 Covered Barrier Strip Terminals |
Enclosure | |
Enclosure Construction | Birch Plywood |
Enclosure Geometry | Trapezoidal |
Rigging | M10 Rigging Points |
Finish | Fiberglass |
Color | Black |
Depth | 720 mm (28,4 in) |
Dimensions ( H x W x D ) | 990 x 685 x 720 mm 39,0 x 27,0 x 28,4 in |
Net Weight | 62,5 kg ( 137,8 lb ) |
Components | |
LF Driver | 12HQN |
HF Driver | M-78N |
Horn/Waveguide | BCH-4030-7037 BCM-4030-7037 |
Shipping | |
Carton Dimensions ( H x W x D ) | 1.070 x 650 x 745 mm 42,1 x 25,6 x 29,3 in |
Shipping Weight | 67,5 kg ( 148,8 lb ) |
