DALE SKU # DAS-HQ21295CX

DAS HQ-212.95-CX - Passive 2-Way Biamped 2x12-Inch Loudspeaker (Black / 90x50 / Covered Exposure)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

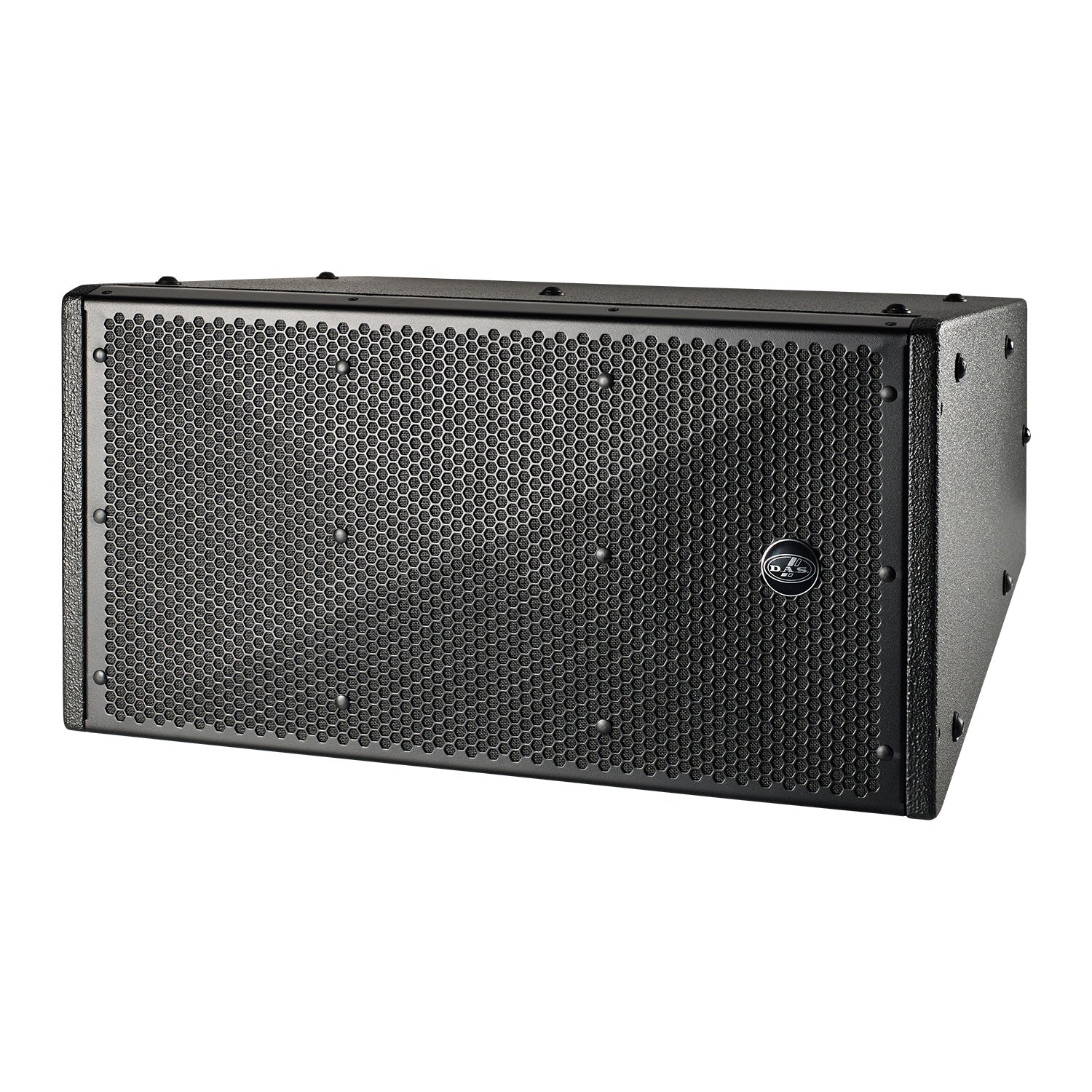

    The HQ-212.95 is a long-throw two-way system designed for medium and large-scale installations such as arenas, stadiums, auditoriums, and theaters. With precise coverage control and high power capacity, the HQ-212.95 is ideal for use both as a standalone unit and in multi-unit array configurations. The system features a 12" low-frequency driver (model 12LQN4C with a 3" voice coil) and an M-78N compression driver with a titanium diaphragm and a 3" voice coil, ensuring optimal acoustic performance in demanding applications.

    The system provides a controlled 90º x 50º coverage, with a rotatable waveguide that allows flexible installation, adapting to different configurations. The HQ-212.95 covers a frequency range from 63 Hz to 18 kHz, reaching a maximum sound pressure level of 141 dB SPL. With a power handling capacity of 800 W RMS and 3200 W peak power, this system is designed to deliver superior performance in large-scale environments.

    The enclosure is constructed from birch plywood and coated with the durable ISO-flex™ finish on both the interior and exterior. The system is available in two versions: CX (covered exposure), with an ISO-flex coating on both surfaces, and DX (direct exposure), which adds an outer fiberglass layer and an internal gel seal for enhanced weather resistance. Both versions comply with IP54 standards, ensuring durability in harsh weather conditions.

    Equipped with M10 rigging points and a stainless-steel mounting bracket, the HQ-212.95 is a robust and reliable solution for permanent installations in large venues.

    Features:

    • Passive, 800 W,2x 12", 2 way full-range, bi-amped or passive long throw
    • 90×50 rotatable horn
    • CX for covered exposure, DX for direct exposure
    • SPL Max: 141 dB
    • Dispersion: 60º/40º – 90º/50º
    • Weight: 49,0 kg ( 85,9 lb )
    Performance
    Frequency Range (-10 dB) 63 Hz Ð 18 kHz
    Horizontal Coverage (-6 dB) 90¼
    Vertical Coverage 50¼
    Nominal Impedance 8 ohms
    RMS Power Handling 800 W
    Peak Power Handling 3200 W
    On-axis Sensitivity 1W/1 m 105 dB
    Maximum Peak SPL at 1 m 140 dB
    Recommended Processor INTEGRAL-M88
    INTEGRAL-MA1604
    INTEGRAL-MA1004
    Connectors
    Audio Input Connector Covered Barrier Strip Terminals
    Audio Output Connector Covered Barrier Strip Terminals
    Enclosure
    Enclosure Construction Birch Plywood
    Enclosure Geometry Trapezoidal
    Rigging M10 Rigging Points
    Finish ISO-flex Paint
    Color Black
    Depth 655 mm (25,7 in)
    Dimensions ( H x W x D ) 370 x 710 x 655 mm
    14,6 x 28,0 x 25,7 in
    Net Weight 49,0 kg ( 85,9 lb )
    Components
    LF Driver 12LQN4C
    HF Driver M-78N
    Horn/Waveguide BCH-9050-7037
    Shipping
    Shipping Weight 51,5 kg ( 91,5 lb )

    The HQ-212.95 is a long-throw two-way system designed for medium and large-scale installations such as arenas, stadiums, auditoriums, and theaters. With precise coverage control and high power capacity, the HQ-212.95 is ideal for use both as a standalone unit and in multi-unit array configurations. The system features a 12" low-frequency driver (model 12LQN4C with a 3" voice coil) and an M-78N compression driver with a titanium diaphragm and a 3" voice coil, ensuring optimal acoustic performance in demanding applications.

    The system provides a controlled 90º x 50º coverage, with a rotatable waveguide that allows flexible installation, adapting to different configurations. The HQ-212.95 covers a frequency range from 63 Hz to 18 kHz, reaching a maximum sound pressure level of 141 dB SPL. With a power handling capacity of 800 W RMS and 3200 W peak power, this system is designed to deliver superior performance in large-scale environments.

    The enclosure is constructed from birch plywood and coated with the durable ISO-flex™ finish on both the interior and exterior. The system is available in two versions: CX (covered exposure), with an ISO-flex coating on both surfaces, and DX (direct exposure), which adds an outer fiberglass layer and an internal gel seal for enhanced weather resistance. Both versions comply with IP54 standards, ensuring durability in harsh weather conditions.

    Equipped with M10 rigging points and a stainless-steel mounting bracket, the HQ-212.95 is a robust and reliable solution for permanent installations in large venues.

    Features:

    • Passive, 800 W,2x 12", 2 way full-range, bi-amped or passive long throw
    • 90×50 rotatable horn
    • CX for covered exposure, DX for direct exposure
    • SPL Max: 141 dB
    • Dispersion: 60º/40º – 90º/50º
    • Weight: 49,0 kg ( 85,9 lb )
    Performance
    Frequency Range (-10 dB) 63 Hz Ð 18 kHz
    Horizontal Coverage (-6 dB) 90¼
    Vertical Coverage 50¼
    Nominal Impedance 8 ohms
    RMS Power Handling 800 W
    Peak Power Handling 3200 W
    On-axis Sensitivity 1W/1 m 105 dB
    Maximum Peak SPL at 1 m 140 dB
    Recommended Processor INTEGRAL-M88
    INTEGRAL-MA1604
    INTEGRAL-MA1004
    Connectors
    Audio Input Connector Covered Barrier Strip Terminals
    Audio Output Connector Covered Barrier Strip Terminals
    Enclosure
    Enclosure Construction Birch Plywood
    Enclosure Geometry Trapezoidal
    Rigging M10 Rigging Points
    Finish ISO-flex Paint
    Color Black
    Depth 655 mm (25,7 in)
    Dimensions ( H x W x D ) 370 x 710 x 655 mm
    14,6 x 28,0 x 25,7 in
    Net Weight 49,0 kg ( 85,9 lb )
    Components
    LF Driver 12LQN4C
    HF Driver M-78N
    Horn/Waveguide BCH-9050-7037
    Shipping
    Shipping Weight 51,5 kg ( 91,5 lb )
