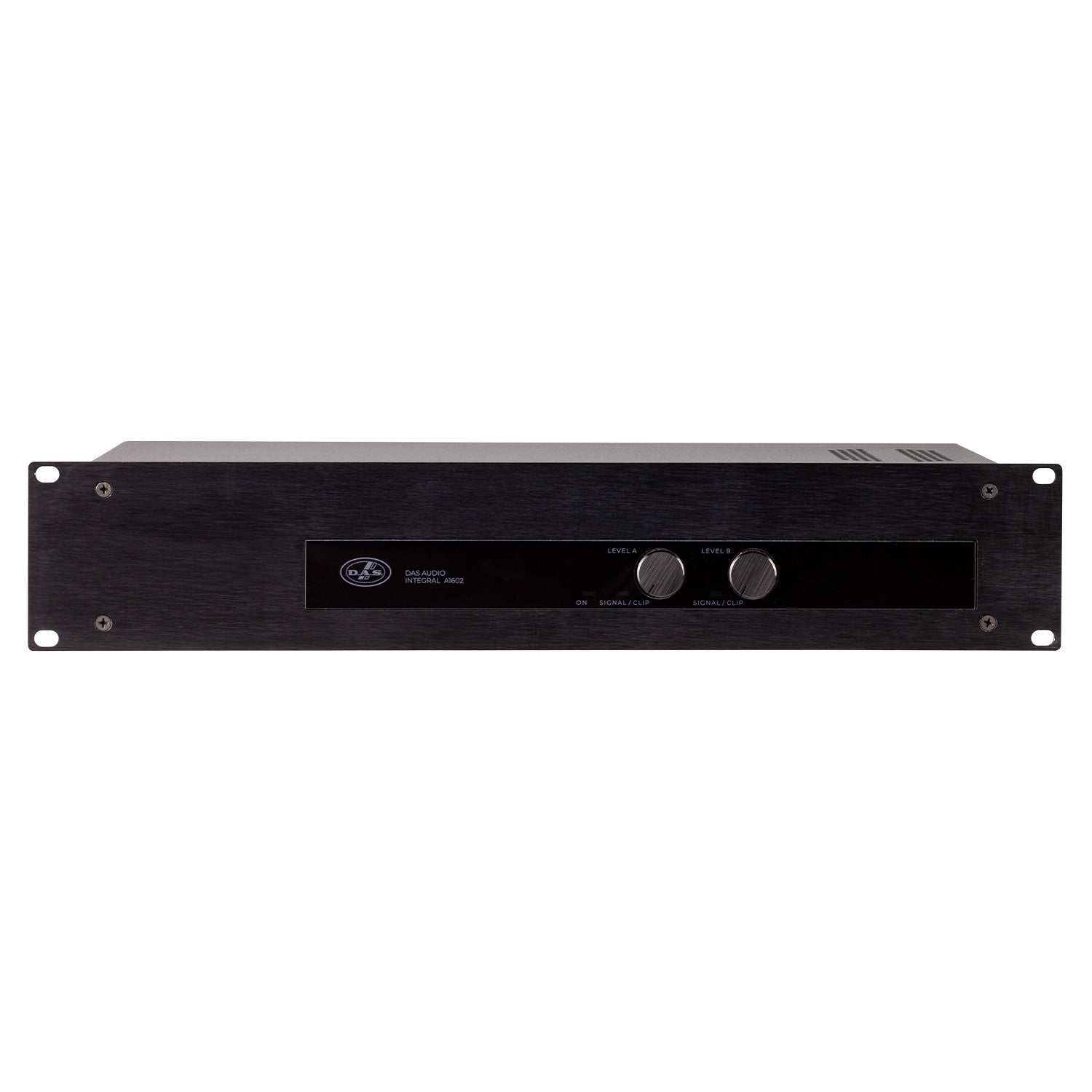

DAS INTEGRAL-A1602- Two-Channel Install Power Amplifiier
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
INTEGRAL-A1602 is a dual channel, 2U, high efficiency class D amplifier intended for permanent installation use. It is equipped with switching universal mains power supply and auto-standby functionality when no signal presence is detected providing energy savings.
The amplifier delivers 2x800W at 4ohm and can be used in bridge mode for high impedance 100V/70V lines (providing 1600W of total power). Front LEDs provide information about signal presence, limiters and protection status. At the rear panel the user can configure the stereo / bridge mode and engage an 80Hz 12dB/oct order High Pass filter.
The sober and elegant design together with the euro-block type connectors and energy savings makes it perfect for permanent installations.
Features:
- 2-channel 800 W @ 4 ohm or 1-channel 1600 W @ 100 V amplifier
- 2U DIN
- Power per channel at 4 ohms: 800 W
- Number of channels: 2
- Topology: Class D
| Output Power Ratings | |
| Power 8 Ohms, Both Channels Driven | 2 x 400 W |
| Power 8 Ohms Bridged | 1 x 1600 W |
| Power 4 Ohms, Both Channels Driven | 2 x 800 W |
| Power 100 V | 1 x 1600 W |
| Power 70 V | 1 x 1600 W |
| Electronics and Connectors | |
| Amplifier Channels | 2 |
| Output Circuitry | Class D |
| Frequency Response | 20 Hz-30 kHz (+0 Ð 0.5 dB) |
| Sensitivity | 1.38 V (+5 dBu) |
| Voltage gain | 32.5 dB |
| Damping Factor | >350, each channel (8 ? load, 1 kHz and below) |
| Controls | Power On/Off, Gain Pots |
| Cooling | Side-Right-to-Left |
| Amplifier Protections | Short Circuit, DC Output, Temperature, Over/Under Voltage |
| LED Indicators | On-Protect-Standby, Signal-Clip |
| Audio Signal Input Connector | Terminal Block |
| Speaker Output Connector | Terminal Block |
| Current Draw 230 V / 115 V | 3.0 A / 6.0 A |
| Dimensions-Weight | |
| Dimensions ( H x W x D ) | 88 x 483 x 208 mm 3,5 x 19,0 x 8,2 in |
| Net Weight | 3,5 kg ( 7,7 lb ) |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 170 x 525 x 315 mm 6,7 x 20,7 x 12,4 in |
| Shipping Weight | 4,3 kg ( 9,4 lb ) |
INTEGRAL-A1602 is a dual channel, 2U, high efficiency class D amplifier intended for permanent installation use. It is equipped with switching universal mains power supply and auto-standby functionality when no signal presence is detected providing energy savings.
The amplifier delivers 2x800W at 4ohm and can be used in bridge mode for high impedance 100V/70V lines (providing 1600W of total power). Front LEDs provide information about signal presence, limiters and protection status. At the rear panel the user can configure the stereo / bridge mode and engage an 80Hz 12dB/oct order High Pass filter.
The sober and elegant design together with the euro-block type connectors and energy savings makes it perfect for permanent installations.
