DALE SKU # DAS-INTEGRALM88

DAS INTEGRAL-M88 - 4-Input 8-Output Audio Matrix with Dante

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

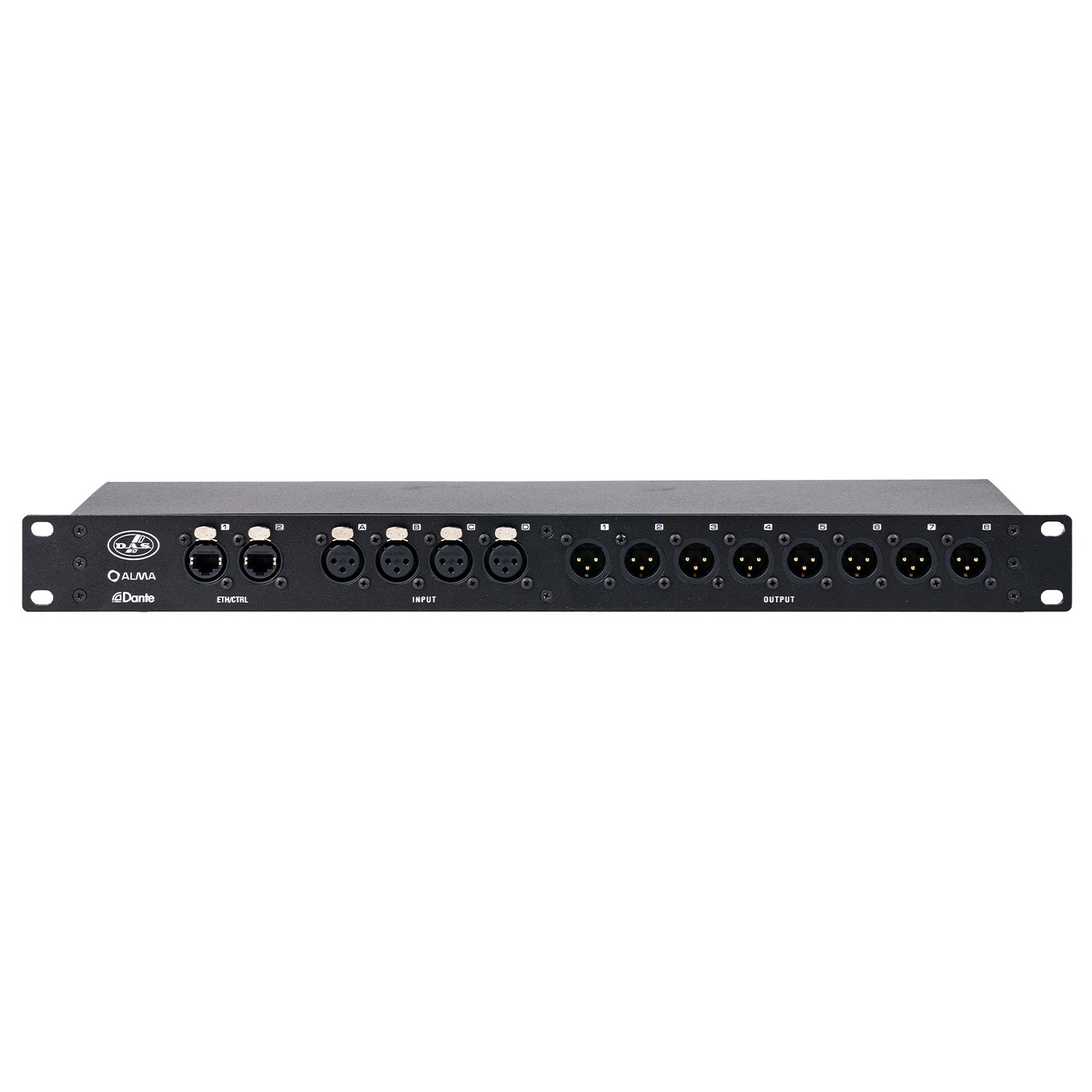

    INTEGRAL-M88 is a half rack mount 1U size installation matrix with 4 analog input channels and eight analog output channels. Besides the analog audio inputs and outputs, a DANTE digital audio 4×4 chipset is included by default with the units. Control, configuration and management of the devices shall be done via ALMA software over IP or using Open Sound Control (OSC) protocol.

    Priority capabilities, full matrix and routing options make this unit essential as the "brain" of any type of installation. The internal memory resources allow to store more than 100 "global presets" and more than 200 "output channel presets" (speaker presets). A bank of output channel presets with specific processing parameters for all DAS Audio speakers is included allowing the users to configure each channel independently. For instance, it would be possible to recall for output 1 the preset of Q-23T, for output 2 the preset of Arco-4T, for output 3 the preset of Q-10 etc.

    The unit includes an OLED display (1.54") with control knobs for intuitive and easy navigation as well meters to monitor signal levels. Basic parameters can be accessible via front panel control knobs; input and output levels, global preset recall, output channel preset recall, mute, source selection, link manager functions, priority enabling etc.

    Two of the analogue inputs can be switched to microphone with 12V Phantom power if needed.
    The unit also Integrates an Ethernet Switch for daisy-chain connections. No external switch is needed.
    WiFi and Bluetooth are available for direct wireless operation.

    Electronics and Audio
    Frequency Response 20 Hz-30 kHz (+0 -0.5 dB)
    Max Input Level +22 dBu
    Max. Output Level +22 dBu
    Controls Power On/Off, Navigation Buttons
    Phantom Power + 12V DC
    Sampling Rate 48 kHz
    Display OLED 1.54?
    Cooling Side-Right-to-Left
    LED Indicators On, Comms, Signal, Protect
    Connectors

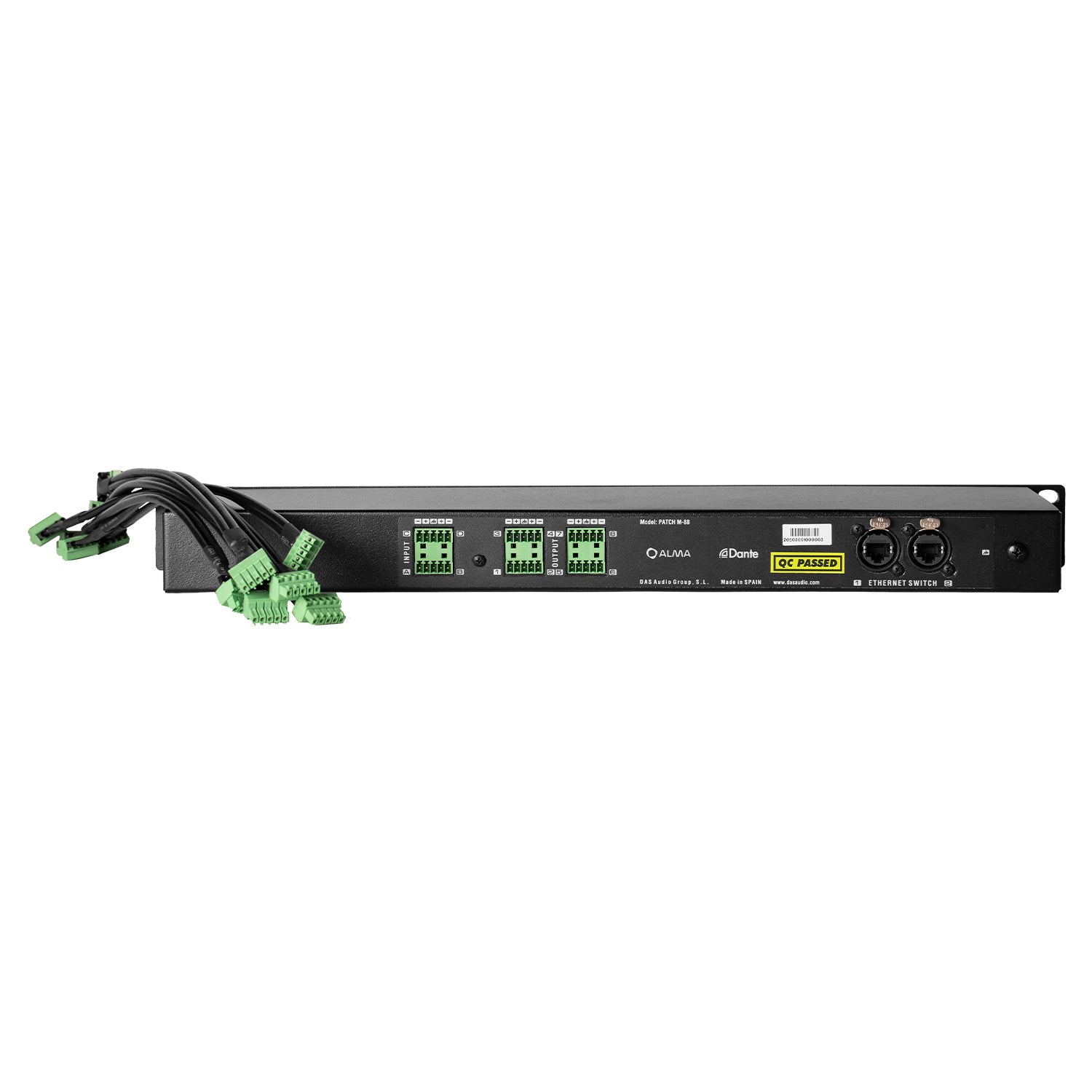

    Analog Audio Input Connectors 2 x 3.5 mm Pitch Terminal Block
    Analog Audio Output Connectors 4 x 3.5 mm Pitch Terminal Block
    DANTE Digital In/Out Connectors 2 x RJ45 Fast Ethernet
    Power
    AC Input Connector IEC 15A
    Power Supply Universal Mains Switch Mode
    Operating Range 90 Ð 250 VAC
    DSP
    Analog Input Channels 4
    Analog Output Channels 8
    DANTE Input Channels 4
    DANTE Output Channels 4
    AD Converters 24 Bit @ 48 kHz 118 dBA Dynamic Range
    DA Converters 24 Bit @ 48 kHz 118 dBA Dynamic Range
    Internal Precision 32 Bit, 64 Bits Double Precission
    Latency 1 ms
    Delay 50ms per input / 135ms per output
    Equalizer Bell, Lo/Hi-Shelving, Hos
    Crossover Linkwitz-Riley, Butterworth, Bessel
    High and Low Pass Filters Up to 48 dB/oct
    Limiters RMS
    Dimensions-Weight
    Dimensions ( H x W x D ) 44 x 215 x 210 mm
    1,7 x 8,5 x 8,3 in
    Net Weight 1,7 kg ( 3,7 lb )
    Shipping
    Carton Dimensions ( H x W x D ) 440 x 400 x 60 mm
    17,3 x 15,7 x 2,4 in
    Shipping Weight 7,5 kg ( 16,5 lb )

    INTEGRAL-M88 is a half rack mount 1U size installation matrix with 4 analog input channels and eight analog output channels. Besides the analog audio inputs and outputs, a DANTE digital audio 4×4 chipset is included by default with the units. Control, configuration and management of the devices shall be done via ALMA software over IP or using Open Sound Control (OSC) protocol.

    Priority capabilities, full matrix and routing options make this unit essential as the "brain" of any type of installation. The internal memory resources allow to store more than 100 "global presets" and more than 200 "output channel presets" (speaker presets). A bank of output channel presets with specific processing parameters for all DAS Audio speakers is included allowing the users to configure each channel independently. For instance, it would be possible to recall for output 1 the preset of Q-23T, for output 2 the preset of Arco-4T, for output 3 the preset of Q-10 etc.

    The unit includes an OLED display (1.54") with control knobs for intuitive and easy navigation as well meters to monitor signal levels. Basic parameters can be accessible via front panel control knobs; input and output levels, global preset recall, output channel preset recall, mute, source selection, link manager functions, priority enabling etc.

    Two of the analogue inputs can be switched to microphone with 12V Phantom power if needed.
    The unit also Integrates an Ethernet Switch for daisy-chain connections. No external switch is needed.
    WiFi and Bluetooth are available for direct wireless operation.

    Electronics and Audio
    Frequency Response 20 Hz-30 kHz (+0 -0.5 dB)
    Max Input Level +22 dBu
    Max. Output Level +22 dBu
    Controls Power On/Off, Navigation Buttons
    Phantom Power + 12V DC
    Sampling Rate 48 kHz
    Display OLED 1.54?
    Cooling Side-Right-to-Left
    LED Indicators On, Comms, Signal, Protect
    Connectors
    Analog Audio Input Connectors 2 x 3.5 mm Pitch Terminal Block
    Analog Audio Output Connectors 4 x 3.5 mm Pitch Terminal Block
    DANTE Digital In/Out Connectors 2 x RJ45 Fast Ethernet
    Power
    AC Input Connector IEC 15A
    Power Supply Universal Mains Switch Mode
    Operating Range 90 Ð 250 VAC
    DSP
    Analog Input Channels 4
    Analog Output Channels 8
    DANTE Input Channels 4
    DANTE Output Channels 4
    AD Converters 24 Bit @ 48 kHz 118 dBA Dynamic Range
    DA Converters 24 Bit @ 48 kHz 118 dBA Dynamic Range
    Internal Precision 32 Bit, 64 Bits Double Precission
    Latency 1 ms
    Delay 50ms per input / 135ms per output
    Equalizer Bell, Lo/Hi-Shelving, Hos
    Crossover Linkwitz-Riley, Butterworth, Bessel
    High and Low Pass Filters Up to 48 dB/oct
    Limiters RMS
    Dimensions-Weight
    Dimensions ( H x W x D ) 44 x 215 x 210 mm
    1,7 x 8,5 x 8,3 in
    Net Weight 1,7 kg ( 3,7 lb )
    Shipping
    Carton Dimensions ( H x W x D ) 440 x 400 x 60 mm
    17,3 x 15,7 x 2,4 in
    Shipping Weight 7,5 kg ( 16,5 lb )
