DALE SKU # DAS-INTEGRALMC01

DAS INTEGRAL-MC01 - Desktop Condenser Gooseneck Microphone

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

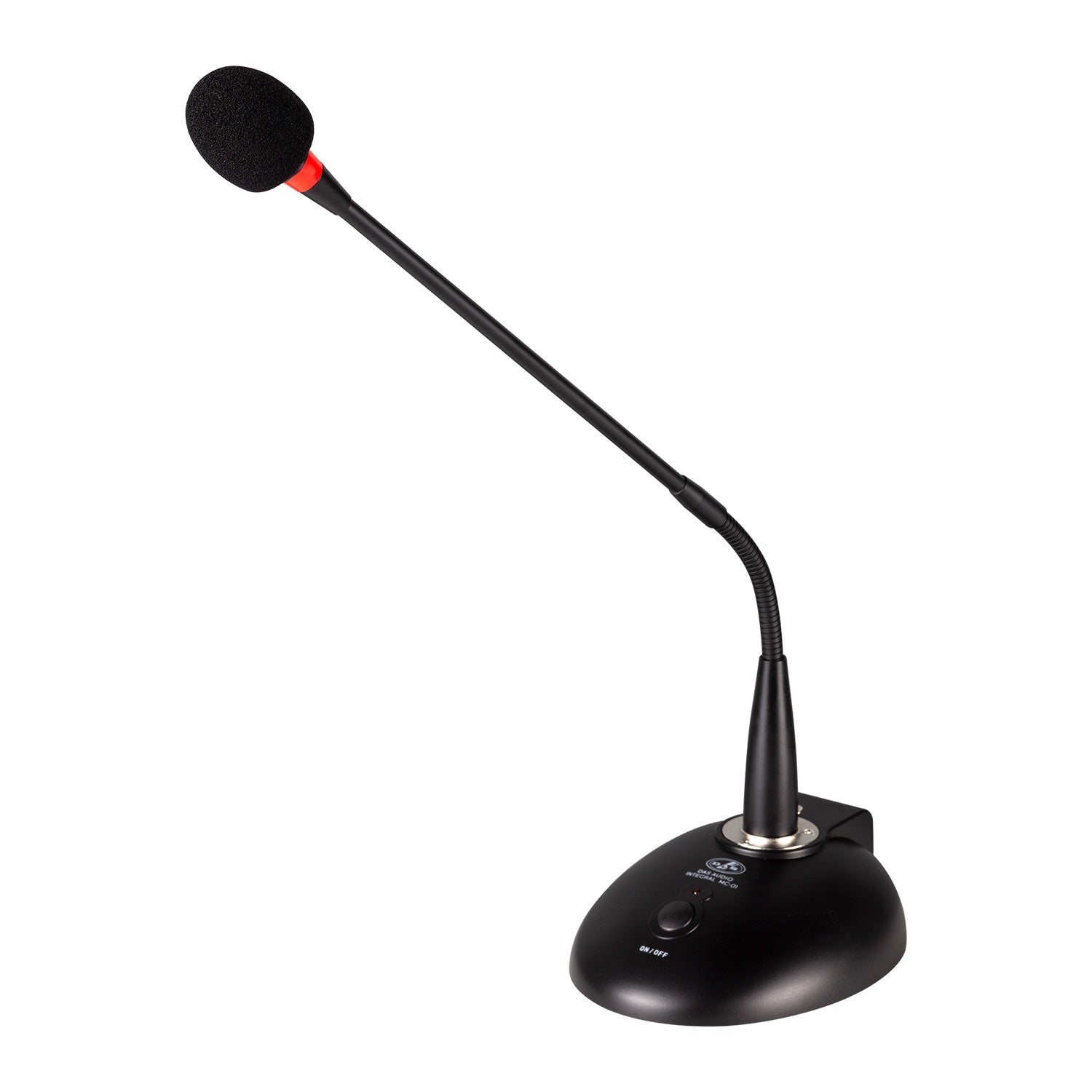

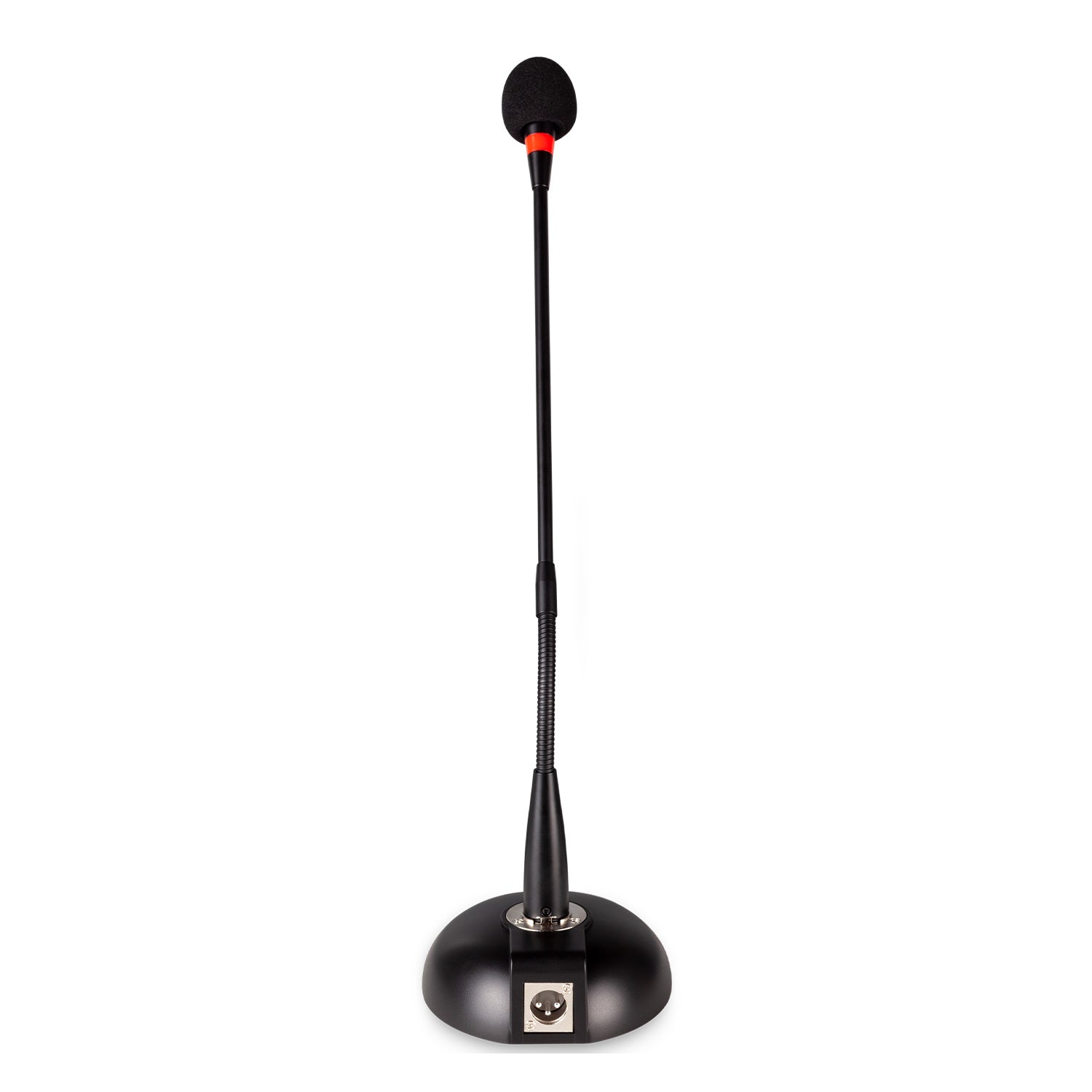

    INTEGRAL-MC01 is a desktop electret condenser gooseneck microphone. Desktop base allows microphones to be used in multi-purpose or conferencing rooms, retail stores, etc. where quick setup or permanent installation is required.

    The desktop base features two 3-pin XLR type input and output connectors enabling direct connection to the audio receivers and microphone. The user button with integrated red indicator permits advanced local control.

    The desktop base includes a built-in preamplifier which works with two AAA batteries (3 Vdc) in case of not having the possibility of connecting it to a source providing phantom power.

    Features:

    • Desktop electret condenser gooseneck microphone.
    • Analog audio output
    Performance
    Microphone Type Electret Condenser
    Frequency Response 40 Hz -16 kHz (+0 -0.5dB)
    Polar Pattern Cardioid
    Output Impedance 75 Ohm
    Power Requirements 12-48 Vdc Phantom or 3 Vdc Batteries
    Power Consumption 25 mA
    Dimensions-Weight
    Dimensions ( H x W x D ) 360 x 115 x 142 mm
    14,0 x 4,5 x 5,6 in
    Net Weight 0,6 kg ( 0,3 lb )

    INTEGRAL-MC01 is a desktop electret condenser gooseneck microphone. Desktop base allows microphones to be used in multi-purpose or conferencing rooms, retail stores, etc. where quick setup or permanent installation is required.

    The desktop base features two 3-pin XLR type input and output connectors enabling direct connection to the audio receivers and microphone. The user button with integrated red indicator permits advanced local control.

    The desktop base includes a built-in preamplifier which works with two AAA batteries (3 Vdc) in case of not having the possibility of connecting it to a source providing phantom power.

    Features:

    • Desktop electret condenser gooseneck microphone.
    • Analog audio output
    Performance
    Microphone Type Electret Condenser
    Frequency Response 40 Hz -16 kHz (+0 -0.5dB)
    Polar Pattern Cardioid
    Output Impedance 75 Ohm
    Power Requirements 12-48 Vdc Phantom or 3 Vdc Batteries
    Power Consumption 25 mA
    Dimensions-Weight
    Dimensions ( H x W x D ) 360 x 115 x 142 mm
    14,0 x 4,5 x 5,6 in
    Net Weight 0,6 kg ( 0,3 lb )
