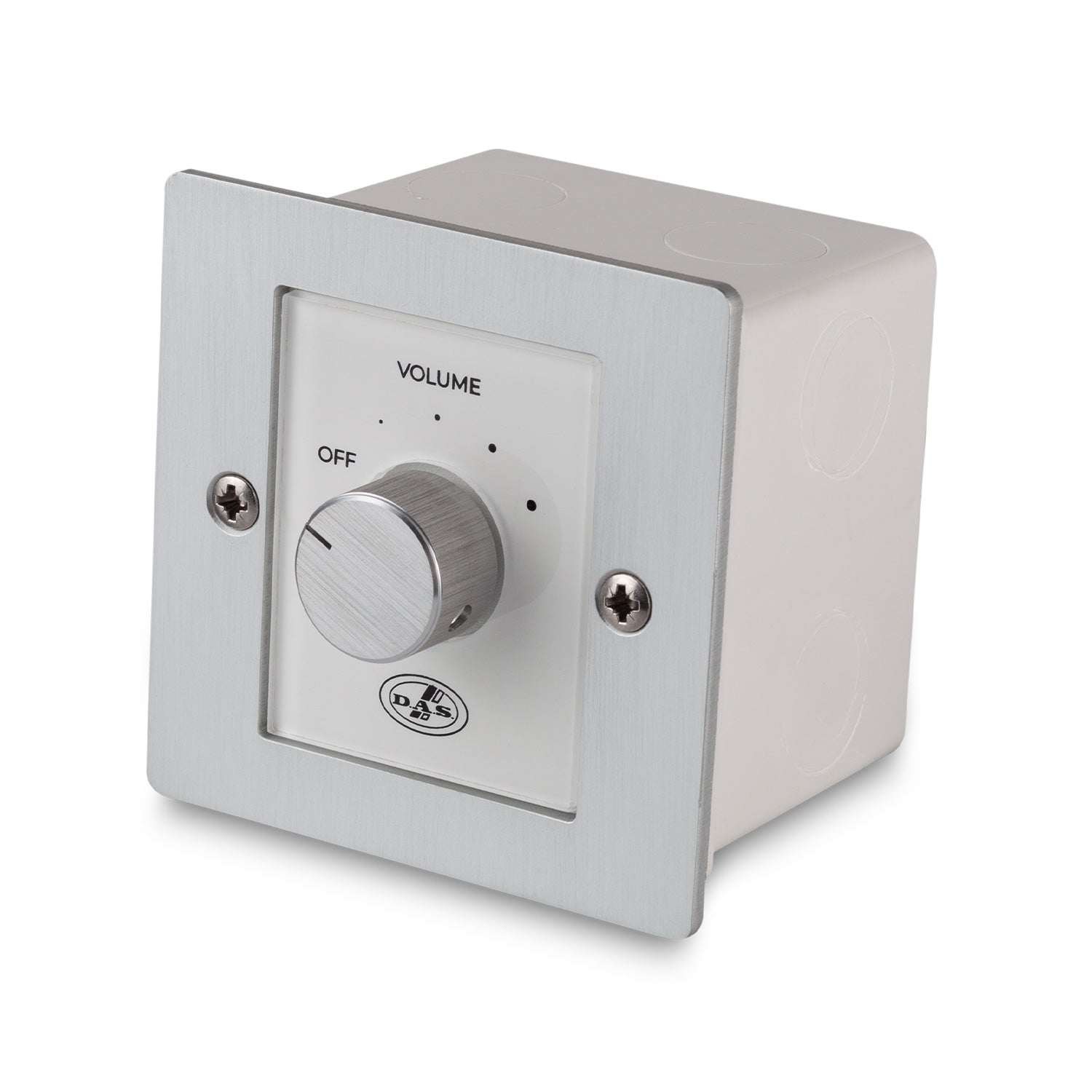

DAS INTEGRAL-VC1 - Wall Mounted Volume Control for INTEGRAL System
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
INTEGRAL-VC1 is a 100V volume control capable of handling power up to 120W. The volume is adjustable with a rotatable selector in 5 steps of -6dB. It is equipped with a relay and separated input for the reception of 24V priority signals. When a priority signal is sent to the controller the volume will automatically switched to the maximum level. This is a very useful tool for emergency and evacuation purposes.
Features:
- Wall panel format volume control for 100/70 V lines
- Max power 120 W
- 5 steps of -6dB
| Power Handling | 120 W | ||||||||||||
| Frequency Response | 20 Hz Ð 20 kHz | ||||||||||||
| Taps |
|
||||||||||||
| Attenuation | 6dB | ||||||||||||
| Dimensions-Weight | |||||||||||||
| Dimensions ( H x W x D ) | 86 x 86 x 52 mm 3,4 x 3,4 x 2,0 in |
||||||||||||
| Net Weight | 0,5 kg ( 0,2 lb ) | ||||||||||||
INTEGRAL-VC1 is a 100V volume control capable of handling power up to 120W. The volume is adjustable with a rotatable selector in 5 steps of -6dB. It is equipped with a relay and separated input for the reception of 24V priority signals. When a priority signal is sent to the controller the volume will automatically switched to the maximum level. This is a very useful tool for emergency and evacuation purposes.
Features:
- Wall panel format volume control for 100/70 V lines
- Max power 120 W
- 5 steps of -6dB
| Power Handling | 120 W | ||||||||||||
| Frequency Response | 20 Hz Ð 20 kHz | ||||||||||||
| Taps |
|
||||||||||||
| Attenuation | 6dB | ||||||||||||
| Dimensions-Weight | |||||||||||||
| Dimensions ( H x W x D ) | 86 x 86 x 52 mm 3,4 x 3,4 x 2,0 in |
||||||||||||
| Net Weight | 0,5 kg ( 0,2 lb ) | ||||||||||||
