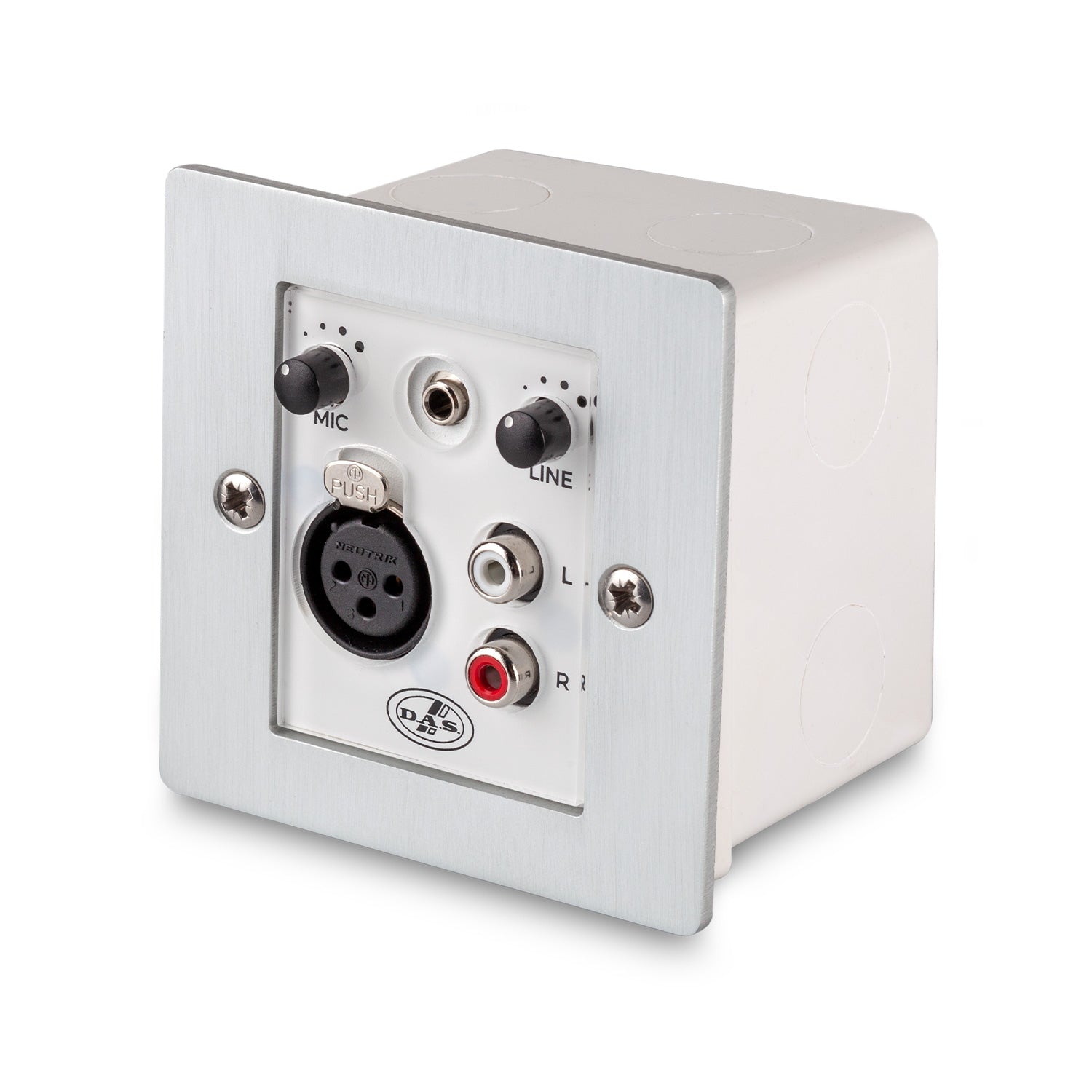

DAS INTEGRAL-WPM1 - Wall Panel 2-Channel Mixer for INTEGRAL System
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
INTEGRAL-WPM1 is a 2-channel wall-panel format audio mixer. It includes one balanced XLR microphone input (Phantom 12V can be activated with internal jumper) and one unbalanced Stereo Line input (2 x RCA or 1×1/8" jack). Each channel (mic and line) has its own independent level control.
The microphone´s signal can be prioritized over the line signal by engaging the talk-over functionality (internal jumper). It allows mixing these two signals getting a balanced mono output that can be sent to Matrix amplifiers, matrix or amplifiers.
Features:
- 2 Channel Wall panel mixer
- Microphone input + line input (RCA / mini-jack)
- Independent level control per channel
- Phantom and Priority on mic input
| Electronics | |
| Input Sensitivity / Impedance | Line: -10 dBV / 10 kohms MIC: -40 or -20 dBV />1 kohm |
| Output Level / Minimum Load | 0dBV / 600 ohm (max. + 17 dBV) |
| Frequency Response | Line: 20 Hz Ð 20 kHz / MIC: 120 Hz Ð 20 kHz |
| Total Harmonic Distortion | Line: < 0.005 % / MIC: < 0.01 % |
| Signal to Noise Ratio | Line:>105 dB / MIC:> 90 dB |
| Talk-Over | -30dB / 2s |
| Phantom Voltage | 12 Vdc |
| External Power Supply | 12-24 Vdc |
| Taps | - |
| Power Consumption | 25 mA |
| Dimensions-Weight | |
| Dimensions ( H x W x D ) | 86 x 86 x 52 mm 3,4 x 3,4 x 2,0 in |
| Net Weight | 0,3 kg ( 0,1 lb ) |
INTEGRAL-WPM1 is a 2-channel wall-panel format audio mixer. It includes one balanced XLR microphone input (Phantom 12V can be activated with internal jumper) and one unbalanced Stereo Line input (2 x RCA or 1×1/8" jack). Each channel (mic and line) has its own independent level control.
The microphone´s signal can be prioritized over the line signal by engaging the talk-over functionality (internal jumper). It allows mixing these two signals getting a balanced mono output that can be sent to Matrix amplifiers, matrix or amplifiers.
Features:
- 2 Channel Wall panel mixer
- Microphone input + line input (RCA / mini-jack)
- Independent level control per channel
- Phantom and Priority on mic input
| Electronics | |
| Input Sensitivity / Impedance | Line: -10 dBV / 10 kohms MIC: -40 or -20 dBV />1 kohm |
| Output Level / Minimum Load | 0dBV / 600 ohm (max. + 17 dBV) |
| Frequency Response | Line: 20 Hz Ð 20 kHz / MIC: 120 Hz Ð 20 kHz |
| Total Harmonic Distortion | Line: < 0.005 % / MIC: < 0.01 % |
| Signal to Noise Ratio | Line:>105 dB / MIC:> 90 dB |
| Talk-Over | -30dB / 2s |
| Phantom Voltage | 12 Vdc |
| External Power Supply | 12-24 Vdc |
| Taps | - |
| Power Consumption | 25 mA |
| Dimensions-Weight | |
| Dimensions ( H x W x D ) | 86 x 86 x 52 mm 3,4 x 3,4 x 2,0 in |
| Net Weight | 0,3 kg ( 0,1 lb ) |
