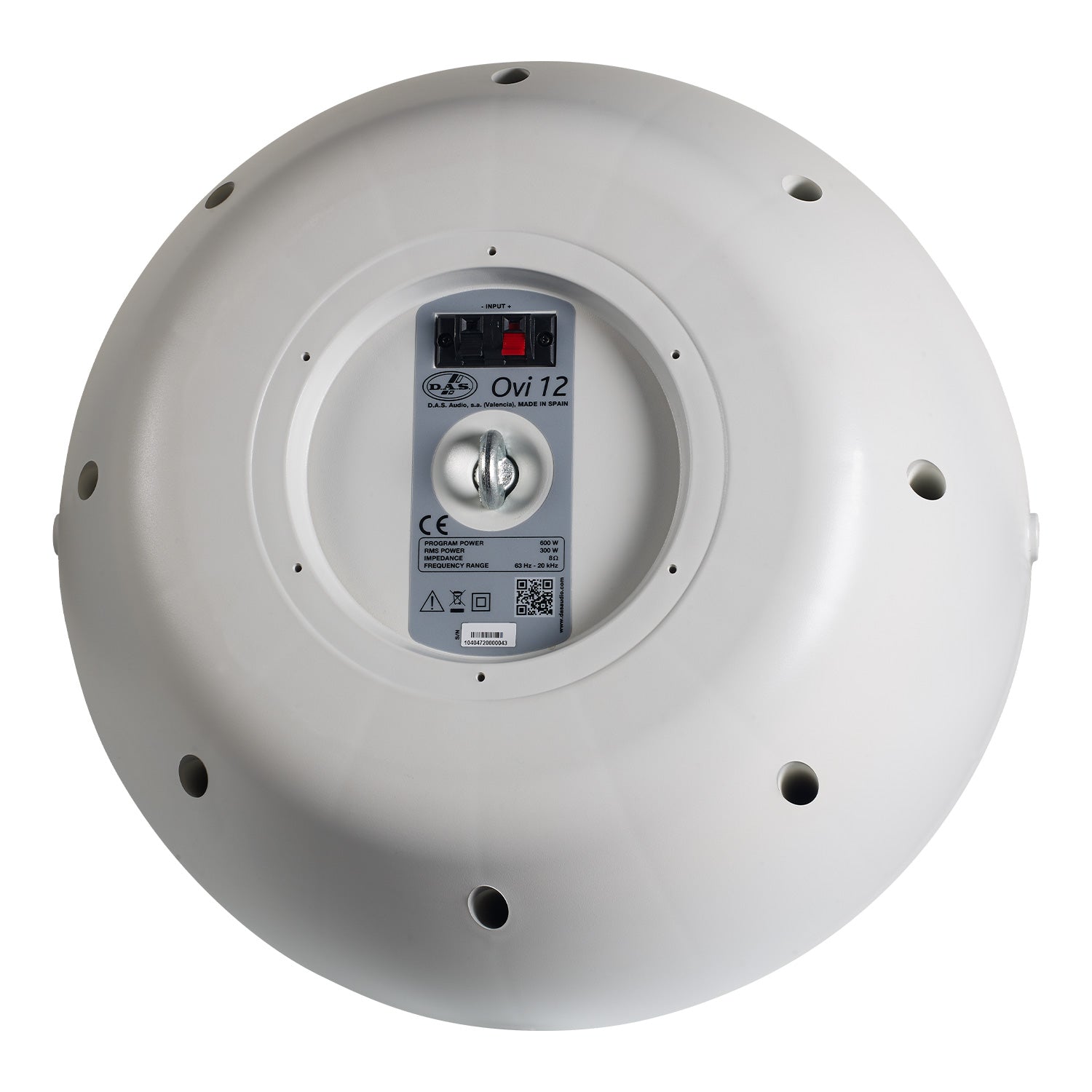

DAS OVI-12-TW - Two-Way 12-Inch Coaxial Full-Range 70/100V Install Loudspeaker (White)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Ovi-12 is a unique and versatile loudspeaker system. The Ovi-12, can be mounted on walls, placed in ceiling structures, or suspended as a pendant speaker. All with the clarity and power of a true two way loudspeaker system.
Comprising a 12" coaxial loudspeaker housed within a light weight polypropylene shell, the Ovi-12 can be used to deliver excellent speech intelligibility and full, rich music reproduction in spaces such as restaurants, night clubs, retail spaces, houses of worship, and convention facilities. A wide variety of accessories are available to facilitate installation.
The "T" version is equipped with a factory installed line transformer.
Features:
- Passive, 300 W, 12", coaxial 2 way full-range
- Polypropylene enclosure
- 70 V/100 V line transformer
- Available in black or white
- SPL Max: 130 dB
- Dispersion: 90º x 90º
- Weight: 10,5 kg ( 23,2 lb )
| Performance | |
| Frequency Range (-10 dB) | 63 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 90¼ |
| Nominal Impedance | 100 ohms |
| RMS Power Handling | 100 W |
| Peak Power Handling | 400 W |
| On-axis Sensitivity 1W/1 m | 96 dB SPL |
| Maximum Peak SPL at 1 m | 126 dB |
| Recommended Amplifier | INTEGRAL-A1002 INTEGRAL-A1004 |
| Connectors | |
| Audio Input Connector | Spring Terminals |
| Audio Output Connector | Spring Terminals |
| Enclosure | |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Round |
| Color | Black |
| Depth | 290 mm (11,4 in) |
| Dimensions ( H x W x D ) | 500 x 505 x 290 mm 19,7 x 19,9 x 11,4 in |
| Net Weight | 10,5 kg ( 23,2 lb ) |
| Components | |
| LF Driver | 12MX |
| HF Driver | M-34 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 339 x 563 x 563 mm 13,4 x 22,2 x 22,2 in |
| Shipping Weight | 12,5 kg ( 27,6 lb ) |
The Ovi-12 is a unique and versatile loudspeaker system. The Ovi-12, can be mounted on walls, placed in ceiling structures, or suspended as a pendant speaker. All with the clarity and power of a true two way loudspeaker system.
Comprising a 12" coaxial loudspeaker housed within a light weight polypropylene shell, the Ovi-12 can be used to deliver excellent speech intelligibility and full, rich music reproduction in spaces such as restaurants, night clubs, retail spaces, houses of worship, and convention facilities. A wide variety of accessories are available to facilitate installation.
The "T" version is equipped with a factory installed line transformer.
Features:
- Passive, 300 W, 12", coaxial 2 way full-range
- Polypropylene enclosure
- 70 V/100 V line transformer
- Available in black or white
- SPL Max: 130 dB
- Dispersion: 90º x 90º
- Weight: 10,5 kg ( 23,2 lb )
| Performance | |
| Frequency Range (-10 dB) | 63 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | 90¼ |
| Nominal Impedance | 100 ohms |
| RMS Power Handling | 100 W |
| Peak Power Handling | 400 W |
| On-axis Sensitivity 1W/1 m | 96 dB SPL |
| Maximum Peak SPL at 1 m | 126 dB |
| Recommended Amplifier | INTEGRAL-A1002 INTEGRAL-A1004 |
| Connectors | |
| Audio Input Connector | Spring Terminals |
| Audio Output Connector | Spring Terminals |
| Enclosure | |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Round |
| Color | Black |
| Depth | 290 mm (11,4 in) |
| Dimensions ( H x W x D ) | 500 x 505 x 290 mm 19,7 x 19,9 x 11,4 in |
| Net Weight | 10,5 kg ( 23,2 lb ) |
| Components | |
| LF Driver | 12MX |
| HF Driver | M-34 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 339 x 563 x 563 mm 13,4 x 22,2 x 22,2 in |
| Shipping Weight | 12,5 kg ( 27,6 lb ) |
