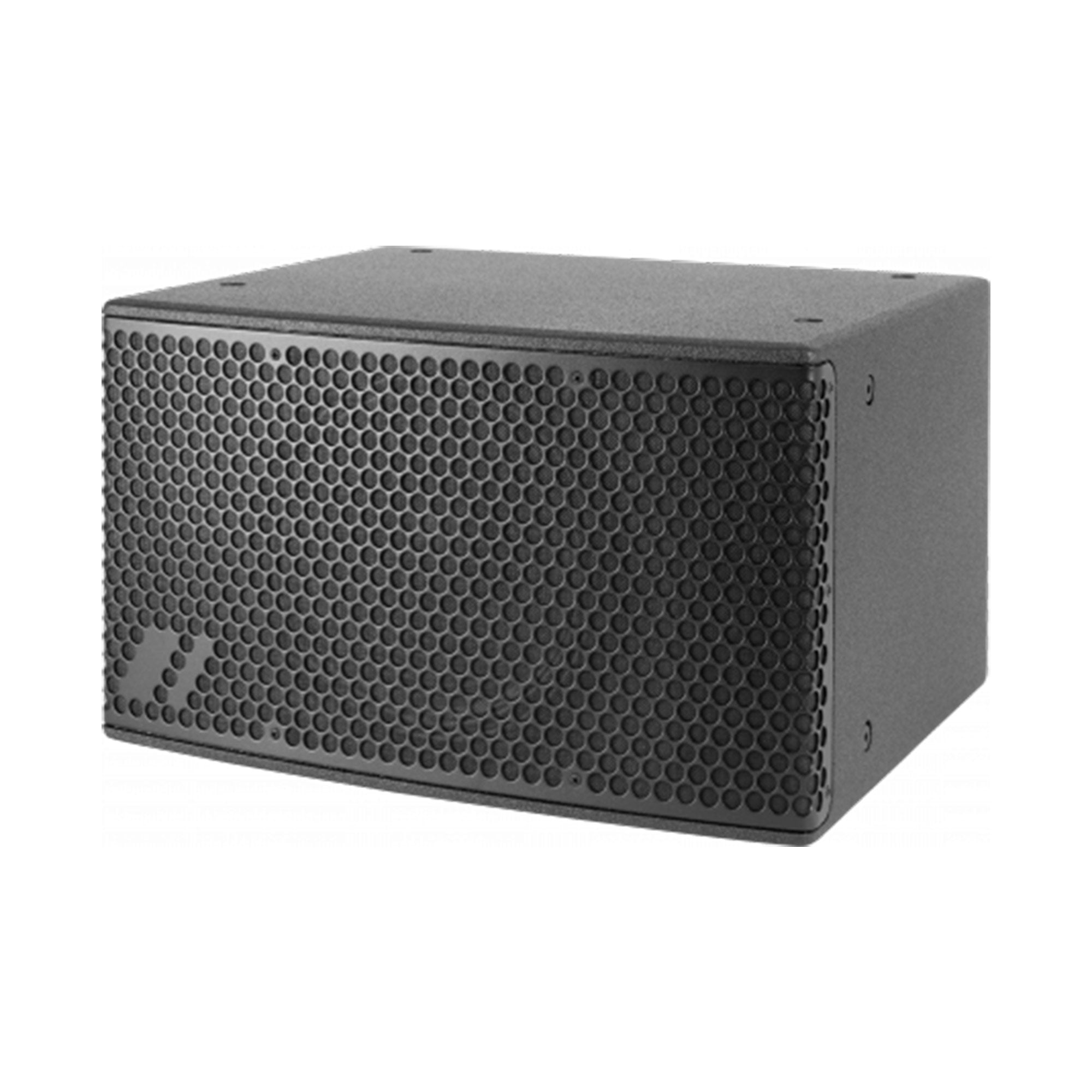

DAS Q-10A - Active 10-Inch Install Subwoofer (Black)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This self-powered, ultra-compact, low-profile subwoofer is ideal for small- and medium-sized installations. Low frequency clarity and reproduction make this an unbeatable system for delivering outstanding music reproduction. Perfect match for the Q Series tops. The system is equipped with a class D switched-mode amplifier, with two signal inputs, variable low-pass filter, and parameter adjustment (deep/loud) with DAScontrol technology.
Features:
- Powered subwoofer., 250W, 10", bass-reflex
- Available in black or white
- SPL Max: 121 dB
- Dispersion: Omnidirectional
- Weight: 17,0 kg ( 37,4 lb )
| Performance | |
| Frequency Range (-10 dB) | 40 Hz Ð 200 Hz |
| Maximum Peak SPL at 1 m | 121 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 250 W |
| Nominal Amplifier Power (peak) | 500 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |

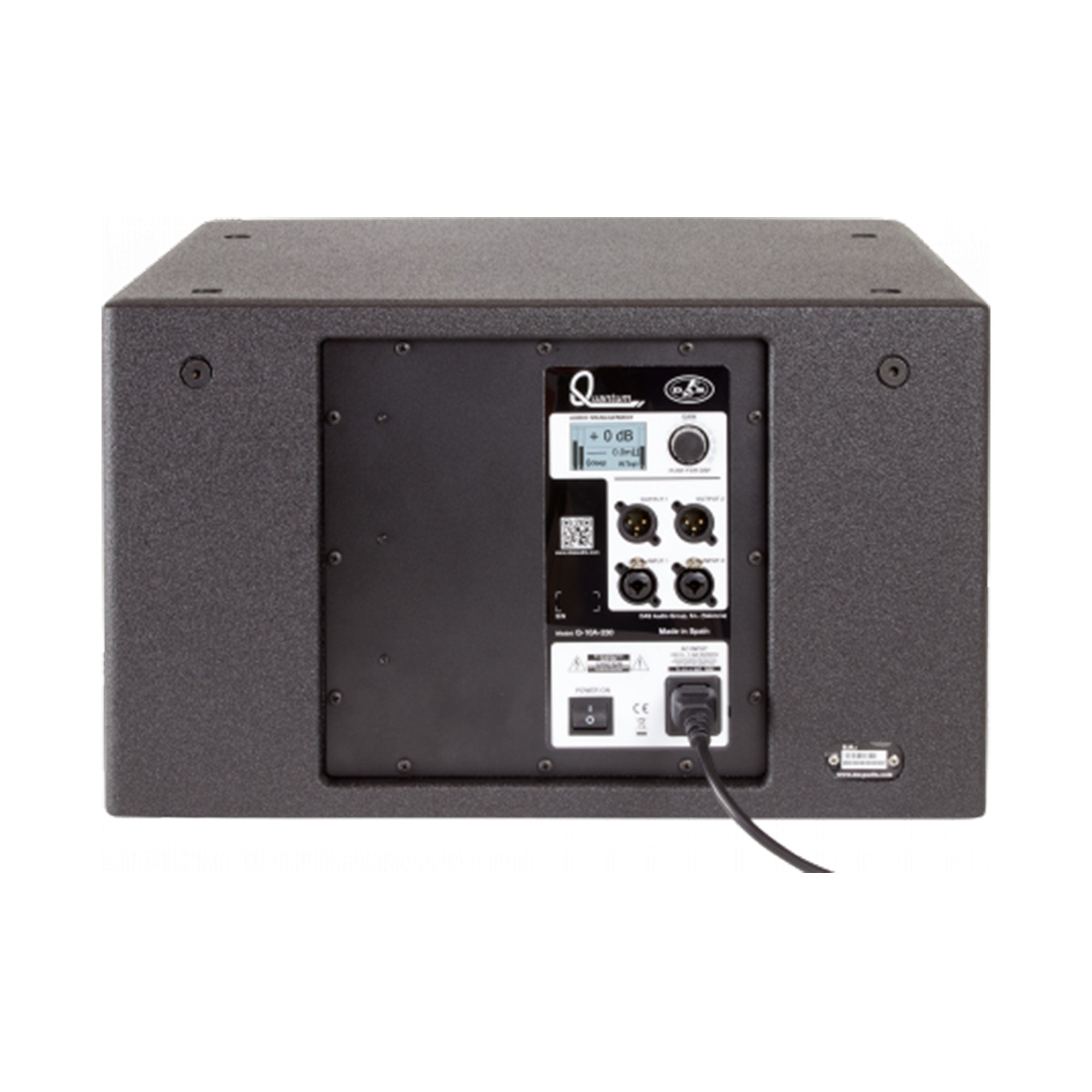

| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| Recommended Signal Processing | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Current Draw 230 V / 115 V | 1.4 A/2.8 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Finish | ISO-flex Paint |
| Color | White |
| Dimensions ( H x W x D ) | 305 x 505 x 415 mm 12,0 x 19,9 x 16,3 in |
| Net Weight | 17,0 kg ( 37,4 lb ) |
| Components | |
| LF Driver | 10MG |
This self-powered, ultra-compact, low-profile subwoofer is ideal for small- and medium-sized installations. Low frequency clarity and reproduction make this an unbeatable system for delivering outstanding music reproduction. Perfect match for the Q Series tops. The system is equipped with a class D switched-mode amplifier, with two signal inputs, variable low-pass filter, and parameter adjustment (deep/loud) with DAScontrol technology.
Features:
- Powered subwoofer., 250W, 10", bass-reflex
- Available in black or white
- SPL Max: 121 dB
- Dispersion: Omnidirectional
- Weight: 17,0 kg ( 37,4 lb )
| Performance | |
| Frequency Range (-10 dB) | 40 Hz Ð 200 Hz |
| Maximum Peak SPL at 1 m | 121 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 250 W |
| Nominal Amplifier Power (peak) | 500 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| Recommended Signal Processing | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Current Draw 230 V / 115 V | 1.4 A/2.8 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Finish | ISO-flex Paint |
| Color | White |
| Dimensions ( H x W x D ) | 305 x 505 x 415 mm 12,0 x 19,9 x 16,3 in |
| Net Weight | 17,0 kg ( 37,4 lb ) |
| Components | |
| LF Driver | 10MG |
