DALE SKU # DAS-Q23TW

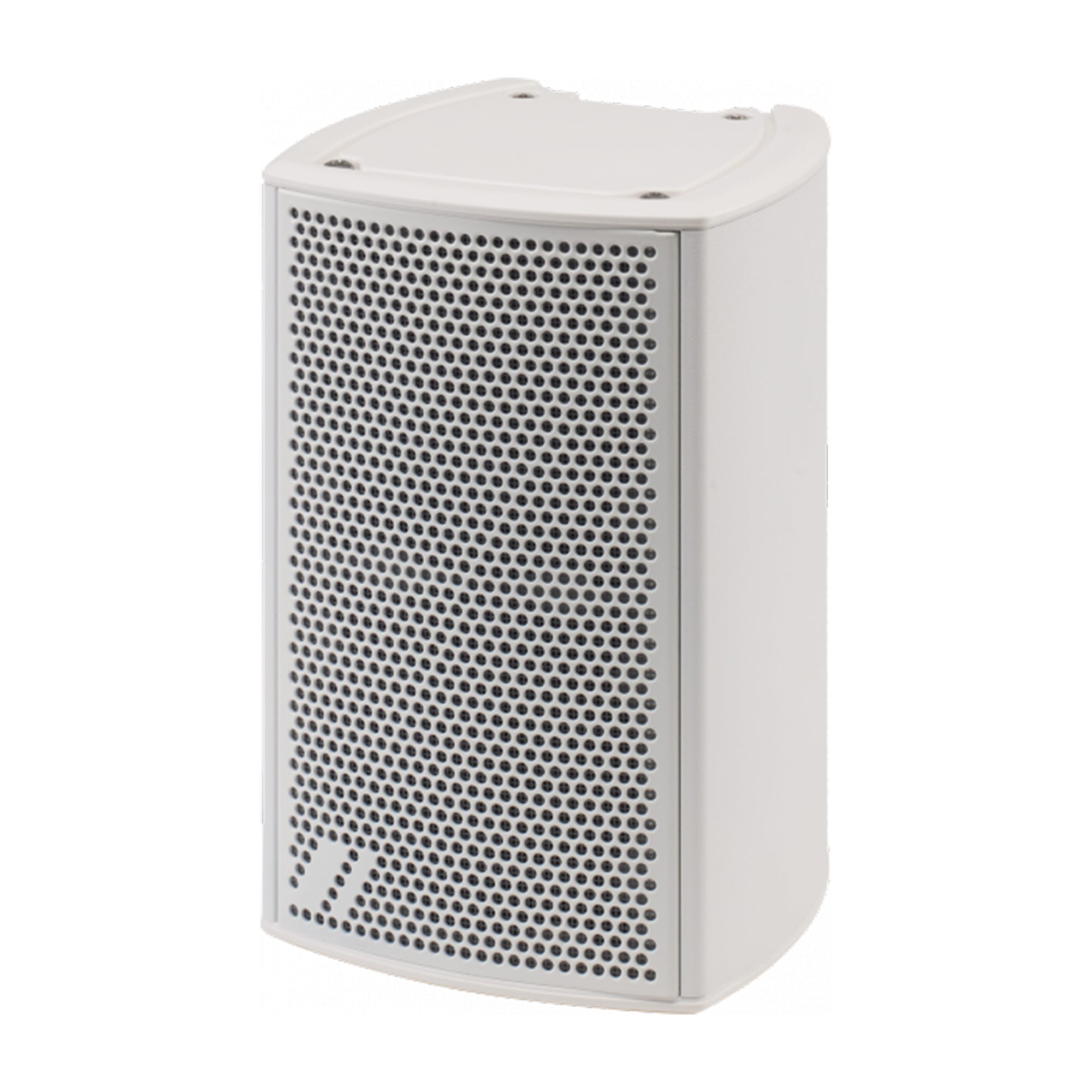

DAS Q-23-TW - Dual 3-Inch Full-Range 70/100V Install Loudspeaker (White)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The Q-23 is a highly compact and discrete system ideal for short distances, for creating ambience, and for frontfill and under-balcony sound reinforcement. Like the other systems in the series, the Q-3 has two operating modes (voice and music) that guarantee outstanding speech intelligibility and excellent music reproduction in any acoustic environment.

    The aluminum enclosure and the IP-66 kit make this a highly reliable and durable choice, available in any RAL color.

    Features:

    • Passive, 40 W, 2×3", full-range
    • Aluminum enclosure
    • 70 V/100 V line transformer
    • Available in black or white
    • SPL Max: 112 dB
    • Dispersion: 120º x 90º-70º
    • Weight: 2,8 kg ( 6,2 lb )
    Performance
    Frequency Range (-10 dB) 150 Hz Ð 20 kHz
    Horizontal Coverage (-6 dB) 120¼
    Vertical Coverage Switchable: 90¼ -70¼
    Nominal Impedance 8 ohms
    Transformer Taps 70 V 5 W Ð 10 W Ð 15 W
    Transformer Taps 100 V 10 W Ð 20 W Ð 30 W
    RMS Power Handling 40 W
    Peak Power Handling 160 W
    On-axis Sensitivity 1W/1 m 90 dB SPL
    Maximum Peak SPL at 1 m 112 dB SPL
    Recommended Amplifier INTEGRAL-A402
    INTEGRAL-A404
    INTEGRAL-A1002
    INTEGRAL-A1004
    INTEGRAL-A1602
    INTEGRAL-A1604
    INTEGRAL-MA1004
    INTEGRAL-MA1604
    Recommended Processor INTEGRAL-M88
    INTEGRAL-MA1604
    INTEGRAL-MA1004
    Connectors
    Audio Input Connector 4-way Phoenix 3.8 mm
    Enclosure
    Enclosure Construction Aluminum
    Color Black
    IP Rating IP66
    Depth 125 mm (4,9 in)
    Dimensions ( H x W x D ) 190 x 125 x 125 mm
    7,5 x 4,9 x 4,9 in
    Net Weight 2,8 kg ( 6,2 lb )
    Components
    MF Driver 3P16

    The Q-23 is a highly compact and discrete system ideal for short distances, for creating ambience, and for frontfill and under-balcony sound reinforcement. Like the other systems in the series, the Q-3 has two operating modes (voice and music) that guarantee outstanding speech intelligibility and excellent music reproduction in any acoustic environment.

    The aluminum enclosure and the IP-66 kit make this a highly reliable and durable choice, available in any RAL color.

    Features:

    • Passive, 40 W, 2×3", full-range
    • Aluminum enclosure
    • 70 V/100 V line transformer
    • Available in black or white
    • SPL Max: 112 dB
    • Dispersion: 120º x 90º-70º
    • Weight: 2,8 kg ( 6,2 lb )
    Performance
    Frequency Range (-10 dB) 150 Hz Ð 20 kHz
    Horizontal Coverage (-6 dB) 120¼
    Vertical Coverage Switchable: 90¼ -70¼
    Nominal Impedance 8 ohms
    Transformer Taps 70 V 5 W Ð 10 W Ð 15 W
    Transformer Taps 100 V 10 W Ð 20 W Ð 30 W
    RMS Power Handling 40 W
    Peak Power Handling 160 W
    On-axis Sensitivity 1W/1 m 90 dB SPL
    Maximum Peak SPL at 1 m 112 dB SPL
    Recommended Amplifier INTEGRAL-A402
    INTEGRAL-A404
    INTEGRAL-A1002
    INTEGRAL-A1004
    INTEGRAL-A1602
    INTEGRAL-A1604
    INTEGRAL-MA1004
    INTEGRAL-MA1604
    Recommended Processor INTEGRAL-M88
    INTEGRAL-MA1604
    INTEGRAL-MA1004
    Connectors
    Audio Input Connector 4-way Phoenix 3.8 mm
    Enclosure
    Enclosure Construction Aluminum
    Color Black
    IP Rating IP66
    Depth 125 mm (4,9 in)
    Dimensions ( H x W x D ) 190 x 125 x 125 mm
    7,5 x 4,9 x 4,9 in
    Net Weight 2,8 kg ( 6,2 lb )
    Components
    MF Driver 3P16
