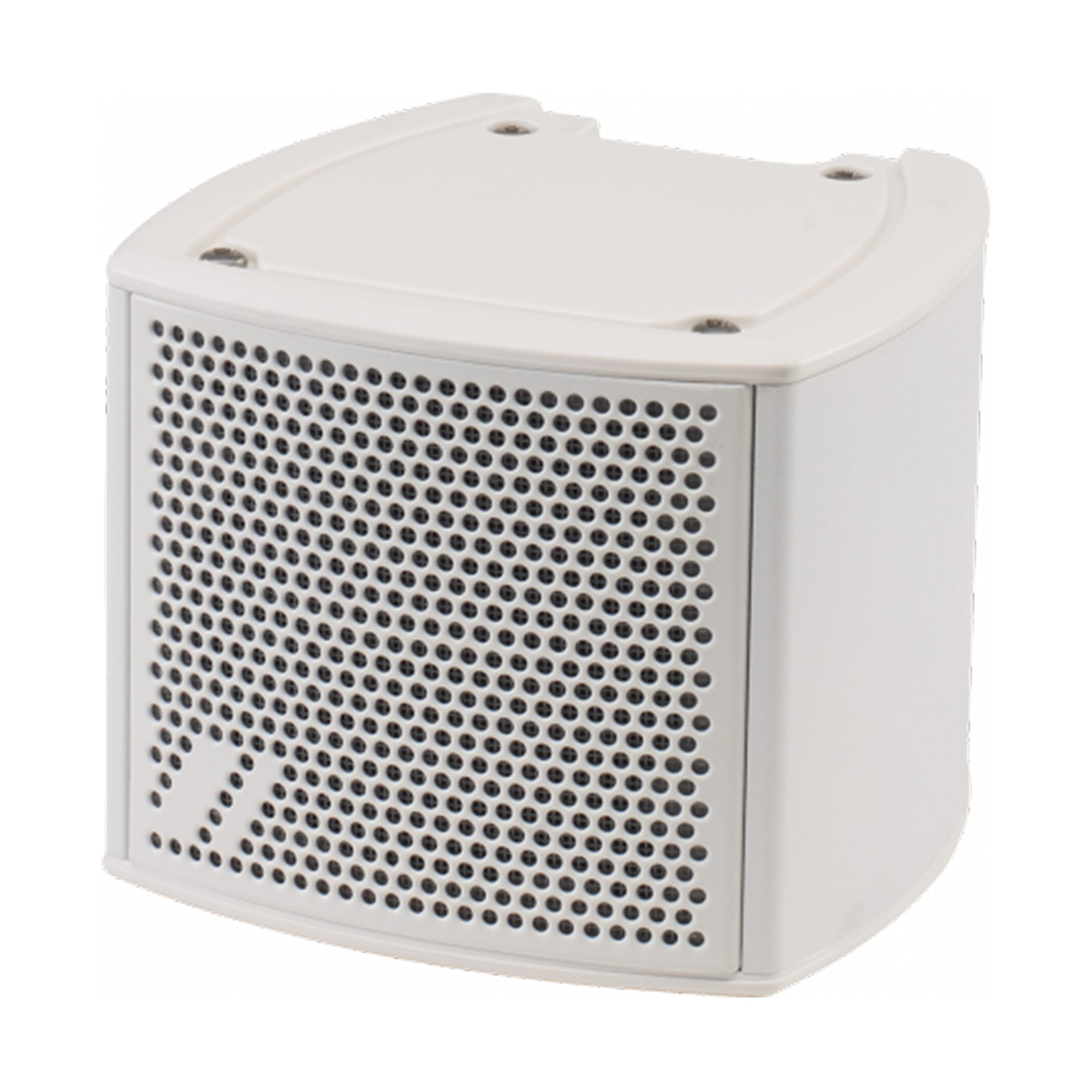

DAS Q-3-TW - 3-Inch Full-Range 70/100V Install Loudspeaker (White)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Q-3-T is a highly compact and discrete system ideal for short distances, for creating ambience, and for frontfill and under-balcony sound reinforcement. Like the other systems in the series, the Q-3 has two operating modes (voice and music) that guarantee outstanding speech intelligibility and excellent music reproduction in any acoustic environment.
The aluminum enclosure and the IP-66 kit make this a highly reliable and durable choice, available in any RAL color.
Features:
- Passive, 20 W, 3", full-range
- Aluminum enclosure
- 70 V/100 V line transformer
- Available in black or white
- SPL Max: 106 dB
- Dispersion: 120º x 120º
- Weight: 1,6 kg ( 3,5 lb )
| Performance | |
| Frequency Range (-10 dB) | 150 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 120¼ |
| Vertical Coverage | 120¼ |
| Nominal Impedance | 8 ohms |

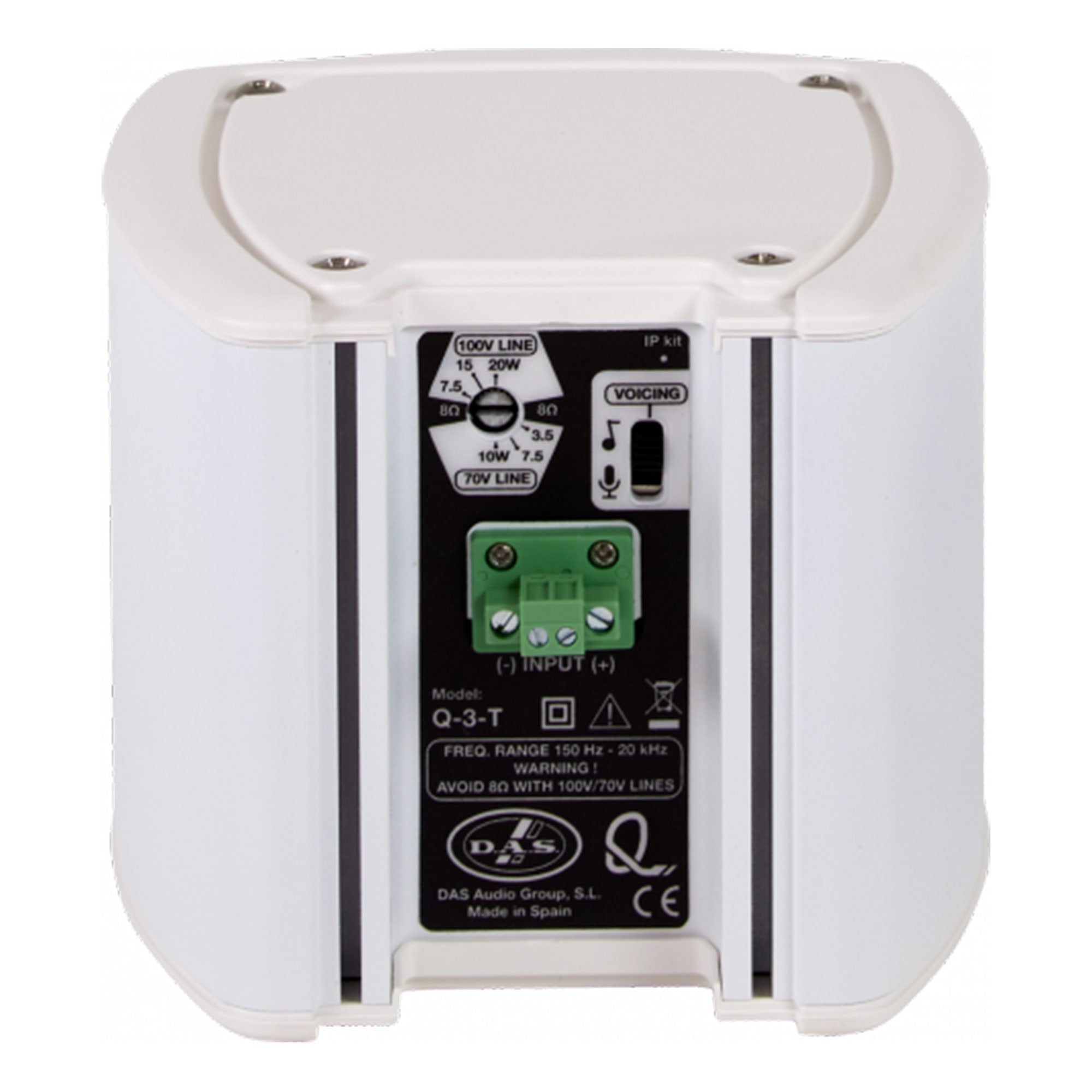

| Transformer Taps 70 V | 3.5 W Ð 7.5 W Ð 10 W |
| Transformer Taps 100 V | 7.5 W Ð 15 W Ð 20 W |
| RMS Power Handling | 20 W |
| Peak Power Handling | 80 W |
| On-axis Sensitivity 1W/1 m | 87 dB SPL |
| Maximum Peak SPL at 1 m | 106 dB SPL |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | 4-way Phoenix 3.8 mm |
| Enclosure | |
| Enclosure Construction | Aluminum |
| Color | Black |
| IP Rating | IP66 |
| Depth | 125 mm (4,9 in) |
| Dimensions ( H x W x D ) | 105 x 125 x 125 mm 4,1 x 4,9 x 4,9 in |
| Net Weight | 1,6 kg ( 3,5 lb ) |
| Components | |
| MF Driver | 3P |
The Q-3-T is a highly compact and discrete system ideal for short distances, for creating ambience, and for frontfill and under-balcony sound reinforcement. Like the other systems in the series, the Q-3 has two operating modes (voice and music) that guarantee outstanding speech intelligibility and excellent music reproduction in any acoustic environment.
The aluminum enclosure and the IP-66 kit make this a highly reliable and durable choice, available in any RAL color.
Features:
- Passive, 20 W, 3", full-range
- Aluminum enclosure
- 70 V/100 V line transformer
- Available in black or white
- SPL Max: 106 dB
- Dispersion: 120º x 120º
- Weight: 1,6 kg ( 3,5 lb )
| Performance | |
| Frequency Range (-10 dB) | 150 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 120¼ |
| Vertical Coverage | 120¼ |
| Nominal Impedance | 8 ohms |
| Transformer Taps 70 V | 3.5 W Ð 7.5 W Ð 10 W |
| Transformer Taps 100 V | 7.5 W Ð 15 W Ð 20 W |
| RMS Power Handling | 20 W |
| Peak Power Handling | 80 W |
| On-axis Sensitivity 1W/1 m | 87 dB SPL |
| Maximum Peak SPL at 1 m | 106 dB SPL |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | 4-way Phoenix 3.8 mm |
| Enclosure | |
| Enclosure Construction | Aluminum |
| Color | Black |
| IP Rating | IP66 |
| Depth | 125 mm (4,9 in) |
| Dimensions ( H x W x D ) | 105 x 125 x 125 mm 4,1 x 4,9 x 4,9 in |
| Net Weight | 1,6 kg ( 3,5 lb ) |
| Components | |
| MF Driver | 3P |
