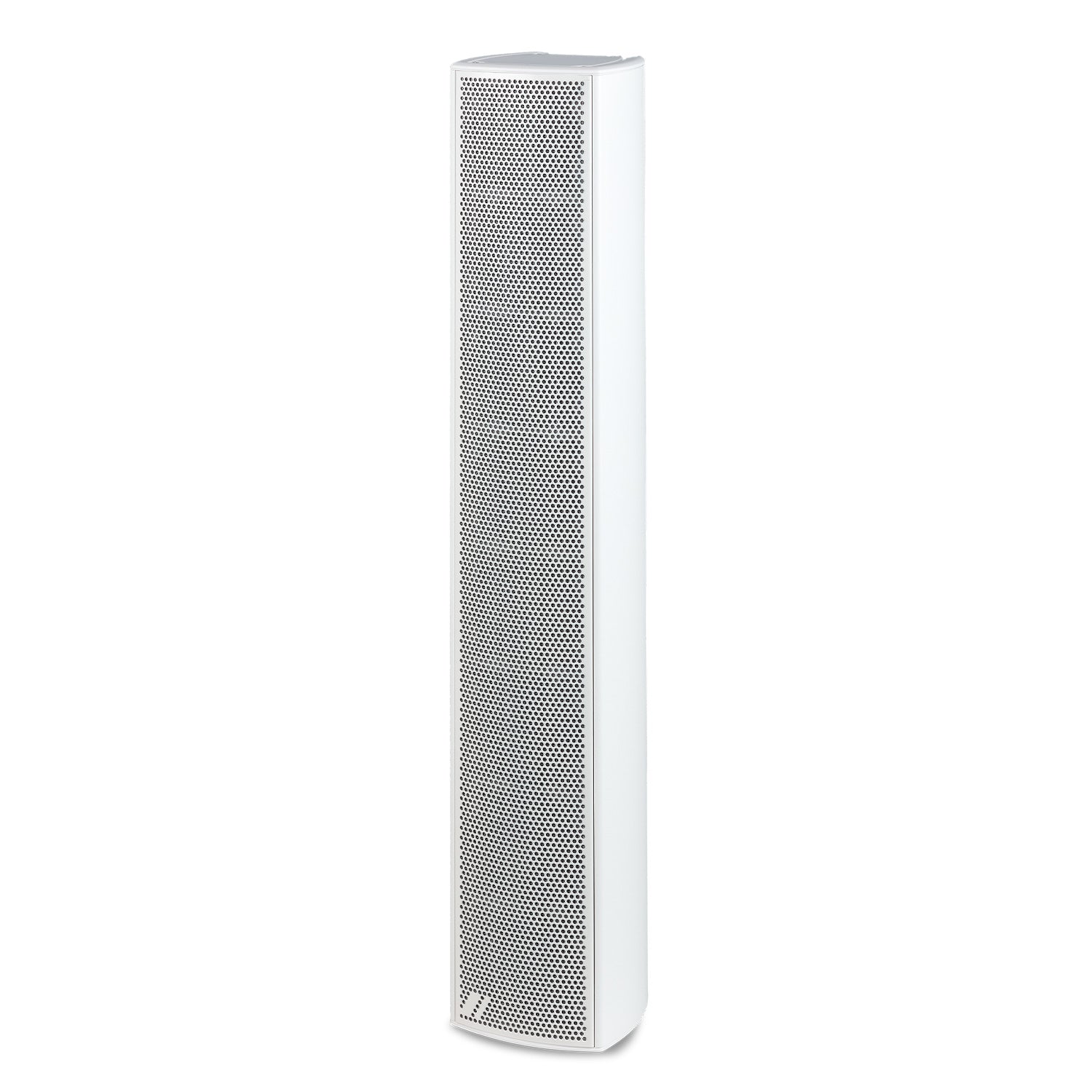

DAS Q-83-T-W - Full-Range 70/100V Install Column Loudspeaker (White)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This system is designed for small- and mid-sized venues. The narrow vertical dispersion (20º) prevents exiting reverberation field, improving intelligibility in spaces such as cultural centers, museums, conference rooms…all while delivering superb music reproduction.
The aluminum structure and the IP-66 kit make it a highly reliable and resistant choice, available in any RAL color.
Features:
- Passive, 80 W, 8 x 3", full-range
- Aluminum enclosure
- 70 V/100 V line transformer
- Available in black or white
- SPL Max: 123 dB
- Dispersion: 120º x 20º
- Weight: 7,8 kg ( 17,2 lb )
| Performance | |
| Frequency Range (-10 dB) | 150 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 120¼ |
| Vertical Coverage | 20¼ |
| Nominal Impedance | 8 ohms |
| Transformer Taps 70 V | 12.5 W Ð 25 W Ð 50 W |
| Transformer Taps 100 V | 25 W Ð 50 W Ð 100 W |
| RMS Power Handling | 160 W |
| Peak Power Handling | 640 W |
| On-axis Sensitivity 1W/1 m | 95 dB SPL |
| Maximum Peak SPL at 1 m | 123 dB SPL |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | Ceramic Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Aluminum |
| Color | Black |
| IP Rating | IP66 |
| Depth | 130 mm (5,1 in) |
| Dimensions ( H x W x D ) | 685 x 125 x 130 mm 27,0 x 4,9 x 5,1 in |
| Net Weight | 7,8 kg ( 17,2 lb ) |
| Components | |
| MF Driver | 3PN16 |
This system is designed for small- and mid-sized venues. The narrow vertical dispersion (20º) prevents exiting reverberation field, improving intelligibility in spaces such as cultural centers, museums, conference rooms…all while delivering superb music reproduction.
The aluminum structure and the IP-66 kit make it a highly reliable and resistant choice, available in any RAL color.
Features:
- Passive, 80 W, 8 x 3", full-range
- Aluminum enclosure
- 70 V/100 V line transformer
- Available in black or white
- SPL Max: 123 dB
- Dispersion: 120º x 20º
- Weight: 7,8 kg ( 17,2 lb )
| Performance | |
| Frequency Range (-10 dB) | 150 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 120¼ |
| Vertical Coverage | 20¼ |
| Nominal Impedance | 8 ohms |
| Transformer Taps 70 V | 12.5 W Ð 25 W Ð 50 W |
| Transformer Taps 100 V | 25 W Ð 50 W Ð 100 W |
| RMS Power Handling | 160 W |
| Peak Power Handling | 640 W |
| On-axis Sensitivity 1W/1 m | 95 dB SPL |
| Maximum Peak SPL at 1 m | 123 dB SPL |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | Ceramic Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Aluminum |
| Color | Black |
| IP Rating | IP66 |
| Depth | 130 mm (5,1 in) |
| Dimensions ( H x W x D ) | 685 x 125 x 130 mm 27,0 x 4,9 x 5,1 in |
| Net Weight | 7,8 kg ( 17,2 lb ) |
| Components | |
| MF Driver | 3PN16 |
