DAS VANTEC-18 - Passive 18-Inch Stackable Subwoofer (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.

Description
The VANTEC-18 bass system incorporates the legendary 18LX-low frequency transducer with a 4" voice coil mounted as direct radiator into a bass reflex cabinet. The loudspeaker is protected by a rugged steel grille sealed against corrosion using a powder coat finish.

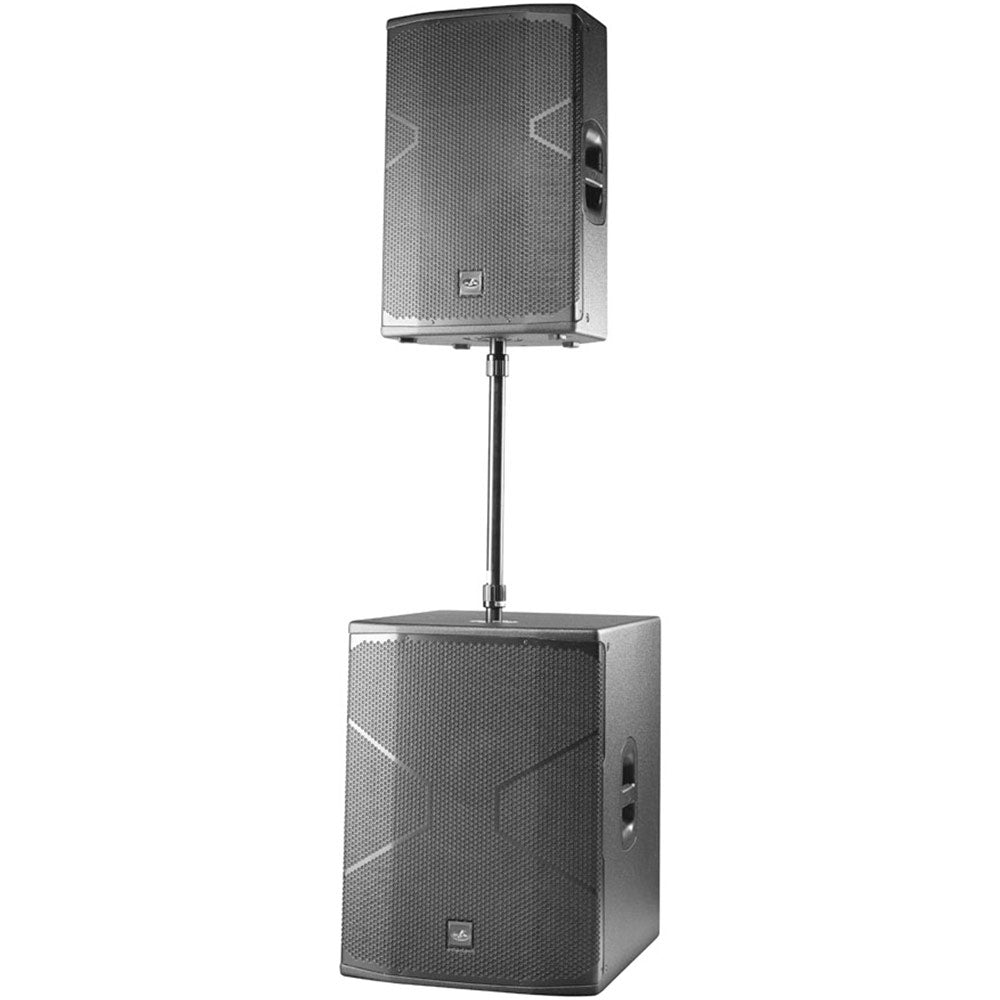

The VANTEC-18 is designed for use in biamped systems. A top located pole mount socket permits mounting full range systems above the Vantec-18 and two bar handles makes moving easy.
Features:
- Passive, 1000 W, 18", ground-stackable long excursion bass-reflex subwoofer
- Black finish
- SPL Max: 134 dB
- Dispersion: Omnidirectional
- Weight: 35,0 kg ( 77,2 lb )
Performance | |
Frequency Range (-10 dB) | 45 Hz Ð 138 Hz |
Nominal Impedance | 8 ohms |
RMS Power Handling | 1000 W |
Peak Power Handling | 4000 W |
On-axis Sensitivity 1W/1 m | 98 dB SPL |
Maximum Peak SPL at 1 m | 134 dB |
Connectors | |
Audio Input Connector | 1 x speakON NL4 |
Audio Output Connector | 1 x speakON NL4 |
Enclosure | |
Enclosure Construction | Birch Plywood |
Enclosure Geometry | Rectangular |
Rigging | M10 Rigging Points |
Finish | ISO-flex Paint |
Color | Black |
Depth | 655 mm (25,8 in) |
Dimensions ( H x W x D ) | 720 x 545 x 655 mm 28,3 x 21,5 x 25,8 in |
Net Weight | 35,0 kg ( 77,2 lb ) |
Components | |
LF Driver | 18LX |
Shipping | |
Carton Dimensions ( H x W x D ) | 820 x 616 x 726 mm 32,3 x 24,3 x 28,6 in |
Shipping Weight | 45,0 kg ( 99,2 lb ) |
The VANTEC-18 bass system incorporates the legendary 18LX-low frequency transducer with a 4" voice coil mounted as direct radiator into a bass reflex cabinet. The loudspeaker is protected by a rugged steel grille sealed against corrosion using a powder coat finish.
The VANTEC-18 is designed for use in biamped systems. A top located pole mount socket permits mounting full range systems above the Vantec-18 and two bar handles makes moving easy.
Features:
- Passive, 1000 W, 18", ground-stackable long excursion bass-reflex subwoofer
- Black finish
- SPL Max: 134 dB
- Dispersion: Omnidirectional
- Weight: 35,0 kg ( 77,2 lb )
Performance | |
Frequency Range (-10 dB) | 45 Hz Ð 138 Hz |
Nominal Impedance | 8 ohms |
RMS Power Handling | 1000 W |
Peak Power Handling | 4000 W |
On-axis Sensitivity 1W/1 m | 98 dB SPL |
Maximum Peak SPL at 1 m | 134 dB |
Connectors | |
Audio Input Connector | 1 x speakON NL4 |
Audio Output Connector | 1 x speakON NL4 |
Enclosure | |
Enclosure Construction | Birch Plywood |
Enclosure Geometry | Rectangular |
Rigging | M10 Rigging Points |
Finish | ISO-flex Paint |
Color | Black |
Depth | 655 mm (25,8 in) |
Dimensions ( H x W x D ) | 720 x 545 x 655 mm 28,3 x 21,5 x 25,8 in |
Net Weight | 35,0 kg ( 77,2 lb ) |
Components | |
LF Driver | 18LX |
Shipping | |
Carton Dimensions ( H x W x D ) | 820 x 616 x 726 mm 32,3 x 24,3 x 28,6 in |
Shipping Weight | 45,0 kg ( 99,2 lb ) |
