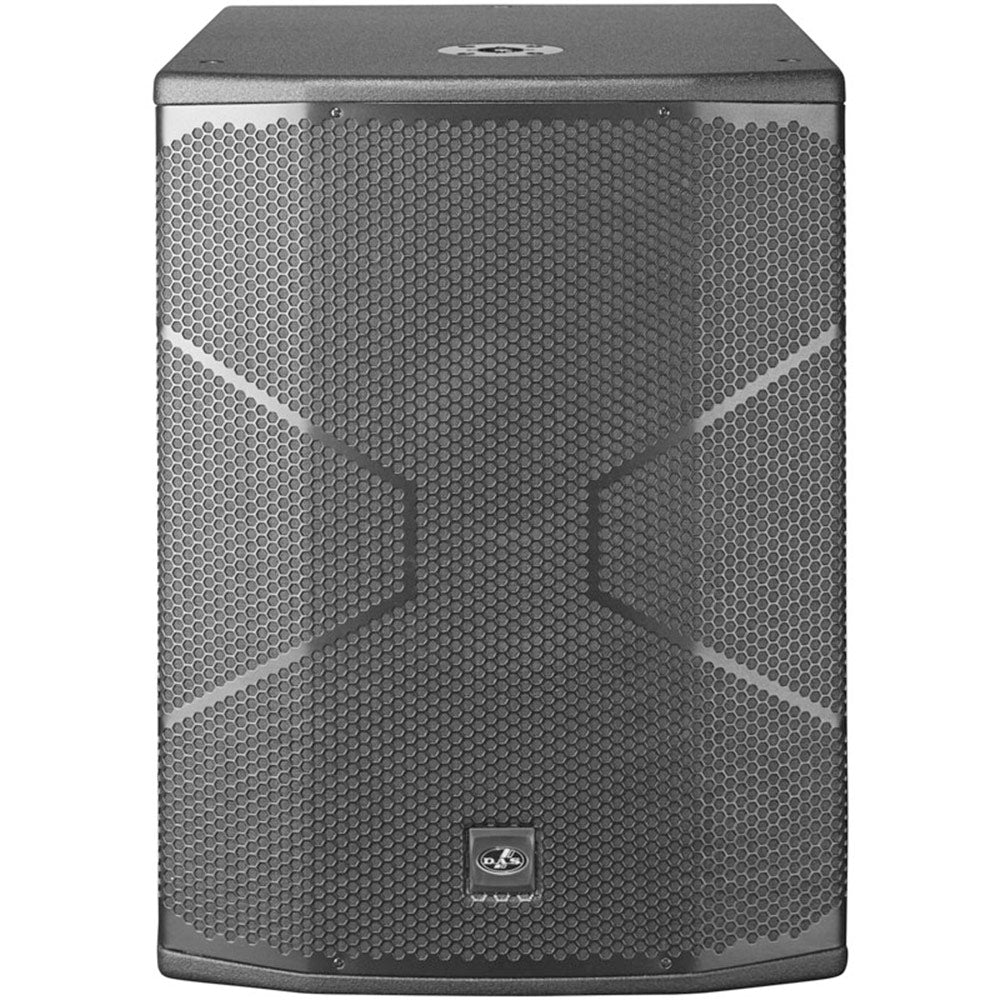

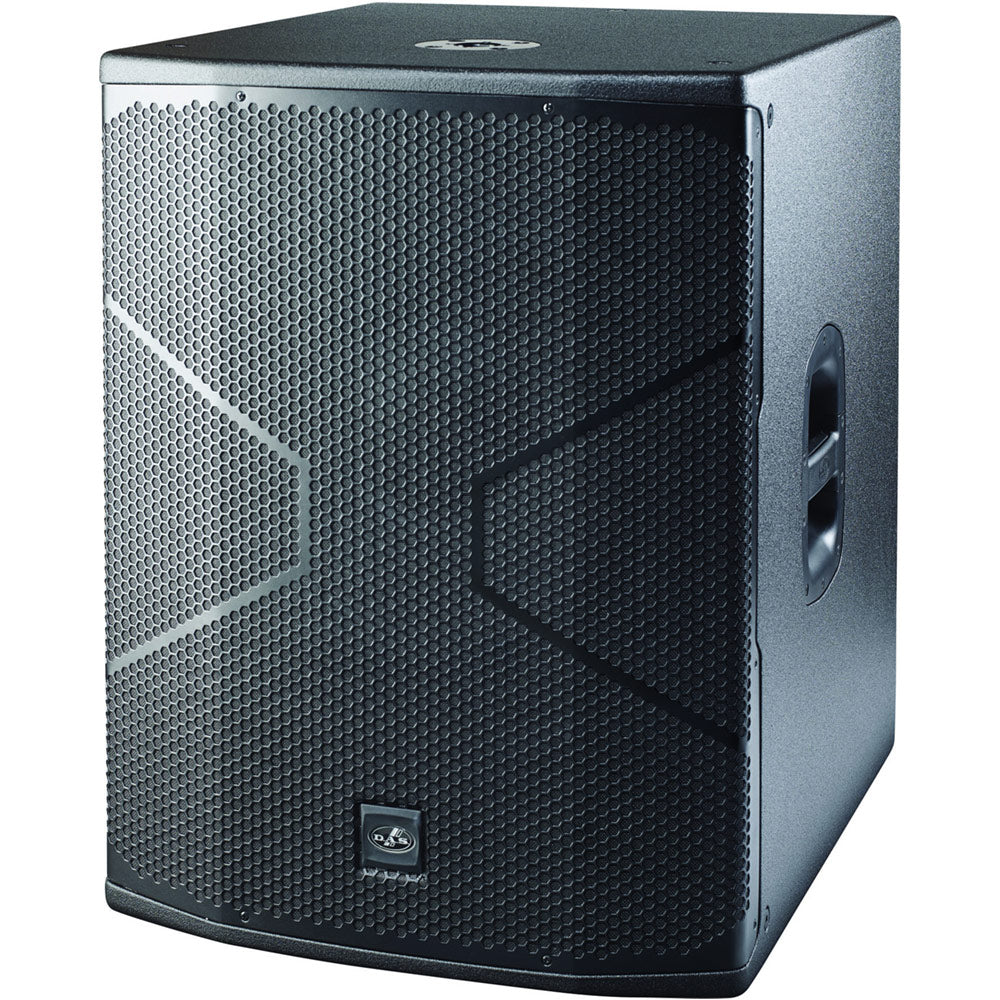

DAS VANTEC-18A - Active 18-Inch Stackable Subwoofer (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Vantec 18A is a powered subwoofer system designed to provide extended bass response for the Vantec full-range cabinets. A 1500 Wpeakadvanced Class D amplifier drives a D.A.S. 18LX long excursion loudspeaker incorporates a 4" voice coil for high power handling and output.
The Vantec 18A subwoofer system offers two balanced inputs with stereo filtered output connections for Vantec satellite systems. The variable crossover ranges from 80 Hz-125 Hz and can be defeated to offer stereo "loop thru" connections. A gain control and polarity reverse feature increase user control over the system. A standard 35 mm pole mount socket allows the Vantec 18A to be used with satellite systems.
Features:
- Powered subwoofer system
- High output 18LX loudspeaker
- Polarity switch (0º-180º)
- Filtered output defeat switch
- Variable 80-125 Hz low-pass filter
- Gain control
| Nominal LF Amplifier Power | 1500 Wpeak (Class D) |
| Frequency Range (-10 dB) | Loud: 35 Hz - 125 Hz Deep: 30 Hz - 125 Hz |
| Rated Peak SPL at 1 m | 134 dB |
| Connectors | INPUT: Female XLR LOOP THRU: Male XLR AC INPUT: powerCON |
| AC Requirements | 115 V, 50 Hz/60 Hz 230 V, 50 Hz/60 Hz |
| Enclosure Material | Birch Plywood |
| Color/Finish | Black ISO-flex Paint |
| Dimensions (H x W x D) | 71 x 54 x 65 cm 28 x 21.3 x 25.6 in |
| Weight | 36 kg (79.2 lb) |
The Vantec 18A is a powered subwoofer system designed to provide extended bass response for the Vantec full-range cabinets. A 1500 Wpeakadvanced Class D amplifier drives a D.A.S. 18LX long excursion loudspeaker incorporates a 4" voice coil for high power handling and output.
The Vantec 18A subwoofer system offers two balanced inputs with stereo filtered output connections for Vantec satellite systems. The variable crossover ranges from 80 Hz-125 Hz and can be defeated to offer stereo "loop thru" connections. A gain control and polarity reverse feature increase user control over the system. A standard 35 mm pole mount socket allows the Vantec 18A to be used with satellite systems.
Features:
- Powered subwoofer system
- High output 18LX loudspeaker
- Polarity switch (0º-180º)
- Filtered output defeat switch
- Variable 80-125 Hz low-pass filter
- Gain control
| Nominal LF Amplifier Power | 1500 Wpeak (Class D) |
| Frequency Range (-10 dB) | Loud: 35 Hz - 125 Hz Deep: 30 Hz - 125 Hz |
| Rated Peak SPL at 1 m | 134 dB |
| Connectors | INPUT: Female XLR LOOP THRU: Male XLR AC INPUT: powerCON |
| AC Requirements | 115 V, 50 Hz/60 Hz 230 V, 50 Hz/60 Hz |
| Enclosure Material | Birch Plywood |
| Color/Finish | Black ISO-flex Paint |
| Dimensions (H x W x D) | 71 x 54 x 65 cm 28 x 21.3 x 25.6 in |
| Weight | 36 kg (79.2 lb) |
