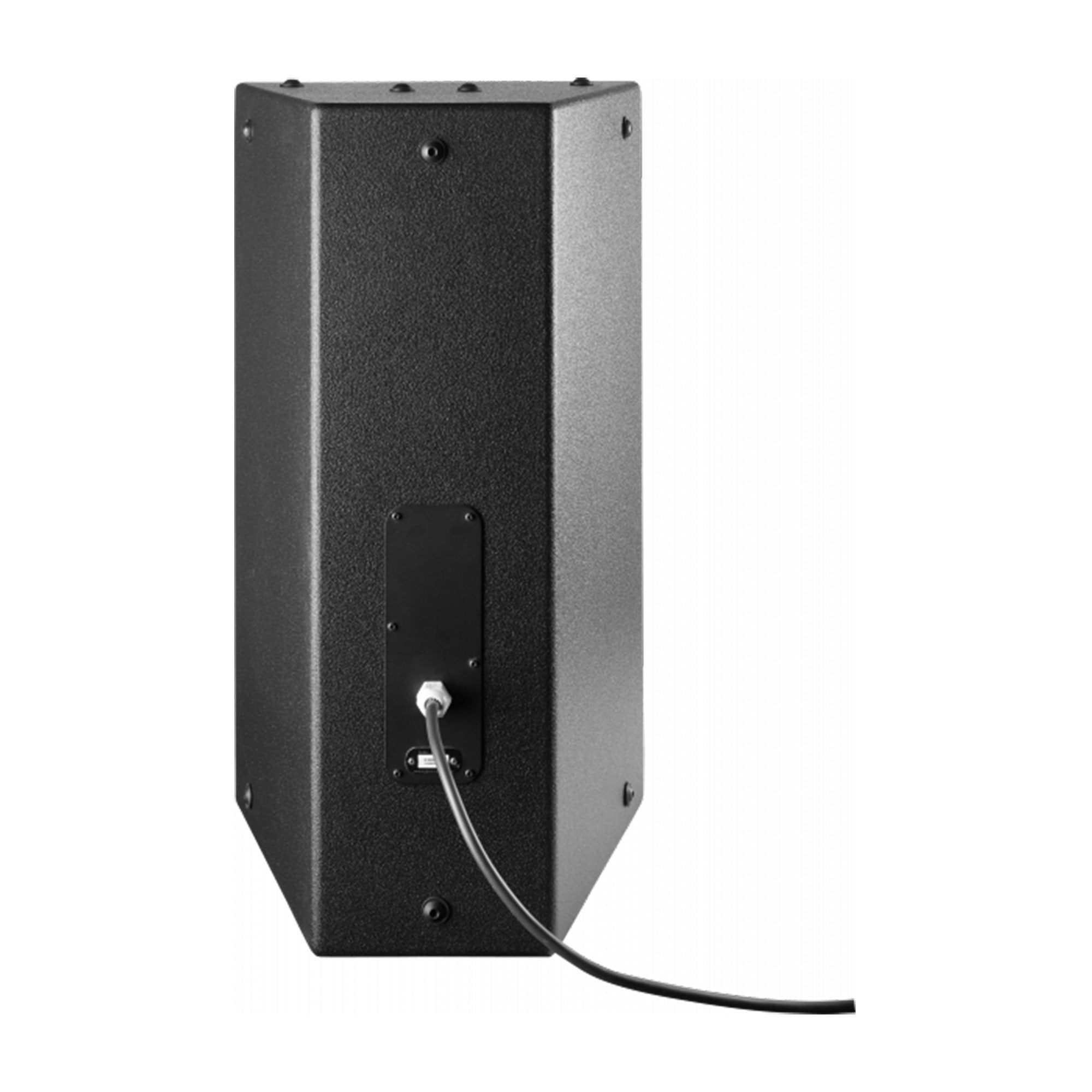

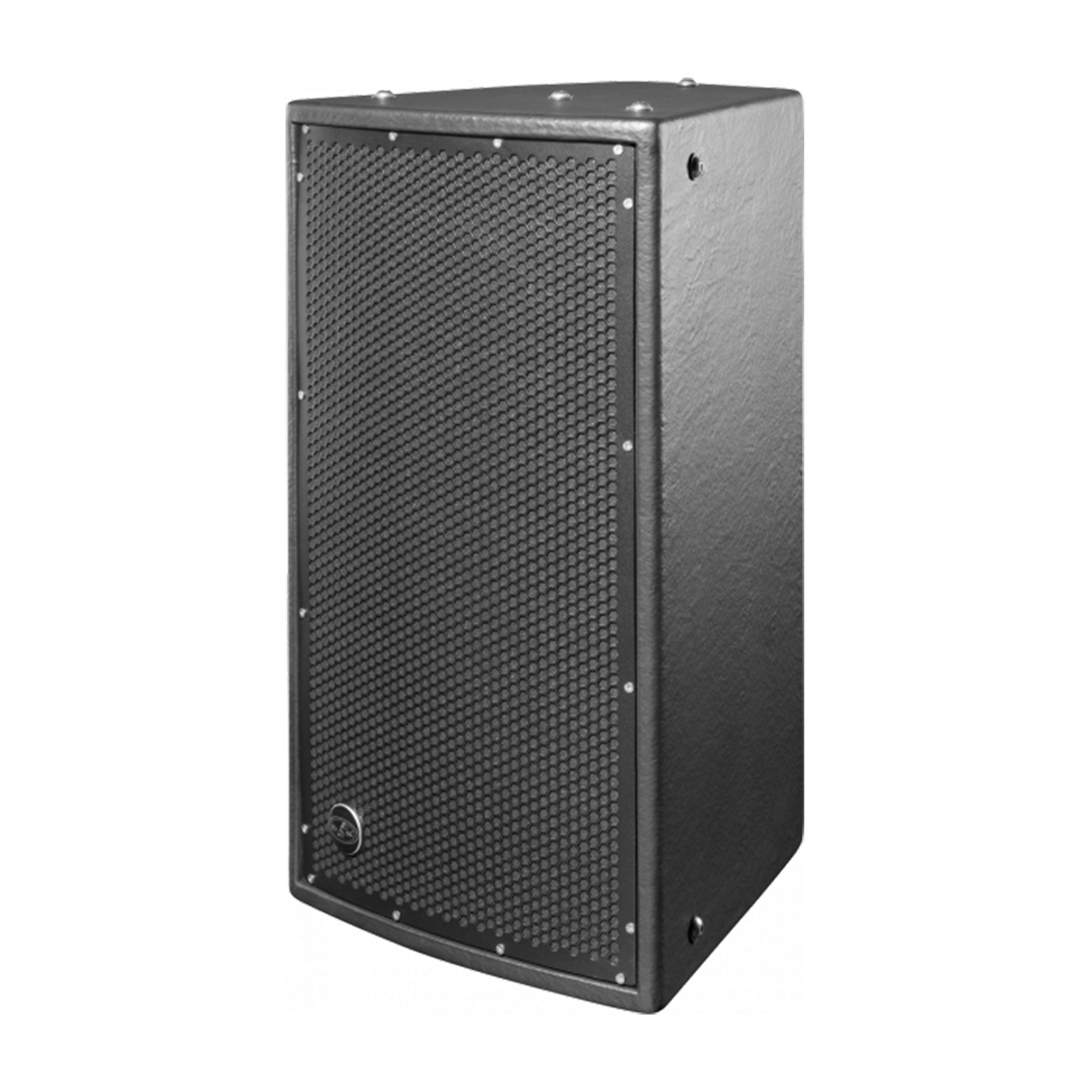

DAS WR-121S-DX - Passive 12-Inch Compact Arrayable Subwoofer (Black / Direct Exposure)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The WR (Weather Resistant) Series is expands with a compact subwoofer designed to provide extended range to the WR Series full-range cabinets. The WR-121SCX incorporates a 12 " 600 Wrms loudspeaker. The WR-121SCX offers identical enclosure dimensions to the WR-6412 for easy combination in tight packed arrays. Threaded rigging points and optional mounting hardware are available.
The WR-121S offers two exposure ratings: CX (covered exposure) for applications where cabinets are covered or protected, and DX (direct exposure) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating on the exterior surface. The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.
Features:
- Passive, 600 W, 12", compact arrayable subwoofer
- DX, IP54
- Available in black or white
- SPL Max: 130 dB
- Dispersion: Omnidirectional
- Weight: 24,0 kg ( 52,9 lb )
| Performance | |
| Frequency Range (-10 dB) | 50 Hz Ð 125 Hz |
| Nominal Impedance | Passive: 4 ohms Biamp: 8 ohms |
| RMS Power Handling | 600 W |
| Peak Power Handling | 2400 W |
| On-axis Sensitivity 1W/1 m | 96 dB SPL |
| Maximum Peak SPL at 1 m | 130 dB |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | Fiberglass |
| Color | Black |
| IP Rating | IP54 |
| Depth | 395 mm (15,6 in) |
| Dimensions ( H x W x D ) | 705 x 395 x 395 mm 27,8 x 15,6 x 15,6 in |
| Net Weight | 24,0 kg ( 52,9 lb ) |
| Components | |
| LF Driver | 12GX |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 800 x 490 x 470 mm 31,5 x 19,3 x 18,5 in |
| Shipping Weight | 32,0 kg ( 70,4 lb ) |
The WR (Weather Resistant) Series is expands with a compact subwoofer designed to provide extended range to the WR Series full-range cabinets. The WR-121SCX incorporates a 12 " 600 Wrms loudspeaker. The WR-121SCX offers identical enclosure dimensions to the WR-6412 for easy combination in tight packed arrays. Threaded rigging points and optional mounting hardware are available.
The WR-121S offers two exposure ratings: CX (covered exposure) for applications where cabinets are covered or protected, and DX (direct exposure) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating on the exterior surface. The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.
Features:
- Passive, 600 W, 12", compact arrayable subwoofer
- DX, IP54
- Available in black or white
- SPL Max: 130 dB
- Dispersion: Omnidirectional
- Weight: 24,0 kg ( 52,9 lb )
| Performance | |
| Frequency Range (-10 dB) | 50 Hz Ð 125 Hz |
| Nominal Impedance | Passive: 4 ohms Biamp: 8 ohms |
| RMS Power Handling | 600 W |
| Peak Power Handling | 2400 W |
| On-axis Sensitivity 1W/1 m | 96 dB SPL |
| Maximum Peak SPL at 1 m | 130 dB |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | Fiberglass |
| Color | Black |
| IP Rating | IP54 |
| Depth | 395 mm (15,6 in) |
| Dimensions ( H x W x D ) | 705 x 395 x 395 mm 27,8 x 15,6 x 15,6 in |
| Net Weight | 24,0 kg ( 52,9 lb ) |
| Components | |
| LF Driver | 12GX |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 800 x 490 x 470 mm 31,5 x 19,3 x 18,5 in |
| Shipping Weight | 32,0 kg ( 70,4 lb ) |
