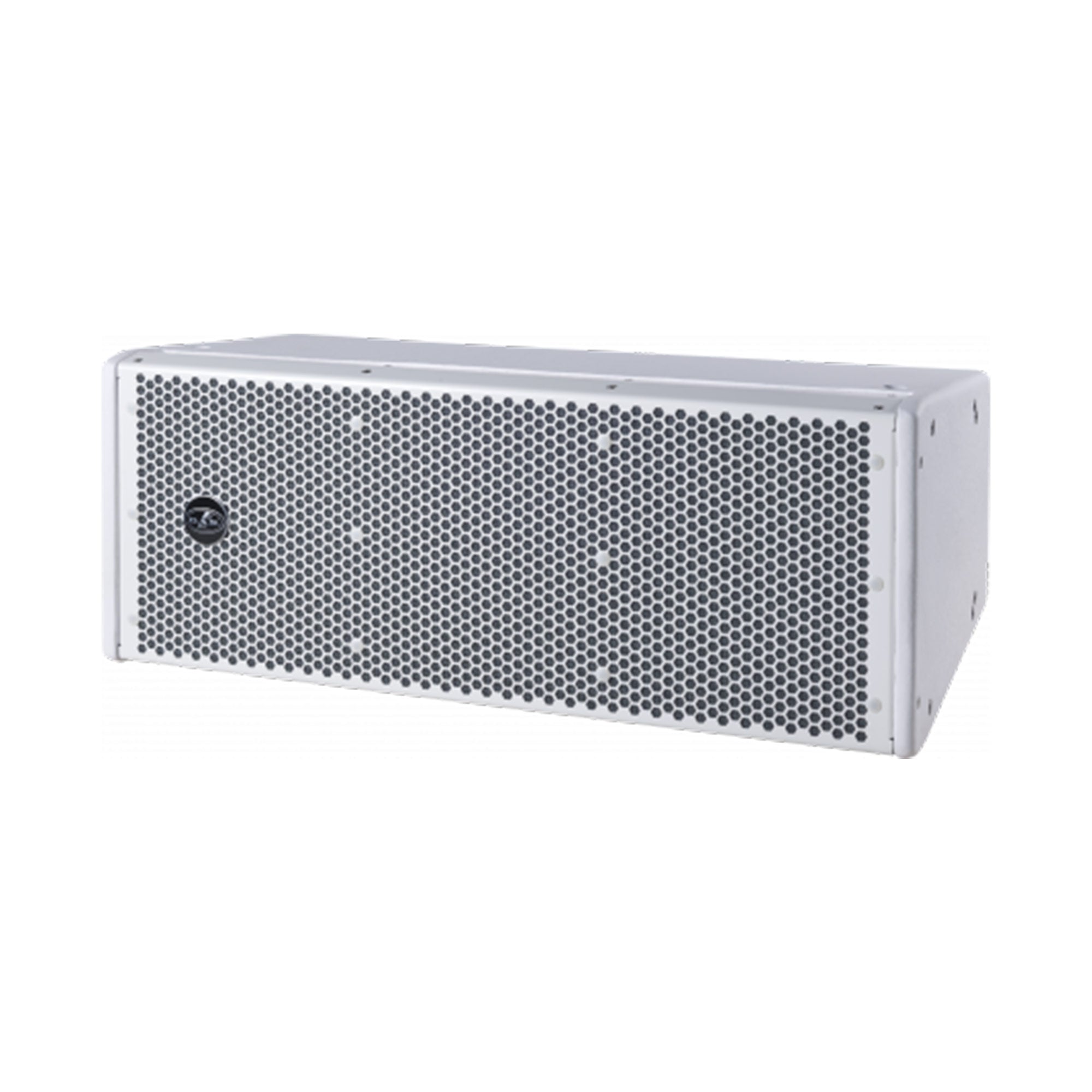

DAS WR-320-DXW - Passive 2-Way Dual 10-Inch Installation Array Loudspeaker (White / Direct Exposure)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The WR-320-DX has been designed for the outdoor installation market. The birch plywood cabinet construction offers a compact design in black.
The JP-WR320 are included.
The DX finish protects the cabinets from the elements thanks to a fibreglass exterior augmenting their weather resistance when used in direct exposure situations.
Features:
- Passive, 500 W, 2x 10", 2 way full-range installation Line Array
- DX for direct exposure
- Available in black or white
- SPL Max: 132 dB
- Dispersion: 90º
- Weight: 32,5 kg ( 71,6 lb )
| Performance | |
| Frequency Range (-10 dB) | 60 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | Splay Dependent |
| Nominal Impedance | 16 ohms |
| RMS Power Handling | 500 W |
| Peak Power Handling | 2000 W |
| On-axis Sensitivity 1W/1 m | 99 dB SPL |
| Maximum Peak SPL at 1 m | 132 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | Attachable Rigging System |
| Finish | Fiberglass |
| Color | Black |
| IP Rating | IP55 |
| Depth | 365 mm (14,4 in) |
| Dimensions ( H x W x D ) | 270 x 700 x 365 mm 10,6 x 27,6 x 14,4 in |
| Net Weight | 32,5 kg ( 71,6 lb ) |
| Components | |
| LF Driver | 10MI |
| HF Driver | M-75N |
| Horn/Waveguide | BPS-90AR |
| Shipping | |
| Shipping Weight | 35,5 kg ( 78,2 lb ) |
The WR-320-DX has been designed for the outdoor installation market. The birch plywood cabinet construction offers a compact design in black.
The JP-WR320 are included.
The DX finish protects the cabinets from the elements thanks to a fibreglass exterior augmenting their weather resistance when used in direct exposure situations.
Features:
- Passive, 500 W, 2x 10", 2 way full-range installation Line Array
- DX for direct exposure
- Available in black or white
- SPL Max: 132 dB
- Dispersion: 90º
- Weight: 32,5 kg ( 71,6 lb )
| Performance | |
| Frequency Range (-10 dB) | 60 Hz Ð 20 kHz |
| Horizontal Coverage (-6 dB) | 90¼ |
| Vertical Coverage | Splay Dependent |
| Nominal Impedance | 16 ohms |
| RMS Power Handling | 500 W |
| Peak Power Handling | 2000 W |
| On-axis Sensitivity 1W/1 m | 99 dB SPL |
| Maximum Peak SPL at 1 m | 132 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | Attachable Rigging System |
| Finish | Fiberglass |
| Color | Black |
| IP Rating | IP55 |
| Depth | 365 mm (14,4 in) |
| Dimensions ( H x W x D ) | 270 x 700 x 365 mm 10,6 x 27,6 x 14,4 in |
| Net Weight | 32,5 kg ( 71,6 lb ) |
| Components | |
| LF Driver | 10MI |
| HF Driver | M-75N |
| Horn/Waveguide | BPS-90AR |
| Shipping | |
| Shipping Weight | 35,5 kg ( 78,2 lb ) |
